Gearbox Shifting Rods And Forks

Lamborghini Diablo VT Roadster (1998-2000)

Find Your Part

Lamborghini Diablo VT Roadster (1998-2000) - Gearbox Shifting Rods and forks

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

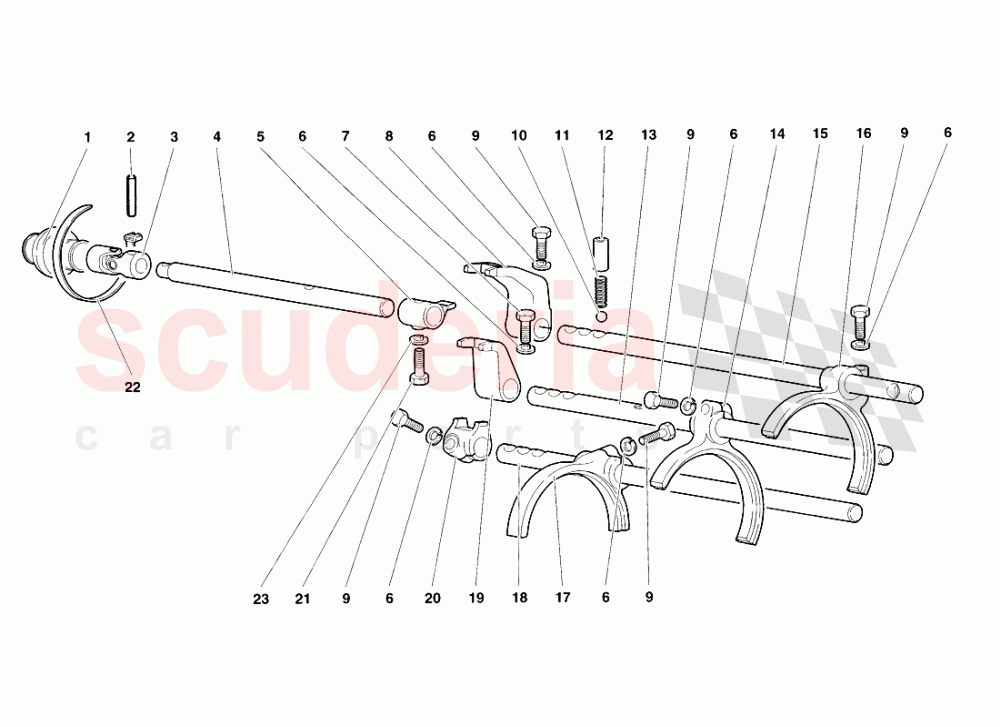

Gearbox Shifting Rods and forks of Lamborghini Lamborghini Diablo VT Roadster (1998-2000) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 2434614
BOOT
CUFFIA 		- 1 Enquire
002 8900305
PIN - SPINA
SA 		$0.25 (96.6% off) 1
003 410711613
LH JOINT
SNODO SX 		$765.80 1
004 2427211
ROD
ASTA COMANDO CAMBIO 		$307.47 (11.1% off) 1
005 2425186
SELECTOR
SELETTORE MARCE 		$160.07 (8.3% off) 1
006 8410817
WASHER
RONDELLA 		$4.44 6
007 N0124032
SCREW
VITE 		- 1 Enquire
008 2425189
SELECTOR
SELETTORE MARCE 		$193.44 (8.3% off) 1
009 8100821
SCREW
VITE 		$1.20 5
010 8910701
BALL
SFERA 		- 3 Enquire
011 86311249
SPRING
MOLLA 		$4.81 3
012 2401765
BUSHING
BOCCOLA 		$16.18 (10.6% off) 3
013 2425230
ROD
ASTA 2 - E 3 - MARCIA 		$194.06 (8% off) 1
014 2425191
FORK
FORCELLA 2 - E 3 - MARCIA 		$491.69 (7.9% off) 1
015 2425229
ROD
ASTA 1 - MARCIA E RM 		$173.89 (8.2% off) 1
016 2425190
FORK
FORCELLA 1 - MARCIA E RM 		$188.86 (8.3% off) 1
017 2425192
FORK
FORCELLA 4 - E 5 - MARCIA 		$443.33 (8.4% off) 1
018 2425231
ROD
ASTA 4 - E 5 - MARCIA 		$393.84 (11.3% off) 1
019 2425188
SELECTOR
SELETTORE MARCE 		$154.88 (8.4% off) 1
020 2425187
SELECTOR
SELETTORE MARCE 		$173.31 (8.3% off) 1
021 8100628
SCREW
VITE 		$49.49 1
022 8830305
CLAMP
FASCETTA 		$0.37 (95% off) 2
023 8410602
WASHER
RONDELLA
IN STOCK 		$41.64 1
