Pedal Mounting of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

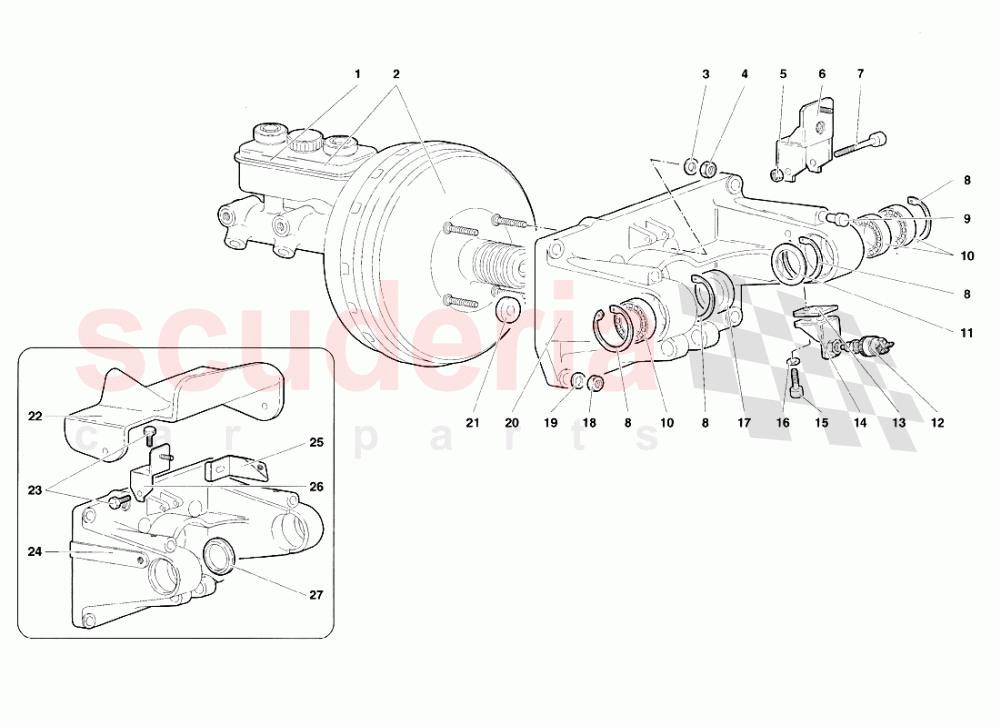

Lamborghini Diablo VT Roadster (1998-2000) - Pedal Mounting

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4236817	BRAKE-SERVO RESER.	4236817 BRAKE-SERVO RESER. SERBATOIO SERVOFRENO	$221.68	1
002	42001085	BRAKE-SERVO	42001085 BRAKE-SERVO SERVOFRENO	$408.79 MSRP: ~~444.00~~ (7.9% off)	1
003	8400801	WASHER	8400801 WASHER RONDELLA	$0.63	4
004	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	4
005	N01152427	WASHER IN STOCK	N01152427 WASHER DADO IN STOCK	$0.28	2
006	4231515	SUPPORT - SUPPORTO	4231515 SUPPORT - SUPPORTO O	$39.04 MSRP: ~~42.45~~ (8% off)	1
007	8700644	SCREW	8700644 SCREW VITE	$0.34 MSRP: ~~7.34~~ (95.4% off)	2
008	8573701	RETAINING RING	8573701 RETAINING RING ANELLO RITEGNO	$0.59 MSRP: ~~7.26~~ (91.9% off)	4
009	410721381	STOP	410721381 STOP	$79.58	2
010	8502513	BEARING	8502513 BEARING CUSCINETTO	$33.92 MSRP: ~~38.20~~ (11.2% off)	3
011	8402507	WASHER	8402507 WASHER RONDELLA	$25.98 MSRP: ~~29.15~~ (10.9% off)	1
012	42001192	ABS SWITCH	42001192 ABS SWITCH INTERRUTTORE ABS	$22.46 MSRP: ~~25.25~~ (11% off)	1
013	42001530	SPACER	42001530 SPACER DISTANZIALE	-	1	Enquire
014	42001489	SUPPORT - SUPPORTO	42001489 SUPPORT - SUPPORTO O	$29.77 MSRP: ~~33.55~~ (11.3% off)	1
015	8700644	SCREW	8700644 SCREW VITE	$0.34 MSRP: ~~7.34~~ (95.4% off)	2
016	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
017	4230923	SPACER	4230923 SPACER DISTANZIALE	$26.49 MSRP: ~~29.85~~ (11.3% off)	1
018	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.08 MSRP: ~~7.28~~ (85.2% off)	4
019	8400801	WASHER	8400801 WASHER RONDELLA	$0.63	4
020	4233483	PEDALS SUPPORT	4233483 PEDALS SUPPORT SUPPORTO PEDALIERA	$769.22 MSRP: ~~867.00~~ (11.3% off)	1
021	42000931	SPACER	42000931 SPACER DISTANZIALE	$32.96 MSRP: ~~37.05~~ (11% off)	4
022	4332774	SHIELD	4332774 SHIELD (Valid for U.K.1998) PROTEZIONE	-	1	Enquire
023	8700644	SCREW	8700644 SCREW (Valid for U.K.1998) VITE	$0.34 MSRP: ~~7.34~~ (95.4% off)	2
024	4233485	PEDALS SUPPORT	4233485 PEDALS SUPPORT (Valid for U.K.1998) SUPPORTO PEDALIERA	$1,039.84 MSRP: ~~1,175.00~~ (11.5% off)	1
025	4234610	SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO	4234610 SUPPORT - (Valid for R.H.D. version - April 1994) SUPPORTO (Valid for U.K.1998) O	-	1	Enquire
026	4232996	PLATE	4232996 PLATE (Valid for U.K.1998) PIASTRINA	$42.26 MSRP: ~~47.55~~ (11.1% off)	1
027	4232777	SPACER	4232777 SPACER (Valid for U.K.1998) DISTANZIALE	-	1	Enquire
