Gearbox Control Tower of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

Lamborghini Diablo VT Roadster (1998-2000) - Gearbox Control Tower

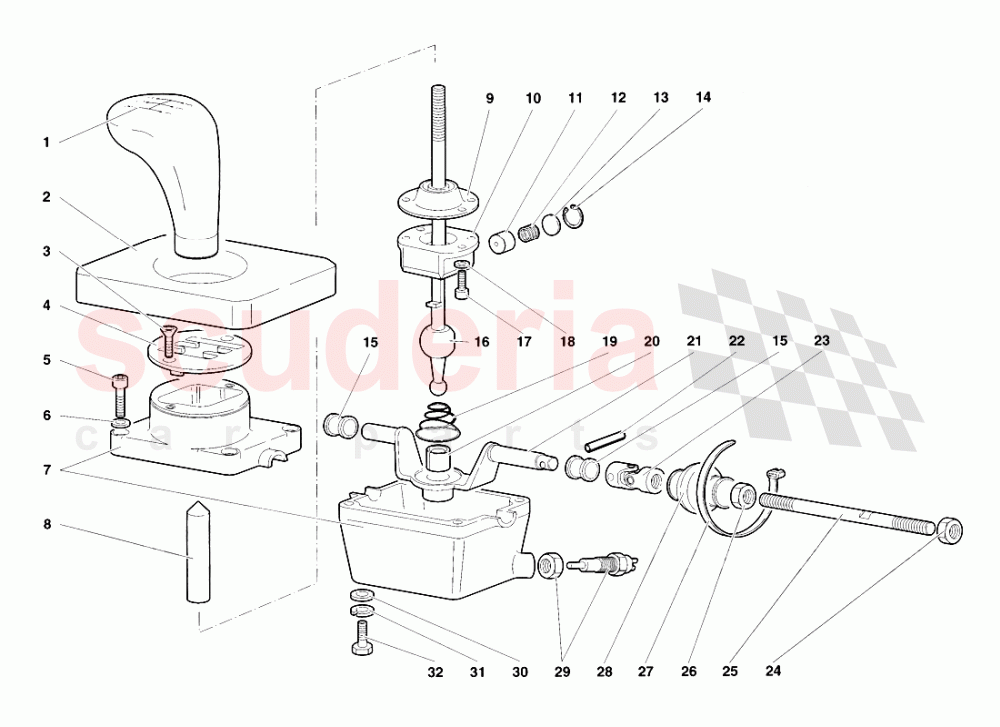

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	24005195	KNOB	24005195 KNOB	$599.83	1
002	2431785	FLEX PAD	2431785 FLEX PAD SPESSORE IN GOMMA	-	1	Enquire
003	8740613	SCREW IN STOCK	8740613 SCREW VITE IN STOCK	$0.26 MSRP: ~~7.34~~ (96.5% off)	2
004	2433874	PLATE	2433874 PLATE PIASTRADISELEZIONE	$1,214.47	1
005	8700804	SCREW IN STOCK	8700804 SCREW VITE IN STOCK	$1.52 MSRP: ~~7.33~~ (79.3% off)	4
006	WHT000771	WASHER IN STOCK	WHT000771 WASHER RONDELLA IN STOCK	$1.10	4
007	240132003	CASE	240132003 CASE SCATOLA	$1,515.91 MSRP: ~~1,660.00~~ (8.7% off)	1
008	2438011	ADAPTER KNOB	2438011 ADAPTER KNOB ADATTATORE POMELLO	$36.90 MSRP: ~~40.05~~ (7.9% off)	1
009	2433043	BOOT	2433043 BOOT CUFFIA	$110.70	1
010	2434091	BALL SOCKFT	2434091 BALL SOCKFT SEDE SFERICA	$223.64 MSRP: ~~243.50~~ (8.2% off)	1
011	2427202	CYLINDER	2427202 CYLINDER CILINDRO	$78.98	1
012	2432167	SPRING	2432167 SPRING MOLLA	$11.31 MSRP: ~~12.70~~ (10.9% off)	1
013	2427204	PLUG	2427204 PLUG PIASTRINA	$9.58 MSRP: ~~10.40~~ (7.9% off)	1
014	8572201	RETAINER RING IN STOCK	8572201 RETAINER RING ANELLO RITEGNO IN STOCK	$0.07 MSRP: ~~7.38~~ (99.1% off)	1
015	2433020	BUSHING	2433020 BUSHING BOCCOLA	$72.92	2
016	2433008	LEVER	2433008 LEVER LEVA	$1,250.77 MSRP: ~~1,395.00~~ (10.3% off)	1
017	8700646	SCREW IN STOCK	8700646 SCREW VITE IN STOCK	$0.15 MSRP: ~~7.37~~ (98% off)	4
018	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.69	4
019	2429160	SPRING	2429160 SPRING MOLLA	$159.38	1
020	2427207	BUSHING	2427207 BUSHING BOCCOLA	$298.58	1
021	2429161	SHAFT	2429161 SHAFT ALBERO	$283.02 MSRP: ~~308.00~~ (8.1% off)	1
022	8900305	PIN - SPINA	8900305 PIN - SPINA SA	$0.25 MSRP: ~~7.35~~ (96.6% off)	1
023	410711615	RH JOINT	410711615 RH JOINT SNODO DX	$1,013.84	1
024	8201224	NUT	8201224 NUT DADO SX	-	1	Enquire
025	2434472	TIE ROD	2434472 TIE ROD TIRANTE	$36.32 MSRP: ~~39.45~~ (7.9% off)	1
026	8201223	NUT	8201223 NUT DADO DX	-	1	Enquire
027	8830305	CLAMP	8830305 CLAMP FASCETTA	$0.37 MSRP: ~~7.33~~ (95% off)	2
028	2434614	BOOT	2434614 BOOT CUFFIA	-	1	Enquire
029	2408637	SWITCH	2408637 SWITCH INTERRUTTORE RETROMARCIA	$108.95	1
030	8400801	WASHER	8400801 WASHER RONDELLA	$0.64	4
031	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	4
032	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	$2.25 MSRP: ~~7.23~~ (68.9% off)	4
