Driveshafts and Propeller Shaft of Lamborghini Lamborghini Diablo VT Roadster (1998-2000)

View All

Lamborghini Diablo VT Roadster (1998-2000) - Driveshafts and Propeller Shaft

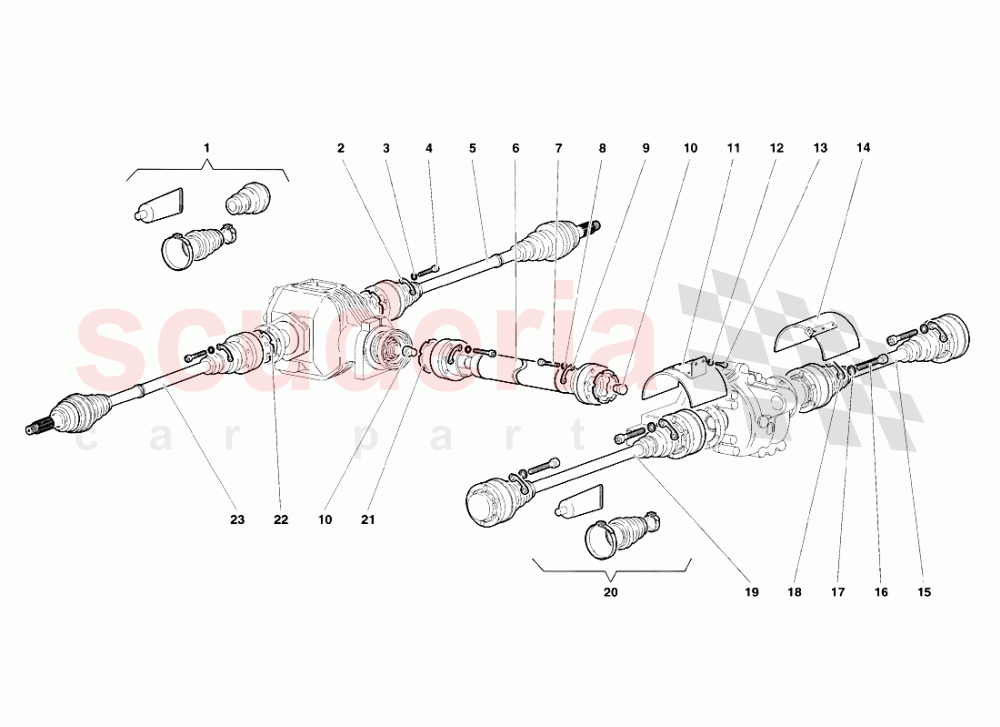

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2534887	BOOT KIT	2534887 BOOT KIT (Valid for 4WD only) KIT CUFFIA	$236.38	1
002	2534274	PLATE	2534274 PLATE (Valid for 4WD only) PIASTRINA	$8.77	6
003	WHT000771	WASHER IN STOCK	WHT000771 WASHER (Valid for 4WD only) RONDELLA IN STOCK	$1.11	12
004	8700802	SCREW	8700802 SCREW (Valid for 4WD only) VITE	$0.91 MSRP: ~~7.23~~ (87.4% off)	12
005	2534283	RIGHT HALF SHAFT	2534283 RIGHT HALF SHAFT (Valid for 4WD only) SEMIASSE DESTRO ANT.	$2,545.63 MSRP: ~~2,855.00~~ (10.8% off)	1
006	2234277	PROPELLER SHAFT	2234277 PROPELLER SHAFT (Valid for 4WD only) ALBERO TRASMISSIONE	$3,017.05	1
007	8700802	SCREW	8700802 SCREW (Valid for 4WD only) VITE	$0.91 MSRP: ~~7.23~~ (87.4% off)	12
008	WHT000771	WASHER IN STOCK	WHT000771 WASHER (Valid for 4WD only) RONDELLA IN STOCK	$1.11	12
009	2234273	PLATE	2234273 PLATE (Valid for 4WD only) PIASTRINA	$8.34 MSRP: ~~9.05~~ (7.8% off)	6
010	2334235	RUBBER	2334235 RUBBER (Valid for 4WD only) TAMPONE GOMMA	$10.52 MSRP: ~~11.45~~ (8.1% off)	2
011	2530901	SHIELD	2530901 SHIELD PROTEZIONE	$169.12 MSRP: ~~183.50~~ (7.8% off)	1
012	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.75	2
013	8700644	SCREW	8700644 SCREW VITE	$0.35 MSRP: ~~7.34~~ (95.2% off)	2
014	2530896	Shield	2530896 Shield PROTEZIONE	$638.29	1
015	25001631	RIGHT HALF SHAFT	25001631 RIGHT HALF SHAFT SEMIASSE DESTRO POST.	-	1	Enquire
016	N10667901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10 X 55 IN STOCK	N10667901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD M10 X 55 VITE IN STOCK	$2.99	24
017	8411011	WASHER IN STOCK	8411011 WASHER RONDELLA IN STOCK	$0.07 MSRP: ~~7.38~~ (99.1% off)	24
018	2533290	PLATE	2533290 PLATE PIASTRINA	$13.48	12
019	25001630	LEFT HALF SHAFT	25001630 LEFT HALF SHAFT SEMIASSE SINISTRO POST.	-	1	Enquire
020	2537315	BOOT KIT	2537315 BOOT KIT KIT CUFFIA	$130.47 MSRP: ~~141.50~~ (7.8% off)	1
021	2234523	GASKET	2234523 GASKET (Valid for 4WD only) GUARNIZIONE	$37.99	2
022	2534666	GASKET	2534666 GASKET (Valid for 4WD only) GUARNIZIONE	$63.17 MSRP: ~~68.40~~ (7.6% off)	2
023	2534284	LEFT HALF SHAFT	2534284 LEFT HALF SHAFT (Valid for 4WD only) SEMIASSE SINISTRO ANT.	$761.97 MSRP: ~~826.00~~ (7.8% off)	1
