Gearbox

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Gearbox

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

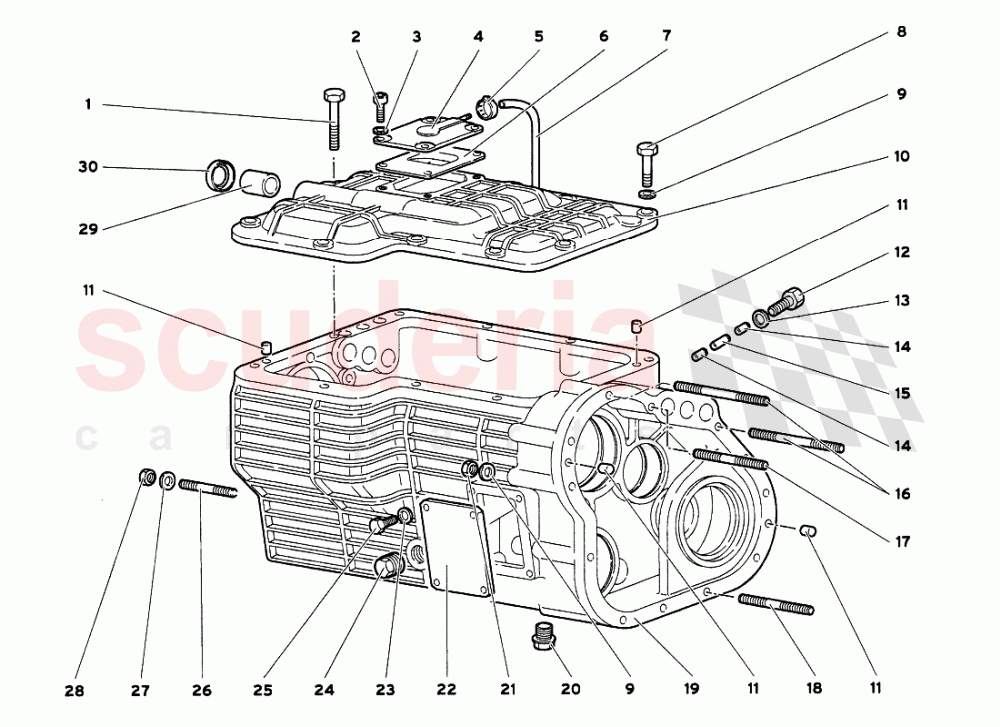

Gearbox of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
000 24Y1S1320
Gearbox 		- 1 Enquire
001 8100807
SCREW 		$0.78 (89.3% off) 1
002 8700644
SCREW 		$0.35 (95.2% off) 4
003 8410602
WASHER
IN STOCK 		$41.86 4
004 2428645
COVER 		$118.65 (7.7% off) 1
005 8830128
CLAMP 		$0.43 1
006 2428643
PAN 		$19.35 (7.6% off) 1
007 2428649
VENT PIPE 		- 1 Enquire
008 8100821
SCREW 		$1.21 9
009 WHT000771
WASHER
IN STOCK 		$1.11 22
010 2424900
COVER 		$513.88 (7.7% off) 1
011 8850806
DOWEL 		- 4 Enquire
012 N01029315
SCREW (FROM VIN 5LA01545) 		$2.26 (68.7% off) 1
013 8400818
WASHER 		- 1 Enquire
014 2425223
ROD 		$26.11 (7.7% off) 2
015 2425224
ROD 		$26.78 (7.7% off) 1
016 8300895
STUD 		$7.53 (10.4% off) 2
017 8300897
STUD 		$13.91 (10.3% off) 1
018 8300916
STUD 		$4.85 (8.5% off) 9
019 2430746
GEAR BOX CASE 		$3,182.72 (7.5% off) 1
020 86301141A
MAGNETIC PLUG 		$35.00 1
021 N01100845
HEXAGON NUT
IN STOCK 		$1.94 12
022 2435931
COVER 		$30.62 (7.6% off) 1
023 8410602
WASHER
IN STOCK 		$41.86 4
024 86301141A
MAGNETIC PLUG 		$35.00 1
025 8100601
SCREW 		$0.25 4
026 8300627
STUD 		$12.11 (10.3% off) 6
027 8410602
WASHER
IN STOCK 		$41.86 6
028 N01100637
NUT M6
IN STOCK 		$0.30 (95.9% off) 6
029 8801612
BUSHING 		- 1 Enquire
030 8614804
SEAL 		- 1 Enquire
