Front Differential Case

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Front Differential Case

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

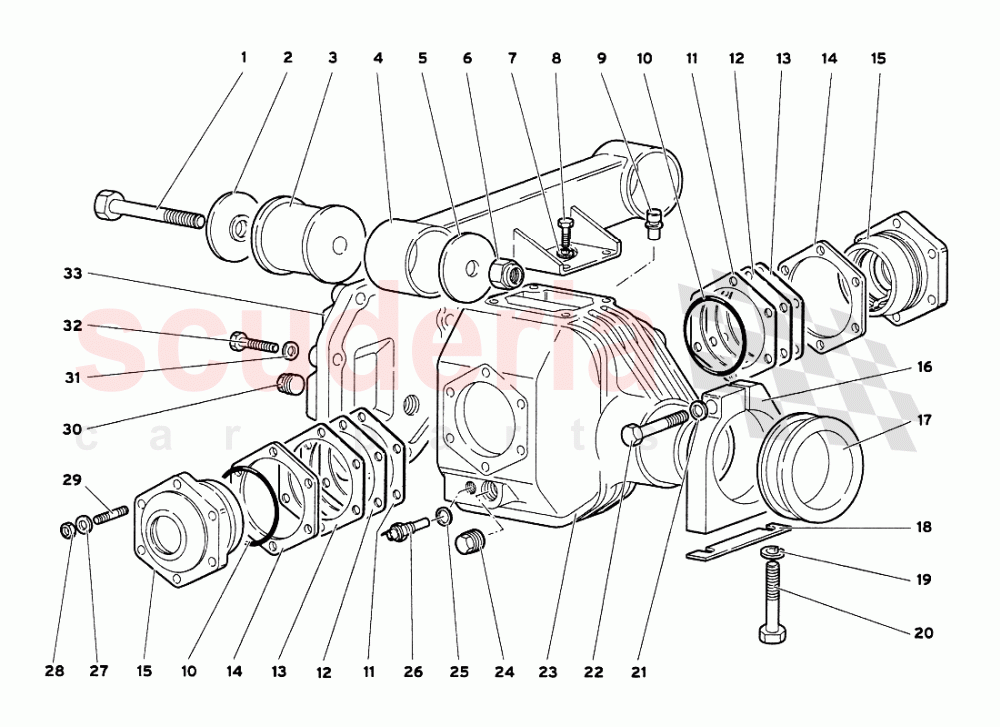

Front Differential Case of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 8101434
SCREW 		$2.62 (6.4% off) 2
002 41006548
WASHER 		$9.54 (8.3% off) 2
003 B9501144
support mount
IN STOCK 		$187.31 (1.7% off) 2
004 2326142
SUPPORT - SUPPORTO 		$210.48 (7.7% off) 1
005 8401415
WASHER 		$15.39 2
006 8201407
NUT 		$2.20 (12% off) 2
007 WHT000771
WASHER
IN STOCK 		$1.11 4
008 N01029315
SCREW (FROM VIN 5LA01545) 		$2.26 (68.7% off) 4
009 B9507141
OIL BREATHER PIPE 		$65.00 1
010 WHT002158
SEAL RING 		$19.62 2
011 2334027
SHIM 		- 1 Enquire
011 2336158
SHIM 		- 1 Enquire
012 23002142
SHIM 		- 1 Enquire
013 23002122
SHIM 		- 1 Enquire
014 2334026
SHIM 		- 2 Enquire
015 2334044
FLANGE 		$202.96 (7.5% off) 2
016 2325441
CLAMP 		$249.22 (7.7% off) 1
017 400399177
COLLAR 		$127.75 1
018 4134398
SHIM 		$9.90 (7.9% off) 1
018 4134397
SHIM 		$9.90 (7.9% off) 1
019 WHT000768
WASHER
IN STOCK 		$1.83 (74.9% off) 2
020 8101031
SCREW 		$0.86 (88.1% off) 2
021 WHT000768
WASHER
IN STOCK 		$1.83 (74.9% off) 1
022 8101018
SCREW 		$0.53 (92.7% off) 1
023 2325400
CASE 		$3,394.14 (7.6% off) 1
024 86301141A
MAGNETIC PLUG 		$34.97 1
025 8401425
WASHER 		- 1 Enquire
026 6033681
TEMPERATURE SENS. 		- 1 Enquire
027 WHT000771
WASHER
IN STOCK 		$1.11 12
028 N01100845
HEXAGON NUT
IN STOCK 		$1.94 12
029 8300922
STUD 		$3.20 (8.6% off) 12
030 86301141A
MAGNETIC PLUG 		$34.97 1
031 WHT000771
WASHER
IN STOCK 		$1.11 8
032 8100821
SCREW 		$1.20 8
033 2325401
COVER 		$223.78 (7.7% off) 1
