Gearbox Shifting Rods And Forks

Lamborghini Diablo VT 6.0 (2000-2001)

Find Your Part

Lamborghini Diablo VT 6.0 (2000-2001) - Gearbox Shifting Rods and forks

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

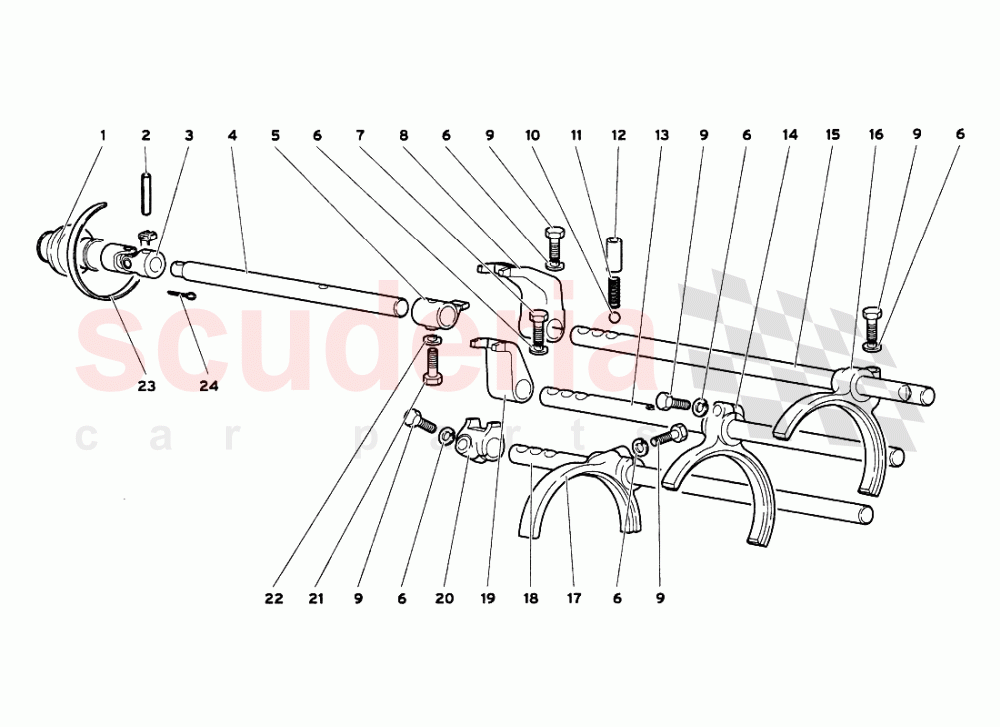

Gearbox Shifting Rods and forks of Lamborghini Lamborghini Diablo VT 6.0 (2000-2001) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 2434614
BOOT 		- 1 Enquire
002 8900305
PIN - SPINA 		$0.25 (96.6% off) 1
003 410711613
LH JOINT 		$770.16 1
004 2427211
ROD 		$309.21 (10.6% off) 1
005 2425186
SELECTOR 		$160.98 (7.7% off) 1
006 8410817
WASHER 		$4.47 6
007 8100878
SCREW 		$0.32 (95.6% off) 1
008 2425189
SELECTOR 		$194.54 (7.8% off) 1
009 8100821
SCREW 		$1.21 5
010 8910701
BALL 		- 3 Enquire
011 86311249
SPRING 		$4.84 3
012 2401765
BUSHING 		$16.27 (10.1% off) 3
013 2425230
ROD 		$195.16 (7.5% off) 1
014 2425191
FORK 		$494.49 (7.4% off) 1
015 2425229
ROD 		$174.87 (7.7% off) 1
016 2425190
FORK 		$189.94 (7.8% off) 1
017 2425192
FORK 		$445.85 (7.9% off) 1
018 2425231
ROD 		$396.08 (10.8% off) 1
019 2425188
SELECTOR 		$155.76 (7.8% off) 1
020 2425187
SELECTOR 		$174.29 (7.8% off) 1
021 8100628
SCREW 		$49.77 1
022 8410602
WASHER
IN STOCK 		$41.88 1
023 8830305
CLAMP 		$0.37 (95% off) 2
024 8900501
PIN - SPINA 		$5.28 (9% off) 1
