Crankcase and Lower Mounting (Valid for June 1992 Version) of Lamborghini Lamborghini Diablo (1990-1998)

View All

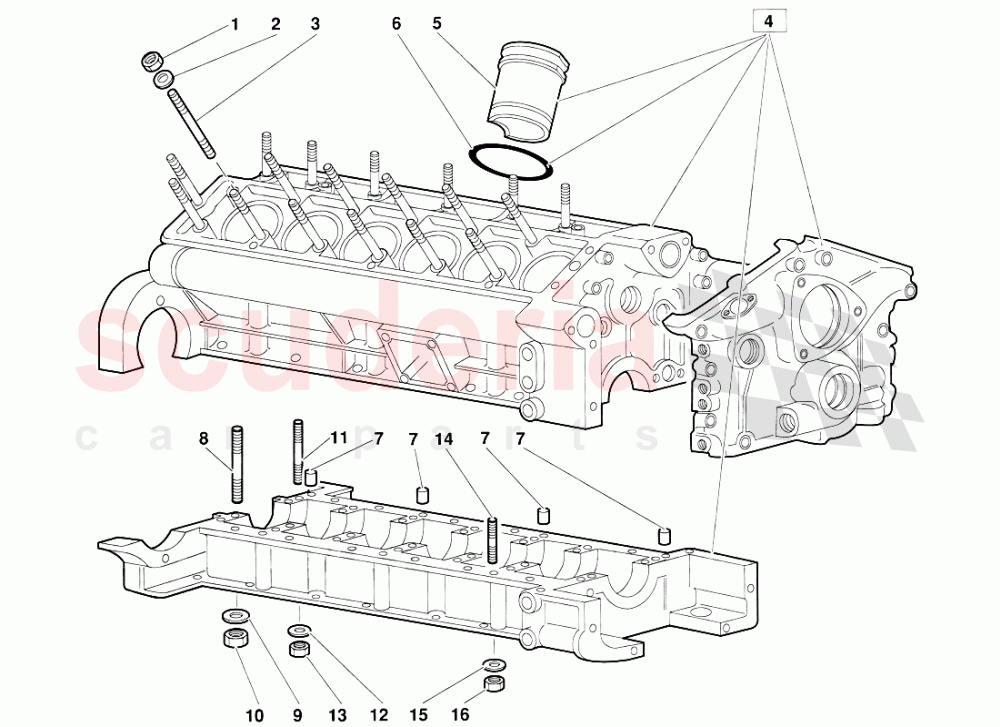

Lamborghini Diablo (1990-1998) - Crankcase and Lower Mounting (Valid for June 1992 Version)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1120924	CAP NUT IN STOCK	1120924 CAP NUT (Valid for June 1992 version) DADO IN STOCK	$33.88 MSRP: ~~38.15~~ (11.2% off)	28
002	8401230	WASHER IN STOCK	8401230 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$53.98	28
003	1824761	STUD BOLT	1824761 STUD BOLT (Valid for June 1992 version) PRIGIONIERO TESTE	$95.31	28
004	403400100	CRANKCASE	403400100 CRANKCASE (Valid for June 1992 version) BASAMENTO COMPLETO Dl CANNE, COPERCHIO DISTRIB. E SOTTOCOPPA (Per esigenze di lavorazione e stato aggiunto a questo assieme il coperchio distribuzione)	$19,866.35	1
005	1829442	CYLINDER	1829442 CYLINDER (Valid for June 1992 version) CILINDRO	$439.02 MSRP: ~~479.00~~ (8.3% off)	12
006	WHT003085	SEAL RING	WHT003085 SEAL RING (Valid for June 1992 version) ANELLO TENUTA	$4.11 MSRP: ~~7.06~~ (41.8% off)	12
007	8851105	DOWEL	8851105 DOWEL (Valid for June 1992 version) GRANO	-	4	Enquire
008	8301238	STUD BOLT	8301238 STUD BOLT (Valid for June 1992 version) PRIGIONIEROD= 12 MM	$15.61	14
009	8401227	WASHER	8401227 WASHER (Valid for June 1992 version) RONDELLA	$15.61	14
010	8201221	NUT	8201221 NUT (Valid for June 1992 version) DADO	$3.01	14
011	8300886	STUD	8300886 STUD (Valid for June 1992 version) PRIGIONIEROD = 8MM	$41.33	14
012	8400820	WASHER	8400820 WASHER (Valid for June 1992 version) RONDELLA	$16.61	14
013	8200805	NUT	8200805 NUT (Valid for June 1992 version) DADO	$0.12	14
014	8100871	SCREW	8100871 SCREW (Valid for June 1992 version) VITE L= 95 MM	$3.86 MSRP: ~~4.30~~ (10.2% off)	1
014	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	$5.64	2
014	8300884	STUD	8300884 STUD (Valid for June 1992 version) PRIGIONIEROL=95MM	$30.99 MSRP: ~~34.85~~ (11.1% off)	1
014	WHT003028	THREADED PIN	WHT003028 THREADED PIN (Valid for June 1992 version) PRIGIONIEROL=25MM	$20.71	10
015	8410815	WASHER	8410815 WASHER (Valid for June 1992 version) RONDELLA	$0.21 MSRP: ~~7.37~~ (97.2% off)	14
016	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT (Valid for June 1992 version) DADO IN STOCK	$1.93	14
