Timing System 1 of Lamborghini Lamborghini Diablo (1990-1998)

View All

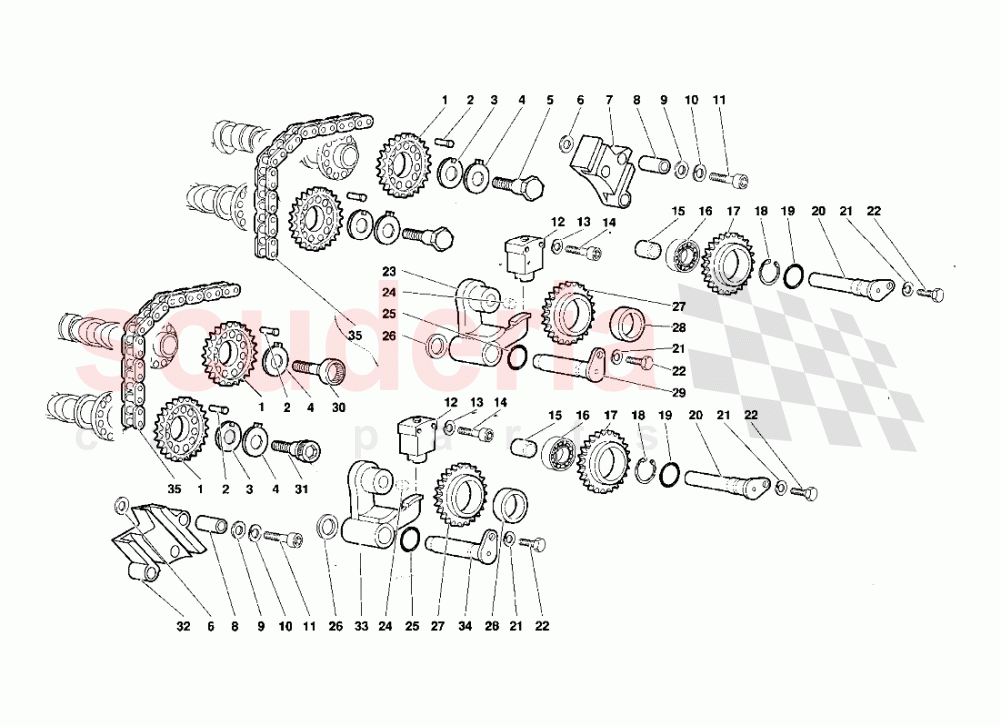

Lamborghini Diablo (1990-1998) - Timing System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1224809	GEAR	1224809 GEAR INGRANAGGIO	$3,754.04	4
002	1201964	DOWEL	1201964 DOWEL GRAND	$77.07	4
003	1219761	WASHER	1219761 WASHER DISTANZIALE	$86.28 MSRP: ~~97.00~~ (11.1% off)	3
004	1219762	LOCKPLATE	1219762 LOCKPLATE PIASTRINA SICUREZZA	$40.89 MSRP: ~~44.35~~ (7.8% off)	4
005	1225771	SCREW	1225771 SCREW VITE	$276.80	2
006	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	4
007	1231720	LEFT BRAKE PAD	1231720 LEFT BRAKE PAD GUIDA CATENA	$67.96	1
008	1231087	BUSHING	1231087 BUSHING BOCCOLA	$9.58	4
009	1231040	WASHER	1231040 WASHER RONDELLA	-	4	Enquire
010	8410820	WASHER	8410820 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	4
011	8700844	SCREW	8700844 SCREW VITE	$0.58	4
012	1222770	CHAIN STRETCHER	1222770 CHAIN STRETCHER TENDICATENA	$610.89	2
013	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	4
014	8700829	SCREW	8700829 SCREW VITE	$5.41	4
015	1225046	SPACER	1225046 SPACER DISTANZIALE	$29.47	2
016	8501204	BEARING	8501204 BEARING CUSCINETTO	$6.28	2
017	1224991	GEAR	1224991 GEAR INGRANAGGIO	$520.72	2
018	8573203	RETAINER RING	8573203 RETAINER RING ANELLO RITEGNO	$5.61	2
019	8601103	SEAL	8601103 SEAL ANELLO TENUTA	$9.81	2
020	1228095	PIN	1228095 PIN PERNO	$426.73	2
021	WHT003052	WASHER 4,3 IN STOCK	WHT003052 WASHER 4,3 RONDELLA IN STOCK	$3.51 MSRP: ~~7.38~~ (52.4% off)	4
022	8100607	SCREW	8100607 SCREW VITE	$5.41	4
023	1230907	ROCKER	1230907 ROCKER BILANCIERE SINISTRQ	$573.08	1
024	8930803	PLUG	8930803 PLUG TAPPO	$0.70	2
025	8601303	SEAL	8601303 SEAL ANELLO TENUTA	$0.54	2
026	8401234	WASHER	8401234 WASHER DISTANZIALE	$1.56 MSRP: ~~7.11~~ (78.1% off)	2
027	1224810	GEAR	1224810 GEAR INGRANAGGIO	$1,229.82	2
028	1225275	BUSHING	1225275 BUSHING BOCCOLA	$15.08	2
029	1232020	LEFT PIN	1232020 LEFT PIN PERNO PER TENDICATENA SX	$272.75	1
030	1225448	SCREW	1225448 SCREW VITE CON TRAINO	$455.57	1
031	1228419	SCREW	1228419 SCREW VITE CON TRAINO	$402.52	1
032	1231719	RIGHT BRAKE PAD	1231719 RIGHT BRAKE PAD GUIDA CATENA	$64.58	1
033	1231651	ROCKER	1231651 ROCKER BILANCIERE PER TENDICATENA DX	$573.08	1
034	1232021	RIGHT PIN	1232021 RIGHT PIN PERNO PER TENDICATENA DESTRO	$272.75	1
035	1231564	TIMING CHAIN	1231564 TIMING CHAIN CATENA Dl DISTRIBUZIONE	$570.89	2
