Accessories for Left Cylinder Head of Lamborghini Lamborghini Diablo (1990-1998)

View All

Lamborghini Diablo (1990-1998) - Accessories for Left Cylinder Head

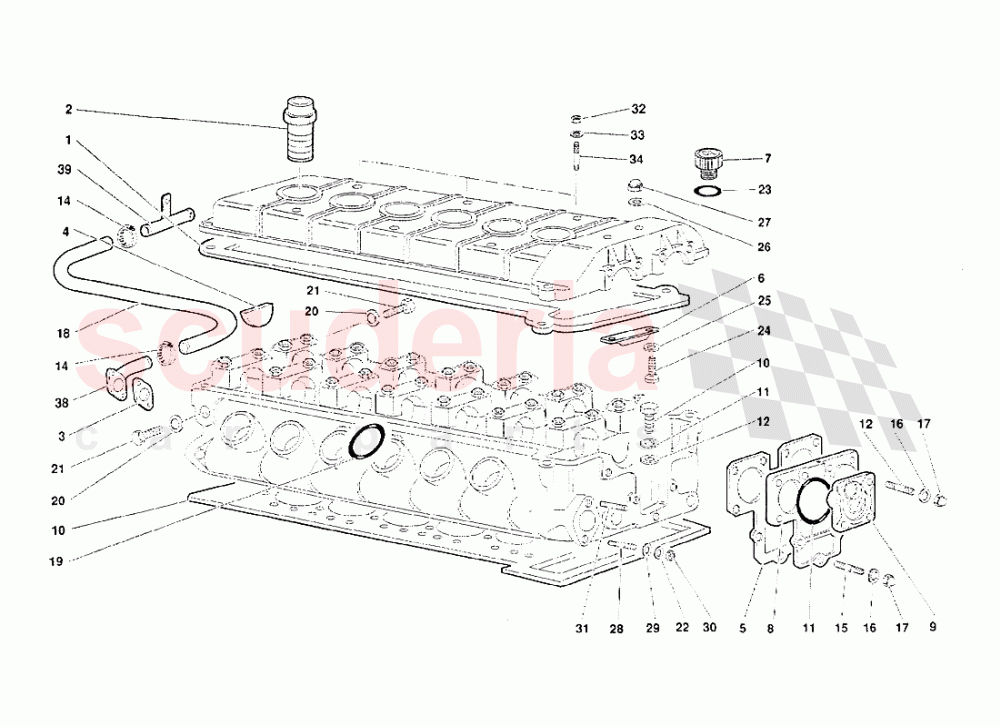

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1120813	GASKET	1120813 GASKET GUARNIZIONE	$77.26	1
002	1120857	UNION (until car 12957)	1120857 UNION (until car 12957) BOCCHETTONE	$142.06	6
003	1121254	GASKET	1121254 GASKET GUARNIZIONE	$8.68	1
004	1122528	PLUG	1122528 PLUG TAPPO	$60.69	4
005	1125077	GASKET	1125077 GASKET GUARNIZIONE	$43.05	1
006	1131089	BRAKE PAD	1131089 BRAKE PAD GUIDA CATENA	$294.50	1
007	1128555	PLUG	1128555 PLUG TAPPO	-	1	Enquire
008	1132669	COVER	1132669 COVER COPERCHIO	$659.39	1
009	1132649	COVER	1132649 COVER COPERCHIETTO	$202.08	1
010	11000988	Gasket	11000988 Gasket	$377.12	1
011	8606205	O-Ring	8606205 O-Ring ANELLO TENUTA	$4.00	1
012	8300631	STUD	8300631 STUD PRIGIONIERO	$17.24	4
014	8832204	CLAMP	8832204 CLAMP FASCETTA	$15.54	2
015	8300602	STUD	8300602 STUD PRIGIONIERO	$6.24 MSRP: ~~6.95~~ (10.2% off)	14
016	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$41.76	14
017	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.85	14
018	410819370	Sleeve for Auxiliary Water Pump IN STOCK	410819370 Sleeve for Auxiliary Water Pump TUBO IN STOCK	$60.97	1
019	8604703	SEAL RING	8604703 SEAL RING ANELLO TENUTA OLIO	$7.61 MSRP: ~~8.45~~ (9.9% off)	12
020	8400802	WASHER	8400802 WASHER RONDELLA	$1.40 MSRP: ~~7.27~~ (80.7% off)	2
021	5100839	SCREW	5100839 SCREW VITE	-	2	Enquire
022	3200816	NUT	3200816 NUT DADO	-	4	Enquire
023	8602801	SEAL IN STOCK	8602801 SEAL ANELLO TENUTA OLIO IN STOCK	$3.58	1
024	8700661	SCREW	8700661 SCREW VITE	$11.84	4
025	WHT003041	WASHER IN STOCK	WHT003041 WASHER RONDELLA IN STOCK	$0.83 MSRP: ~~7.31~~ (88.6% off)	2
026	8410502	WASHER	8410502 WASHER RONDELLA	$0.07 MSRP: ~~7.38~~ (99.1% off)	2
027	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.85	2
028	8300540	STUD	8300540 STUD PRIGIONIERO	-	4	Enquire
029	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$23.22 MSRP: ~~64.00~~ (63.7% off)	4
030	8200816	NUT	8200816 NUT DADO	$4.78	4
031	8300833	STUD BOLT	8300833 STUD BOLT PRIGIONIERO	$5.67 MSRP: ~~6.30~~ (10% off)	4
032	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$2.85	2
033	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	2
034	8800613	STUD	8800613 STUD PRIGIONIERO	-	2	Enquire
035	8100807	SCREW	8100807 SCREW VITE	$0.77 MSRP: ~~7.27~~ (89.4% off)	1
036	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	1
037	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	1
038	1730063	PIPE	1730063 PIPE TUBO	$272.54	1
039	1730064	CONNECTION	1730064 CONNECTION GIUNZIONE	$21.97 MSRP: ~~23.90~~ (8.1% off)	1
