Lamborghini Diablo (1990-1998) - Intake Manifold (Valid for June 1992 Version)

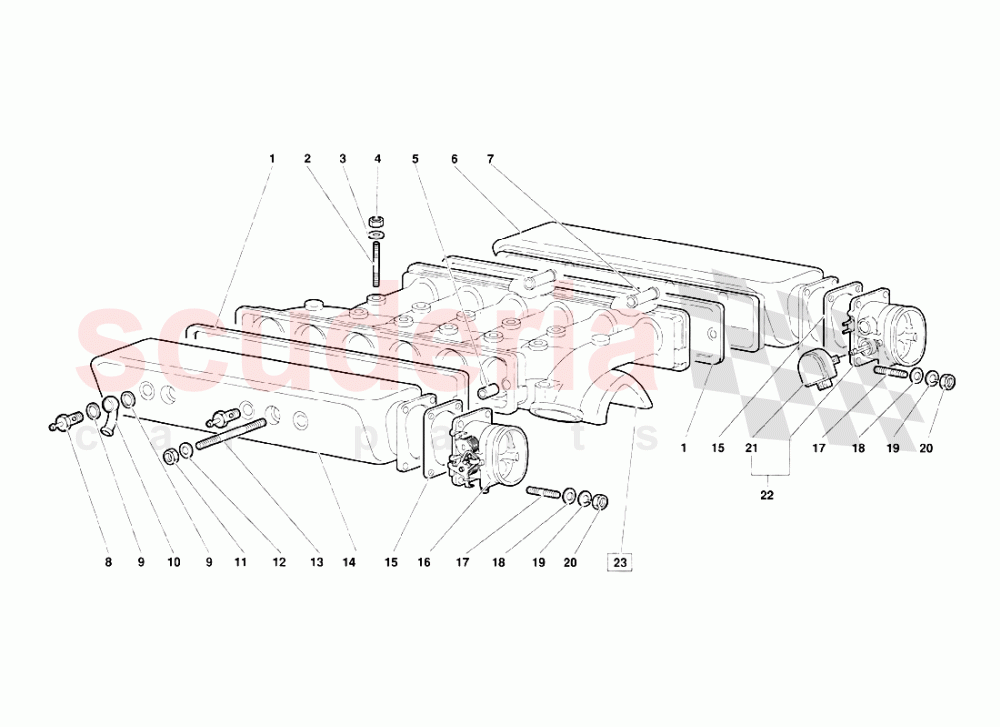

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1323717	Gasket	1323717 Gasket (Valid for June 1992 version) GUARNIZIONE	$53.99	2
002	8300610	STUD BOLT	8300610 STUD BOLT (Valid for June 1992 version) PRIGIONIERO	$22.89 MSRP: ~~25.65~~ (10.8% off)	10
003	N01152427	WASHER IN STOCK	N01152427 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$0.28	10
004	8200605	NUT IN STOCK	8200605 NUT (Valid for June 1992 version) DADO IN STOCK	$2.85	10
005	WHT003577	DOWEL	WHT003577 DOWEL (Valid for June 1992 version) GRAND	$1.67 MSRP: ~~7.03~~ (76.2% off)	4
006	1326316	COVER	1326316 COVER (Valid for June 1992 version) COPERCHIO SIMSTRO	$1,513.99	1
007	1322163	SPACER	1322163 SPACER (Valid for June 1992 version) DISTANZIALE	-	4	Enquire
008	1330455	CONNECTION	1330455 CONNECTION (Valid for June 1992 version) RACCORDO	$30.82 MSRP: ~~33.45~~ (7.9% off)	2
009	8401621	WASHER	8401621 WASHER (Valid for June 1992 version) RONDELLA	$1.20	2
010	1328002	CONNECTION	1328002 CONNECTION (Valid for June 1992 version) RACCORDO	$54.63	2
011	8201016	NUT	8201016 NUT (Valid for June 1992 version) DADO	$21.17	4
012	8401022	WASHER	8401022 WASHER (Valid for June 1992 version) RONDELLA	$0.25 MSRP: ~~7.35~~ (96.6% off)	4
013	8301030	STUD	8301030 STUD (Valid for June 1992 version) PRIGIONIERO	$32.54	4
014	1326315	COVER	1326315 COVER (Valid for June 1992 version) COPERCHIO DESTRO	-	1	Enquire
015	1326311	GASKET	1326311 GASKET (Valid for June 1992 version) GUARNIZIONE	$68.18	2
016	1326181	THROTTLE HOLDER	1326181 THROTTLE HOLDER (Valid for June 1992 version) CORPO FARFALLATO DESTRO	$1,214.17	1
017	WHT003028	THREADED PIN	WHT003028 THREADED PIN (Valid for June 1992 version) PRIGIONIERO	$20.74	8
018	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 (Valid for June 1992 version) RONDELLA IN STOCK	$0.32 MSRP: ~~7.35~~ (95.6% off)	8
019	N0152785	WASHER IN STOCK	N0152785 WASHER (Valid for June 1992 version) RONDELLA IN STOCK	$0.44	8
020	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT (Valid for June 1992 version) DADO IN STOCK	$1.93	8
021	1327641	POTENTIOMETER	1327641 POTENTIOMETER (Valid for June 1992 version) POTENZIOMETRO	$159.24 MSRP: ~~173.50~~ (8.2% off)	1
022	1326293	THROTTLE HOLDER	1326293 THROTTLE HOLDER (Valid for June 1992 version) CORPO FARF. SX CON POTENZIOMET	$1,321.07 MSRP: ~~1,485.00~~ (11% off)	1
023	1329745	INLET MANIFOLD	1329745 INLET MANIFOLD (Valid for June 1992 version) COLLETTORE ASPIRAZIONE (fino alia 12337) compatibile solo con iniettori 002024396	-	1	Enquire
023	1332507	INLET MANIFOLD	1332507 INLET MANIFOLD (Valid for June 1992 version) COLLETTORE ASPIRAZIONE (dalla 12338) compatibile con iniettori 002024396 e 002032496	-	1	Enquire
