Timing System 2 of Lamborghini Lamborghini Diablo (1990-1998)

View All

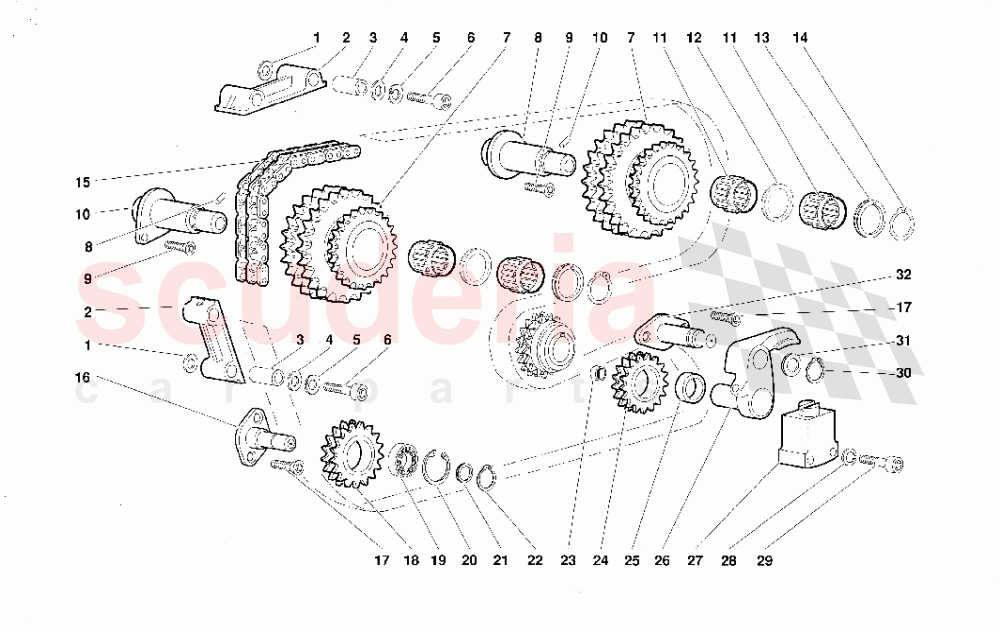

Lamborghini Diablo (1990-1998) - Timing System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.44 MSRP: ~~7.15~~ (79.9% off)	4
002	1231108	BRAKE PAD	1231108 BRAKE PAD GUIDA CATENA	$38.52	2
003	1231088	BUSHING	1231088 BUSHING BOCCOLA	$22.81	4
004	1231040	WASHER	1231040 WASHER RONDELLA	-	4	Enquire
005	8410820	WASHER	8410820 WASHER RONDELLA	$0.18 MSRP: ~~7.37~~ (97.6% off)	4
006	8700845	SCREW	8700845 SCREW VITE	$9.51	4
007	1226385	GEAR	1226385 GEAR INGRANAGGIO	$1,810.32	2
008	1224754	PIN	1224754 PIN PERNO	$128.57	2
009	WHT003068	COUNTERSUNK BOLT IN STOCK	WHT003068 COUNTERSUNK BOLT VITE IN STOCK	$1.33 MSRP: ~~7.17~~ (81.5% off)	2
010	8900203	PIN - SPINA	8900203 PIN - SPINA SA	$0.08	2
011	8522508	BEARING	8522508 BEARING GABBIAARULLI	-	4	Enquire
012	1226391	SPACER	1226391 SPACER DISTANZIALE	$23.18	2
013	1231173	WASHER	1231173 WASHER RONDELLA	$31.39	2
014	WHT002646	RETAINING RING IN STOCK	WHT002646 RETAINING RING ANELLO RITEGNO IN STOCK	$1.01 MSRP: ~~7.22~~ (86% off)	2
015	1229952	TIMING CHAIN	1229952 TIMING CHAIN CATENA INFERIORE DISTRIBUZIONE	$375.33	1
016	1224981	PIN	1224981 PIN PERNO	$177.57	1
017	WHT003068	COUNTERSUNK BOLT IN STOCK	WHT003068 COUNTERSUNK BOLT VITE IN STOCK	$1.33 MSRP: ~~7.17~~ (81.5% off)	4
018	1224979	GEAR	1224979 GEAR INGRANAGGIO	$134.92	1
019	8501204	BEARING	8501204 BEARING CUSCINETTO	$6.28	1
020	8573203	RETAINER RING	8573203 RETAINER RING ANELLO RITEGNO	$5.61	3
021	8401233	WASHER	8401233 WASHER RONDELLA	$24.85	1
022	8581101	RETAINER RING	8581101 RETAINER RING ANELLO RITEGNO	$5.41 MSRP: ~~6.00~~ (9.8% off)	1
023	8930803	PLUG	8930803 PLUG TAPPO	$0.70	3
024	1224990	GEAR	1224990 GEAR INGRANAGGIO	$458.92	1
025	1224984	BUSHING	1224984 BUSHING BOCCOLA	$45.04	1
026	1230908	ROCKER	1230908 ROCKER BILANCIERE	$394.37	1
027	1222770	CHAIN STRETCHER	1222770 CHAIN STRETCHER TENDICATENA	$610.76	1
028	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.44	2
029	8700829	SCREW	8700829 SCREW VITE	$5.41	2
030	8581601	RETAINER RING	8581601 RETAINER RING ANELLO RITEGNO	$2.37	1
031	8401821	WASHER	8401821 WASHER RONDELLA	$21.84	1
032	1232026	PIN	1232026 PIN PERNO	$303.27	1
