Secondary Air System of Lamborghini Lamborghini Aventador LP700 Coupe

View All

Lamborghini Aventador LP700 Coupe - Secondary Air System

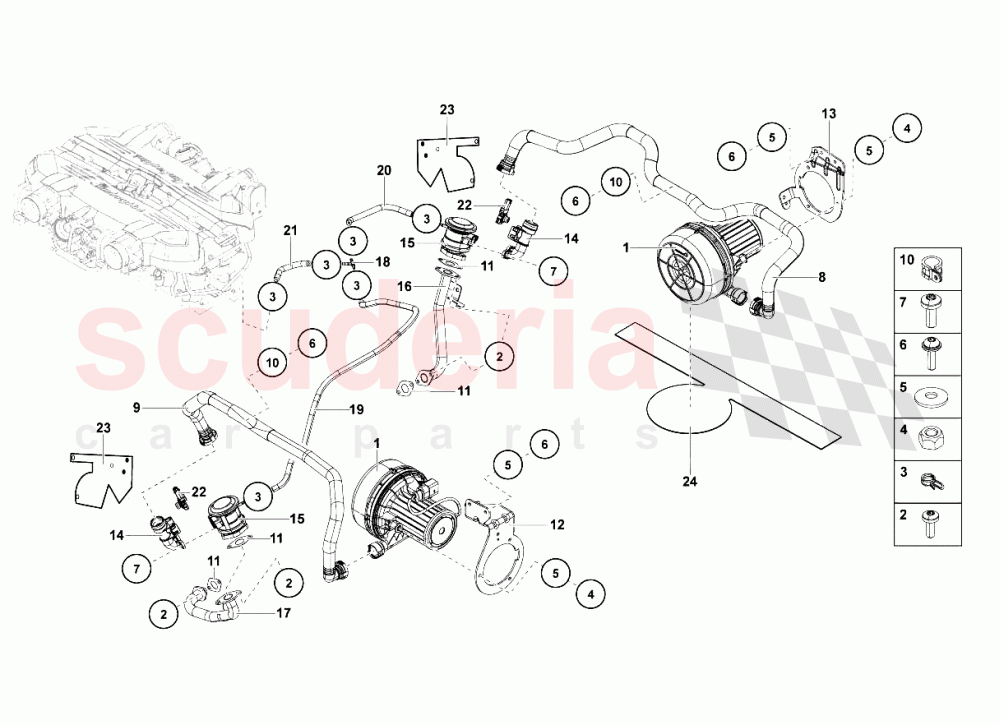

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	400906601	PUMP	400906601 PUMP	$443.42	2
002	N10451408	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10451408 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.63	8
003	400127217	CLAMP IN STOCK	400127217 CLAMP IN STOCK	$0.38 MSRP: ~~7.33~~ (94.8% off)	6
004	N02214812	HEXAGON NUT, SELF-LOCKING	N02214812 HEXAGON NUT, SELF-LOCKING	$2.02 MSRP: ~~7.29~~ (72.3% off)	6
005	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.39	10
006	N91054001	SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD	N91054001 SEMI ROUND BOLT (COMBI) WITH HEXAGON SOCKET HEAD	$1.38 MSRP: ~~7.27~~ (81% off)	9
007	N10451408	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10451408 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.63	4
008	470131611B	AIR HOSE IN STOCK	470131611B AIR HOSE IN STOCK	$689.62	1
009	470131611C	AIR HOSE	470131611C AIR HOSE	$667.67	1
010	N0206253	CLAMP	N0206253 CLAMP	$1.84 MSRP: ~~7.07~~ (74% off)	5
011	6A131120D	SEAL IN STOCK	6A131120D SEAL IN STOCK	$7.56	4
012	470906613A	Support	470906613A Support	$39.62	1
013	470906617A	SUPPORT	470906617A SUPPORT	$23.01	1
014	7L131119	ADAPTER IN STOCK	7L131119 ADAPTER IN STOCK	$16.27	2
015	7L131101N	COMBINATION VALVE IN STOCK	7L131101N COMBINATION VALVE IN STOCK	$153.57	2
016	470133898A	PIPE	470133898A PIPE	$182.68	1
017	470133897A	PIPE	470133897A PIPE	-	1	Enquire
018	7L133579	T-PIECE	7L133579 T-PIECE	$7.51	1
019	470131845	PIPE	470131845 PIPE	$92.72	1
020	470131846	PIPE	470131846 PIPE	$43.40	1
021	470131853	PIPE	470131853 PIPE	$18.91	1
022	6L906052A	PRESSURE SENSOR IN STOCK	6L906052A PRESSURE SENSOR IN STOCK	$83.68	2
023	7M133106	Heat Shield	7M133106 Heat Shield	-	2	Enquire
024	470906099	Heat Shield	470906099 Heat Shield	$26.84	2
