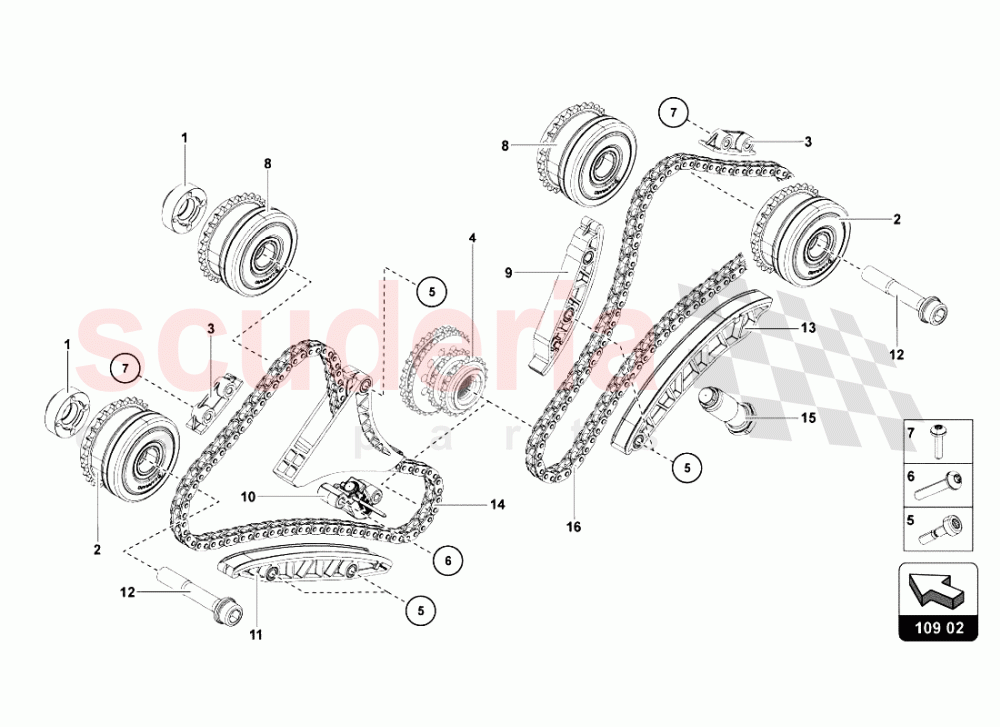

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	7M109423B	LENGTH-MEASURING DEVICE IN STOCK	7M109423B LENGTH-MEASURING DEVICE IN STOCK	$238.14	4
002	7M109084L	CAMSHAFT ADJUSTER UNIT IN STOCK	7M109084L CAMSHAFT ADJUSTER UNIT IN STOCK	$2,362.44	2
003	7M109513B	SLIDING SHOE IN STOCK	7M109513B SLIDING SHOE IN STOCK	$502.32	2
005	WHT005008A	SOCKET HEAD BOLT IN STOCK	WHT005008A SOCKET HEAD BOLT IN STOCK	$41.15	6
006	N10554005	ROUND HD. SCREW IN STOCK	N10554005 ROUND HD. SCREW IN STOCK	$2.52	2
007	N91071701	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91071701 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	$1.77 MSRP: ~~7.22~~ (75.5% off)	4
008	7M109083L	CAMSHAFT ADJUSTER UNIT IN STOCK	7M109083L CAMSHAFT ADJUSTER UNIT IN STOCK	$2,362.44	2
009	7M109469B	UPPER CHAIN FIXED GUIDE IN STOCK	7M109469B UPPER CHAIN FIXED GUIDE IN STOCK	$778.22	1
010	57109217J	CHAIN TENSIONER IN STOCK	57109217J CHAIN TENSIONER IN STOCK	$203.67	1
011	7M109538B	SLIDING SHOE IN STOCK	7M109538B SLIDING SHOE IN STOCK	$871.89	1
012	7M109177D	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	7M109177D SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$115.44	4
013	7M109508B	SLIDE RAIL IN STOCK	7M109508B SLIDE RAIL IN STOCK	$1,542.08	1
014	7M109498B	ROLLER CHAIN	7M109498B ROLLER CHAIN	$182.10	1
015	3F109507B	CHAIN TENSIONER	3F109507B CHAIN TENSIONER	$87.08	1
016	7M109465C	TIMING CHAIN	7M109465C TIMING CHAIN	$356.56	1
