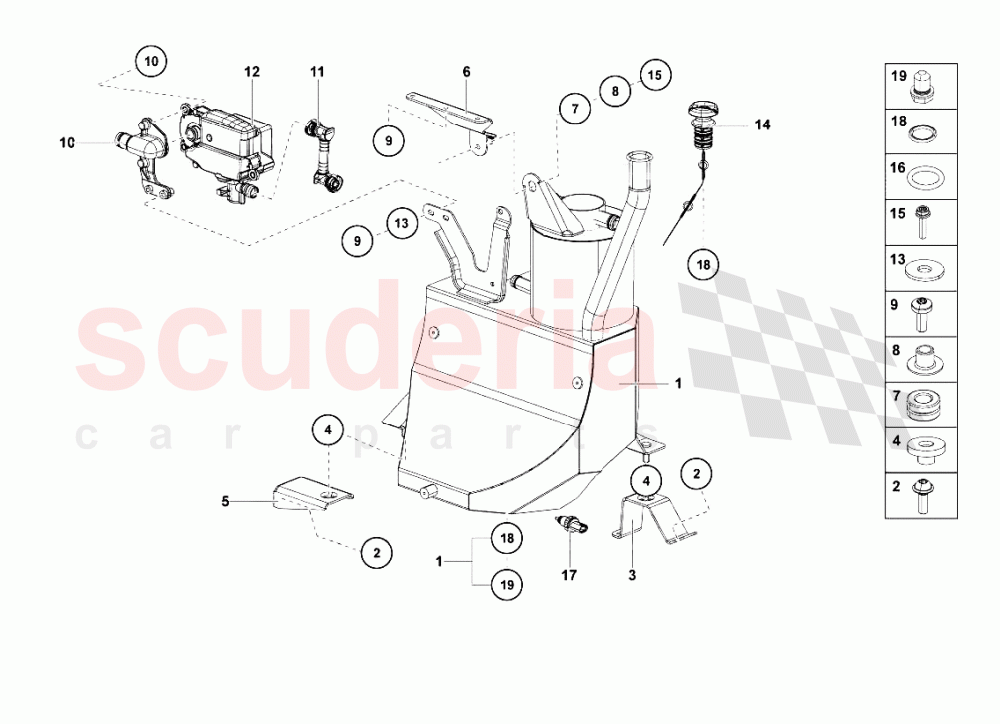

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	470115373G	OIL CONTAINER	470115373G OIL CONTAINER	$1,623.31	1
002	N10558102	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10558102 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$4.09	6
003	470115641B	BRACKET FOR FLUID RESERVOIR	470115641B BRACKET FOR FLUID RESERVOIR	$32.10	1
004	400121268	RUBBER BUSH	400121268 RUBBER BUSH	$10.85	2
005	470115575B	SUPPORT	470115575B SUPPORT	$39.67	1
006	470115261C	SUPPORT	470115261C SUPPORT	$42.94	1
007	4D0317867A	RUBBER BUSH IN STOCK	4D0317867A RUBBER BUSH IN STOCK	$8.09	1
008	4E0903127	MOUNTING	4E0903127 MOUNTING	$14.55	1
009	N10451408	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10451408 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.62	7
010	470103811	BRACKET	470103811 BRACKET	$606.72	1
011	470115659	PIPE	470115659 PIPE	$38.93	1
012	7C103464F	OIL SEPARATOR	7C103464F OIL SEPARATOR	$275.21	1
013	WHT002961	WASHER IN STOCK	WHT002961 WASHER IN STOCK	$0.39	3
014	470115319A	OIL DIPSTICK	470115319A OIL DIPSTICK	$162.97	1
015	N10533601	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	N10533601 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	$2.84	1
016	WHT002641	SEAL RING IN STOCK	WHT002641 SEAL RING IN STOCK	$4.64	1
017	59919523F	TEMPERATURE SENSOR IN STOCK	59919523F TEMPERATURE SENSOR IN STOCK	$60.01	1
