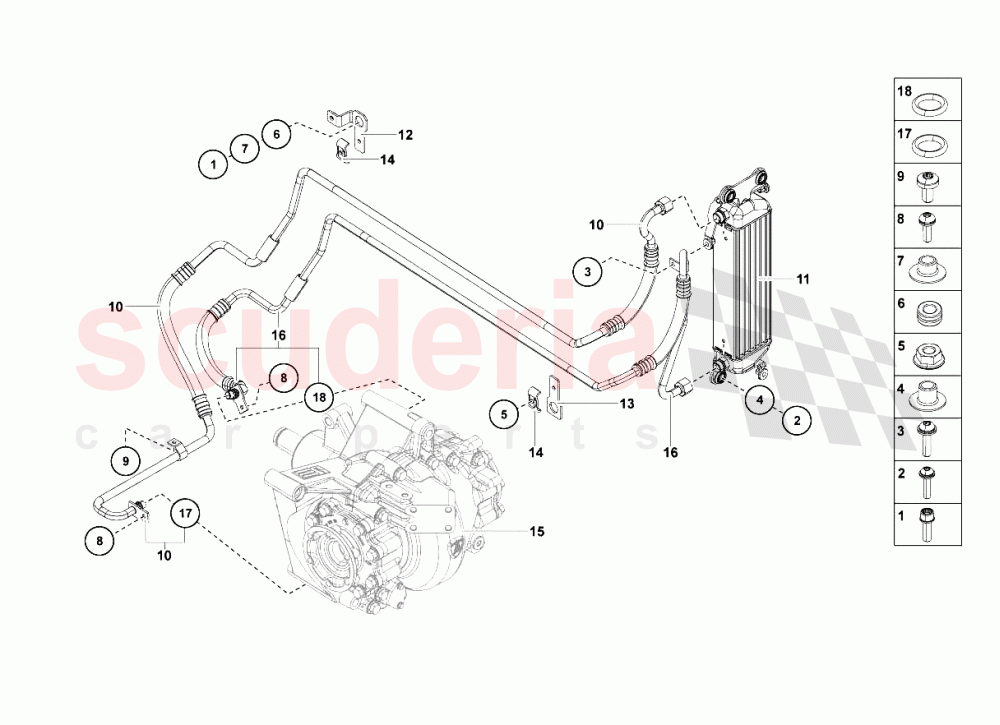

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N10720901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N10720901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	$3.27 MSRP: ~~7.14~~ (54.2% off)	2
002	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	$1.44	3
003	N91054101	OVAL HEXAGON SOCKET HEAD BOLT	N91054101 OVAL HEXAGON SOCKET HEAD BOLT	$1.44 MSRP: ~~7.27~~ (80.2% off)	1
004	8Z0129734	BUSH IN STOCK	8Z0129734 BUSH IN STOCK	$7.98	3
005	N01508213	HEXAGON COLLAR NUT IN STOCK	N01508213 HEXAGON COLLAR NUT IN STOCK	$0.19	2
007	4E0903127	MOUNTING	4E0903127 MOUNTING	$14.55	2
008	N10347103	HEXAGON SOCKET OVAL HEAD BOLT (COMBI) IN STOCK	N10347103 HEXAGON SOCKET OVAL HEAD BOLT (COMBI) IN STOCK	$1.37 MSRP: ~~7.29~~ (81.2% off)	2
009	N10335202	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N10335202 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$1.15 MSRP: ~~7.29~~ (84.2% off)	1
010	470511805A	Pipe	470511805A Pipe	$257.61	1
011	470511885A	OIL COOLER	470511885A OIL COOLER	$715.77	1
012	470511538	ARM	470511538 ARM	$27.28	1
013	470511833	ARM	470511833 ARM	$30.53	1
014	4A0317171D	CLAMP	4A0317171D CLAMP	$3.95	2
016	470511822A	Pipe	470511822A Pipe	$253.21	1
017	N90666003	O-RING IN STOCK	N90666003 O-RING IN STOCK	$4.64	1
018	N90666003	O-RING IN STOCK	N90666003 O-RING IN STOCK	$4.64	1
