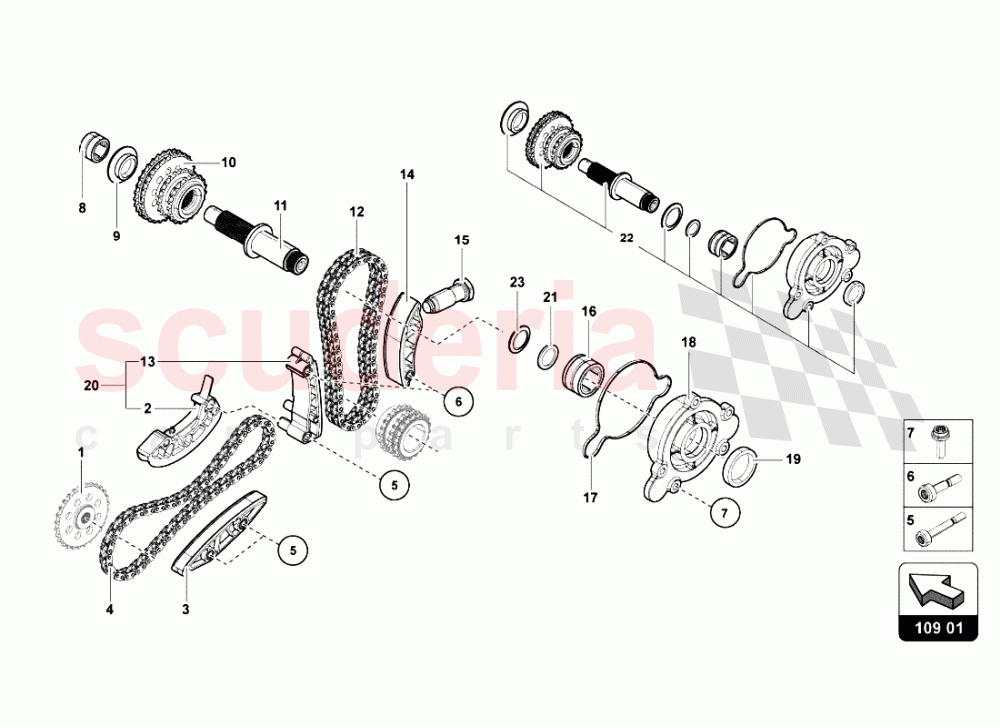

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
003	7M115235B	SLIDING SHOE	7M115235B SLIDING SHOE	$1,866.74	1
004	7M109120B	LOWER TIMING CHAIN IN STOCK	7M109120B LOWER TIMING CHAIN IN STOCK	$171.64	1
005	WHT005010	SCREW M8X60	WHT005010 SCREW M8X60	$49.05	3
006	WHT005401	SCREW M8X44	WHT005401 SCREW M8X44	$63.27	2
007	N10689302	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	N10689302 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD IN STOCK	$3.39 MSRP: ~~7.17~~ (52.7% off)	5
009	7M109350B	LENGTH-MEASURING DEVICE	7M109350B LENGTH-MEASURING DEVICE	$318.24	1
010	7M109567D	GEAR	7M109567D GEAR	$1,465.83	1
011	7M109225G	AXLE SHAFT	7M109225G AXLE SHAFT	$2,386.64	1
012	7M109229A	TIMING CHAIN	7M109229A TIMING CHAIN	$1,378.11	1
014	7M109077C	CHAIN TENSIONER	7M109077C CHAIN TENSIONER	$1,239.07	1
015	3F109507B	CHAIN TENSIONER	3F109507B CHAIN TENSIONER	$86.59	1
016	7M109248	BEARING SHELL IN STOCK	7M109248 BEARING SHELL IN STOCK	$249.11	1
017	7M103147	GASKET FOR FLAP IN STOCK	7M103147 GASKET FOR FLAP IN STOCK	$29.71	1
018	7M103171F	COVER FOR TIMING CASE	7M103171F COVER FOR TIMING CASE	$2,173.69	1
019	7M103070A	SEAL IN STOCK	7M103070A SEAL IN STOCK	$119.98	1
020	7M109498	CHAIN TENSIONER	7M109498 CHAIN TENSIONER	$1,315.49	1
021	7M109133C	BRACKET IN STOCK	7M109133C BRACKET IN STOCK	$28.09	1
023	7M109264A	MOUNTING IN STOCK	7M109264A MOUNTING IN STOCK	$192.21	1
