Ferrari F12 TDF - TIMING SYSTEM - TAPPETS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
241906 VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT $492.89 IN STOCK
Photo Part No Description Price (each) Stock

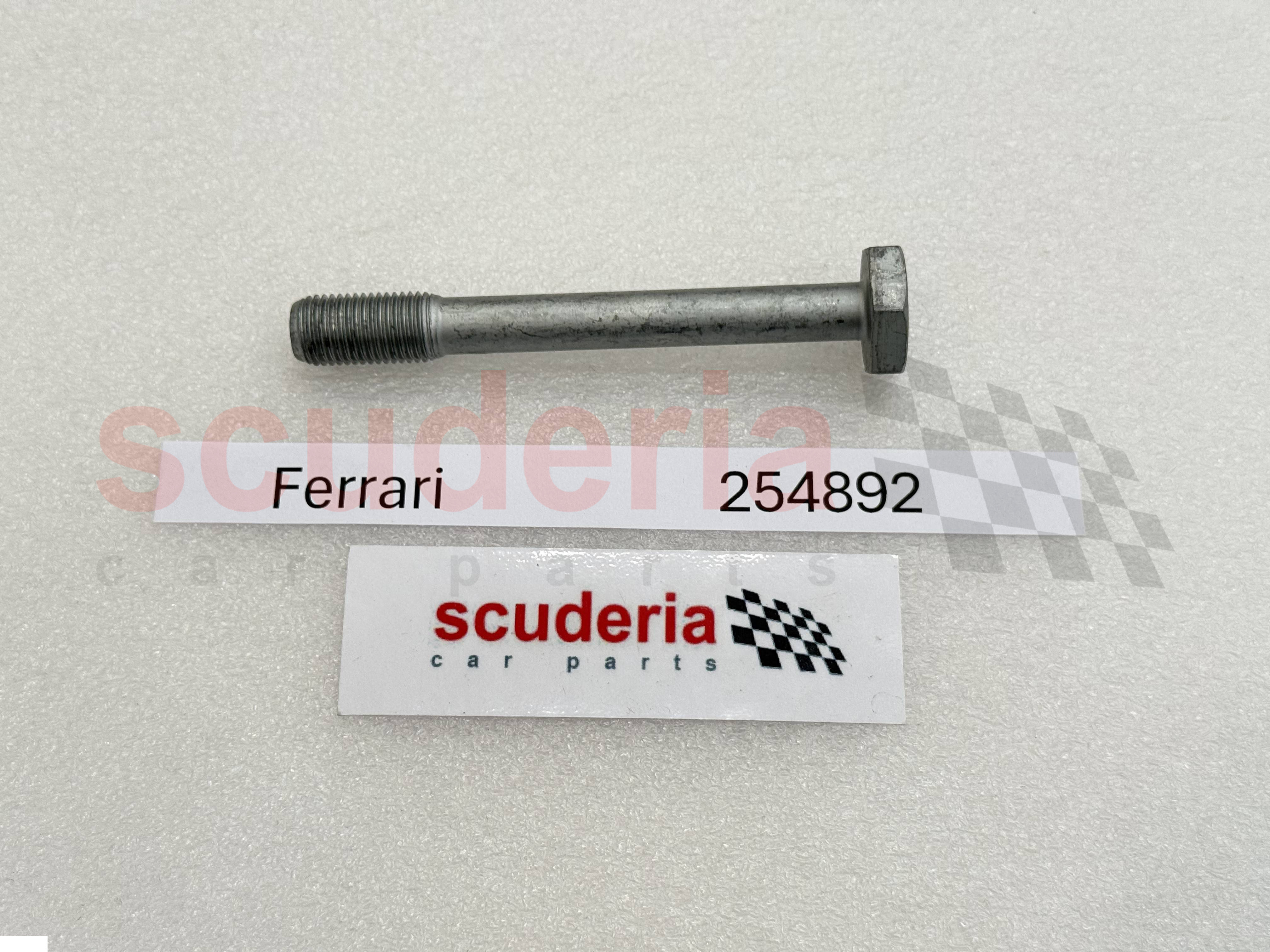

254892 SCREW $12.43 ARRIVING SOON
Photo Part No Description Price (each) Stock
197975 SEAL RING $7.02 IN STOCK
Photo Part No Description Price (each) Stock
240559 DIAMOND COATED WASHER $8.35 To Order
Photo Part No Description Price (each) Stock
314867 RH INTAKE CAMSHAFT $551.65 To Order
Photo Part No Description Price (each) Stock
314868 LH INTAKE CAMSHAFT $551.65 To Order
Photo Part No Description Price (each) Stock
248020 VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT $492.89 IN STOCK
Photo Part No Description Price (each) Stock
314869 RH EXHAUST CAMSHAFT $551.65 To Order
Photo Part No Description Price (each) Stock
314870 LH EXHAUST CAMSHAFT $551.65 To Order
Photo Part No Description Price (each) Stock
254496 MECHANICAL TAPPET $489.88 To Order
Photo Part No Description Price (each) Stock
179763 VALVE SPRING SEMI-CONE $0.86 IN STOCK
Photo Part No Description Price (each) Stock
237390 UPPER STOP CAP $9.39 To Order
Photo Part No Description Price (each) Stock
238641 INTERNAL VALVE RETURN SPRING $6.99 To Order
Photo Part No Description Price (each) Stock
238640 EXTERNAL VALVE RETURN SPRING $9.80 To Order
Photo Part No Description Price (each) Stock
221473 VALVE STEM OIL SEAL $1.82 IN STOCK
Photo Part No Description Price (each) Stock
247484 LOWER STOP COLLAR $5.68 To Order
242574 LOWER STOP CAP $10.43 IN STOCK
Photo Part No Description Price (each) Stock
6213498 VALVE GUIDE $3.21 To Order
Photo Part No Description Price (each) Stock
291638 INTAKE VALVE $10.88 To Order
291851 EXHAUST VALVE $45.49 To Order
Photo Part No Description Price (each) Stock
6222847 INTAKE VALVE SEAT $9.01 To Order
6222848 EXHAUST VALVE SEAT $9.52 To Order
Photo Part No Description Price (each) Stock
149229 VALVE CLEARANCE ADJUSTER PAD $19.89 To Order
View All

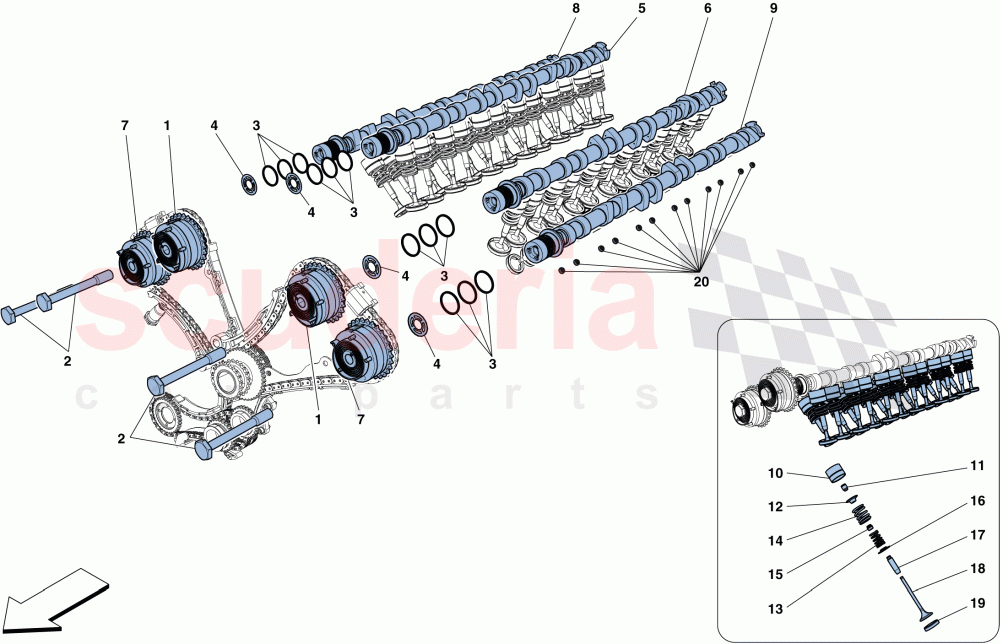

TIMING SYSTEM - TAPPETS of Ferrari Ferrari F12 TDF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 241906
VARIABLE VALVE TIMING ADJUSTER, INTAKE CAMSHAFT
IN STOCK 		$492.89 2
2 254892
SCREW
M14 X 1.5 X 109
ARRIVING SOON 		$12.43 4
3 197975
SEAL RING
Also comes with engine gasket set
IN STOCK 		$7.02 (45.4% off) 12
4 240559
DIAMOND COATED WASHER 		$8.35 4
5 314867
RH INTAKE CAMSHAFT 		$551.65 1
6 314868
LH INTAKE CAMSHAFT 		$551.65 1
7 248020
VARIABLE VALVE TIMING ADJUSTER, EXHAUST CAMSHAFT
IN STOCK 		$492.89 2
8 314869
RH EXHAUST CAMSHAFT 		$551.65 1
9 314870
LH EXHAUST CAMSHAFT 		$551.65 1
10 254496
MECHANICAL TAPPET 		$489.88 48
11 179763
VALVE SPRING SEMI-CONE
IN STOCK 		$0.86 (4.4% off) 96
12 237390
UPPER STOP CAP 		$9.39 48
13 238641
INTERNAL VALVE RETURN SPRING 		$6.99 48
14 238640
EXTERNAL VALVE RETURN SPRING 		$9.80 48
15 221473
VALVE STEM OIL SEAL
Also comes with engine gasket set
IN STOCK 		$1.82 (30% off) 48
16 247484
LOWER STOP COLLAR
Intake side 		$5.68 24
16 242574
LOWER STOP CAP
Exhaust side
IN STOCK 		$10.43 24
17 6213498
VALVE GUIDE 		$3.21 (25.9% off) 24
18 291638
INTAKE VALVE 		$10.88 24
18 291851
EXHAUST VALVE 		$45.49 24
19 6222847
INTAKE VALVE SEAT 		$9.01 12
19 6222848
EXHAUST VALVE SEAT 		$9.52 12
20 149229
VALVE CLEARANCE ADJUSTER PAD 		$19.89 48
