Left Hand Cylinder Head

Ferrari F12 TDF

Find Your Part

Ferrari F12 TDF - LEFT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
316214 LH HEAD $3,510.15 To Order
Photo Part No Description Price (each) Stock
321187 NUT Enquire To Order
Photo Part No Description Price (each) Stock
151117 WASHER $1.05 IN STOCK
Photo Part No Description Price (each) Stock
199760 THREADED PLUG $0.29 IN STOCK
127635 THREADED PLUG $2.86 To Order
282400 THREADED PLUG $3.36 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
243721 SCREW WITH WASHER $0.44 IN STOCK
243720 SCREW $0.52 IN STOCK
Photo Part No Description Price (each) Stock
243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 $0.49 IN STOCK
Photo Part No Description Price (each) Stock
239614 GASKET $6.31 IN STOCK
Photo Part No Description Price (each) Stock
239502 SCREW $0.53 IN STOCK
243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 $0.49 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
211641 STUD BOLT $0.97 IN STOCK
Photo Part No Description Price (each) Stock
801187 OIL PRESSURE REGULATOR VALVE $221.32 IN STOCK
Photo Part No Description Price (each) Stock
14304221 SCREW $0.09 To Order
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
816000 LH CYLINDER HEAD COVER $1,058.41 To Order
Photo Part No Description Price (each) Stock
229353 SOLENOID VALVE GASKET $18.04 IN STOCK
Photo Part No Description Price (each) Stock
271521 CONNECTOR $5.88 To Order
Photo Part No Description Price (each) Stock
243802 LH HEAD COVER GASKET $78.10 IN STOCK
Photo Part No Description Price (each) Stock
223982 SPARK PLUG TUBE SEAL $2.39 IN STOCK
Photo Part No Description Price (each) Stock
293214 FRONT LH HEAD HEAT SHIELD $264.58 To Order
Photo Part No Description Price (each) Stock
293215 REAR LH HEAD HEAT SHIELD $302.39 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
11625524 SCREW $0.68 IN STOCK
Photo Part No Description Price (each) Stock
224573 TIMING SENSOR $36.85 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
339948 STUD BOLT $18.89 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
339948 STUD BOLT $18.89 To Order
Photo Part No Description Price (each) Stock
200458 CHECK VALVE $9.16 IN STOCK
Photo Part No Description Price (each) Stock
339948 STUD BOLT $18.89 To Order
Photo Part No Description Price (each) Stock
324096 CABLE FASTENER BRACKET $16.37 To Order
Photo Part No Description Price (each) Stock
320598 CLIP $1.69 To Order
Photo Part No Description Price (each) Stock
233513 STUD BOLT Enquire To Order
Photo Part No Description Price (each) Stock
256827 GRUB SCREW $4.79 To Order
Photo Part No Description Price (each) Stock
293278 SCREW $12.60 To Order
Photo Part No Description Price (each) Stock
269228 STUD BOLT $5.71 To Order
Photo Part No Description Price (each) Stock
327089 COMPL. INJECTION CABLE FASTENER BRACKET $17.63 To Order
View All

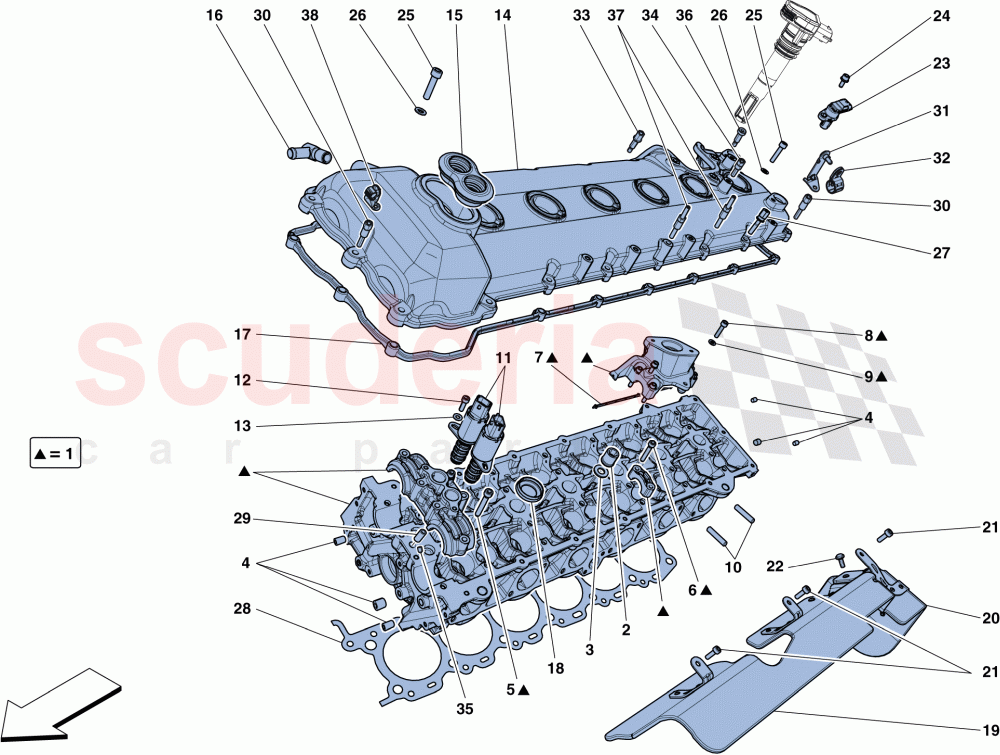

LEFT HAND CYLINDER HEAD of Ferrari Ferrari F12 TDF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 316214
LH HEAD 		$3,510.15 1
2 321187
NUT 		- 28 Enquire
3 151117
WASHER
IN STOCK 		$1.05 (8.7% off) 28
4 199760
THREADED PLUG
D. 6 X 1
IN STOCK 		$0.29 6
4 127635
THREADED PLUG
M18 X 11 X 1.5; For rear water orifice cover 		$2.86 (31.4% off) 1
4 282400
THREADED PLUG
M12 X 11 		$3.36 2
4 127635
THREADED PLUG
M18 X 11 X 1.5; Inspection hole cover 		$2.86 (31.4% off) 12
5 243721
SCREW WITH WASHER
M6 X 45
IN STOCK 		$0.44 4
5 243720
SCREW
M6 X 40
IN STOCK 		$0.52 2
6 243719
ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35
M6 X 35
IN STOCK 		$0.49 20
7 239614
GASKET
Also comes with engine gasket set
IN STOCK 		$6.31 1
8 239502
SCREW
M6 X 25
IN STOCK 		$0.53 1
8 243719
ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35
M6 X 35
IN STOCK 		$0.49 4
9 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
10 211641
STUD BOLT
M8 X 16; Shaft length 24 mm
IN STOCK 		$0.97 (3% off) 12
11 801187
OIL PRESSURE REGULATOR VALVE
IN STOCK 		$221.32 2
12 14304221
SCREW
M5 X 16 		$0.09 2
13 11181574
WASHER
IN STOCK 		$0.02 2
14 816000
LH CYLINDER HEAD COVER 		$1,058.41 1
15 229353
SOLENOID VALVE GASKET
Also comes with engine gasket set
IN STOCK 		$18.04 (38.4% off) 1
16 271521
CONNECTOR 		$5.88 1
17 243802
LH HEAD COVER GASKET
Also comes with engine gasket set
IN STOCK 		$78.10 (30% off) 1
18 223982
SPARK PLUG TUBE SEAL
Also comes with engine gasket set
IN STOCK 		$2.39 (39.8% off) 6
19 293214
FRONT LH HEAD HEAT SHIELD 		$264.58 1
20 293215
REAR LH HEAD HEAT SHIELD 		$302.39 1
21 248334
SCREW
M6 X 12
IN STOCK 		$0.58 3
22 11625524
SCREW
IN STOCK 		$0.68 2
23 224573
TIMING SENSOR
IN STOCK 		$36.85 (33.5% off) 2
24 248334
SCREW
M6 X 14
IN STOCK 		$0.58 2
25 339948
STUD BOLT
M6 X 25 		$18.89 17
26 11197774
WASHER
IN STOCK 		$0.06 (80% off) 20
27 339948
STUD BOLT 		$18.89 2
29 200458
CHECK VALVE
IN STOCK 		$9.16 2
30 339948
STUD BOLT 		$18.89 2
31 324096
CABLE FASTENER BRACKET 		$16.37 1
32 320598
CLIP 		$1.69 1
34 233513
STUD BOLT
No longer supplied 		- 1 Enquire
35 256827
GRUB SCREW 		$4.79 2
36 293278
SCREW
M6 X 1 		$12.60 1
37 269228
STUD BOLT 		$5.71 2
38 327089
COMPL. INJECTION CABLE FASTENER BRACKET 		$17.63 1
