Ferrari F12 TDF - INTAKE MANIFOLD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
752419 INTAKE MANIFOLD $7,429.76 To Order
323327 INTAKE MANIFOLD $6,586.54 To Order
Photo Part No Description Price (each) Stock
316503 GASKET $19.55 To Order
Photo Part No Description Price (each) Stock
900099 LH GASKET INTAKE MANIFOLD $117.42 To Order
326439 RH GASKET $117.42 IN STOCK
313877 GASKET $90.29 To Order
Photo Part No Description Price (each) Stock
327132 ADHESIVE FOAM $22.70 To Order
Photo Part No Description Price (each) Stock
14305574 SCREW $0.32 To Order
Photo Part No Description Price (each) Stock
322951 RH INTAKE PLENUM $3,139.07 To Order
Photo Part No Description Price (each) Stock
322952 LH INTAKE PLENUM $3,139.07 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
219786 THREADED PLUG $14.31 To Order
268875 CONNECTOR $33.67 To Order
Photo Part No Description Price (each) Stock
268877 CONNECTOR $64.38 To Order
Photo Part No Description Price (each) Stock
243208 CONNECTOR $23.97 To Order
Photo Part No Description Price (each) Stock
243207 CONNECTOR $20.19 To Order
Photo Part No Description Price (each) Stock
198253 CLIP $3.20 To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
123475 GASKET $3.82 IN STOCK
Photo Part No Description Price (each) Stock
282755 THREADED PLUG $1.86 To Order
Photo Part No Description Price (each) Stock
323489 SCREW $5.39 To Order
Photo Part No Description Price (each) Stock
313960 GASKET INTAKE MANIFOLD $66.53 IN STOCK
Photo Part No Description Price (each) Stock
325485 AIR FLOW METER BODY $58.06 To Order
Photo Part No Description Price (each) Stock
268661 SCREW COLLAR $3.53 IN STOCK
Photo Part No Description Price (each) Stock
333751 COMPL. RH AIR INTAKE HOSE UNION $214.65 To Order
333749 COMPL. LH AIR INTAKE HOSE UNION $286.42 To Order
333753 COMPL. LH AIR INTAKE HOSE UNION $214.65 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
268661 SCREW COLLAR $3.53 IN STOCK
Photo Part No Description Price (each) Stock
317212 MOTORISED THROTTLE BODY $1,212.19 To Order
Photo Part No Description Price (each) Stock
316680 SPACER $151.50 To Order
Photo Part No Description Price (each) Stock
314498 ACTUATOR SLEEVE $64.38 To Order
Photo Part No Description Price (each) Stock
268987 CABLE RETAINER BRACKET $17.66 To Order
179243 PLATE $4.28 To Order
Photo Part No Description Price (each) Stock
178430 FASTENER CLIP $0.37 IN STOCK
Photo Part No Description Price (each) Stock
222072 CLIP $3.03 IN STOCK
Photo Part No Description Price (each) Stock
323493 SCREW $1.01 To Order
323493 SCREW $1.01 To Order
Photo Part No Description Price (each) Stock
164400 THREADED PLUG $3.29 IN STOCK
Photo Part No Description Price (each) Stock
314467 COMPLETE PISTON $202.01 To Order
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
314350 O-RING $0.47 To Order
Photo Part No Description Price (each) Stock
323309 CARBON INTAKE TRUMPETS $2,950.94 To Order
Photo Part No Description Price (each) Stock
314468 COMPL. PLUG $239.90 To Order
Photo Part No Description Price (each) Stock
80365900 SCREW $0.15 IN STOCK
Photo Part No Description Price (each) Stock
325432 BUSH $5.89 To Order
Photo Part No Description Price (each) Stock
314706 RUBBER WASHER Enquire To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
313930 POSITION SENSOR $243.63 IN STOCK
Photo Part No Description Price (each) Stock
14303123 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
199589 CLIP $1.34 To Order
Photo Part No Description Price (each) Stock
319271 CONNECTOR $55.54 To Order
Photo Part No Description Price (each) Stock
318994 OIL DELIVERY PIPE FROM CRANKCASE TO MANIFOLD $252.52 To Order
Photo Part No Description Price (each) Stock
319473 SCREW $9.26 To Order
Photo Part No Description Price (each) Stock
315930 OIL RETURN PIPE FROM MANIFOLD TO HEAD $252.52 To Order
Photo Part No Description Price (each) Stock
323515 SCREW $11.79 To Order
Photo Part No Description Price (each) Stock
801187 OIL PRESSURE REGULATOR VALVE $221.79 IN STOCK
Photo Part No Description Price (each) Stock
14304124 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
319613 RECIRCULATING BALL BEARING $38.37 To Order
Photo Part No Description Price (each) Stock
11057376 SNAP RING $0.65 To Order
Photo Part No Description Price (each) Stock
297280 AIR FLOW SENSOR $142.47 IN STOCK
Photo Part No Description Price (each) Stock
11566224 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
325535 RUBBER CABLE GROMMET $17.66 To Order
Photo Part No Description Price (each) Stock
323493 SCREW $1.01 To Order
Photo Part No Description Price (each) Stock
329629 PLASTIC BUSH $0.15 To Order
View All

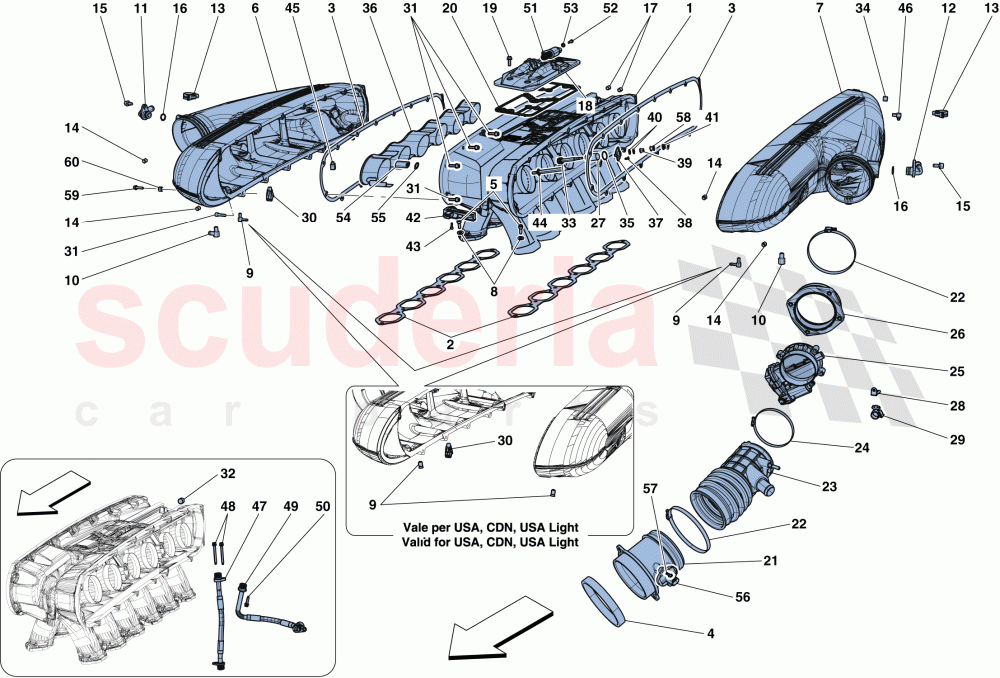

INTAKE MANIFOLD of Ferrari Ferrari F12 TDF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 752419
INTAKE MANIFOLD
Applicable from engine No. 357905; Applicable after depletion of 323327 		$7,429.76 1
1 323327
INTAKE MANIFOLD
Applicable up to engine No. 357904; Applicable until depletion 		$6,586.54 1
2 316503
GASKET
Also comes with engine gasket set 		$19.55 2
3 900099
LH GASKET INTAKE MANIFOLD
Also comes with engine gasket set; Applicable after depletion of 313877 		$117.42 1
3 326439
RH GASKET
Also comes with engine gasket set; Applicable after depletion of 313877
IN STOCK 		$117.42 1
3 313877
GASKET
Also comes with engine gasket set; Applicable until depletion 		$90.29 2
4 327132
ADHESIVE FOAM 		$22.70 2
5 14305574
SCREW
M6 X 30 		$0.32 24
6 322951
RH INTAKE PLENUM
Applicable up to engine No. 342394 		$3,139.07 1
7 322952
LH INTAKE PLENUM
Applicable up to engine No. 342394 		$3,139.07 1
8 11197774
WASHER
IN STOCK 		$0.06 (80% off) 24
9 219786
THREADED PLUG
Applicable for USA, CDN, USA LIGHT 		$14.31 2
9 268875
CONNECTOR
Not for USA, CDN, USA LIGHT 		$33.67 2
10 268877
CONNECTOR 		$64.38 2
11 243208
CONNECTOR
On RH plenum 		$23.97 1
12 243207
CONNECTOR
On LH plenum 		$20.19 1
13 198253
CLIP 		$3.20 (16.9% off) 2
14 102725
CENTERING DOWEL 		$1.01 (55.1% off) 4
15 248334
SCREW
M6 X 14
IN STOCK 		$0.58 2
16 123475
GASKET
IN STOCK 		$3.82 (8.6% off) 2
17 282755
THREADED PLUG 		$1.86 6
19 323489
SCREW 		$5.39 5
20 313960
GASKET INTAKE MANIFOLD
IN STOCK 		$66.53 1
21 325485
AIR FLOW METER BODY 		$58.06 2
22 268661
SCREW COLLAR
IN STOCK 		$3.53 2
23 333751
COMPL. RH AIR INTAKE HOSE UNION
Not for USA, CDN, USA LIGHT 		$214.65 1
23 333749
COMPL. LH AIR INTAKE HOSE UNION
Applicable for USA, CDN, USA LIGHT 		$286.42 1
23 333753
COMPL. LH AIR INTAKE HOSE UNION
Not for USA, CDN, USA LIGHT 		$214.65 1
23 333747
COMPL. RH AIR INTAKE HOSE UNION
Applicable for USA, CDN, USA LIGHT 		$286.42 1
24 268661
SCREW COLLAR
IN STOCK 		$3.53 4
25 317212
MOTORISED THROTTLE BODY 		$1,212.19 2
26 316680
SPACER 		$151.50 2
27 314498
ACTUATOR SLEEVE 		$64.38 4
28 268987
CABLE RETAINER BRACKET
RH side; Not for USA, CDN, USA LIGHT 		$17.66 1
28 179243
PLATE
LH side 		$4.28 1
29 178430
FASTENER CLIP
IN STOCK 		$0.37 (50.7% off) 2
30 222072
CLIP
IN STOCK 		$3.03 1
31 323493
SCREW
M6 X 26 X 1; Applicable from engine No. 342395 		$1.01 18
31 323493
SCREW
M6 X 26 X 1; Applicable up to engine No. 342394 		$1.01 32
32 164400
THREADED PLUG
IN STOCK 		$3.29 1
33 314467
COMPLETE PISTON 		$202.01 4
34 102725
CENTERING DOWEL 		$1.01 (55.1% off) 4
35 314350
O-RING 		$0.47 4
36 323309
CARBON INTAKE TRUMPETS 		$2,950.94 2
37 314468
COMPL. PLUG 		$239.90 4
38 80365900
SCREW
M4 X 10
IN STOCK 		$0.15 (70% off) 8
39 325432
BUSH 		$5.89 4
40 314706
RUBBER WASHER
No longer supplied 		- 8 Enquire
41 14059290
FLANGED NUT M6
IN STOCK 		$1.31 4
42 313930
POSITION SENSOR
IN STOCK 		$243.63 2
43 14303123
SCREW
M4 X 12
IN STOCK 		$0.06 4
45 199589
CLIP 		$1.34 1
46 319271
CONNECTOR 		$55.54 1
47 318994
OIL DELIVERY PIPE FROM CRANKCASE TO MANIFOLD 		$252.52 1
48 319473
SCREW 		$9.26 2
49 315930
OIL RETURN PIPE FROM MANIFOLD TO HEAD 		$252.52 1
50 323515
SCREW 		$11.79 1
51 801187
OIL PRESSURE REGULATOR VALVE
IN STOCK 		$221.79 2
52 14304124
SCREW
M5 X 16 		$0.14 (81.3% off) 2
53 11181574
WASHER
IN STOCK 		$0.02 2
54 319613
RECIRCULATING BALL BEARING 		$38.37 4
55 11057376
SNAP RING 		$0.65 4
56 297280
AIR FLOW SENSOR
IN STOCK 		$142.47 2
57 11566224
SCREW
M5 X 15
IN STOCK 		$0.34 4
58 325535
RUBBER CABLE GROMMET 		$17.66 4
59 323493
SCREW
M6 X 26 X 1; Applicable from engine No. 342395 		$1.01 14
60 329629
PLASTIC BUSH
Applicable from engine No. 342395 		$0.15 14
