Right Hand Cylinder Head

Ferrari F12 TDF

Find Your Part

Ferrari F12 TDF - RIGHT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
317838 RH HEAD $3,532.22 To Order
Photo Part No Description Price (each) Stock
321187 NUT Enquire To Order
Photo Part No Description Price (each) Stock
151117 WASHER $1.06 IN STOCK
Photo Part No Description Price (each) Stock
282400 THREADED PLUG $3.38 To Order
127635 THREADED PLUG $2.87 To Order
199760 THREADED PLUG $0.29 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
243721 SCREW WITH WASHER $0.44 IN STOCK
243720 SCREW $0.52 IN STOCK
Photo Part No Description Price (each) Stock
243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 $0.49 IN STOCK
Photo Part No Description Price (each) Stock
239614 GASKET $6.35 IN STOCK
Photo Part No Description Price (each) Stock
243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 $0.49 IN STOCK
239502 SCREW $0.54 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
211641 STUD BOLT $0.98 IN STOCK
Photo Part No Description Price (each) Stock
801187 OIL PRESSURE REGULATOR VALVE $222.71 IN STOCK
Photo Part No Description Price (each) Stock
14304221 SCREW $0.09 To Order
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
815999 RH CYLINDER HEAD COVER $1,065.06 To Order
Photo Part No Description Price (each) Stock
229353 SOLENOID VALVE GASKET $18.15 To Order
Photo Part No Description Price (each) Stock
271521 CONNECTOR $5.92 To Order
Photo Part No Description Price (each) Stock
243800 RH HEAD COVER GASKET $78.60 To Order
Photo Part No Description Price (each) Stock
223982 SPARK PLUG TUBE SEAL $2.40 IN STOCK
Photo Part No Description Price (each) Stock
293212 FRONT RH HEAD HEAT SHIELD $287.61 To Order
Photo Part No Description Price (each) Stock
297952 REAR RH HEAD HEAT SHIELD $240.89 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
252099 SHIELD MOUNTING BRACKET $17.74 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
224573 TIMING SENSOR $37.08 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
339948 STUD BOLT $19.01 To Order
Photo Part No Description Price (each) Stock
339948 STUD BOLT $19.01 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
200458 CHECK VALVE $9.22 IN STOCK
Photo Part No Description Price (each) Stock
272344 STUD BOLT $6.51 To Order
Photo Part No Description Price (each) Stock
11625524 SCREW $0.69 IN STOCK
Photo Part No Description Price (each) Stock
291172 RH HEAD HEAT SHIELD BRACKET $24.07 To Order
Photo Part No Description Price (each) Stock
339948 STUD BOLT $19.01 To Order
Photo Part No Description Price (each) Stock
324097 CABLE FASTENER BRACKET $16.47 To Order
Photo Part No Description Price (each) Stock
256827 GRUB SCREW $4.82 To Order
Photo Part No Description Price (each) Stock
10442190 BRACKET WITH SHEATH $0.67 IN STOCK
Photo Part No Description Price (each) Stock
327089 COMPL. INJECTION CABLE FASTENER BRACKET $17.74 To Order
View All

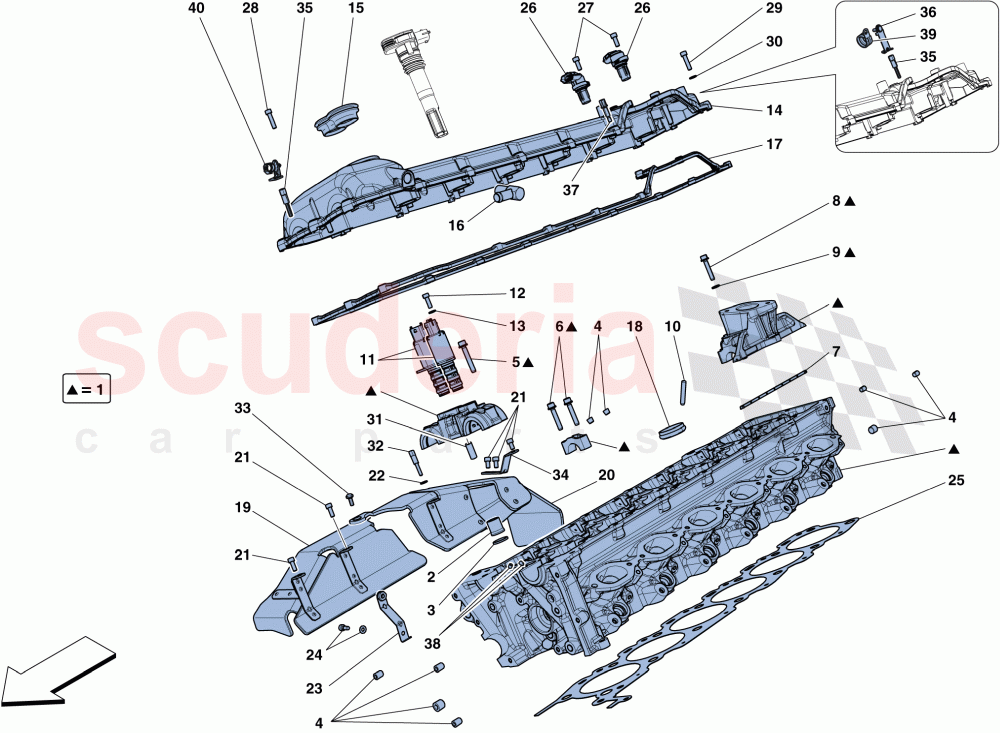

RIGHT HAND CYLINDER HEAD of Ferrari Ferrari F12 TDF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 317838
RH HEAD 		$3,532.22 1
2 321187
NUT
Fastening head to crankcase 		- 28 Enquire
3 151117
WASHER
Fastening head to crankcase
IN STOCK 		$1.06 (7.8% off) 28
4 282400
THREADED PLUG
M12 X 11 		$3.38 2
4 127635
THREADED PLUG
M18 X 11 X 1.5; For rear water orifice cover 		$2.87 (31.2% off) 1
4 199760
THREADED PLUG
D. 6 X 1
IN STOCK 		$0.29 7
4 127635
THREADED PLUG
M18 X 11 X 1.5; Inspection hole cover 		$2.87 (31.2% off) 12
5 243721
SCREW WITH WASHER
M6 X 45
IN STOCK 		$0.44 4
5 243720
SCREW
M6 X 40
IN STOCK 		$0.52 2
6 243719
ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35
M6 X 35
IN STOCK 		$0.49 20
7 239614
GASKET
Also comes with engine gasket set
IN STOCK 		$6.35 1
8 243719
ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35
M6 X 35
IN STOCK 		$0.49 4
8 239502
SCREW
M6 X 25
IN STOCK 		$0.54 1
9 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
10 211641
STUD BOLT
M8 X 16; Shaft length 24 mm
IN STOCK 		$0.98 (2% off) 12
11 801187
OIL PRESSURE REGULATOR VALVE
IN STOCK 		$222.71 2
12 14304221
SCREW
M5 X 16 		$0.09 2
13 11181574
WASHER
IN STOCK 		$0.02 2
14 815999
RH CYLINDER HEAD COVER 		$1,065.06 1
15 229353
SOLENOID VALVE GASKET
Also comes with engine gasket set 		$18.15 (38% off) 1
16 271521
CONNECTOR 		$5.92 1
17 243800
RH HEAD COVER GASKET
Also comes with engine gasket set 		$78.60 (29.6% off) 1
18 223982
SPARK PLUG TUBE SEAL
Also comes with engine gasket set
IN STOCK 		$2.40 (39.5% off) 6
19 293212
FRONT RH HEAD HEAT SHIELD 		$287.61 1
20 297952
REAR RH HEAD HEAT SHIELD 		$240.89 1
21 248334
SCREW
M6 X 12
IN STOCK 		$0.58 5
22 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
23 252099
SHIELD MOUNTING BRACKET 		$17.74 1
24 248334
SCREW
M6 X 14
IN STOCK 		$0.58 1
26 224573
TIMING SENSOR 		$37.08 (33.1% off) 2
27 248334
SCREW
M6 X 14
IN STOCK 		$0.58 2
28 339948
STUD BOLT
M6 X 25 		$19.01 1
29 339948
STUD BOLT
M6 X 25 		$19.01 17
30 11197774
WASHER
IN STOCK 		$0.06 (80% off) 20
31 200458
CHECK VALVE
IN STOCK 		$9.22 2
32 272344
STUD BOLT 		$6.51 1
33 11625524
SCREW
IN STOCK 		$0.69 2
34 291172
RH HEAD HEAT SHIELD BRACKET 		$24.07 1
35 339948
STUD BOLT 		$19.01 2
36 324097
CABLE FASTENER BRACKET 		$16.47 1
38 256827
GRUB SCREW 		$4.82 2
39 10442190
BRACKET WITH SHEATH
IN STOCK 		$0.67 (70.2% off) 1
40 327089
COMPL. INJECTION CABLE FASTENER BRACKET 		$17.74 1
