Ferrari F12 TDF - CRANKCASE

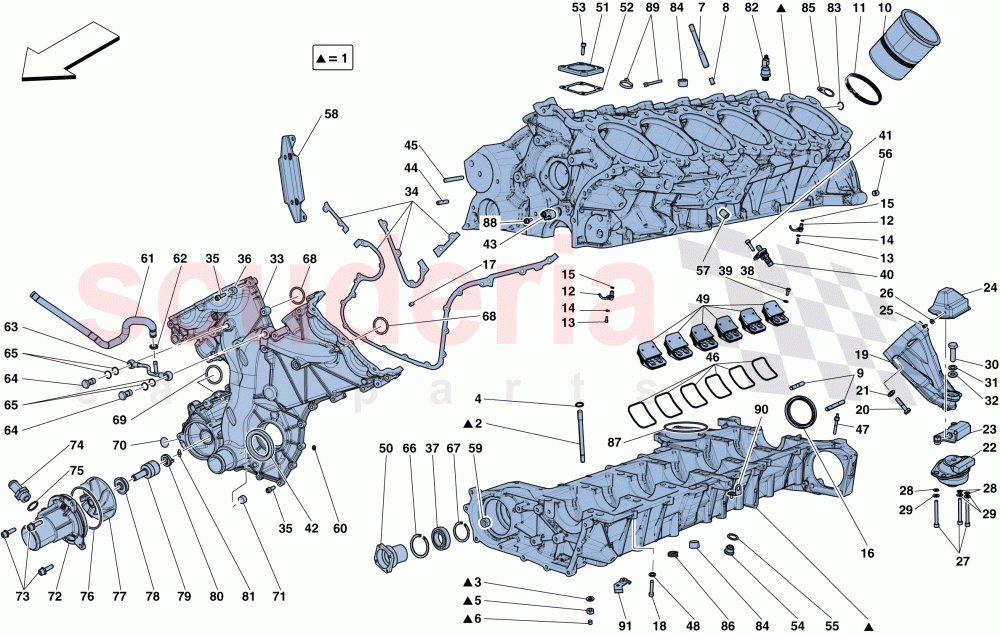

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	332018	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$6,366.53	To Order
	336038	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	$7,735.82	To Order

Photo	Part No	Description	Price (each)	Stock
	333917	STUD BOLT	$20.61	To Order
	312153	STUD BOLT	$19.31	To Order
	330554	STUD BOLT	$19.31	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	178348	WASHER D.10.2-20 X 2	$0.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	134704	O-RING	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176421	CENTERING DOWEL	$4.09	To Order

Photo	Part No	Description	Price (each)	Stock
	802590	STUD BOLT CRANKCASE	$13.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	185360	CENTERING DOWEL	$2.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13546934	STUD BOLT	$1.70	IN STOCK
	13547234	STUD BOLT	$13.75	IN STOCK
	13546834	STUD BOLT	$1.47	To Order

Photo	Part No	Description	Price (each)	Stock
	266366	CYLINDER SLEEVE	$275.82	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	186251	O-RING	$2.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	264087	PISTON COOLING NOZZLE	$29.00	To Order

Photo	Part No	Description	Price (each)	Stock
	14302921	SCREW	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	11181474	WASHER	$0.06	To Order

Photo	Part No	Description	Price (each)	Stock
	164877	O-RING	$0.28	To Order

Photo	Part No	Description	Price (each)	Stock
	242269	REAR MAIN OIL SEAL	$47.27	To Order

Photo	Part No	Description	Price (each)	Stock
	175611	CENTERING DOWEL	$1.70	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	$0.42	IN STOCK
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	267424	LH ENGINE STRUT	$309.39	To Order
	267423	RH ENGINE STRUT	$322.28	To Order

Photo	Part No	Description	Price (each)	Stock
	11234734	SCREW	$0.71	To Order

Photo	Part No	Description	Price (each)	Stock
	11190574	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	296230	RH FLEXIBLE ENGINE MOUNTING BUSH	$425.41	To Order
	296231	LH FLEXIBLE ENGINE MOUNTING BUSH	$425.41	To Order

Photo	Part No	Description	Price (each)	Stock
	269829	LH ENGINE MOUNTING BUSH LIMITER BRACKET	$151.18	To Order
	269828	RH ENGINE MOUNTING BUSH LIMITER BRACKET	$151.18	To Order

Photo	Part No	Description	Price (each)	Stock
	277259	BUSH HEAT SHIELD	$110.86	To Order

Photo	Part No	Description	Price (each)	Stock
	14305024	SCREW	$0.17	To Order

Photo	Part No	Description	Price (each)	Stock
	14498801	WASHER	$0.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	285972	SCREW	$16.74	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	SPRING WASHER M10	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	126648	WASHER D.10.5-21 X 2	$1.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	15215834	SCREW	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	10738021	WASHER	$1.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127498	WASHER	$0.14	To Order

Photo	Part No	Description	Price (each)	Stock
	324199	FRONT CRANKCASE COVER	$598.32	To Order

Photo	Part No	Description	Price (each)	Stock
	316502	GASKET BETWEEN CRANKCASE AND FRONT COVER	$58.59	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK
	231620	SCREW	$0.31	IN STOCK

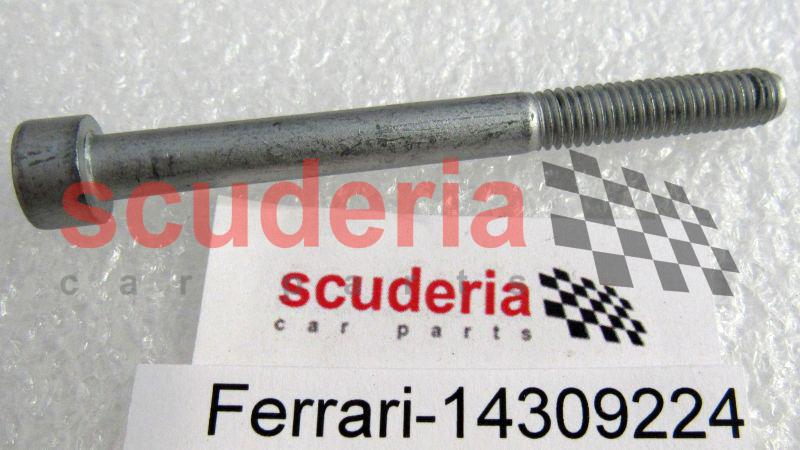

	14309224	SCREW	$0.57	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	281356	SPACER	$2.75	To Order

Photo	Part No	Description	Price (each)	Stock
	128799	BEARING	$92.81	To Order

Photo	Part No	Description	Price (each)	Stock
	13026924	SCREW	$0.29	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	857098	ANGULAR SPEED SENSOR	$80.11	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	210359	GASKET	$39.94	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	294944	COMPL. CHAIN COOLING NOZZLE	$94.09	To Order

Photo	Part No	Description	Price (each)	Stock
	13543124	STUD BOLT	$6.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	$3.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	154691	GASKET	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	219283	STUD BOLT	$16.74	To Order

Photo	Part No	Description	Price (each)	Stock
	11197774	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	255136	COMPL. VALVE HOLDER	$244.93	To Order

Photo	Part No	Description	Price (each)	Stock
	295132	PUMP DRIVE JOINT	$399.63	To Order

Photo	Part No	Description	Price (each)	Stock
	208451	INSPECTION HATCH COVER	$33.51	To Order

Photo	Part No	Description	Price (each)	Stock
	317312	GASKET	$3.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104280	MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5	$5.51	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261860	GASKET	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	100052	CENTERING DOWEL	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	218440	THREADED INSERT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	280123	MOUNTING BRACKET FOR CENTRAL ENGINE CABLES	$33.51	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	216292	GASKET	$3.86	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	297872	RUBBER WATER DRAIN PIPE	$95.38	To Order

Photo	Part No	Description	Price (each)	Stock
	177995	CLAMP	$1.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	294135	COMPL. WATER DRAIN PIPE	$464.09	To Order

Photo	Part No	Description	Price (each)	Stock
	211847	HOSE	$146.11	To Order

Photo	Part No	Description	Price (each)	Stock
	10260960	GASKET	$0.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11061576	SEEGER RING	$1.54	To Order

Photo	Part No	Description	Price (each)	Stock
	11068376	SEEGER RING	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	183010	O-RING D-32.93	$1.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	289278	O-RING	$2.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10159001	PLUG	$0.42	To Order

Photo	Part No	Description	Price (each)	Stock
	127635	THREADED PLUG	$2.92	To Order

Photo	Part No	Description	Price (each)	Stock
	288787	WATER PUMP COVER	$54.13	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	253823	CONNECTOR	$114.39	To Order

Photo	Part No	Description	Price (each)	Stock
	11270550	O-RING	$0.94	To Order

Photo	Part No	Description	Price (each)	Stock

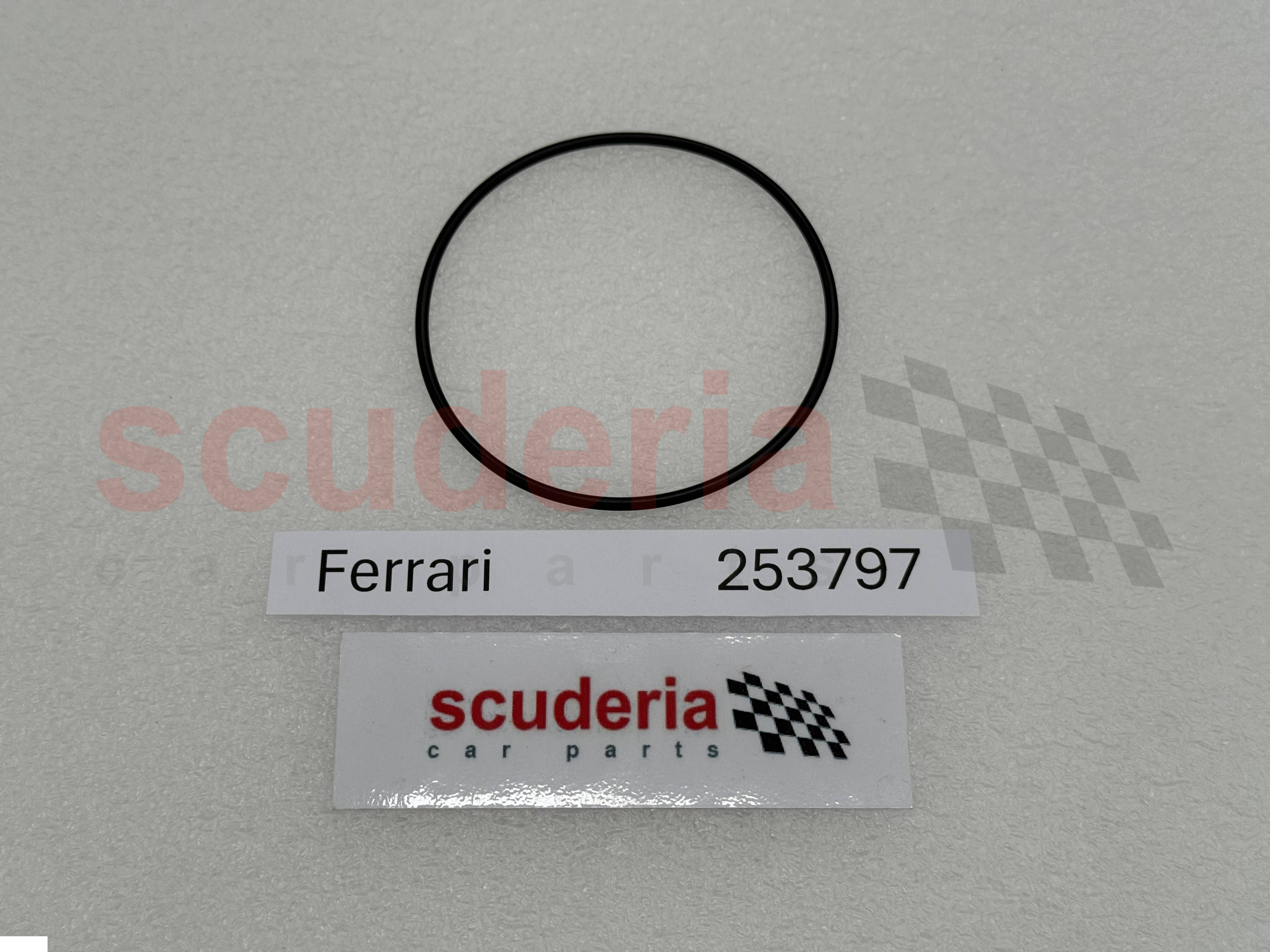

	253797	GASKET	$5.51	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	917267	WATER PUMP ROTOR	$199.10	To Order

Photo	Part No	Description	Price (each)	Stock
	252192	WATER PUMP GASKET	$199.04	To Order

Photo	Part No	Description	Price (each)	Stock
	295219	WATER PUMP BEARING	$209.48	To Order

Photo	Part No	Description	Price (each)	Stock
	295218	JOINT	$253.28	To Order

Photo	Part No	Description	Price (each)	Stock
	255939	CLIP	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	304074	OIL PRESSURE SENDER	$223.78	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	137192	O-RING	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282753	THREADED PLUG	$5.85	To Order

Photo	Part No	Description	Price (each)	Stock
	328523	DAMPER PLATE FOR TIMING SENSOR	$7.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	$5.25	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176388	O-RING	$2.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	282393	SCREW	$0.69	To Order

Photo	Part No	Description	Price (each)	Stock
	206739	CLAMP	$7.91	To Order

Photo	Part No	Description	Price (each)	Stock
	149694	PIPE FASTENER BRACKET	$6.11	To Order

Photo	Part No	Description	Price (each)	Stock
	294290	WIRING HARNESS MOUNTING BRACKET	$19.31	To Order

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	332018	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	332018 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY For vehicles up to engine No. 320662 also order oil pumps 331659 tab.18 pos.1, bracket 327526 tab.18 pos.9 and bush 327521 tab.18 pos.17; Applicable up to engine No. 342394	$6,366.53	1
1	336038	CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY	336038 CRANKCASE-LOWER CRANKCASE SHELL ASSEMBLY For vehicles up to engine No. 320662 also order oil pumps 331659 tab.18 pos.1, bracket 327526 tab.18 pos.9 and bush 327521 tab.18 pos.17; Applicable from engine No. 342395	$7,735.82	1
2	333917	STUD BOLT	333917 STUD BOLT Applicable from engine No. 342395	$20.61	14
2	312153	STUD BOLT	312153 STUD BOLT Applicable up to engine No. 342394	$19.31	14
2	330554	STUD BOLT	330554 STUD BOLT Applicable from engine No. 342395	$19.31	14
2	312412	STUD BOLT	312412 STUD BOLT Applicable up to engine No. 342394	$18.03	14
3	178348	WASHER D.10.2-20 X 2 IN STOCK	178348 WASHER D.10.2-20 X 2 IN STOCK	$0.74	28
4	134704	O-RING	134704 O-RING Also comes with engine gasket set	$0.14 MSRP: ~~1.00~~ (86% off)	28
5	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 IN STOCK	$0.20 MSRP: ~~0.35~~ (42.9% off)	28
6	176421	CENTERING DOWEL	176421 CENTERING DOWEL	$4.09	14
7	802590	STUD BOLT CRANKCASE IN STOCK	802590 STUD BOLT CRANKCASE IN STOCK	$13.33	28
8	185360	CENTERING DOWEL IN STOCK	185360 CENTERING DOWEL IN STOCK	$2.82	4
9	13546934	STUD BOLT IN STOCK	13546934 STUD BOLT M10 X 1.25 X 20; Fastening gearbox housing, dowel section IN STOCK	$1.70	2
9	13547234	STUD BOLT IN STOCK	13547234 STUD BOLT M10 X 1.25 X 20; Fastening gearbox housing IN STOCK	$13.75	1
9	13546834	STUD BOLT	13546834 STUD BOLT M10 X 1.25 X 20; Fastening gearbox housing	$1.47	3
10	266366	CYLINDER SLEEVE IN STOCK	266366 CYLINDER SLEEVE D. 94 IN STOCK	$275.82 MSRP: ~~466.10~~ (40.8% off)	12
11	186251	O-RING IN STOCK	186251 O-RING Also comes with engine gasket set IN STOCK	$2.45 MSRP: ~~3.20~~ (23.4% off)	36
12	264087	PISTON COOLING NOZZLE	264087 PISTON COOLING NOZZLE	$29.00	12
13	14302921	SCREW	14302921 SCREW M4 X 10	$0.06	12
14	11181474	WASHER	11181474 WASHER	$0.06	12
15	164877	O-RING	164877 O-RING Also comes with engine gasket set	$0.28	12
16	242269	REAR MAIN OIL SEAL	242269 REAR MAIN OIL SEAL Also comes with engine gasket set	$47.27	1
17	175611	CENTERING DOWEL	175611 CENTERING DOWEL Fastening front cover on crankcase	$1.70	2
18	231624	SCREW IN STOCK	231624 SCREW M6 X 45; Fastening crankcase to lower crankcase shell; Rear RH pump side IN STOCK	$0.42	1
18	231620	SCREW IN STOCK	231620 SCREW M6 X 25; Fastening crankcase to lower crankcase shell IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	12
19	267424	LH ENGINE STRUT	267424 LH ENGINE STRUT	$309.39	1
19	267423	RH ENGINE STRUT	267423 RH ENGINE STRUT	$322.28	1
20	11234734	SCREW	11234734 SCREW M10 X 1.25 X 45; Fastening strut to crankcase	$0.71	8
21	11190574	WASHER IN STOCK	11190574 WASHER Fastening strut to crankcase IN STOCK	$0.06	8
22	296230	RH FLEXIBLE ENGINE MOUNTING BUSH	296230 RH FLEXIBLE ENGINE MOUNTING BUSH	$425.41	1
22	296231	LH FLEXIBLE ENGINE MOUNTING BUSH	296231 LH FLEXIBLE ENGINE MOUNTING BUSH	$425.41	1
23	269829	LH ENGINE MOUNTING BUSH LIMITER BRACKET	269829 LH ENGINE MOUNTING BUSH LIMITER BRACKET	$151.18	1
23	269828	RH ENGINE MOUNTING BUSH LIMITER BRACKET	269828 RH ENGINE MOUNTING BUSH LIMITER BRACKET	$151.18	1
24	277259	BUSH HEAT SHIELD	277259 BUSH HEAT SHIELD	$110.86	2
25	14305024	SCREW	14305024 SCREW M6 X 10	$0.17	4
26	14498801	WASHER IN STOCK	14498801 WASHER IN STOCK	$0.11 MSRP: ~~0.20~~ (45% off)	4
27	285972	SCREW	285972 SCREW M10 X 1.25 X 85	$16.74	6
28	127497	SPRING WASHER M10 IN STOCK	127497 SPRING WASHER M10 IN STOCK	$0.06 MSRP: ~~0.75~~ (92% off)	6
29	126648	WASHER D.10.5-21 X 2 IN STOCK	126648 WASHER D.10.5-21 X 2 IN STOCK	$1.68 MSRP: ~~1.75~~ (4% off)	6
30	15215834	SCREW	15215834 SCREW M12 X 1.75 X 60	$1.54	2
31	10738021	WASHER IN STOCK	10738021 WASHER IN STOCK	$1.11	2
32	127498	WASHER	127498 WASHER	$0.14 MSRP: ~~0.60~~ (76.7% off)	2
33	324199	FRONT CRANKCASE COVER	324199 FRONT CRANKCASE COVER	$598.32	1
34	316502	GASKET BETWEEN CRANKCASE AND FRONT COVER IN STOCK	316502 GASKET BETWEEN CRANKCASE AND FRONT COVER Also comes with engine gasket set IN STOCK	$58.59	1
35	231620	SCREW IN STOCK	231620 SCREW M6 X 30 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	6
35	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	6
35	14309224	SCREW	14309224 SCREW M6 X 65	$0.57	1
35	10589624	SCREW IN STOCK	10589624 SCREW M6 X 80 IN STOCK	$0.29	3
35	231624	SCREW IN STOCK	231624 SCREW M6 X 45 IN STOCK	$0.42	2
35	231625	SCREW IN STOCK	231625 SCREW M6 X 50 IN STOCK	$0.57	11
36	281356	SPACER	281356 SPACER	$2.75	1
37	128799	BEARING	128799 BEARING	$92.81	1
38	13026924	SCREW	13026924 SCREW M6 X 14	$0.29	12
39	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	14
40	857098	ANGULAR SPEED SENSOR	857098 ANGULAR SPEED SENSOR	$80.11	1
41	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.29	1
42	210359	GASKET IN STOCK	210359 GASKET Also comes with engine gasket set IN STOCK	$39.94	1
43	294944	COMPL. CHAIN COOLING NOZZLE	294944 COMPL. CHAIN COOLING NOZZLE	$94.09	1
44	13543124	STUD BOLT IN STOCK	13543124 STUD BOLT M8 X 16; Shaft length 16 mm IN STOCK	$6.11	1
45	13543824	STUD BOLT IN STOCK	13543824 STUD BOLT M8 X 16; Shaft length 40 mm IN STOCK	$3.29	1
46	154691	GASKET IN STOCK	154691 GASKET Also comes with engine gasket set IN STOCK	$1.54 MSRP: ~~2.40~~ (35.8% off)	6
47	219283	STUD BOLT	219283 STUD BOLT Fastening crankcase to rear LH lower crankcase shell	$16.74	1
48	11197774	WASHER IN STOCK	11197774 WASHER IN STOCK	$0.06 MSRP: ~~0.30~~ (80% off)	4
49	255136	COMPL. VALVE HOLDER	255136 COMPL. VALVE HOLDER	$244.93	6
50	295132	PUMP DRIVE JOINT	295132 PUMP DRIVE JOINT	$399.63	1
51	208451	INSPECTION HATCH COVER	208451 INSPECTION HATCH COVER	$33.51	1
52	317312	GASKET IN STOCK	317312 GASKET Also comes with engine gasket set IN STOCK	$3.33	1
53	231619	SCREW IN STOCK	231619 SCREW M6 X 20 IN STOCK	$0.29	4
54	104280	MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 IN STOCK	104280 MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 IN STOCK	$5.51 MSRP: ~~6.90~~ (20.1% off)	1
55	10261860	GASKET IN STOCK	10261860 GASKET Also comes with engine gasket set IN STOCK	$0.43 MSRP: ~~1.00~~ (57% off)	1
56	100052	CENTERING DOWEL	100052 CENTERING DOWEL	$2.25	2
57	218440	THREADED INSERT	218440 THREADED INSERT	-	8	Enquire
58	280123	MOUNTING BRACKET FOR CENTRAL ENGINE CABLES	280123 MOUNTING BRACKET FOR CENTRAL ENGINE CABLES	$33.51	1
59	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	$2.92 MSRP: ~~4.17~~ (30% off)	1
60	216292	GASKET IN STOCK	216292 GASKET Also comes with engine gasket set IN STOCK	$3.86	6
61	297872	RUBBER WATER DRAIN PIPE	297872 RUBBER WATER DRAIN PIPE	$95.38	1
62	177995	CLAMP IN STOCK	177995 CLAMP IN STOCK	$1.06 MSRP: ~~2.15~~ (50.7% off)	1
63	294135	COMPL. WATER DRAIN PIPE	294135 COMPL. WATER DRAIN PIPE	$464.09	1
64	211847	HOSE	211847 HOSE	$146.11	2
65	10260960	GASKET IN STOCK	10260960 GASKET IN STOCK	$0.15	4
66	11061576	SEEGER RING	11061576 SEEGER RING	$1.54	1
67	11068376	SEEGER RING IN STOCK	11068376 SEEGER RING IN STOCK	$0.43 MSRP: ~~0.66~~ (34.8% off)	1
68	183010	O-RING D-32.93 IN STOCK	183010 O-RING D-32.93 IN STOCK	$1.62 MSRP: ~~2.89~~ (43.9% off)	2
69	289278	O-RING IN STOCK	289278 O-RING IN STOCK	$2.92	1
70	10159001	PLUG	10159001 PLUG	$0.42	1
71	127635	THREADED PLUG	127635 THREADED PLUG M18 X 11 X 1.5	$2.92 MSRP: ~~4.17~~ (30% off)	1
72	288787	WATER PUMP COVER	288787 WATER PUMP COVER	$54.13	1
73	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.29	3
74	253823	CONNECTOR	253823 CONNECTOR	$114.39	1
75	11270550	O-RING	11270550 O-RING	$0.94	1
76	253797	GASKET IN STOCK	253797 GASKET IN STOCK	$5.51	1
77	917267	WATER PUMP ROTOR	917267 WATER PUMP ROTOR	$199.10	1
78	252192	WATER PUMP GASKET	252192 WATER PUMP GASKET	$199.04	1
79	295219	WATER PUMP BEARING	295219 WATER PUMP BEARING	$209.48	1
80	295218	JOINT	295218 JOINT	$253.28	1
81	255939	CLIP	255939 CLIP	$0.11	1
82	304074	OIL PRESSURE SENDER ARRIVING SOON	304074 OIL PRESSURE SENDER ARRIVING SOON	$223.78 MSRP: ~~287.64~~ (22.2% off)	1
83	137192	O-RING IN STOCK	137192 O-RING IN STOCK	$0.34 MSRP: ~~0.50~~ (32% off)	1
84	282753	THREADED PLUG	282753 THREADED PLUG	$5.85	8
85	328523	DAMPER PLATE FOR TIMING SENSOR IN STOCK	328523 DAMPER PLATE FOR TIMING SENSOR IN STOCK	$7.71	4
86	223577	THREADED INSERT M22 X 1.5 X 9MM IN STOCK	223577 THREADED INSERT M22 X 1.5 X 9MM IN STOCK	$5.25	1
87	176388	O-RING IN STOCK	176388 O-RING IN STOCK	$2.22 MSRP: ~~3.95~~ (43.8% off)	1
88	282393	SCREW	282393 SCREW M6 X 16	$0.69	1
89	206739	CLAMP	206739 CLAMP	$7.91	2
90	149694	PIPE FASTENER BRACKET	149694 PIPE FASTENER BRACKET	$6.11	1
91	294290	WIRING HARNESS MOUNTING BRACKET	294290 WIRING HARNESS MOUNTING BRACKET	$19.31	1
