Rear Suspension - Arms

Ferrari F12 TDF

Find Your Part

Ferrari F12 TDF - REAR SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
295792 REAR SUSPENSION UPPER ARM $709.22 IN STOCK
Photo Part No Description Price (each) Stock
329244 COMPL. LOWER RH REAR ARM $884.20 To Order
911176 LH LOWER REAR ARM $1,050.71 IN STOCK
Photo Part No Description Price (each) Stock
343376 BALL JOINT $20.33 IN STOCK
Photo Part No Description Price (each) Stock
238656 SPECIAL SCREW TCEI M14 X 1.5 X 21 $24.45 IN STOCK
Photo Part No Description Price (each) Stock
238063 NUT $3.94 IN STOCK
Photo Part No Description Price (each) Stock
259688 ANTI-ROTATION LINKAGE $183.86 IN STOCK
Photo Part No Description Price (each) Stock
222956 COMPENSATOR RING $16.51 To Order
Photo Part No Description Price (each) Stock
238258 SCREW $28.89 IN STOCK
Photo Part No Description Price (each) Stock
15541434 SCREW 12.1 X 25 X 80 $1.84 IN STOCK
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.25 IN STOCK
Photo Part No Description Price (each) Stock
203666 NUT $0.81 IN STOCK
Photo Part No Description Price (each) Stock
314125 ACTUATOR CABLE FASTENER BRACKET $24.13 To Order
Photo Part No Description Price (each) Stock
15541434 SCREW 12.1 X 25 X 80 $1.84 IN STOCK
Photo Part No Description Price (each) Stock
203666 NUT $0.81 IN STOCK
Photo Part No Description Price (each) Stock
12643778 BLACK WASHER D.6.45-18X1.5 $0.25 IN STOCK
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.81 IN STOCK
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.67 IN STOCK
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.42 IN STOCK
Photo Part No Description Price (each) Stock
262540 ADJUSTER SHIM $8.22 IN STOCK
262539 ADJUSTER SHIM $8.22 To Order
262546 ADJUSTER SHIM $8.22 IN STOCK
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
81911600 SCREW $0.44 To Order
Photo Part No Description Price (each) Stock
299935 RH REAR HUB CARRIER $2,377.26 IN STOCK
299933 LH REAR HUB CARRIER $2,377.26 To Order
Photo Part No Description Price (each) Stock
269415 ABS SENSOR $367.74 IN STOCK
Photo Part No Description Price (each) Stock
302406 THREADED ROD $2.12 IN STOCK
Photo Part No Description Price (each) Stock
13578321 WASHER $0.46 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER D.8.4 X 17 X 1.6 $0.11 IN STOCK
Photo Part No Description Price (each) Stock
104030 NUT $0.25 IN STOCK
Photo Part No Description Price (each) Stock
310942 CLIP $1.35 To Order
Photo Part No Description Price (each) Stock
291678 CONNECTOR RETAINER CLIP $0.21 To Order
Photo Part No Description Price (each) Stock
322737 CLIP $0.55 To Order
View All

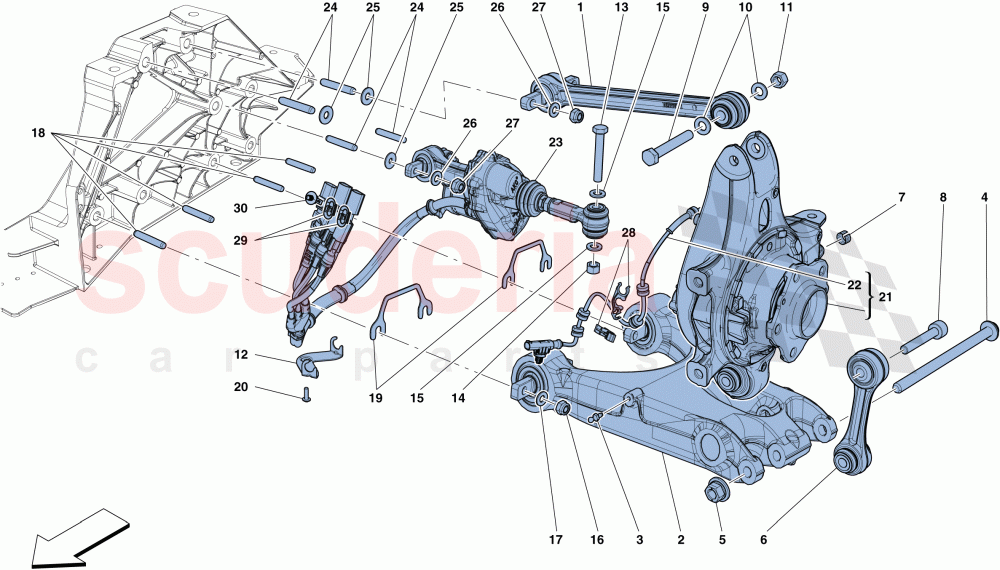

REAR SUSPENSION - ARMS of Ferrari Ferrari F12 TDF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 295792
REAR SUSPENSION UPPER ARM
IN STOCK 		$709.22 2
2 329244
COMPL. LOWER RH REAR ARM 		$884.20 1
2 911176
LH LOWER REAR ARM
IN STOCK 		$1,050.71 1
3 343376
BALL JOINT
IN STOCK 		$20.33 2
4 238656
SPECIAL SCREW TCEI M14 X 1.5 X 21
IN STOCK 		$24.45 (10.7% off) 2
5 238063
NUT
IN STOCK 		$3.94 (28.4% off) 2
6 259688
ANTI-ROTATION LINKAGE
IN STOCK 		$183.86 2
7 222956
COMPENSATOR RING 		$16.51 2
8 238258
SCREW
M12 X 1.25 X 75
IN STOCK 		$28.89 2
9 15541434
SCREW 12.1 X 25 X 80
M12 X 1.25 X 80
IN STOCK 		$1.84 (38.3% off) 2
10 12643778
BLACK WASHER D.6.45-18X1.5
IN STOCK 		$0.25 (50% off) 4
11 203666
NUT
IN STOCK 		$0.81 (59.5% off) 2
12 314125
ACTUATOR CABLE FASTENER BRACKET 		$24.13 2
13 15541434
SCREW 12.1 X 25 X 80
M12 X 1.25 X 80
IN STOCK 		$1.84 (38.3% off) 2
14 203666
NUT
IN STOCK 		$0.81 (59.5% off) 2
15 12643778
BLACK WASHER D.6.45-18X1.5
IN STOCK 		$0.25 (50% off) 4
16 12574521
Nyloc Nut
IN STOCK 		$0.81 (59.5% off) 8
17 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.67 (4.6% off) 8
18 264528
THREADED ROD
IN STOCK 		$3.42 (13.4% off) 8
19 262540
ADJUSTER SHIM
Th. 2.5 mm
IN STOCK 		$8.22 (5.9% off) 4
19 262539
ADJUSTER SHIM
Th. 2 mm 		$8.22 (5.9% off) 4
19 262546
ADJUSTER SHIM
Th. 1.5 mm
IN STOCK 		$8.22 4
19 262545
ADJUSTER SHIM
Th. 1 mm 		$8.22 (5.9% off) 4
19 262544
ADJUSTER SHIM
Th. 0.5 mm 		$8.22 (5.9% off) 4
19 262543
ADJUSTER SHIM
Th. 4 mm 		$8.22 4
19 262542
ADJUSTER SHIM
Th. 3.5 mm
IN STOCK 		$8.22 (5.9% off) 4
19 262541
ADJUSTER SHIM
Th. 3 mm
IN STOCK 		$8.22 (5.9% off) 4
20 81911600
SCREW
M6 X 18 		$0.44 2
21 299935
RH REAR HUB CARRIER
IN STOCK 		$2,377.26 1
21 299933
LH REAR HUB CARRIER 		$2,377.26 (29% off) 1
22 269415
ABS SENSOR
IN STOCK 		$367.74 2
24 302406
THREADED ROD
IN STOCK 		$2.12 8
25 13578321
WASHER
IN STOCK 		$0.46 8
26 14496524
WASHER D.8.4 X 17 X 1.6
IN STOCK 		$0.11 (92.7% off) 8
27 104030
NUT
IN STOCK 		$0.25 (75% off) 8
28 310942
CLIP 		$1.35 4
29 291678
CONNECTOR RETAINER CLIP 		$0.21 4
30 322737
CLIP
For LH suspension 		$0.55 1
