Ferrari F12 TDF - FUEL TANK, FUEL SYSTEM PUMPS AND PIPES

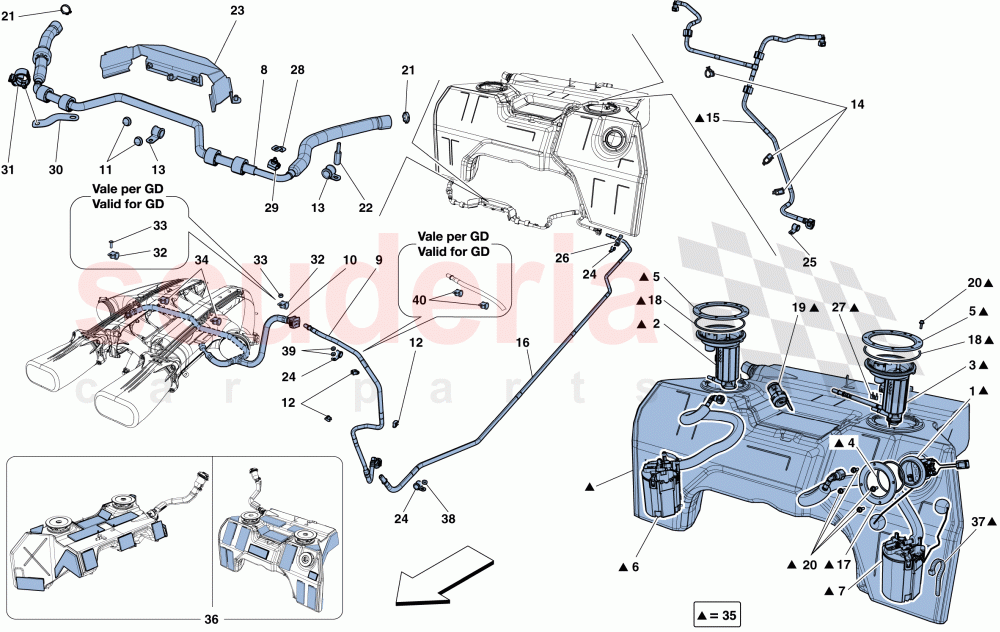

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	273540	COMPL. INCLINATION SENSOR	$1,802.43	To Order

Photo	Part No	Description	Price (each)	Stock
	282784	FUEL PUMP FILTER RH	$627.76	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	282785	FUEL PUMP FILTER LH	$993.18	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	239413	O-RING	$4.68	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	275998	FASTENER RING	$70.52	To Order

Photo	Part No	Description	Price (each)	Stock
	272086	FUEL PUMP	$1,605.34	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	272087	LH FUEL PUMP	$1,459.59	ARRIVING SOON

Photo	Part No	Description	Price (each)	Stock
	290771	LOWER CONNECTOR PIPE	$390.40	To Order

Photo	Part No	Description	Price (each)	Stock
	295010	FUEL DELIVERY PIPE, FRONT SECTION	$88.13	To Order
	295009	FUEL DELIVERY PIPE, FRONT SECTION	$88.13	To Order

Photo	Part No	Description	Price (each)	Stock
	321348	LOW PRESSURE FUEL PIPE	$906.74	To Order
	318669	LOW PRESSURE FUEL PIPE	$528.92	To Order

Photo	Part No	Description	Price (each)	Stock
	14622387	CAP	$2.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	235682	PIPE CLIP	$0.61	To Order

Photo	Part No	Description	Price (each)	Stock
	320600	CLIP	$2.10	To Order

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	281180	REAR FUEL DELIVERY PIPE	$302.23	To Order

Photo	Part No	Description	Price (each)	Stock
	277364	FUEL DELIVERY PIPE, CENTRE SECTION	$31.47	To Order

Photo	Part No	Description	Price (each)	Stock
	276001	FASTENER RING	$235.09	To Order

Photo	Part No	Description	Price (each)	Stock
	275314	O-RING	$5.98	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	237407	ANTI SPIT-BACK VALVE	$32.73	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.33	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	281598	COLLAR	$2.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	178772	SPACER STUD	$9.95	To Order

Photo	Part No	Description	Price (each)	Stock
	277360	HEAT SHIELD	$74.28	To Order

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10441290	BRACKET WITH SHEATH	$0.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	286193	FUEL PIPE FASTENER BRACKET	$20.14	To Order

Photo	Part No	Description	Price (each)	Stock
	238688	CONNECTOR	$50.36	To Order

Photo	Part No	Description	Price (each)	Stock
	290800	CONNECTOR PIPE MOUNTING BRACKET	$64.21	To Order

Photo	Part No	Description	Price (each)	Stock
	263230	CLIP	$1.26	To Order

Photo	Part No	Description	Price (each)	Stock
	286534	PIPE MOUNTING BRACKET	$5.03	To Order

Photo	Part No	Description	Price (each)	Stock
	259508	CLIP	$0.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	290424	BRACKET WITH SHEATH	$11.07	To Order
	10441290	BRACKET WITH SHEATH	$0.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	81911600	SCREW	$0.44	To Order
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	67190200	BRACKET WITH SHEATH	$2.25	To Order

Photo	Part No	Description	Price (each)	Stock
	288623	COMPL. TANK	$8,005.86	To Order

Photo	Part No	Description	Price (each)	Stock
	277365	FUEL TANK ANTI-VIBRATION PAD KIT	$1,259.37	To Order

Photo	Part No	Description	Price (each)	Stock
	10815787	CLAMP	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	179318	SPACER	$2.10	To Order

Photo	Part No	Description	Price (each)	Stock
	10519424	WASHER D.6.4 X 11.95 X 1.6	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	296614	BRACKET WITH SHEATH	$25.17	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	273540	COMPL. INCLINATION SENSOR	273540 COMPL. INCLINATION SENSOR	$1,802.43 MSRP: ~~3,447.36~~ (47.7% off)	1
2	282784	FUEL PUMP FILTER RH ARRIVING SOON	282784 FUEL PUMP FILTER RH ARRIVING SOON	$627.76	1
3	282785	FUEL PUMP FILTER LH ARRIVING SOON	282785 FUEL PUMP FILTER LH ARRIVING SOON	$993.18	1
4	239413	O-RING IN STOCK	239413 O-RING IN STOCK	$4.68 MSRP: ~~14.23~~ (67.1% off)	1
5	275998	FASTENER RING	275998 FASTENER RING	$70.52	2
6	272086	FUEL PUMP ARRIVING SOON	272086 FUEL PUMP ARRIVING SOON	$1,605.34	1
7	272087	LH FUEL PUMP ARRIVING SOON	272087 LH FUEL PUMP ARRIVING SOON	$1,459.59	1
8	290771	LOWER CONNECTOR PIPE	290771 LOWER CONNECTOR PIPE	$390.40	1
9	295010	FUEL DELIVERY PIPE, FRONT SECTION	295010 FUEL DELIVERY PIPE, FRONT SECTION Applicable for GD	$88.13	1
9	295009	FUEL DELIVERY PIPE, FRONT SECTION	295009 FUEL DELIVERY PIPE, FRONT SECTION Not for GD	$88.13	1
10	321348	LOW PRESSURE FUEL PIPE	321348 LOW PRESSURE FUEL PIPE Applicable for GD	$906.74	1
10	318669	LOW PRESSURE FUEL PIPE	318669 LOW PRESSURE FUEL PIPE Not for GD	$528.92	1
11	14622387	CAP IN STOCK	14622387 CAP IN STOCK	$2.69	2
12	235682	PIPE CLIP	235682 PIPE CLIP x2 for GD	$0.61	3
13	320600	CLIP	320600 CLIP	$2.10	2
14	177553	CLAMP	177553 CLAMP	$0.43 MSRP: ~~1.25~~ (65.6% off)	3
15	281180	REAR FUEL DELIVERY PIPE	281180 REAR FUEL DELIVERY PIPE	$302.23	1
16	277364	FUEL DELIVERY PIPE, CENTRE SECTION	277364 FUEL DELIVERY PIPE, CENTRE SECTION	$31.47	1
17	276001	FASTENER RING	276001 FASTENER RING	$235.09	1
18	275314	O-RING IN STOCK	275314 O-RING IN STOCK	$5.98 MSRP: ~~7.65~~ (21.8% off)	2
19	237407	ANTI SPIT-BACK VALVE	237407 ANTI SPIT-BACK VALVE	$32.73	1
20	11566224	SCREW IN STOCK	11566224 SCREW M5 X 16 IN STOCK	$0.33	20
21	281598	COLLAR IN STOCK	281598 COLLAR IN STOCK	$2.69	2
22	178772	SPACER STUD	178772 SPACER STUD	$9.95	1
23	277360	HEAT SHIELD	277360 HEAT SHIELD	$74.28	1
24	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH D. 10 IN STOCK	$0.53 MSRP: ~~1.68~~ (68.5% off)	3
25	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH IN STOCK	$0.53 MSRP: ~~1.68~~ (68.5% off)	1
26	286193	FUEL PIPE FASTENER BRACKET	286193 FUEL PIPE FASTENER BRACKET	$20.14	1
27	238688	CONNECTOR	238688 CONNECTOR	$50.36	2
28	290800	CONNECTOR PIPE MOUNTING BRACKET	290800 CONNECTOR PIPE MOUNTING BRACKET	$64.21	1
29	263230	CLIP	263230 CLIP	$1.26	1
30	286534	PIPE MOUNTING BRACKET	286534 PIPE MOUNTING BRACKET	$5.03	1
31	259508	CLIP IN STOCK	259508 CLIP IN STOCK	$0.53	1
32	290424	BRACKET WITH SHEATH	290424 BRACKET WITH SHEATH Applicable for GD	$11.07	1
32	10441290	BRACKET WITH SHEATH IN STOCK	10441290 BRACKET WITH SHEATH Not for GD IN STOCK	$0.53 MSRP: ~~1.68~~ (68.5% off)	1
33	81911600	SCREW	81911600 SCREW M6 X 1 X 18; Applicable for GD	$0.44	1
33	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 Not for GD IN STOCK	$1.31	1
34	67190200	BRACKET WITH SHEATH	67190200 BRACKET WITH SHEATH	$2.25	2
35	288623	COMPL. TANK	288623 COMPL. TANK	$8,005.86	1
36	277365	FUEL TANK ANTI-VIBRATION PAD KIT	277365 FUEL TANK ANTI-VIBRATION PAD KIT	$1,259.37	1
37	10815787	CLAMP IN STOCK	10815787 CLAMP IN STOCK	$0.14	1
38	179318	SPACER	179318 SPACER	$2.10	1
39	10519424	WASHER D.6.4 X 11.95 X 1.6 IN STOCK	10519424 WASHER D.6.4 X 11.95 X 1.6 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	2
40	296614	BRACKET WITH SHEATH	296614 BRACKET WITH SHEATH Applicable for GD	$25.17	2
