Ferrari F12 TDF - COOLING - RADIATORS AND AIR DUCTS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
333926 ENGINE WATER RADIATOR $1,294.17 IN STOCK
Photo Part No Description Price (each) Stock
277227 ENGINE OIL RADIATOR $1,973.94 IN STOCK
Photo Part No Description Price (each) Stock
265489 AC FILTER CONDENSER $570.99 IN STOCK
Photo Part No Description Price (each) Stock
310424 OIL RADIATOR $366.86 To Order
Photo Part No Description Price (each) Stock
328095 COWL WITH ELECTRIC FANS $2,528.89 To Order
328095 COWL WITH ELECTRIC FANS $2,528.89 To Order
295049 COWL WITH ELECTRIC FANS $1,206.34 IN STOCK
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
16285227 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
268656 CONDENSER MOUNTING BRACKET $37.94 IN STOCK
Photo Part No Description Price (each) Stock
13046011 NUT $0.32 To Order
Photo Part No Description Price (each) Stock
297845 RH POWER STEERING FLUID RADIATOR MOUNTING BRACKET $253.00 To Order
297846 LH POWER STEERING FLUID RADIATOR MOUNTING BRACKET $253.00 To Order
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $28.45 IN STOCK
Photo Part No Description Price (each) Stock
328405 LOWER RH BRACKET $69.57 IN STOCK
Photo Part No Description Price (each) Stock
328406 LH LOWER BRACKET $69.57 IN STOCK
Photo Part No Description Price (each) Stock
16287127 SCREW $0.47 To Order
Photo Part No Description Price (each) Stock
307674 RADIATOR MOUNTING BUSH $7.57 IN STOCK
Photo Part No Description Price (each) Stock
271472 BUSH $13.90 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
260080 WATER HOSE FROM VALVE TO RADIATOR $196.08 IN STOCK
Photo Part No Description Price (each) Stock
290951 WATER HOSE FROM ENGINE TO VALVE $354.21 To Order
Photo Part No Description Price (each) Stock
258630 RETURN HOSE FROM RADIATOR $39.19 To Order
Photo Part No Description Price (each) Stock
290949 RETURN HOSE TO PUMP $58.17 To Order
Photo Part No Description Price (each) Stock
270452 WATER HOSE FROM VALVE $64.50 To Order
Photo Part No Description Price (each) Stock
267849 THERMOSTAT HOUSING $316.25 IN STOCK
Photo Part No Description Price (each) Stock
290950 METAL WATER RECIRCULATION CONNECTOR PIPE $366.86 To Order
Photo Part No Description Price (each) Stock
267300 DAMPED MOUNT $11.12 IN STOCK
Photo Part No Description Price (each) Stock
262113 COLLAR $1.60 To Order
Photo Part No Description Price (each) Stock
296781 PIPE CLAMP 30-45MM $7.75 IN STOCK
Photo Part No Description Price (each) Stock
86574700 SCREW $0.61 To Order
Photo Part No Description Price (each) Stock
11568124 SCREW $0.81 IN STOCK
Photo Part No Description Price (each) Stock
13000790 SCREW COLLAR $0.70 IN STOCK
Photo Part No Description Price (each) Stock
12647021 WASHER $0.31 IN STOCK
Photo Part No Description Price (each) Stock
282469 RUBBER SHIM $2.11 IN STOCK
Photo Part No Description Price (each) Stock
282580 RUBBER SHIM $4.81 To Order
Photo Part No Description Price (each) Stock
262913 THERMOSTAT/PRESSURE SWITCH $248.36 ARRIVING SOON
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
228438 CONNECTOR $8.18 To Order
Photo Part No Description Price (each) Stock
82242400 WASHER $0.09 To Order
Photo Part No Description Price (each) Stock
16285227 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
289445 POWER STEERING RADIATOR SHIELD $139.14 IN STOCK
Photo Part No Description Price (each) Stock
62769800 WASHER D.5-14 X 2.5 $0.21 ARRIVING SOON
Photo Part No Description Price (each) Stock
11568124 SCREW $0.81 IN STOCK
Photo Part No Description Price (each) Stock
16281827 SCREW $0.21 To Order
Photo Part No Description Price (each) Stock
329502 PLATE $10.88 To Order
View All

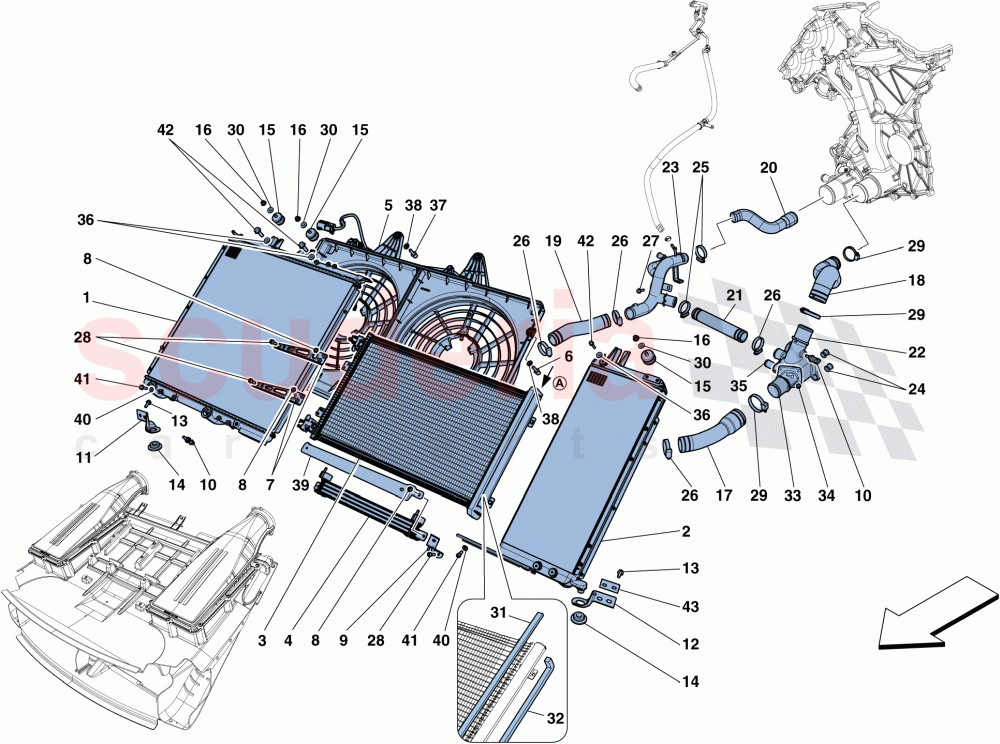

COOLING - RADIATORS AND AIR DUCTS of Ferrari Ferrari F12 TDF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 333926
ENGINE WATER RADIATOR
IN STOCK 		$1,294.17 1
2 277227
ENGINE OIL RADIATOR
IN STOCK 		$1,973.94 1
3 265489
AC FILTER CONDENSER
IN STOCK 		$570.99 1
4 310424
OIL RADIATOR 		$366.86 (28.2% off) 1

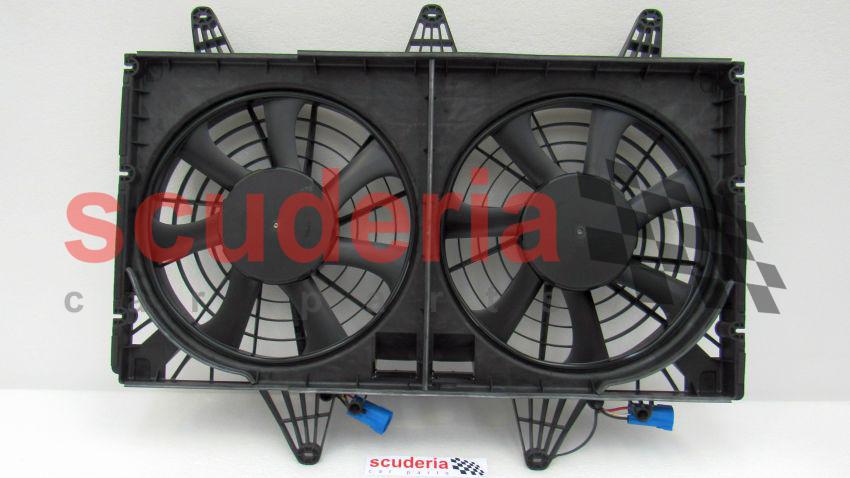

5 328095
COWL WITH ELECTRIC FANS
Plastic; Applicable for USA, CDN, USA LIGHT; Applicable from Ass. No. 133882 		$2,528.89 1
5 328095
COWL WITH ELECTRIC FANS
Plastic; Not for USA, CDN, USA LIGHT; Applicable from Ass. No. 135426 		$2,528.89 1
5 295049
COWL WITH ELECTRIC FANS
Plastic; Applicable for USA, CDN, USA LIGHT; Applicable up to Ass. No. 133881
IN STOCK 		$1,206.34 1
5 295049
COWL WITH ELECTRIC FANS
Plastic; Not for USA, CDN, USA LIGHT; Applicable up to Ass. No. 135425
IN STOCK 		$1,206.34 1
6 16285227
SCREW
IN STOCK 		$0.31 6
7 268656
CONDENSER MOUNTING BRACKET
IN STOCK 		$37.94 2
8 13046011
NUT 		$0.32 6
9 297845
RH POWER STEERING FLUID RADIATOR MOUNTING BRACKET 		$253.00 1
9 297846
LH POWER STEERING FLUID RADIATOR MOUNTING BRACKET 		$253.00 1
10 180137
TEMPERATURE SENSOR
IN STOCK 		$28.45 (13.8% off) 2
11 328405
LOWER RH BRACKET
IN STOCK 		$69.57 1
12 328406
LH LOWER BRACKET
IN STOCK 		$69.57 1
13 16287127
SCREW
M8 X 20 		$0.47 4
14 307674
RADIATOR MOUNTING BUSH
IN STOCK 		$7.57 2
15 271472
BUSH
IN STOCK 		$13.90 3
16 14040711
NUT
IN STOCK 		$0.35 3
17 260080
WATER HOSE FROM VALVE TO RADIATOR
IN STOCK 		$196.08 1
18 290951
WATER HOSE FROM ENGINE TO VALVE 		$354.21 1
19 258630
RETURN HOSE FROM RADIATOR 		$39.19 1
20 290949
RETURN HOSE TO PUMP 		$58.17 1
21 270452
WATER HOSE FROM VALVE 		$64.50 1
22 267849
THERMOSTAT HOUSING
IN STOCK 		$316.25 1
23 290950
METAL WATER RECIRCULATION CONNECTOR PIPE 		$366.86 1
24 267300
DAMPED MOUNT
IN STOCK 		$11.12 4
25 262113
COLLAR 		$1.60 2
26 296781
PIPE CLAMP 30-45MM
IN STOCK 		$7.75 5
27 86574700
SCREW
M6 X 16 		$0.61 1
28 11568124
SCREW
M5 X 10
IN STOCK 		$0.81 4
29 13000790
SCREW COLLAR
IN STOCK 		$0.70 (68.9% off) 3
30 12647021
WASHER
IN STOCK 		$0.31 3
31 282469
RUBBER SHIM
IN STOCK 		$2.11 1
32 282580
RUBBER SHIM 		$4.81 1
33 262913
THERMOSTAT/PRESSURE SWITCH
ARRIVING SOON 		$248.36 (31.1% off) 1
34 231619
SCREW
M6 X 18
IN STOCK 		$0.29 4
35 228438
CONNECTOR 		$8.18 1
36 82242400
WASHER 		$0.09 4
37 16285227
SCREW
IN STOCK 		$0.31 5
38 12643724
WASHER
IN STOCK 		$0.06 (88% off) 11
39 289445
POWER STEERING RADIATOR SHIELD
IN STOCK 		$139.14 1
40 62769800
WASHER D.5-14 X 2.5
ARRIVING SOON 		$0.21 (30% off) 3
41 11568124
SCREW
M5 X 16
IN STOCK 		$0.81 3
42 16281827
SCREW 		$0.21 4
43 329502
PLATE 		$10.88 1
