Front Suspension - Arms

Ferrari F12 TDF

Find Your Part

Ferrari F12 TDF - FRONT SUSPENSION - ARMS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
248760 RH Front Upper Arm $797.16 IN STOCK
248758 LH Front Upper Arm $797.16 IN STOCK
Photo Part No Description Price (each) Stock
264524 Lower RH Front Arm $1,236.70 ARRIVING SOON
264523 Lower LH Front Arm $1,236.70 ARRIVING SOON
Photo Part No Description Price (each) Stock
314464 COMPL. RH FRONT HUB CARRIER $2,280.26 To Order
314463 COMPL. LH FRONT HUB CARRIER $2,280.26 To Order
Photo Part No Description Price (each) Stock
259615 ABS SENSOR $190.47 To Order
Photo Part No Description Price (each) Stock
149807 NUT $1.05 IN STOCK
Photo Part No Description Price (each) Stock
12646921 WASHER $0.50 IN STOCK
Photo Part No Description Price (each) Stock
203795 NUT $2.42 IN STOCK
Photo Part No Description Price (each) Stock
241689 WASHER $6.59 IN STOCK
Photo Part No Description Price (each) Stock
343376 BALL JOINT $20.15 IN STOCK
Photo Part No Description Price (each) Stock
264528 THREADED ROD $3.39 IN STOCK
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.81 IN STOCK
Photo Part No Description Price (each) Stock
12646821 WASHER D.10 20-25 X 2 $0.11 IN STOCK
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.66 IN STOCK
Photo Part No Description Price (each) Stock
238692 ADJUSTMENT SHIM $5.62 IN STOCK
238884 ADJUSTMENT SHIM $5.24 IN STOCK
238883 ADJUSTMENT SHIM $5.24 IN STOCK
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
314494 COMPL. FRONT RH JOINT BRACKET $124.70 To Order
314493 COMPL. FRONT LH JOINT BRACKET $124.70 To Order
Photo Part No Description Price (each) Stock
250657 SCREW $7.03 IN STOCK
Photo Part No Description Price (each) Stock
229324 SCREW $39.91 To Order
Photo Part No Description Price (each) Stock
162606 CLIP $1.17 IN STOCK
View All

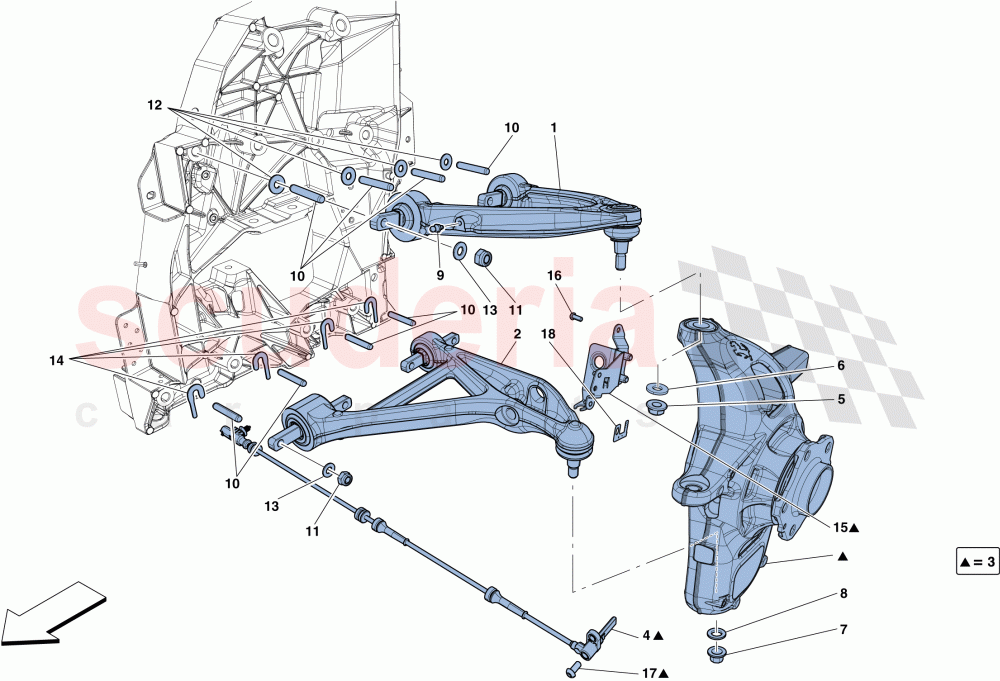

FRONT SUSPENSION - ARMS of Ferrari Ferrari F12 TDF Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 248760
RH Front Upper Arm
IN STOCK 		$797.16 (42.4% off) 1
1 248758
LH Front Upper Arm
IN STOCK 		$797.16 (42.4% off) 1
2 264524
Lower RH Front Arm
ARRIVING SOON 		$1,236.70 1
2 264523
Lower LH Front Arm
ARRIVING SOON 		$1,236.70 1
3 314464
COMPL. RH FRONT HUB CARRIER 		$2,280.26 1
3 314463
COMPL. LH FRONT HUB CARRIER 		$2,280.26 1
4 259615
ABS SENSOR 		$190.47 (21.2% off) 2
5 149807
NUT
IN STOCK 		$1.05 (47.5% off) 2
6 12646921
WASHER
IN STOCK 		$0.50 2
7 203795
NUT
IN STOCK 		$2.42 2
8 241689
WASHER
IN STOCK 		$6.59 2
9 343376
BALL JOINT
IN STOCK 		$20.15 2
10 264528
THREADED ROD
IN STOCK 		$3.39 (14.2% off) 16
11 12574521
Nyloc Nut
IN STOCK 		$0.81 (59.5% off) 16
12 12646821
WASHER D.10 20-25 X 2
IN STOCK 		$0.11 (78% off) 4
13 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.66 (5.1% off) 16
14 238692
ADJUSTMENT SHIM
Th. 0.5 mm
IN STOCK 		$5.62 (8.6% off) 8
14 238884
ADJUSTMENT SHIM
Th. 3.5 mm
IN STOCK 		$5.24 (16.2% off) 8
14 238883
ADJUSTMENT SHIM
Th. 3 mm
IN STOCK 		$5.24 (16.2% off) 8
14 238882
ADJUSTMENT SHIM
Th. 2.5 mm 		$5.24 (16.2% off) 8
14 238694
ADJUSTMENT SHIM
Th. 2 mm 		$5.24 (14.8% off) 8
14 238881
CAMBER SPACER 1.5MM
Th. 1.5 mm
IN STOCK 		$5.41 (12% off) 8
14 238693
CAMBER SPACER 1MM
Th. 1 mm
IN STOCK 		$5.41 (13.4% off) 8
14 238885
CAMBER SPACER 4MM
Th. 4 mm
IN STOCK 		$5.41 (13.4% off) 8
15 314494
COMPL. FRONT RH JOINT BRACKET 		$124.70 1
15 314493
COMPL. FRONT LH JOINT BRACKET 		$124.70 1
16 250657
SCREW
M6 X 14
IN STOCK 		$7.03 4
17 229324
SCREW 		$39.91 2
18 162606
CLIP
IN STOCK 		$1.17 (20.4% off) 2
