Name: COOLING - HEADER TANK AND PIPES
Rating: 4.5 (1 reviews)

COOLING - HEADER TANK AND PIPES of Ferrari Ferrari F12 TDF

View All

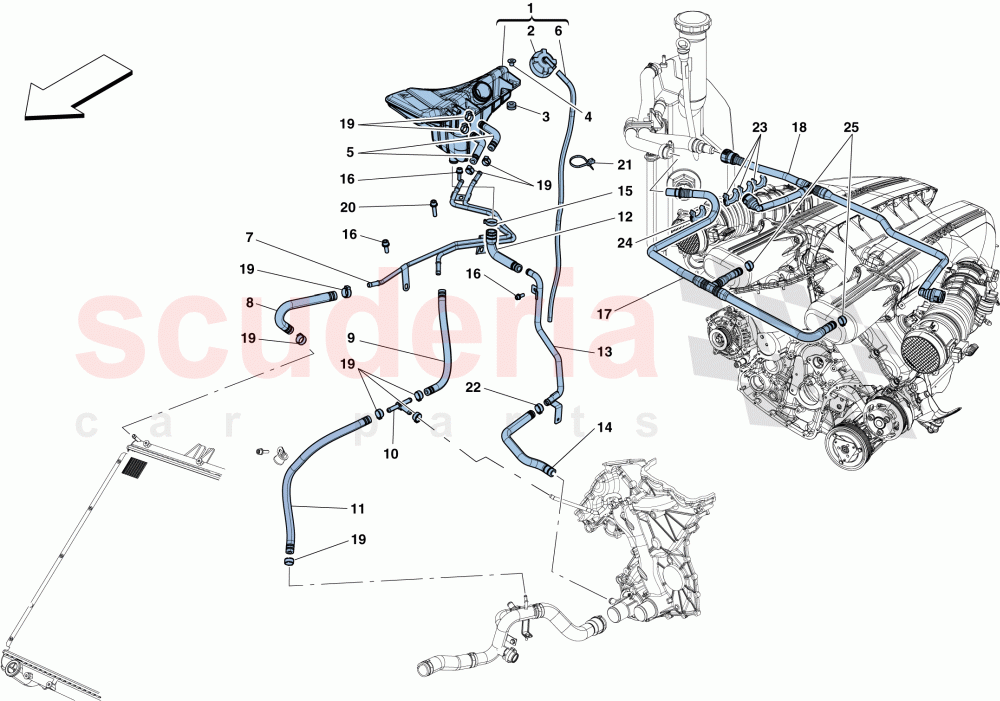

Ferrari F12 TDF - COOLING - HEADER TANK AND PIPES

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	329418	COMPL. EXPANSION TANK	$982.65	To Order

Photo	Part No	Description	Price (each)	Stock
	329417	CAP WITH BREATHER	$300.80	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.52	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.09	To Order

Photo	Part No	Description	Price (each)	Stock
	288386	RUBBER PIPE	$16.36	To Order

Photo	Part No	Description	Price (each)	Stock
	280418	RUBBER PIPE	$39.03	To Order

Photo	Part No	Description	Price (each)	Stock
	324412	COMPL. BREATHER PIPING	$285.76	To Order

Photo	Part No	Description	Price (each)	Stock
	288387	RUBBER PIPE	$45.34	To Order

Photo	Part No	Description	Price (each)	Stock
	288385	RUBBER PIPE	$21.41	To Order

Photo	Part No	Description	Price (each)	Stock
	281899	3-WAY CONNECTOR	$2.77	To Order

Photo	Part No	Description	Price (each)	Stock
	288474	RUBBER PIPE	$23.91	To Order

Photo	Part No	Description	Price (each)	Stock
	282575	PIPE FROM RESERVOIR TO DISCONNECTOR UNION	$44.07	To Order

Photo	Part No	Description	Price (each)	Stock
	289021	RESERVOIR OUTLET RIGID PIPE	$138.56	To Order

Photo	Part No	Description	Price (each)	Stock
	289020	PIPE FROM DISCONNECTOR TO PUMP	$70.54	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	315112	VAPOUR PIPE FROM HEADS	$201.55	To Order
	317731	VAPOUR PIPE FROM HEADS	$124.70	To Order

Photo	Part No	Description	Price (each)	Stock
	314757	BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD	$327.54	To Order
	317732	BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD	$201.55	To Order

Photo	Part No	Description	Price (each)	Stock
	13126970	COLLAR	$1.34	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	177553	CLAMP	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	262111	JUBILEE CLAMP	$1.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	140728	CLIP	$0.53	To Order

Photo	Part No	Description	Price (each)	Stock
	145543	CLIP	$0.18	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13127070	COLLAR	$1.82	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	329418	COMPL. EXPANSION TANK	329418 COMPL. EXPANSION TANK	$982.65	1
2	329417	CAP WITH BREATHER IN STOCK	329417 CAP WITH BREATHER IN STOCK	$300.80	1
3	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.52	1
4	149707	SPACER	149707 SPACER	$1.09 MSRP: ~~1.75~~ (37.7% off)	1
5	288386	RUBBER PIPE	288386 RUBBER PIPE D. 7-14 X 107	$16.36	2
6	280418	RUBBER PIPE	280418 RUBBER PIPE D. 7 X 1.5 X 825	$39.03	1
7	324412	COMPL. BREATHER PIPING	324412 COMPL. BREATHER PIPING	$285.76	1
8	288387	RUBBER PIPE	288387 RUBBER PIPE	$45.34	1
9	288385	RUBBER PIPE	288385 RUBBER PIPE D. 7-14 X 235	$21.41	1
10	281899	3-WAY CONNECTOR	281899 3-WAY CONNECTOR	$2.77 MSRP: ~~3.22~~ (14% off)	1
11	288474	RUBBER PIPE	288474 RUBBER PIPE D. 7-14 X 360	$23.91	1
12	282575	PIPE FROM RESERVOIR TO DISCONNECTOR UNION	282575 PIPE FROM RESERVOIR TO DISCONNECTOR UNION	$44.07	1
13	289021	RESERVOIR OUTLET RIGID PIPE	289021 RESERVOIR OUTLET RIGID PIPE	$138.56	1
14	289020	PIPE FROM DISCONNECTOR TO PUMP	289020 PIPE FROM DISCONNECTOR TO PUMP	$70.54	1
15	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	$1.38	1
16	231619	SCREW IN STOCK	231619 SCREW M6 X 18 IN STOCK	$0.29	5
17	315112	VAPOUR PIPE FROM HEADS	315112 VAPOUR PIPE FROM HEADS Applicable for USA, CDN, USA LIGHT	$201.55	1
17	317731	VAPOUR PIPE FROM HEADS	317731 VAPOUR PIPE FROM HEADS Not for USA, CDN, USA LIGHT	$124.70	1
18	314757	BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD	314757 BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD Applicable for USA, CDN, USA LIGHT	$327.54	1
18	317732	BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD	317732 BLOW-BY PIPE FROM TANK TO INTAKE MANIFOLD Not for USA, CDN, USA LIGHT	$201.55	1
19	13126970	COLLAR	13126970 COLLAR	$1.34	11
20	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.30 MSRP: ~~0.35~~ (14.3% off)	1
21	177553	CLAMP	177553 CLAMP	$0.43 MSRP: ~~1.25~~ (65.6% off)	1
22	262111	JUBILEE CLAMP IN STOCK	262111 JUBILEE CLAMP IN STOCK	$1.38	1
23	140728	CLIP	140728 CLIP	$0.53	3
24	145543	CLIP IN STOCK	145543 CLIP Not for USA, CDN, USA LIGHT IN STOCK	$0.18 MSRP: ~~0.75~~ (76% off)	1
25	13127070	COLLAR IN STOCK	13127070 COLLAR IN STOCK	$1.82	2

Cooling - Header Tank And Pipes

Ferrari F12 TDF

Ferrari F12 TDF - COOLING - HEADER TANK AND PIPES
