Ferrari California (2012-2014) - RIGHT HAND INJECTION SYSTEM - IGNITION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
247589 ELECTRO-INJECTOR $202.48 To Order
247588 ELECTRO-INJECTOR $202.48 To Order
Photo Part No Description Price (each) Stock
231926 CLIP $6.82 To Order
Photo Part No Description Price (each) Stock
246615 Spark Plug $38.36 IN STOCK
Photo Part No Description Price (each) Stock
281449 Ignition Coil $122.91 IN STOCK
281449 Ignition Coil $122.91 IN STOCK
Photo Part No Description Price (each) Stock
274644 RH INJECTION WIRING HARNESS $1,674.42 To Order
283502 RH INJECTION WIRING HARNESS $2,499.61 To Order
274644 RH INJECTION WIRING HARNESS $1,674.42 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
238263 IGNITION ECU $2,810.96 To Order
Photo Part No Description Price (each) Stock
239998 RH BRACKET $404.99 To Order
282838 RH BRACKET $253.11 To Order
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.41 IN STOCK
16286124 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
320598 CLIP $1.69 To Order
246722 CLIP $1.08 To Order
Photo Part No Description Price (each) Stock
251449 R.H. FRONT BRACKET $16.44 To Order
Photo Part No Description Price (each) Stock
251448 R.H. REAR BRACKET $202.48 To Order
Photo Part No Description Price (each) Stock
247665 R.H. WATER PIPE BRACKET $82.25 To Order
Photo Part No Description Price (each) Stock
140162 ANCHOR FOR CLIP $0.21 To Order
Photo Part No Description Price (each) Stock
140730 FASTENER CLIP $0.20 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
236876 CONTROL UNIT FIXING BRACKET $8.73 To Order
Photo Part No Description Price (each) Stock
251811 HEAT SHIELD $44.28 To Order
Photo Part No Description Price (each) Stock
248610 FRONT CABLE FASTENER BRACKET $92.37 To Order
Photo Part No Description Price (each) Stock
65996800 BRACKET $6.33 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
View All

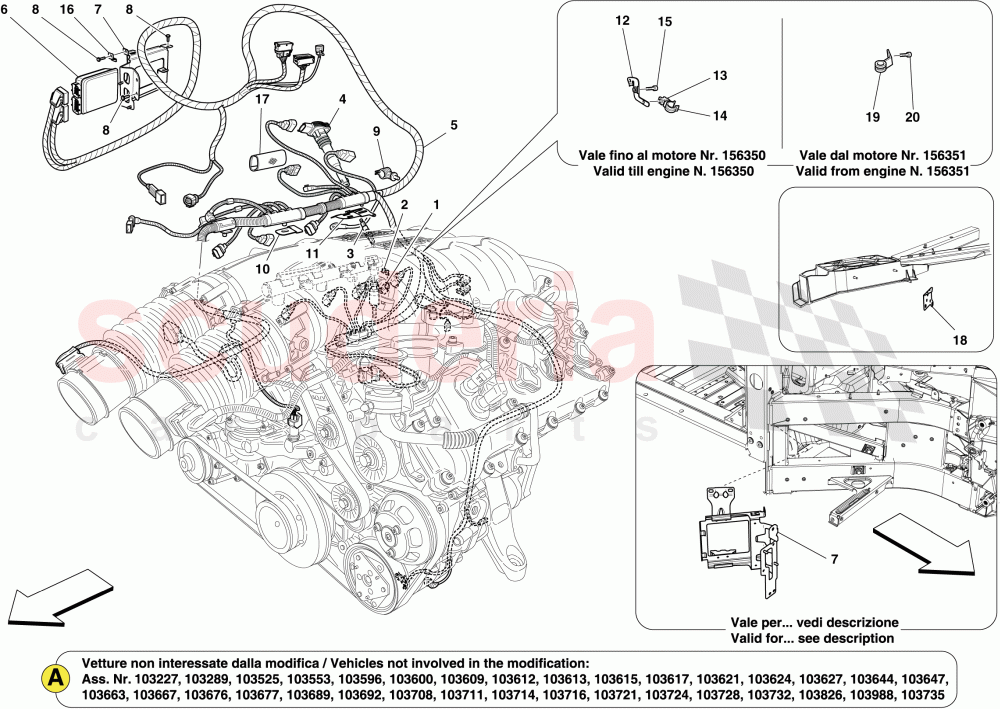

RIGHT HAND INJECTION SYSTEM - IGNITION of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 247589
ELECTRO-INJECTOR
Pressure sensor side; Supplied with COMPL. INJECTOR PIPE, Tab.7 pos.14; No longer supplied 		$202.48 2
1 247588
ELECTRO-INJECTOR
Opposite pressure sensor side; Supplied with COMPL. INJECTOR PIPE, Tab.7 pos.14; No longer supplied 		$202.48 2
2 231926
CLIP
Supplied with COMPL. INJECTOR PIPE, Tab.7 pos.14; No longer supplied 		$6.82 4
3 246615
Spark Plug
IN STOCK 		$38.36 4
4 281449
Ignition Coil
Applicable up to Ass. No. 105501
IN STOCK 		$122.91 (29.6% off) 4
4 281449
Ignition Coil
Applicable from Ass. No. 105502
IN STOCK 		$122.91 (29.6% off) 4
5 274644
RH INJECTION WIRING HARNESS
Applicable for Soft Start; Not for USA, CDN, GD, USA LIGHT; Applicable from Ass. No. 97352 		$1,674.42 1
5 283502
RH INJECTION WIRING HARNESS
Applicable for HELE; Applicable for Stop & Start; not affected by modification; Applicable from Ass. No. 103179 		$2,499.61 1
5 274644
RH INJECTION WIRING HARNESS
Applicable for Soft Start; Applicable from MY 11; Applicable for USA, CDN, USA LIGHT 		$1,674.42 1
5 264131
R.H. ENGINE INJECTION CABLE
Applicable for Stop & Start; Applicable up to Ass. No. 95557 		$1,464.32 1
5 268672
RH INJECTION WIRING HARNESS
Applicable for HELE; Applicable for Stop & Start; Applicable from Ass. No. 95558 up to Ass. No. 103178 		$1,392.19 1
5 254773
R.H. ENGINE INJECTION CABLE
Not for Stop & Start; Applicable up to Ass. No. 90970; Applicable up to engine No. 159182 		$4,203.16 1
5 264124
R.H. ENGINE INJECTION CABLE
Not for HELE; Not for Stop & Start; Applicable from Ass. No. 90971; Applicable from engine No. 159183
IN STOCK 		$1,914.70 1
6 238263
IGNITION ECU
Unprogrammed 		$2,810.96 1
7 239998
RH BRACKET
Applicable up to Ass. No. 103178 		$404.99 1
7 282838
RH BRACKET
not affected by modification; Applicable from Ass. No. 103179 		$253.11 1
8 16296934
SCREW 6 X 14MM
Applicable up to Ass. No. 103178
IN STOCK 		$0.41 3
8 16286124
SCREW
not affected by modification; Applicable from Ass. No. 103179 		$0.35 4
9 320598
CLIP
D. 16 		$1.69 2
9 246722
CLIP
D. 23 		$1.08 1
10 251449
R.H. FRONT BRACKET 		$16.44 1
11 251448
R.H. REAR BRACKET 		$202.48 1
12 247665
R.H. WATER PIPE BRACKET
Applicable up to engine No. 156350 		$82.25 1
13 140162
ANCHOR FOR CLIP
Applicable up to engine No. 156350 		$0.21 (77.9% off) 1
14 140730
FASTENER CLIP
Applicable up to engine No. 156350 		$0.20 1
15 248334
SCREW
IN STOCK 		$0.58 1
16 236876
CONTROL UNIT FIXING BRACKET 		$8.73 1
17 251811
HEAT SHIELD 		$44.28 1
18 248610
FRONT CABLE FASTENER BRACKET 		$92.37 1
19 65996800
BRACKET
Applicable from engine No. 156351 		$6.33 (25.4% off) 1
20 248334
SCREW
M6 X 14; Applicable from engine No. 156351
IN STOCK 		$0.58 1
