Left Hand Cylinder Head

Ferrari California (2012-2014)

Find Your Part

Ferrari California (2012-2014) - LEFT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
272045 COMPLETE LH HEAD $1,788.13 To Order
Photo Part No Description Price (each) Stock
321187 NUT Enquire To Order
Photo Part No Description Price (each) Stock
151117 WASHER $1.05 IN STOCK
Photo Part No Description Price (each) Stock
282756 THREADED PLUG $2.61 To Order
Photo Part No Description Price (each) Stock
282755 THREADED PLUG $1.86 To Order
Photo Part No Description Price (each) Stock
199760 THREADED PLUG $0.29 IN STOCK
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
243721 SCREW WITH WASHER $0.44 IN STOCK
231624 SCREW $0.41 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
231622 SCREW $0.34 IN STOCK
243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 $0.49 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 $0.49 IN STOCK
231622 SCREW $0.34 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
256827 GRUB SCREW $4.80 To Order
226415 DOWEL $4.73 To Order
Photo Part No Description Price (each) Stock
13543424 STUD BOLT $1.69 To Order
Photo Part No Description Price (each) Stock
296016 VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE $196.02 IN STOCK
Photo Part No Description Price (each) Stock
14304124 SCREW $0.14 To Order
Photo Part No Description Price (each) Stock
11181574 WASHER $0.02 IN STOCK
Photo Part No Description Price (each) Stock
229353 SOLENOID VALVE GASKET $18.10 IN STOCK
Photo Part No Description Price (each) Stock
223982 SPARK PLUG TUBE SEAL $2.39 IN STOCK
Photo Part No Description Price (each) Stock
259947 LH HEAD COVER $619.70 To Order
259947 LH HEAD COVER $619.70 To Order
Photo Part No Description Price (each) Stock
239180 LH Head Cover Gasket $45.28 IN STOCK
264095 LH HEAD COVER GASKET $84.92 ARRIVING SOON
Photo Part No Description Price (each) Stock
203102 RUBBER BUSHING CYLINDER HEAD $4.62 IN STOCK
239748 RUBBER BUSHING $6.97 IN STOCK
Photo Part No Description Price (each) Stock
261543 BUSHING $14.18 To Order
261544 BUSHING $32.87 To Order
261544 BUSHING $32.87 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
239501 SCREW $0.53 IN STOCK
239501 SCREW $0.53 IN STOCK
239501 SCREW $0.53 IN STOCK
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
239614 GASKET $6.33 IN STOCK
Photo Part No Description Price (each) Stock
224573 TIMING SENSOR $36.99 IN STOCK
Photo Part No Description Price (each) Stock
200458 CHECK VALVE $9.20 IN STOCK
View All

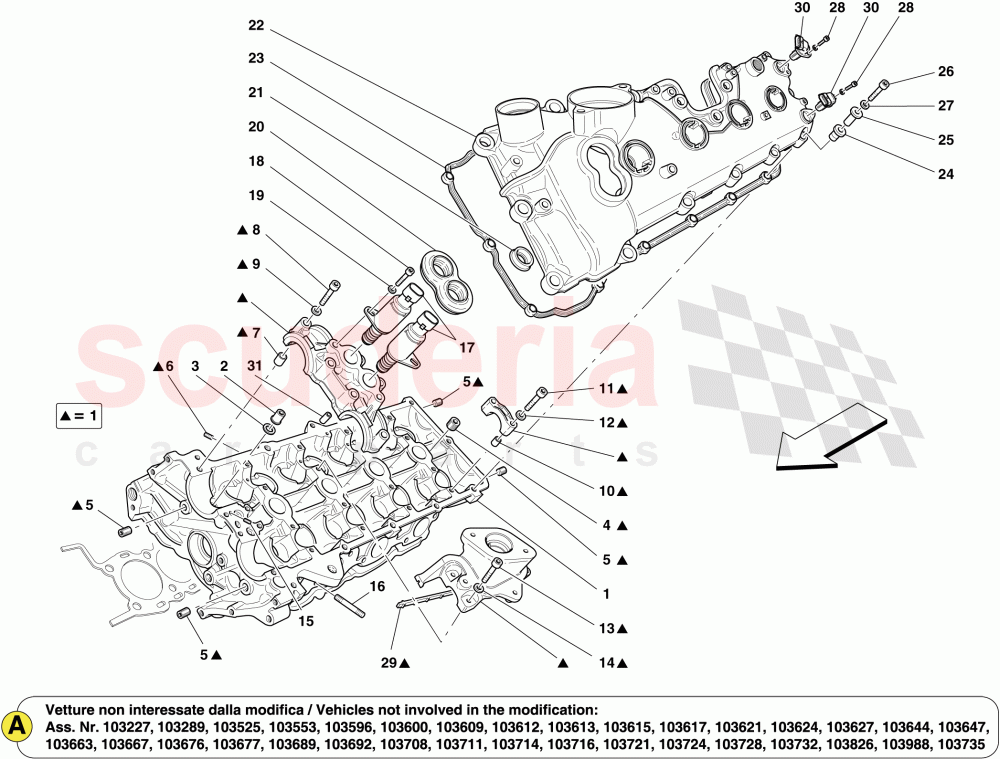

LEFT HAND CYLINDER HEAD of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 272045
COMPLETE LH HEAD
For vehicles up to engine No. 189672 also order RH cylinder head 272044, bush 257217 tab.51 pos.18, bush 257220 tab.51 pos.17, bush 247088 tab. 50 pos.16 and screw 14308324 tab.51 ref.13 		$1,788.13 1
2 321187
NUT 		- 10 Enquire
3 151117
WASHER
IN STOCK 		$1.05 (8.7% off) 10
4 282756
THREADED PLUG 		$2.61 5
5 282755
THREADED PLUG 		$1.86 4
6 199760
THREADED PLUG
IN STOCK 		$0.29 4
7 102725
CENTERING DOWEL 		$1.01 (55.1% off) 2
8 243721
SCREW WITH WASHER
Applicable from engine No. 153469
IN STOCK 		$0.44 6
8 231624
SCREW
Applicable up to engine No. 153468
IN STOCK 		$0.41 6
9 11197774
WASHER
Applicable up to engine No. 153468
IN STOCK 		$0.06 (80% off) 6
10 102725
CENTERING DOWEL 		$1.01 (55.1% off) 2
11 231622
SCREW
Applicable up to engine No. 153468
IN STOCK 		$0.34 (32% off) 12
11 243719
ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35
Applicable from engine No. 153469
IN STOCK 		$0.49 12
12 11197774
WASHER
Applicable up to engine No. 153468
IN STOCK 		$0.06 (80% off) 12
13 243719
ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35
Applicable from engine No. 153469
IN STOCK 		$0.49 4
13 231622
SCREW
Applicable up to engine No. 153468
IN STOCK 		$0.34 (32% off) 4
14 11197774
WASHER
Applicable up to engine No. 153468
IN STOCK 		$0.06 (80% off) 5
15 256827
GRUB SCREW
Applicable from engine No. 149384 		$4.80 2
15 226415
DOWEL
Applicable up to engine No. 149383 		$4.73 2
16 13543424
STUD BOLT 		$1.69 8
17 296016
VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE
With grease on connector
IN STOCK 		$196.02 (24% off) 2
18 14304124
SCREW 		$0.14 (81.3% off) 2
19 11181574
WASHER
IN STOCK 		$0.02 2
20 229353
SOLENOID VALVE GASKET
IN STOCK 		$18.10 (38.2% off) 1
21 223982
SPARK PLUG TUBE SEAL
IN STOCK 		$2.39 (39.8% off) 4
22 259947
LH HEAD COVER
For vehicles up to engine No. 146192, also order: LH camshaft 250174 tab.5 pos.7, LH head cover 264095 pos. 23 and screw 156830 pos. 26 		$619.70 1
22 259947
LH HEAD COVER
For vehicles up to engine No. 185627, also order: LH head cover 264095 pos.23 and screw 156830 pos.26 		$619.70 1

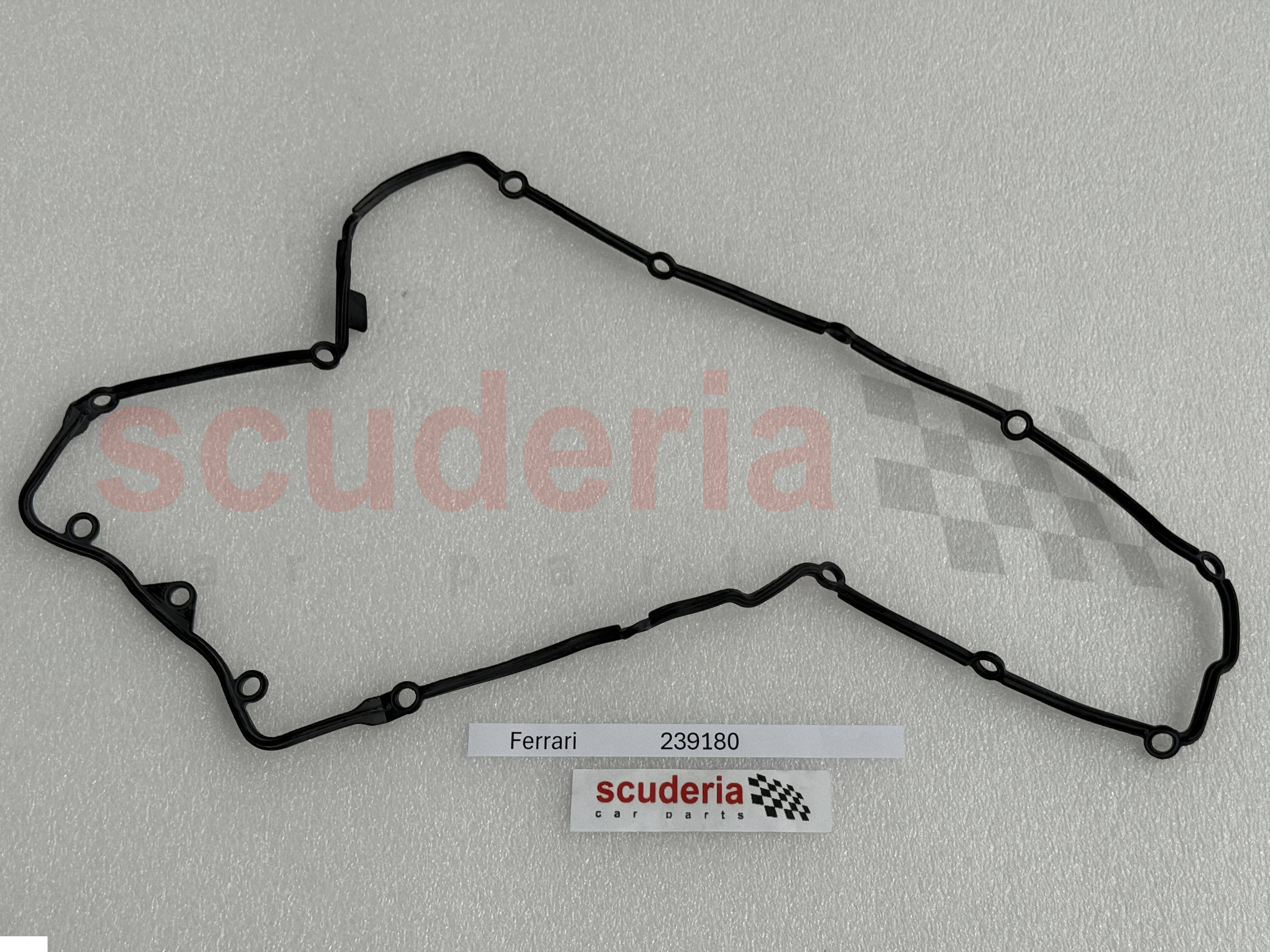

23 239180
LH Head Cover Gasket
Applicable up to engine No. 185627
IN STOCK 		$45.28 (52.4% off) 1
23 264095
LH HEAD COVER GASKET
Applicable from engine No. 185628
ARRIVING SOON 		$84.92 (22.6% off) 1
24 203102
RUBBER BUSHING CYLINDER HEAD
Applicable up to engine No. 185627
IN STOCK 		$4.62 11
24 239748
RUBBER BUSHING
Applicable up to engine No. 185627
IN STOCK 		$6.97 5
25 261543
BUSHING
Applicable from engine No. 152970 up to engine No. 185627 		$14.18 11
25 261544
BUSHING
Applicable up to engine No. 152969 		$32.87 5
25 261544
BUSHING
Applicable from engine No. 152970 up to engine No. 185627 		$32.87 5

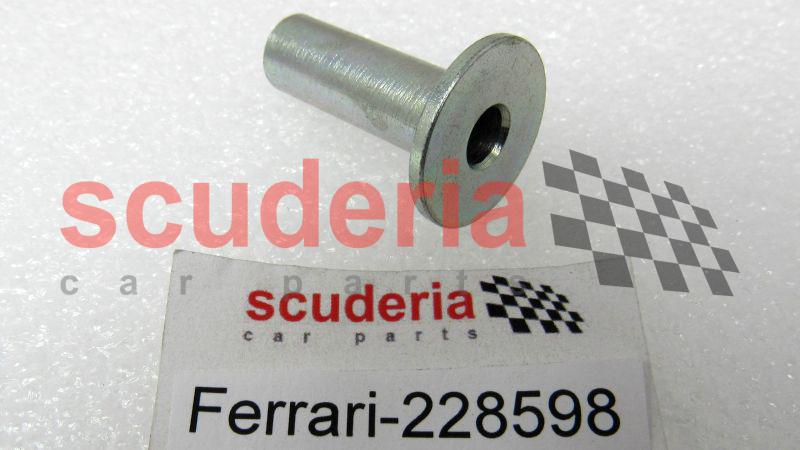

25 228598
BUSHING
Applicable up to engine No. 152969 		$2.94 11
26 239501
SCREW
Replaces 250383; Applicable for DCT-F1 gearbox (Not for mechanical gearbox)
IN STOCK 		$0.53 1
26 239501
SCREW
IN STOCK 		$0.53 4
26 239501
SCREW
Not for DCT-F1 gearbox (Applicable for mechanical gearbox)
IN STOCK 		$0.53 1
26 213129
SCREW
Applicable up to engine No. 185627 		$0.61 11
26 156830
ALLEN SCREW M6 X 40
Applicable from engine No. 185628
IN STOCK 		$0.84 (34.9% off) 11
27 11197774
WASHER
IN STOCK 		$0.06 (80% off) 16
28 248334
SCREW
M6 X 14
IN STOCK 		$0.58 2
29 239614
GASKET
IN STOCK 		$6.33 1
30 224573
TIMING SENSOR
IN STOCK 		$36.99 (33.3% off) 2
31 200458
CHECK VALVE
IN STOCK 		$9.20 2
