Ferrari California (2012-2014) - FUEL PUMP AND CONNECTOR PIPES

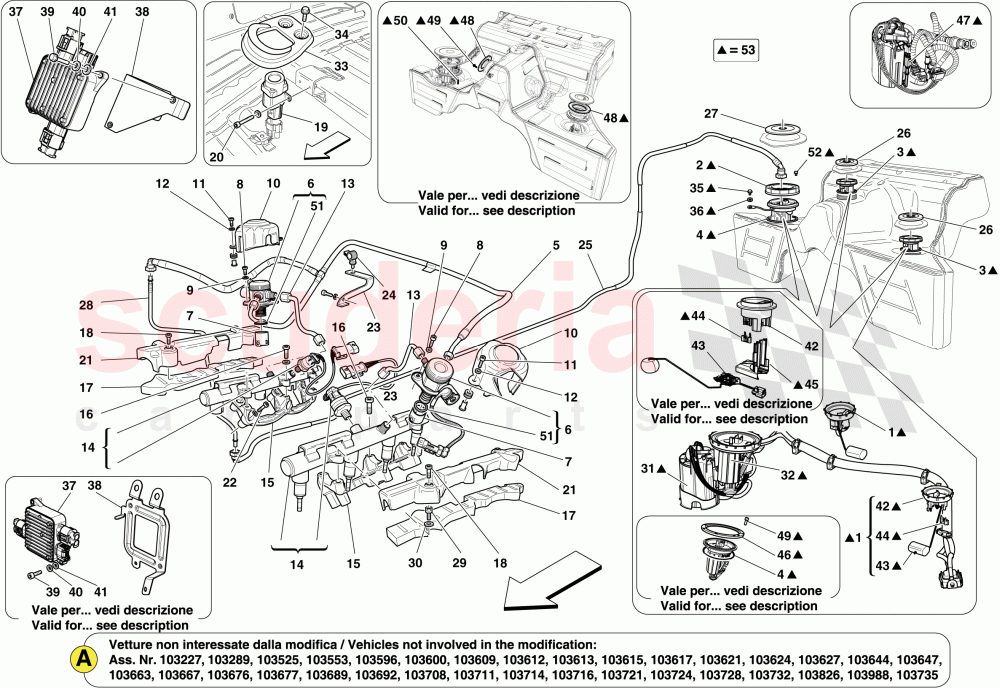

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	239497	FASTENER RING	$31.76	To Order

Photo	Part No	Description	Price (each)	Stock
	239413	O-RING	$4.72	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	275314	O-RING FUEL PUMP	$6.04	IN STOCK
	275314	O-RING FUEL PUMP	$6.04	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	260617	COMPL. PUMP FEED PIPE	$317.72	To Order
	254770	COMPL. PUMP FEED PIPE	$305.01	To Order

Photo	Part No	Description	Price (each)	Stock
	290030	FUEL PUMP	$703.91	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	212797	CUP	$62.26	To Order

Photo	Part No	Description	Price (each)	Stock
	14305334	SCREW	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12639724	WASHER	$0.05	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	247537	SOUNDPROOFING COVER	$90.22	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	68040000	WASHER	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	247674	PIPE	$406.69	To Order

Photo	Part No	Description	Price (each)	Stock
	247581	FUEL PIPE WITH INJECTOR	$2,089.73	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	239946	FUEL RAIL MOUNTING	$165.21	To Order

Photo	Part No	Description	Price (each)	Stock
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	256322	INJECTOR COVER	$76.24	To Order

Photo	Part No	Description	Price (each)	Stock
	231619	SCREW	$0.29	IN STOCK
	231620	SCREW	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	179087	INERTIAL SWITCH	$110.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	$0.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	251015	INJECTOR COVER	$120.72	To Order

Photo	Part No	Description	Price (each)	Stock
	231624	SCREW	$0.41	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	247117	FUEL PIPE FIXING BRACKET	$63.53	To Order

Photo	Part No	Description	Price (each)	Stock
	67885100	CLIP	$1.27	To Order

Photo	Part No	Description	Price (each)	Stock
	278773	FUEL DELIVERY PIPE	$66.08	To Order
	262058	FUEL DELIVERY PIPE	$87.67	IN STOCK
	262058	FUEL DELIVERY PIPE	$87.67	IN STOCK

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	250480	INSPECTION CAP	$28.81	To Order

Photo	Part No	Description	Price (each)	Stock
	781834	INSPECTION CAP	$41.92	To Order

Photo	Part No	Description	Price (each)	Stock
	262060	PIPE FROM UNDERFLOOR PIPE TO SHIELD	$52.10	To Order
	262682	PIPE FROM UNDERFLOOR PIPE TO SHIELD	Enquire	To Order
	280877	PIPE FROM UNDERBODY PIPE TO FIREWALL	$63.53	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	339948	STUD BOLT	$19.05	To Order

Photo	Part No	Description	Price (each)	Stock
	11194374	WASHER	$0.52	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	237260	FUEL PUMP	$1,067.58	To Order
	270125	FUEL PUMP	$1,538.33	To Order

Photo	Part No	Description	Price (each)	Stock
	282783	FUEL PUMP WITH FILTER	$1,353.21	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	82128500	INERTIA SWITCH SHIELD	$6.35	To Order

Photo	Part No	Description	Price (each)	Stock
	11568124	SCREW	$0.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16284934	FLANGED SCREW	$0.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	272290	WASHER	$16.09	To Order

Photo	Part No	Description	Price (each)	Stock
	264935	PWM COMMAND SIGNAL FOR FUEL PUMPS	$419.40	To Order

Photo	Part No	Description	Price (each)	Stock
	276043	BRACKET	$48.28	To Order
	270837	BRACKET	$114.37	To Order

Photo	Part No	Description	Price (each)	Stock
	14304324	SCREW	$1.09	IN STOCK
	14304524	SCREW	$0.38	To Order

Photo	Part No	Description	Price (each)	Stock
	13579101	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	11199274	WASHER	$0.02	To Order

Photo	Part No	Description	Price (each)	Stock
	252073	FUEL LEVEL SENSOR MOUNT	$165.21	To Order
	273479	FUEL LEVEL SENSOR MOUNT	$115.64	To Order

Photo	Part No	Description	Price (each)	Stock
	239218	FUEL LEVEL SENSOR	$228.76	To Order
	253598	FUEL LEVEL SENSOR	$241.46	To Order
	239218	FUEL LEVEL SENSOR	$228.76	To Order

Photo	Part No	Description	Price (each)	Stock
	238688	CONNECTOR	$50.82	To Order

Photo	Part No	Description	Price (each)	Stock
	254311	CORNER ADAPTER	$9.90	To Order

Photo	Part No	Description	Price (each)	Stock
	275998	FASTENER RING	$71.16	To Order

Photo	Part No	Description	Price (each)	Stock
	237598	COMPL. FLEXIBLE HOOK	$63.53	To Order

Photo	Part No	Description	Price (each)	Stock
	276001	FASTENER RING	$237.25	To Order

Photo	Part No	Description	Price (each)	Stock
	11566224	SCREW	$0.34	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11001124	STUD BOLT	$61.00	To Order

Photo	Part No	Description	Price (each)	Stock
	291377	FUEL PUMP SEAL	$34.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	239456	SECONDARY LOCK	$33.03	To Order

Photo	Part No	Description	Price (each)	Stock
	270916	COMPL. FUEL TANK	$6,467.84	To Order
	269699	COMPL. FUEL TANK	$6,847.86	To Order
	262936	COMPL. FUEL TANK	$6,870.74	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
2	239497	FASTENER RING	239497 FASTENER RING Applicable up to Ass. No. 103178	$31.76 MSRP: ~~51.22~~ (38% off)	1
3	239413	O-RING IN STOCK	239413 O-RING IN STOCK	$4.72 MSRP: ~~14.23~~ (66.8% off)	2
4	275314	O-RING FUEL PUMP IN STOCK	275314 O-RING FUEL PUMP Applicable up to Ass. No. 103178 IN STOCK	$6.04 MSRP: ~~7.65~~ (21% off)	1
4	275314	O-RING FUEL PUMP IN STOCK	275314 O-RING FUEL PUMP not affected by modification; Applicable from Ass. No. 103179 IN STOCK	$6.04 MSRP: ~~7.65~~ (21% off)	1
5	260617	COMPL. PUMP FEED PIPE	260617 COMPL. PUMP FEED PIPE Applicable from engine No. 156041	$317.72	1
5	254770	COMPL. PUMP FEED PIPE	254770 COMPL. PUMP FEED PIPE Applicable up to engine No. 156040	$305.01	1
6	290030	FUEL PUMP IN STOCK	290030 FUEL PUMP IN STOCK	$703.91	2
7	212797	CUP	212797 CUP	$62.26	2
8	14305334	SCREW IN STOCK	14305334 SCREW IN STOCK	$0.20 MSRP: ~~0.45~~ (55.6% off)	4
9	12639724	WASHER IN STOCK	12639724 WASHER IN STOCK	$0.05 MSRP: ~~0.50~~ (90% off)	4
10	247537	SOUNDPROOFING COVER	247537 SOUNDPROOFING COVER	$90.22	2
11	231620	SCREW IN STOCK	231620 SCREW IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	4
12	68040000	WASHER IN STOCK	68040000 WASHER IN STOCK	$0.14	2
13	247674	PIPE	247674 PIPE	$406.69	2
14	247581	FUEL PIPE WITH INJECTOR IN STOCK	247581 FUEL PIPE WITH INJECTOR IN STOCK	$2,089.73 MSRP: ~~2,345.11~~ (10.9% off)	2
15	239946	FUEL RAIL MOUNTING	239946 FUEL RAIL MOUNTING	$165.21	2
16	231620	SCREW IN STOCK	231620 SCREW M6 X 25 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	6
17	256322	INJECTOR COVER	256322 INJECTOR COVER Applicable for alternator 263829, table 50 pos. 11; Applicable from engine No. 169912	$76.24	2
18	231619	SCREW IN STOCK	231619 SCREW M6 X 20; Applicable with fuel rail cover ref.17 IN STOCK	$0.29	4
18	231620	SCREW IN STOCK	231620 SCREW M6 X 25; Applicable without fuel rail cover ref.17 IN STOCK	$0.31 MSRP: ~~0.35~~ (11.4% off)	4
19	179087	INERTIAL SWITCH IN STOCK	179087 INERTIAL SWITCH IN STOCK	$110.55 MSRP: ~~188.16~~ (41.2% off)	1
20	11568124	SCREW IN STOCK	11568124 SCREW IN STOCK	$0.81	2
21	251015	INJECTOR COVER	251015 INJECTOR COVER	$120.72	2
22	231624	SCREW IN STOCK	231624 SCREW IN STOCK	$0.41	12
23	247117	FUEL PIPE FIXING BRACKET	247117 FUEL PIPE FIXING BRACKET	$63.53	1
24	67885100	CLIP	67885100 CLIP	$1.27	1
25	278773	FUEL DELIVERY PIPE	278773 FUEL DELIVERY PIPE not affected by modification; Applicable from Ass. No. 103179	$66.08	1
25	262058	FUEL DELIVERY PIPE IN STOCK	262058 FUEL DELIVERY PIPE Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable from Ass. No. 90609 IN STOCK	$87.67	1
25	262058	FUEL DELIVERY PIPE IN STOCK	262058 FUEL DELIVERY PIPE Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable from Ass. No. 91553 IN STOCK	$87.67	1
25	262058	FUEL DELIVERY PIPE IN STOCK	262058 FUEL DELIVERY PIPE Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable from Ass. No. 89389 up to Ass. No. 103178 IN STOCK	$87.67	1
25	257294	FUEL DELIVERY PIPE	257294 FUEL DELIVERY PIPE Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable up to Ass. No. 91552	$139.78	1
25	257294	FUEL DELIVERY PIPE	257294 FUEL DELIVERY PIPE Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable up to Ass. No. 89388	$139.78	1
25	257294	FUEL DELIVERY PIPE	257294 FUEL DELIVERY PIPE Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable up to Ass. No. 90608	$139.78	1
25	257294	FUEL DELIVERY PIPE	257294 FUEL DELIVERY PIPE Applicable for USA, CDN, GD, USA LIGHT; Applicable for Mechanical gearbox	$139.78	1
26	250480	INSPECTION CAP	250480 INSPECTION CAP	$28.81	2
27	781834	INSPECTION CAP	781834 INSPECTION CAP	$41.92	1
28	262060	PIPE FROM UNDERFLOOR PIPE TO SHIELD	262060 PIPE FROM UNDERFLOOR PIPE TO SHIELD Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable from Ass. No. 91553	$52.10	1
28	262682	PIPE FROM UNDERFLOOR PIPE TO SHIELD	262682 PIPE FROM UNDERFLOOR PIPE TO SHIELD Applicable for Mechanical gearbox	-	1	Enquire
28	280877	PIPE FROM UNDERBODY PIPE TO FIREWALL	280877 PIPE FROM UNDERBODY PIPE TO FIREWALL not affected by modification; Applicable from Ass. No. 103179	$63.53	1
28	262060	PIPE FROM UNDERFLOOR PIPE TO SHIELD	262060 PIPE FROM UNDERFLOOR PIPE TO SHIELD Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable from Ass. No. 90609	$52.10	1
28	262060	PIPE FROM UNDERFLOOR PIPE TO SHIELD	262060 PIPE FROM UNDERFLOOR PIPE TO SHIELD Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable from Ass. No. 89389 up to Ass. No. 103178	$52.10	1
28	262682	PIPE FROM UNDERFLOOR PIPE TO SHIELD	262682 PIPE FROM UNDERFLOOR PIPE TO SHIELD Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for CINA, USA, CDN, J, USA LIGHT; Applicable up to Ass. No. 90608	-	1	Enquire
28	262682	PIPE FROM UNDERFLOOR PIPE TO SHIELD	262682 PIPE FROM UNDERFLOOR PIPE TO SHIELD Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Applicable for GD; Applicable up to Ass. No. 91552	-	1	Enquire
28	262682	PIPE FROM UNDERFLOOR PIPE TO SHIELD	262682 PIPE FROM UNDERFLOOR PIPE TO SHIELD Applicable for DCT-F1 gearbox (Not for mechanical gearbox); Not for CINA, USA, CDN, J, GD, USA LIGHT; Applicable up to Ass. No. 89388	-	1	Enquire
29	339948	STUD BOLT	339948 STUD BOLT No longer supplied	$19.05	4
30	11194374	WASHER IN STOCK	11194374 WASHER No longer supplied IN STOCK	$0.52	4
31	237260	FUEL PUMP	237260 FUEL PUMP Not for HELE; Not for Stop & Start; Also order filter 282783 ref. 32	$1,067.58 MSRP: ~~2,021.77~~ (47.2% off)	1
31	270125	FUEL PUMP	270125 FUEL PUMP Applicable for HELE; Applicable for Stop & Start; Also order filter 282783 ref. 32	$1,538.33	1
32	282783	FUEL PUMP WITH FILTER IN STOCK	282783 FUEL PUMP WITH FILTER Also order pump 237260 or 270125 ref. 31 IN STOCK	$1,353.21	1
33	82128500	INERTIA SWITCH SHIELD	82128500 INERTIA SWITCH SHIELD	$6.35	1
34	11568124	SCREW IN STOCK	11568124 SCREW IN STOCK	$0.81	2
35	16284934	FLANGED SCREW IN STOCK	16284934 FLANGED SCREW IN STOCK	$0.71	1
36	272290	WASHER	272290 WASHER	$16.09	1
37	264935	PWM COMMAND SIGNAL FOR FUEL PUMPS	264935 PWM COMMAND SIGNAL FOR FUEL PUMPS Applicable for HELE; Applicable for Stop & Start	$419.40 MSRP: ~~604.42~~ (30.6% off)	1
38	276043	BRACKET	276043 BRACKET Applicable for HELE; Applicable for Stop & Start; not affected by modification; Applicable from Ass. No. 103179	$48.28	1
38	270837	BRACKET	270837 BRACKET Applicable for HELE; Applicable for Stop & Start; Applicable up to Ass. No. 103178	$114.37	1
39	14304324	SCREW IN STOCK	14304324 SCREW Applicable for HELE; Applicable for Stop & Start; not affected by modification; Applicable from Ass. No. 103179 IN STOCK	$1.09	2
39	14304524	SCREW	14304524 SCREW Applicable for HELE; Applicable for Stop & Start; Applicable up to Ass. No. 103178	$0.38	2
40	13579101	WASHER	13579101 WASHER Applicable for HELE; Applicable for Stop & Start	$0.02	2
41	11199274	WASHER	11199274 WASHER Applicable for HELE; Applicable for Stop & Start	$0.02	2
42	252073	FUEL LEVEL SENSOR MOUNT	252073 FUEL LEVEL SENSOR MOUNT Applicable up to Ass. No. 103178	$165.21	2
42	273479	FUEL LEVEL SENSOR MOUNT	273479 FUEL LEVEL SENSOR MOUNT not affected by modification; Applicable from Ass. No. 103179	$115.64	2
43	239218	FUEL LEVEL SENSOR	239218 FUEL LEVEL SENSOR not affected by modification; Applicable from Ass. No. 103179	$228.76	1
43	253598	FUEL LEVEL SENSOR	253598 FUEL LEVEL SENSOR not affected by modification; Applicable from Ass. No. 103179	$241.46	1
43	239218	FUEL LEVEL SENSOR	239218 FUEL LEVEL SENSOR Applicable up to Ass. No. 103178	$228.76	2
44	238688	CONNECTOR	238688 CONNECTOR	$50.82	2
45	254311	CORNER ADAPTER	254311 CORNER ADAPTER not affected by modification; Applicable from Ass. No. 103179	$9.90	2
46	275998	FASTENER RING	275998 FASTENER RING not affected by modification; Applicable from Ass. No. 103179	$71.16	2
47	237598	COMPL. FLEXIBLE HOOK	237598 COMPL. FLEXIBLE HOOK	$63.53	1
48	276001	FASTENER RING	276001 FASTENER RING not affected by modification; Applicable from Ass. No. 103179	$237.25	2
49	11566224	SCREW IN STOCK	11566224 SCREW M5 X 16; not affected by modification; Applicable from Ass. No. 103179 IN STOCK	$0.34	16
50	11001124	STUD BOLT	11001124 STUD BOLT not affected by modification; Applicable from Ass. No. 103179	$61.00	1
51	291377	FUEL PUMP SEAL IN STOCK	291377 FUEL PUMP SEAL IN STOCK	$34.13 MSRP: ~~42.09~~ (18.9% off)	2
52	239456	SECONDARY LOCK	239456 SECONDARY LOCK Applicable up to Ass. No. 103178	$33.03	3
53	270916	COMPL. FUEL TANK	270916 COMPL. FUEL TANK Applicable for HELE; Applicable for Stop & Start; Applicable up to Ass. No. 103178	$6,467.84	1
53	269699	COMPL. FUEL TANK	269699 COMPL. FUEL TANK Applicable for HELE; Applicable for Stop & Start; not affected by modification; Applicable from Ass. No. 103179	$6,847.86	1
53	262936	COMPL. FUEL TANK	262936 COMPL. FUEL TANK Not for HELE; Not for Stop & Start; Applicable up to Ass. No. 103178	$6,870.74	1
53	281362	COMPL. FUEL TANK	281362 COMPL. FUEL TANK Not for HELE; Not for Stop & Start; not affected by modification; Applicable from Ass. No. 103179	$6,847.86	1
