Lubrication: Circuit And Pickup

Ferrari California (2012-2014)

Find Your Part

Ferrari California (2012-2014) - LUBRICATION: CIRCUIT AND PICKUP

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
240052 COMPLETE OIL SUMP $503.09 To Order
Photo Part No Description Price (each) Stock
223577 THREADED INSERT M22 X 1.5 X 9MM $5.17 IN STOCK
Photo Part No Description Price (each) Stock
10261860 GASKET $0.43 IN STOCK
Photo Part No Description Price (each) Stock
230171 OIL LEVEL SENSOR $48.62 IN STOCK
Photo Part No Description Price (each) Stock
231625 SCREW $0.57 IN STOCK
Photo Part No Description Price (each) Stock
261013 SUMP SHIELD $83.87 To Order
251166 SUMP SHIELD $86.42 To Order
Photo Part No Description Price (each) Stock
282393 SCREW $0.67 To Order
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
256298 OIL DIPSTICK $36.85 To Order
250954 OIL DIPSTICK $26.67 To Order
250940 OIL DIPSTICK $227.60 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
263742 DIPSTICK HOLDER EXTENSION $120.72 To Order
252371 OIL LEVEL ROD EXTENTION $286.77 To Order
250808 OIL LEVEL ROD EXTENTION $105.47 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
159871 SEAL RING $0.60 IN STOCK
Photo Part No Description Price (each) Stock
247720 OIL PLUG $28.82 To Order
View All

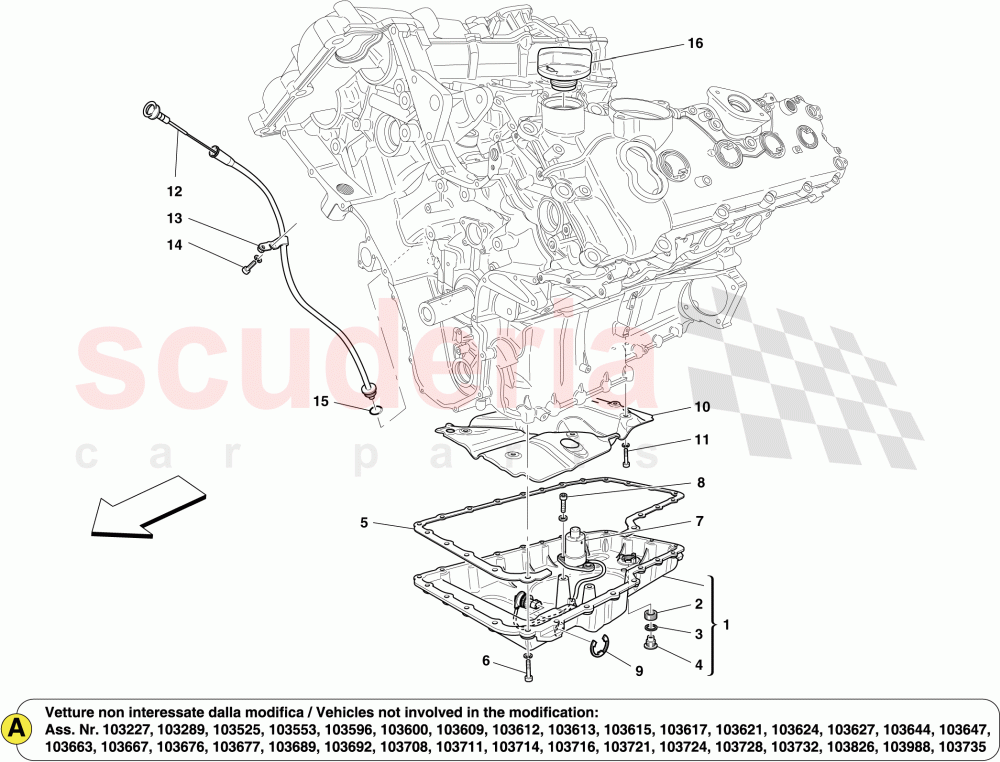

LUBRICATION: CIRCUIT AND PICKUP of Ferrari Ferrari California (2012-2014) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 240052
COMPLETE OIL SUMP 		$503.09 1
2 223577
THREADED INSERT M22 X 1.5 X 9MM
IN STOCK 		$5.17 1
3 10261860
GASKET
IN STOCK 		$0.43 (57% off) 1
4 104280
MAGNETIC THREADED OIL DRAIN PLUG M22 X 1.5 		$5.43 (21.3% off) 1
6 231619
SCREW
M6 X 20
IN STOCK 		$0.29 24
7 230171
OIL LEVEL SENSOR
IN STOCK 		$48.62 (27.7% off) 1
8 231625
SCREW
IN STOCK 		$0.57 2
9 16165276
SNAP RING
IN STOCK 		$0.49 1
10 261013
SUMP SHIELD
Applicable from Ass. No. 88123; Applicable from engine No. 153879 		$83.87 1
10 251166
SUMP SHIELD
Applicable up to Ass. No. 88122; Applicable up to engine No. 153878 		$86.42 1
11 282393
SCREW
M6 X 14 		$0.67 6
11 248334
SCREW
M6 X 14; No longer supplied; Replaced by 282392
IN STOCK 		$0.58 6
12 256298
OIL DIPSTICK
Applicable for GD; Applicable from Ass. No. 88123; Applicable from engine No. 153879 		$36.85 1
12 250954
OIL DIPSTICK
Applicable for GD; Applicable up to Ass. No. 88122; Applicable up to engine No. 153878 		$26.67 1
12 250940
OIL DIPSTICK
Not for GD; Applicable up to Ass. No. 88122; Applicable up to engine No. 153878 		$227.60 1
12 263534
OIL DIPSTICK
Not for GD; Applicable from Ass. No. 88123 up to Ass. No. 103178; Applicable from engine No. 153879 		$34.30 1
13 263742
DIPSTICK HOLDER EXTENSION
not affected by modification; Applicable from Ass. No. 103179 		$120.72 1
13 252371
OIL LEVEL ROD EXTENTION
Applicable for GD 		$286.77 1
13 250808
OIL LEVEL ROD EXTENTION
Not for GD; Applicable up to Ass. No. 103178 		$105.47 1
14 248334
SCREW
M6 X 14
IN STOCK 		$0.58 1
15 159871
SEAL RING
IN STOCK 		$0.60 (57.1% off) 1
16 247720
OIL PLUG 		$28.82 1
