Lubrication System - Tank

Ferrari 599 GTO

Find Your Part

Ferrari 599 GTO - LUBRICATION SYSTEM - TANK

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
264320 OIL TANK $3,064.02 To Order
Photo Part No Description Price (each) Stock
180320 COPMLETE TANK PLUG $634.80 To Order
Photo Part No Description Price (each) Stock
180585 Oil Tank Cap Gasket $89.10 IN STOCK
Photo Part No Description Price (each) Stock
265206 DIPSTICK $261.48 To Order
Photo Part No Description Price (each) Stock
233118 O-RING D.6 X 2.2 $7.75 IN STOCK
Photo Part No Description Price (each) Stock
252336 UPPER BRACKET $24.01 To Order
Photo Part No Description Price (each) Stock
10977524 SCREW $0.14 IN STOCK
13540924 STUD BOLT $33.73 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.53 To Order
Photo Part No Description Price (each) Stock
812273 CABLE GROMMET $1.53 To Order
Photo Part No Description Price (each) Stock
149707 SPACER $1.10 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
82657700 FRONT RH SKILLET BRACKET $98.66 To Order
82657400 FRONT LH SKILLET BRACKET $98.66 To Order
Photo Part No Description Price (each) Stock
16043434 HEX HEAD SCREW M8 X 20 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
12647021 WASHER $0.31 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
180137 TEMPERATURE SENSOR $28.45 IN STOCK
Photo Part No Description Price (each) Stock
11501024 STUD BOLT $0.93 To Order
Photo Part No Description Price (each) Stock
210914 OIL TANK PICKUP $531.32 To Order
Photo Part No Description Price (each) Stock
862084 GASKET $4.91 To Order
Photo Part No Description Price (each) Stock
293107 THREADED PLUG $77.56 IN STOCK
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.32 IN STOCK
Photo Part No Description Price (each) Stock
100332 OIL PICKUP FILTER $17.87 To Order
Photo Part No Description Price (each) Stock
125521 O-RING $10.54 IN STOCK
Photo Part No Description Price (each) Stock
11500524 STUD BOLT $0.34 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
259126 OIL PIPE FROM PUMP TO PICKUP $1,497.19 To Order
Photo Part No Description Price (each) Stock
202151 BELLOW $46.81 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
235648 COMPLETE THERMOSTAT VALVE $733.73 To Order
Photo Part No Description Price (each) Stock
231837 SHIELD $55.87 To Order
Photo Part No Description Price (each) Stock
231620 SCREW $0.31 IN STOCK
Photo Part No Description Price (each) Stock
11500524 STUD BOLT $0.34 To Order
Photo Part No Description Price (each) Stock
142798 RUBBER SHIM $1.45 To Order
Photo Part No Description Price (each) Stock
139934 O-RING $0.82 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
13540924 STUD BOLT $33.73 IN STOCK
Photo Part No Description Price (each) Stock
219688 OIL OUTLET PIPE $130.82 To Order
Photo Part No Description Price (each) Stock
862084 GASKET $4.91 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
12604474 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
259127 OIL PIPE FROM ENGINE TO TANK $1,456.10 To Order
Photo Part No Description Price (each) Stock
16043524 SCREW $0.09 To Order
Photo Part No Description Price (each) Stock
12604474 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
225623 OIL PIPE FROM TANK TO RADIATOR $438.00 To Order
Photo Part No Description Price (each) Stock
225628 OIL PIPE FROM TANK TO RADIATOR $1,492.17 To Order
Photo Part No Description Price (each) Stock
225630 OIL PIPE FROM RADIATOR TO TANK $495.27 To Order
Photo Part No Description Price (each) Stock
225633 OIL PIPE FROM RADIATOR TO TANK $1,824.88 To Order
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.64 To Order
Photo Part No Description Price (each) Stock
10442190 BRACKET WITH SHEATH $0.67 IN STOCK
Photo Part No Description Price (each) Stock
102947 VIBRATION DAMPER $18.28 IN STOCK
Photo Part No Description Price (each) Stock
65708600 SPACER BUSHING $7.08 To Order
Photo Part No Description Price (each) Stock
202152 BELLOW $78.77 To Order
Photo Part No Description Price (each) Stock
138150 CONNECTOR $54.36 To Order
Photo Part No Description Price (each) Stock
907923 DOWTY WASHER $36.07 IN STOCK
Photo Part No Description Price (each) Stock
291502 CONNECTOR $64.50 To Order
14326101 THREADED PLUG $1.10 To Order
Photo Part No Description Price (each) Stock
13541124 STUD BOLT $20.25 IN STOCK
View All

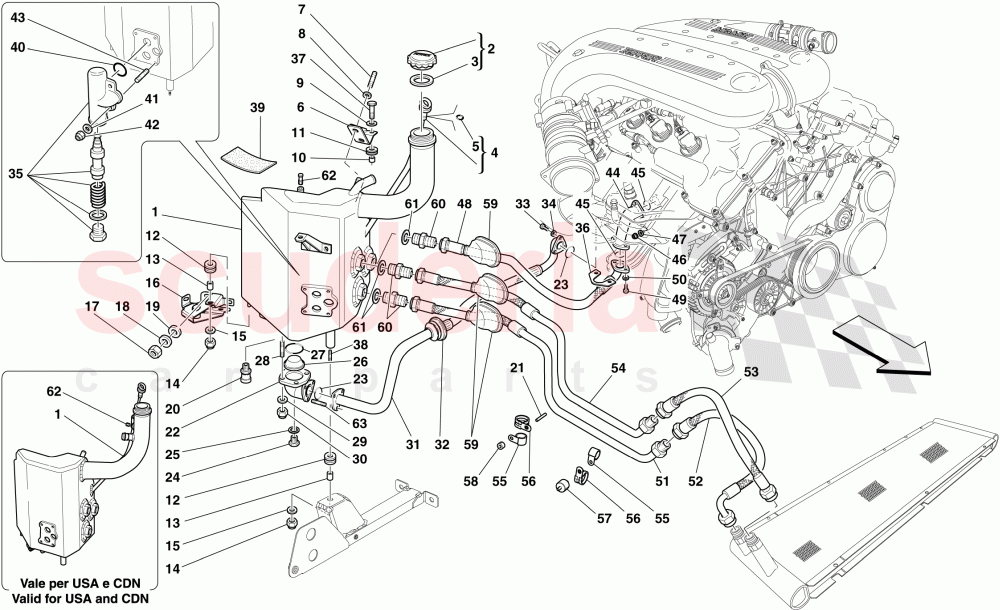

LUBRICATION SYSTEM - TANK of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 264320
OIL TANK 		$3,064.02 1
2 180320
COPMLETE TANK PLUG 		$634.80 (22.8% off) 1
3 180585
Oil Tank Cap Gasket
IN STOCK 		$89.10 (21.5% off) 1
4 265206
DIPSTICK 		$261.48 1
5 233118
O-RING D.6 X 2.2
IN STOCK 		$7.75 1
6 252336
UPPER BRACKET 		$24.01 1
7 10977524
SCREW
No longer supplied; Replaced by 13540924
IN STOCK 		$0.14 2
7 13540924
STUD BOLT
IN STOCK 		$33.73 2
8 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
9 12643724
WASHER
IN STOCK 		$0.06 (88% off) 1
10 149707
SPACER 		$1.10 (37.1% off) 1
11 812273
CABLE GROMMET 		$1.53 1
12 812273
CABLE GROMMET 		$1.53 2
13 149707
SPACER 		$1.10 (37.1% off) 2
14 14059290
FLANGED NUT M6
IN STOCK 		$1.31 2
15 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
16 82657700
FRONT RH SKILLET BRACKET 		$98.66 1
16 82657400
FRONT LH SKILLET BRACKET 		$98.66 (30.6% off) 1
17 16043434
HEX HEAD SCREW M8 X 20
IN STOCK 		$0.23 (54% off) 2
18 12647021
WASHER
IN STOCK 		$0.31 2
19 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 2
20 180137
TEMPERATURE SENSOR
IN STOCK 		$28.45 (13.8% off) 1
21 11501024
STUD BOLT 		$0.93 (83.6% off) 1
22 210914
OIL TANK PICKUP 		$531.32 (50.1% off) 1
23 862084
GASKET 		$4.91 2
24 293107
THREADED PLUG
IN STOCK 		$77.56 1
25 10261460
COPPER WASHER 16 X 24 X 1.5
IN STOCK 		$0.32 (68% off) 1
26 100332
OIL PICKUP FILTER 		$17.87 1
27 125521
O-RING
IN STOCK 		$10.54 1
28 11500524
STUD BOLT 		$0.34 (66% off) 4
29 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
30 14059290
FLANGED NUT M6
IN STOCK 		$1.31 4
31 259126
OIL PIPE FROM PUMP TO PICKUP 		$1,497.19 1
32 202151
BELLOW 		$46.81 1
33 231619
SCREW
IN STOCK 		$0.29 3
34 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
35 235648
COMPLETE THERMOSTAT VALVE 		$733.73 1
36 231837
SHIELD 		$55.87 1
37 231620
SCREW
IN STOCK 		$0.31 (11.4% off) 1
38 11500524
STUD BOLT 		$0.34 (66% off) 2
39 142798
RUBBER SHIM 		$1.45 2
40 139934
O-RING
IN STOCK 		$0.82 (63.6% off) 3
41 10519424
WASHER D.6.4 X 11.95 X 1.6
IN STOCK 		$0.02 (92% off) 4
42 14059290
FLANGED NUT M6
IN STOCK 		$1.31 4
43 13540924
STUD BOLT
IN STOCK 		$33.73 4
44 219688
OIL OUTLET PIPE 		$130.82 1
45 862084
GASKET 		$4.91 2
46 14040711
NUT
IN STOCK 		$0.35 3
47 12604474
WASHER
IN STOCK 		$0.06 (40% off) 3
48 259127
OIL PIPE FROM ENGINE TO TANK 		$1,456.10 1
49 16043524
SCREW 		$0.09 (77.5% off) 2
50 12604474
WASHER
IN STOCK 		$0.06 (40% off) 2
51 225623
OIL PIPE FROM TANK TO RADIATOR 		$438.00 1
52 225628
OIL PIPE FROM TANK TO RADIATOR 		$1,492.17 1
53 225630
OIL PIPE FROM RADIATOR TO TANK 		$495.27 1
54 225633
OIL PIPE FROM RADIATOR TO TANK 		$1,824.88 1
55 10441790
BRACKET WITH SHEATH 		$0.64 (81.4% off) 2
56 10442190
BRACKET WITH SHEATH
IN STOCK 		$0.67 (70.2% off) 2
57 102947
VIBRATION DAMPER
IN STOCK 		$18.28 (6.4% off) 1
58 65708600
SPACER BUSHING 		$7.08 (28.1% off) 1
59 202152
BELLOW 		$78.77 3
60 138150
CONNECTOR 		$54.36 3
61 907923
DOWTY WASHER
IN STOCK 		$36.07 3
62 291502
CONNECTOR
Not for USA, CDN 		$64.50 1
62 14326101
THREADED PLUG
Applicable for USA, CDN 		$1.10 (33.3% off) 1
63 13541124
STUD BOLT
IN STOCK 		$20.25 3
