Ferrari 599 GTO - FUEL TANK - FILLER NECK AND PIPES

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
248259 FUEL TANK $3,103.06 To Order
Photo Part No Description Price (each) Stock
252104 MULTIFUNCTION VALVE $489.88 To Order
Photo Part No Description Price (each) Stock
252105 TANK BREATHER VALVE $99.26 To Order
Photo Part No Description Price (each) Stock
213365 PIPE UNION $157.45 To Order
Photo Part No Description Price (each) Stock
16286124 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
190469 TANK CAP $366.53 IN STOCK
Photo Part No Description Price (each) Stock
196949 RING - FUEL TANK $27.48 IN STOCK
Photo Part No Description Price (each) Stock
186172 CLIP $0.46 IN STOCK
Photo Part No Description Price (each) Stock
11449470 COLLAR $2.58 To Order
Photo Part No Description Price (each) Stock
232570 FUEL FILLER NECK CONNECTOR PIPE $399.63 To Order
Photo Part No Description Price (each) Stock
213254 GASKET $20.61 To Order
Photo Part No Description Price (each) Stock
230745 RUBBER PIPE $244.35 To Order
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 IN STOCK
Photo Part No Description Price (each) Stock
252103 VAPOUR SEPARATOR $185.63 To Order
Photo Part No Description Price (each) Stock
14622387 CAP $2.75 IN STOCK
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.43 IN STOCK
Photo Part No Description Price (each) Stock
13432070 HOSE COLLAR $0.49 IN STOCK
Photo Part No Description Price (each) Stock
226109 RUBBER PIPE $167.58 To Order
Photo Part No Description Price (each) Stock
226111 TWO-WAY UNION $80.93 To Order
Photo Part No Description Price (each) Stock
226217 RUBBER PIPE $8.99 To Order
Photo Part No Description Price (each) Stock
13432870 COLLAR FOR HOSE UNION $11.71 IN STOCK
Photo Part No Description Price (each) Stock
67194500 GUARD $9.32 To Order
View All

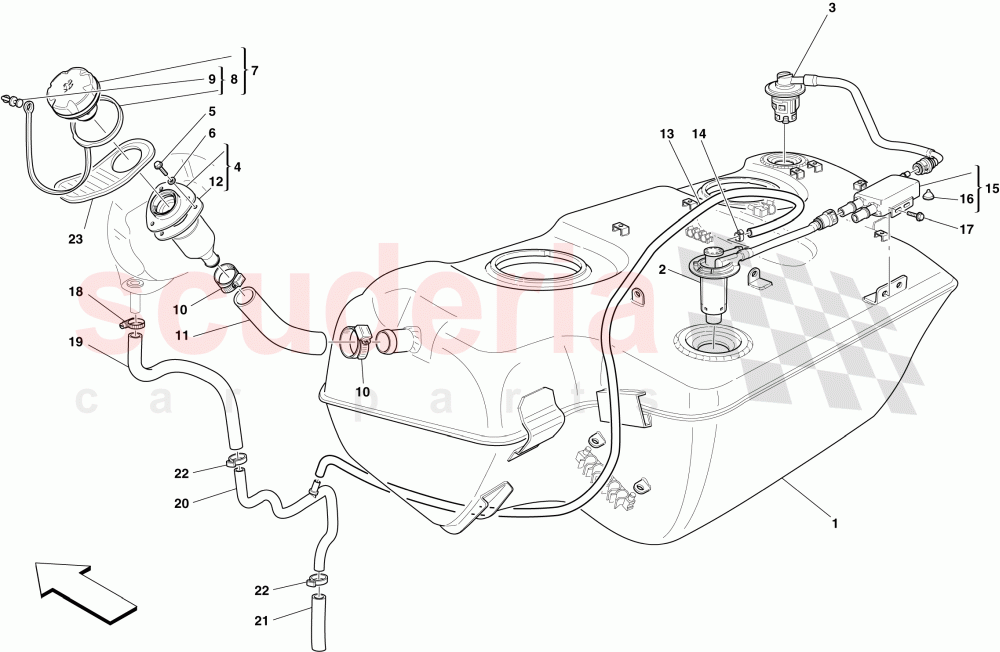

FUEL TANK - FILLER NECK AND PIPES of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 248259
FUEL TANK 		$3,103.06 1
2 252104
MULTIFUNCTION VALVE 		$489.88 1
3 252105
TANK BREATHER VALVE 		$99.26 1
4 213365
PIPE UNION 		$157.45 (32.3% off) 1
5 16286124
SCREW 		$0.35 3
6 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
7 190469
TANK CAP
IN STOCK 		$366.53 (8.9% off) 1
8 196949
RING - FUEL TANK
IN STOCK 		$27.48 (27.6% off) 1
9 186172
CLIP
IN STOCK 		$0.46 (8% off) 1
10 11449470
COLLAR 		$2.58 2
11 232570
FUEL FILLER NECK CONNECTOR PIPE 		$399.63 1
12 213254
GASKET 		$20.61 1
13 230745
RUBBER PIPE 		$244.35 1
14 13432070
HOSE COLLAR
IN STOCK 		$0.49 (54.2% off) 1
15 252103
VAPOUR SEPARATOR 		$185.63 1
16 14622387
CAP
IN STOCK 		$2.75 1
17 16296934
SCREW 6 X 14MM
IN STOCK 		$0.43 2
18 13432070
HOSE COLLAR
IN STOCK 		$0.49 (54.2% off) 1
19 226109
RUBBER PIPE 		$167.58 1
20 226111
TWO-WAY UNION 		$80.93 1
21 226217
RUBBER PIPE 		$8.99 1
22 13432870
COLLAR FOR HOSE UNION
IN STOCK 		$11.71 2
23 67194500
GUARD 		$9.32 1
