Fuel Tank - Insulation And Protection

Ferrari 599 GTO

Find Your Part

Ferrari 599 GTO - FUEL TANK - INSULATION AND PROTECTION

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
217903 TANK FASTENING STRAP $76.35 To Order
Photo Part No Description Price (each) Stock
217904 INFERIOR BRACKET $24.42 To Order
Photo Part No Description Price (each) Stock
100071 UPPER PIN Enquire To Order
Photo Part No Description Price (each) Stock
217902 LOWER PIN $24.42 To Order
Photo Part No Description Price (each) Stock
10795206 SPLIT PIN $0.06 To Order
Photo Part No Description Price (each) Stock
223883 SCREW $27.06 To Order
Photo Part No Description Price (each) Stock
14058619 NUT $0.69 To Order
Photo Part No Description Price (each) Stock
16288434 SCREW $0.63 To Order
Photo Part No Description Price (each) Stock
12647021 WASHER $0.31 IN STOCK
Photo Part No Description Price (each) Stock
222034 LH LATERAL RETAINER $105.69 To Order
222035 RH LATERAL RETAINER $105.69 To Order
Photo Part No Description Price (each) Stock
222038 LH ADJUSTER. $57.99 To Order
222042 RH ADJUSTER $57.99 To Order
Photo Part No Description Price (each) Stock
133989 NUT $0.42 To Order
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14058519 FLANGED NUT M8 X 8 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
12647021 WASHER $0.31 IN STOCK
Photo Part No Description Price (each) Stock
222037 RH FRONT RETAINER $206.26 To Order
Photo Part No Description Price (each) Stock
222036 LH FRONT RETAINER $206.26 To Order
Photo Part No Description Price (each) Stock
220222 REAR RETAINER $119.11 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.45 To Order
Photo Part No Description Price (each) Stock
12625224 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
224513 RH SHIELD $274.89 To Order
Photo Part No Description Price (each) Stock
224514 LH SHIELD $274.89 To Order
Photo Part No Description Price (each) Stock
16286124 SCREW $0.35 To Order
Photo Part No Description Price (each) Stock
228482 RUBBER SPACER KIT $386.74 To Order
Photo Part No Description Price (each) Stock
67315400 WASHER $0.40 IN STOCK
View All

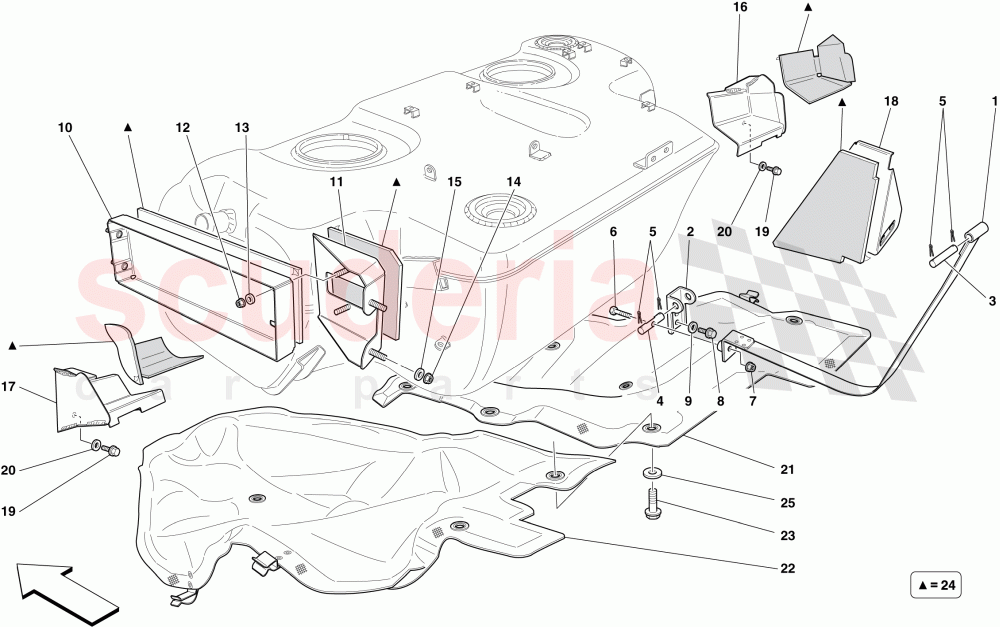

FUEL TANK - INSULATION AND PROTECTION of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 217903
TANK FASTENING STRAP 		$76.35 2
2 217904
INFERIOR BRACKET 		$24.42 2
3 100071
UPPER PIN 		- 2 Enquire
4 217902
LOWER PIN 		$24.42 2
5 10795206
SPLIT PIN 		$0.06 8
6 223883
SCREW 		$27.06 2
7 14058619
NUT 		$0.69 2
8 16288434
SCREW 		$0.63 4
9 12647021
WASHER
IN STOCK 		$0.31 4
10 222034
LH LATERAL RETAINER 		$105.69 1
10 222035
RH LATERAL RETAINER 		$105.69 1
11 222038
LH ADJUSTER. 		$57.99 1
11 222042
RH ADJUSTER 		$57.99 1
12 133989
NUT 		$0.42 (58% off) 4
13 127496
WASHER 		$0.06 (80% off) 4
14 14058519
FLANGED NUT M8 X 8
IN STOCK 		$0.23 (75.8% off) 4
15 12647021
WASHER
IN STOCK 		$0.31 4
16 222037
RH FRONT RETAINER 		$206.26 1
17 222036
LH FRONT RETAINER 		$206.26 1
18 220222
REAR RETAINER 		$119.11 1
19 13839224
SCREW 		$2.45 8
20 12625224
WASHER 		$0.06 (76% off) 8
21 224513
RH SHIELD 		$274.89 1
22 224514
LH SHIELD 		$274.89 1
23 16286124
SCREW 		$0.35 6
24 228482
RUBBER SPACER KIT 		$386.74 1
25 67315400
WASHER
IN STOCK 		$0.40 7
