Blow-By System

Ferrari 599 GTO

Find Your Part

Ferrari 599 GTO - BLOW-BY SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
262388 BLOW-BY PIPE $406.69 To Order
259689 BLOW-BY PIPE $660.87 To Order
Photo Part No Description Price (each) Stock
264326 VAPOUR ASPIRATOR PIPE $115.64 To Order
Photo Part No Description Price (each) Stock
13433370 Screw Collar $0.86 IN STOCK
Photo Part No Description Price (each) Stock
262387 VAPOUR PIPE $110.55 To Order
Photo Part No Description Price (each) Stock
13127070 COLLAR $1.84 IN STOCK
Photo Part No Description Price (each) Stock
257673 RUBBER PIPE $109.28 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
171358 FASTENER CLIP $0.18 To Order
Photo Part No Description Price (each) Stock
131042 RUBBER PIPE $39.38 To Order
277569 COMPL. BREATHER PIPE $58.44 To Order
Photo Part No Description Price (each) Stock
258855 3-WAY CONNECTOR $40.28 IN STOCK
Photo Part No Description Price (each) Stock
263410 RUBBER PIPE $41.03 To Order
269607 RUBBER PIPE $101.66 To Order
Photo Part No Description Price (each) Stock
128016 CONNECTOR $10.58 To Order
Photo Part No Description Price (each) Stock
140130 CLIP $0.14 IN STOCK
Photo Part No Description Price (each) Stock
264327 RUBBER PIPE $20.32 To Order
Photo Part No Description Price (each) Stock
294255 CHECK VALVE $292.81 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
268004 FIRST SECTION OF VAPOUR PIPE $138.07 To Order
Photo Part No Description Price (each) Stock
268005 SECOND SECTION OF VAPOUR PIPE $97.85 To Order
Photo Part No Description Price (each) Stock
262390 HEAT REFLECTIVE SLEEVE $83.36 To Order
262390 HEAT REFLECTIVE SLEEVE $83.36 To Order
Photo Part No Description Price (each) Stock
269653 HEAT REFLECTIVE SLEEVE $165.21 To Order
Photo Part No Description Price (each) Stock
241986 COLLAR FOR HOSE UNION $0.97 IN STOCK
View All

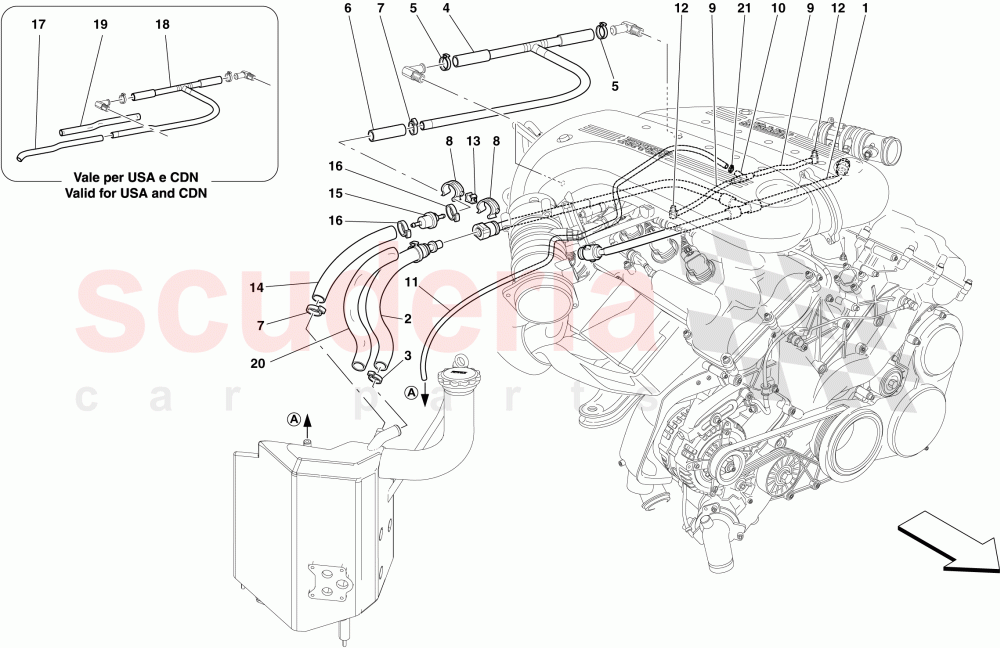

BLOW-BY SYSTEM of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 262388
BLOW-BY PIPE
Not for USA, CDN 		$406.69 1
1 259689
BLOW-BY PIPE
Applicable for USA, CDN 		$660.87 1
2 264326
VAPOUR ASPIRATOR PIPE 		$115.64 1
3 13433370
Screw Collar
IN STOCK 		$0.86 1
4 262387
VAPOUR PIPE
Not for USA, CDN 		$110.55 1
5 13127070
COLLAR
IN STOCK 		$1.84 2
6 257673
RUBBER PIPE 		$109.28 1
7 262111
SCREW CLAMP 		$1.39 2
8 171358
FASTENER CLIP
Not for GD 		$0.18 (82.4% off) 2
9 131042
RUBBER PIPE
Not for GD 		$39.38 2
9 277569
COMPL. BREATHER PIPE
Applicable for GD 		$58.44 2
10 258855
3-WAY CONNECTOR
Not for USA, CDN
IN STOCK 		$40.28 1
11 263410
RUBBER PIPE
Not for USA, CDN, GD 		$41.03 1
11 269607
RUBBER PIPE
Applicable for GD 		$101.66 1
12 128016
CONNECTOR
Zn/white 		$10.58 2
13 140130
CLIP
Not for USA, CDN
IN STOCK 		$0.14 (74.1% off) 1
14 264327
RUBBER PIPE
Not for USA, CDN 		$20.32 1
15 294255
CHECK VALVE 		$292.81 1
16 262111
SCREW CLAMP 		$1.39 2
17 268004
FIRST SECTION OF VAPOUR PIPE
Applicable for USA, CDN 		$138.07 (28.1% off) 1
18 268005
SECOND SECTION OF VAPOUR PIPE
Applicable for USA, CDN 		$97.85 (35.2% off) 1
19 262390
HEAT REFLECTIVE SLEEVE
Not for USA, CDN 		$83.36 2
19 262390
HEAT REFLECTIVE SLEEVE
Applicable for USA, CDN 		$83.36 1
20 269653
HEAT REFLECTIVE SLEEVE
Applicable for USA, CDN 		$165.21 (24.6% off) 1
21 241986
COLLAR FOR HOSE UNION
IN STOCK 		$0.97 1
