Left Hand Cylinder Head

Ferrari 599 GTO

Find Your Part

Ferrari 599 GTO - LEFT HAND CYLINDER HEAD

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
258742 LH HEAD $3,798.92 To Order
Photo Part No Description Price (each) Stock
236703 LH CYLINDER HEAD COVER $481.80 To Order
Photo Part No Description Price (each) Stock
208923 LH Head Cover Gasket $81.73 IN STOCK
Photo Part No Description Price (each) Stock
199760 THREADED PLUG $0.29 IN STOCK
Photo Part No Description Price (each) Stock
127635 THREADED PLUG $2.87 To Order
Photo Part No Description Price (each) Stock
223982 SPARK PLUG TUBE SEAL $2.40 IN STOCK
Photo Part No Description Price (each) Stock
339948 STUD BOLT $19.01 To Order
Photo Part No Description Price (each) Stock
282755 THREADED PLUG $1.87 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
227048 TIMING SENSOR $276.90 To Order
227046 TIMING SENSOR $276.90 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
102725 CENTERING DOWEL $1.01 To Order
Photo Part No Description Price (each) Stock
13541224 STUD BOLT $134.50 To Order
211641 STUD BOLT $0.98 IN STOCK
Photo Part No Description Price (each) Stock
243720 SCREW $0.52 IN STOCK
243721 SCREW WITH WASHER $0.44 IN STOCK
Photo Part No Description Price (each) Stock
243719 ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35 $0.49 IN STOCK
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
296016 VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE $196.52 IN STOCK
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.52 To Order
Photo Part No Description Price (each) Stock
195510 THREADED CONNECTOR $7.71 To Order
Photo Part No Description Price (each) Stock
339948 STUD BOLT $19.01 To Order
269228 STUD BOLT $5.75 To Order
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
264189 LH HEAT SHIELD $773.43 To Order
Photo Part No Description Price (each) Stock
248334 SCREW $0.58 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
183010 O-RING D-32.93 $1.61 IN STOCK
Photo Part No Description Price (each) Stock
321187 NUT Enquire To Order
Photo Part No Description Price (each) Stock
151117 WASHER $1.06 IN STOCK
Photo Part No Description Price (each) Stock
268088 LH REAR HEAT SHIELD $583.24 To Order
Photo Part No Description Price (each) Stock
268087 LH FRONT HEAT SHIELD $671.99 To Order
Photo Part No Description Price (each) Stock
229353 SOLENOID VALVE GASKET $18.15 To Order
View All

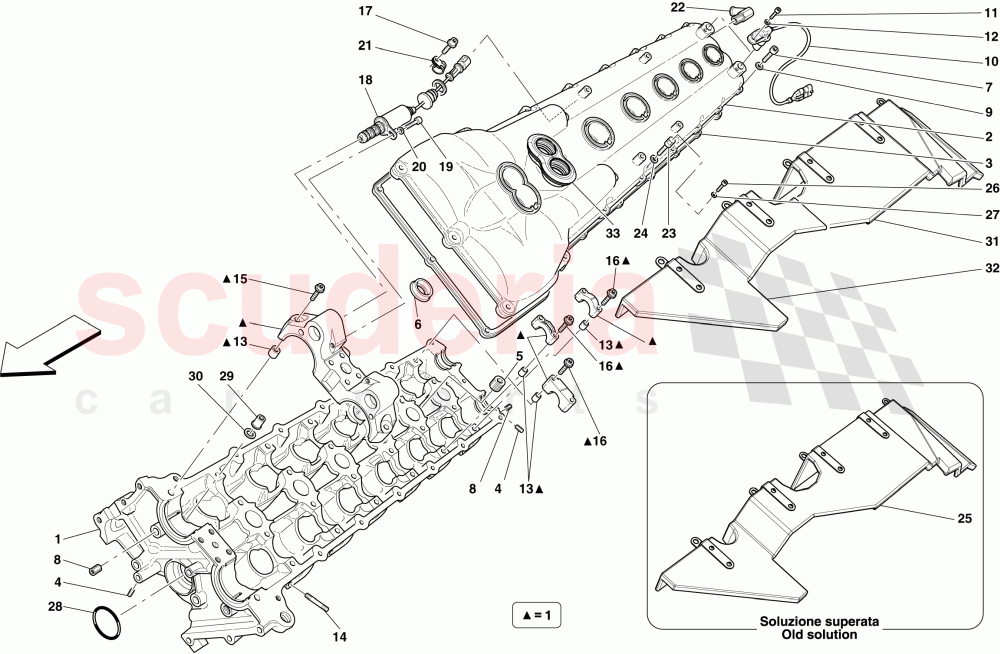

LEFT HAND CYLINDER HEAD of Ferrari Ferrari 599 GTO Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 258742
LH HEAD 		$3,798.92 1
2 236703
LH CYLINDER HEAD COVER 		$481.80 1
3 208923
LH Head Cover Gasket
IN STOCK 		$81.73 (15.4% off) 1
4 199760
THREADED PLUG
IN STOCK 		$0.29 6
5 127635
THREADED PLUG 		$2.87 (31.2% off) 12
6 223982
SPARK PLUG TUBE SEAL
IN STOCK 		$2.40 (39.5% off) 6
7 339948
STUD BOLT 		$19.01 12
8 282755
THREADED PLUG 		$1.87 5
9 11197774
WASHER
IN STOCK 		$0.06 (80% off) 12
10 227048
TIMING SENSOR
Intake 		$276.90 1
10 227046
TIMING SENSOR
Exhaust 		$276.90 1
11 231619
SCREW
IN STOCK 		$0.29 2
12 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
13 102725
CENTERING DOWEL 		$1.01 (55.1% off) 26
14 13541224
STUD BOLT
M6 X 12; Shank length 22 		$134.50 12
14 211641
STUD BOLT
M6 X 16; Shank length 24
IN STOCK 		$0.98 (2% off) 12
15 243720
SCREW
M6 X 40
IN STOCK 		$0.52 2
15 243721
SCREW WITH WASHER
M6 X 45
IN STOCK 		$0.44 4
16 243719
ALLEN SCREW SOCKET HEAD WITH WASHER M6 X 35
M6 X 35
IN STOCK 		$0.49 24
17 248334
SCREW
IN STOCK 		$0.58 2
18 296016
VARIABLE VALVE TIMING ADJUSTER SOLENOID VALVE
IN STOCK 		$196.52 (23.8% off) 2
19 231619
SCREW
IN STOCK 		$0.29 2
20 11197774
WASHER
IN STOCK 		$0.06 (80% off) 2
21 10441590
BRACKET WITH SHEATH 		$0.52 2
22 195510
THREADED CONNECTOR 		$7.71 1
23 339948
STUD BOLT 		$19.01 4
23 269228
STUD BOLT 		$5.75 2
24 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
25 264189
LH HEAT SHIELD
Applicable until depletion 		$773.43 1
26 248334
SCREW
IN STOCK 		$0.58 3
27 11197774
WASHER
IN STOCK 		$0.06 (80% off) 3
28 183010
O-RING D-32.93
IN STOCK 		$1.61 (44.3% off) 2
29 321187
NUT 		- 14 Enquire
30 151117
WASHER
IN STOCK 		$1.06 (7.8% off) 14
31 268088
LH REAR HEAT SHIELD
Applicable after depletion of 264189 		$583.24 1
32 268087
LH FRONT HEAT SHIELD
Applicable after depletion of 264189 		$671.99 1
33 229353
SOLENOID VALVE GASKET 		$18.15 (38% off) 1
