Hydraulic Fluid Reservoir, Pump And Coil For Power Steering System

Ferrari 599 GTB Fiorano

Find Your Part

Ferrari 599 GTB Fiorano - HYDRAULIC FLUID RESERVOIR, PUMP AND COIL FOR POWER STEERING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
210354 COOLING COIL $889.35 To Order
Photo Part No Description Price (each) Stock
198036 POWER STEERING PUMP $827.23 To Order
Photo Part No Description Price (each) Stock
182833 PUMP MOUNTING BRACKET $180.87 To Order
Photo Part No Description Price (each) Stock
195936 POWER STEERING PULLEY $165.24 To Order
Photo Part No Description Price (each) Stock
226087 SHIM $32.46 To Order
226087 SHIM $32.46 To Order
Photo Part No Description Price (each) Stock
169890 PIPE FROM SERPENTINE COIL TO TANK $44.29 To Order
275949 PIPE FROM SERPENTINE COIL TO TANK $143.19 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.39 IN STOCK
Photo Part No Description Price (each) Stock
227882 POWER STEERING FLUID RESERVOIR $265.12 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.41 To Order
Photo Part No Description Price (each) Stock
12604474 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
202824 PIPE FROM RESERVOIR TO POWER STEERING PUMP $18.67 To Order
276795 PIPE FROM RESERVOIR TO POWER STEERING PUMP $45.65 IN STOCK
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.39 IN STOCK
Photo Part No Description Price (each) Stock
226446 TANK MOUNT $94.05 To Order
Photo Part No Description Price (each) Stock
174091 CONNECTOR $109.43 To Order
Photo Part No Description Price (each) Stock
10261460 COPPER WASHER 16 X 24 X 1.5 $0.32 IN STOCK
Photo Part No Description Price (each) Stock
202821 PIPE FROM POWER STEERING PUMP TO STEERING BOX $252.50 To Order
222119 PIPE FROM POWER STEERING PUMP TO STEERING BOX $366.13 To Order
Photo Part No Description Price (each) Stock
205048 THREADED CONNECTOR $84.58 To Order
Photo Part No Description Price (each) Stock
10261360 GASKET $0.21 IN STOCK
Photo Part No Description Price (each) Stock
214729 PIPE FROM STEERING BOX-COIL $252.50 To Order
222118 PIPE FROM STEERING BOX-COIL $239.87 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.39 IN STOCK
Photo Part No Description Price (each) Stock
203091 PIPE FASTENER BRACKET $34.66 To Order
Photo Part No Description Price (each) Stock
277407 HOSE CONNECTOR $10.22 IN STOCK
Photo Part No Description Price (each) Stock
10280060 WASHER COPPER D14. 20 X 1.5 $0.20 IN STOCK
Photo Part No Description Price (each) Stock
139512 BRACKET WITH SHEATH $2.18 To Order
Photo Part No Description Price (each) Stock
14059211 NUT $0.06 IN STOCK
Photo Part No Description Price (each) Stock
86768100 SCREW $0.44 To Order
Photo Part No Description Price (each) Stock
12604474 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
14302234 SCREW $0.82 To Order
Photo Part No Description Price (each) Stock
143873 SCREW $13.46 To Order
Photo Part No Description Price (each) Stock
11193874 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.64 To Order
Photo Part No Description Price (each) Stock
14059211 NUT $0.06 IN STOCK
Photo Part No Description Price (each) Stock
16296934 SCREW 6 X 14MM $0.41 IN STOCK
Photo Part No Description Price (each) Stock
226210 MOUNTING $34.66 To Order
Photo Part No Description Price (each) Stock
226209 PLATE $30.13 To Order
Photo Part No Description Price (each) Stock
239478 OIL BREATHER PIPE $104.74 To Order
Photo Part No Description Price (each) Stock
140727 CLIP $0.23 IN STOCK
Photo Part No Description Price (each) Stock
10397380 CABLE GROMMET $1.45 To Order
Photo Part No Description Price (each) Stock
141546 CLIP $0.21 To Order
Photo Part No Description Price (each) Stock
279664 RETROFIT KIT POWER STEERING $165.80 IN STOCK
View All

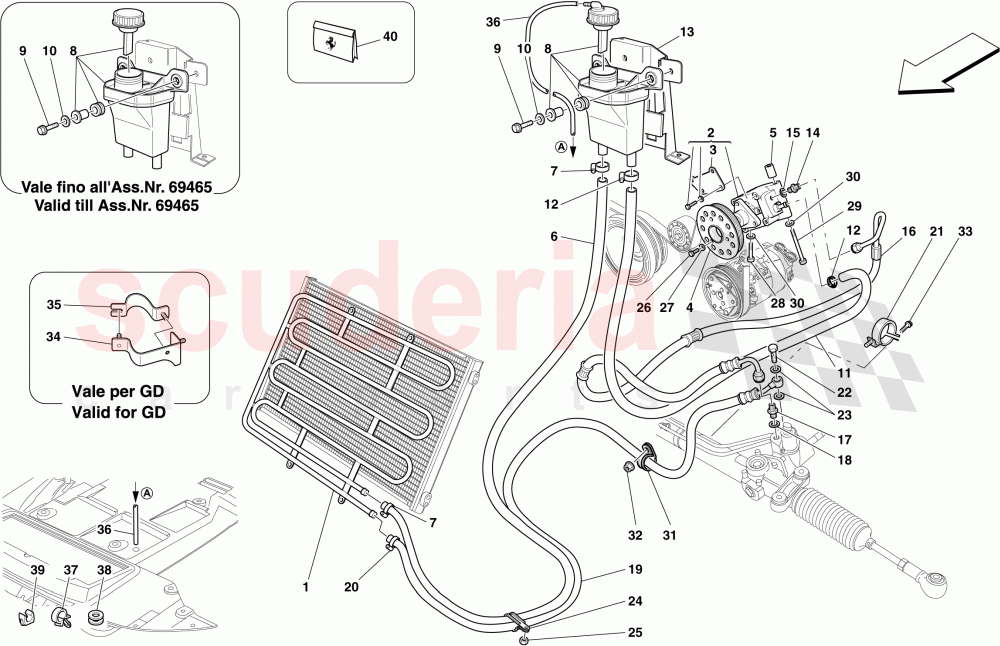

HYDRAULIC FLUID RESERVOIR, PUMP AND COIL FOR POWER STEERING SYSTEM of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 210354
COOLING COIL 		$889.35 1
2 198036
POWER STEERING PUMP 		$827.23 1
3 182833
PUMP MOUNTING BRACKET 		$180.87 1
4 195936
POWER STEERING PULLEY 		$165.24 1
5 226087
SHIM
Die-cast 		$32.46 1
5 226087
SHIM
Alternative solution 		$32.46 1
6 169890
PIPE FROM SERPENTINE COIL TO TANK
Replaced by kit 279664; Applicable up to Ass. No. 97929; No longer supplied 		$44.29 1
6 275949
PIPE FROM SERPENTINE COIL TO TANK
Applicable from Ass. No. 97930 		$143.19 1
7 262111
JUBILEE CLAMP
IN STOCK 		$1.39 2
8 227882
POWER STEERING FLUID RESERVOIR
Replaced by kit 279664; Applicable up to Ass. No. 69465; No longer supplied 		$265.12 1
9 13839224
SCREW 		$2.41 2
10 12604474
WASHER
IN STOCK 		$0.06 (40% off) 2
11 202824
PIPE FROM RESERVOIR TO POWER STEERING PUMP
Replaced by kit 279664; Applicable up to Ass. No. 97929; No longer supplied 		$18.67 (33.7% off) 1
11 276795
PIPE FROM RESERVOIR TO POWER STEERING PUMP
Applicable from Ass. No. 97930
IN STOCK 		$45.65 1
12 262111
JUBILEE CLAMP
IN STOCK 		$1.39 2
13 226446
TANK MOUNT 		$94.05 1
14 174091
CONNECTOR 		$109.43 1
15 10261460
COPPER WASHER 16 X 24 X 1.5
IN STOCK 		$0.32 (68% off) 1
16 202821
PIPE FROM POWER STEERING PUMP TO STEERING BOX
Not for GD 		$252.50 (30.8% off) 1
16 222119
PIPE FROM POWER STEERING PUMP TO STEERING BOX
Applicable for GD 		$366.13 1
17 205048
THREADED CONNECTOR 		$84.58 1
18 10261360
GASKET
IN STOCK 		$0.21 1
19 214729
PIPE FROM STEERING BOX-COIL
Not for GD 		$252.50 1
19 222118
PIPE FROM STEERING BOX-COIL
Applicable for GD 		$239.87 1
20 262111
JUBILEE CLAMP
IN STOCK 		$1.39 1
21 203091
PIPE FASTENER BRACKET
Not for GD 		$34.66 1
22 277407
HOSE CONNECTOR
IN STOCK 		$10.22 1
23 10280060
WASHER COPPER D14. 20 X 1.5
IN STOCK 		$0.20 (80% off) 2
24 139512
BRACKET WITH SHEATH 		$2.18 1
25 14059211
NUT
IN STOCK 		$0.06 1
26 86768100
SCREW 		$0.44 3
27 12604474
WASHER
IN STOCK 		$0.06 (40% off) 3
28 14302234
SCREW 		$0.82 1
29 143873
SCREW 		$13.46 1
30 11193874
WASHER
IN STOCK 		$0.06 2
31 10441790
BRACKET WITH SHEATH 		$0.64 (81.4% off) 1
32 14059211
NUT
IN STOCK 		$0.06 1
33 16296934
SCREW 6 X 14MM
Not for GD
IN STOCK 		$0.41 1
34 226210
MOUNTING
Applicable for GD 		$34.66 1
35 226209
PLATE
Applicable for GD 		$30.13 1
36 239478
OIL BREATHER PIPE 		$104.74 1
37 140727
CLIP
IN STOCK 		$0.23 (69.3% off) 2
38 10397380
CABLE GROMMET
Applicable from Ass. No. 69466 		$1.45 1
39 141546
CLIP
Applicable from Ass. No. 69466 		$0.21 2
40 279664
RETROFIT KIT POWER STEERING
Applicable up to Ass. No. 97929
IN STOCK 		$165.80 (24.1% off) 1
