Hydraulic Brake And Clutch Control

Ferrari 599 GTB Fiorano

Find Your Part

Ferrari 599 GTB Fiorano - HYDRAULIC BRAKE AND CLUTCH CONTROL

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
209079 BRAKE SERVO WITH MASTER CYLINDER $1,603.41 To Order
218441 BRAKE SERVO WITH MASTER CYLINDER $1,364.48 To Order
Photo Part No Description Price (each) Stock
219312 BRAKE FLUID RESERVOIR $105.68 To Order
Photo Part No Description Price (each) Stock
16284934 FLANGED SCREW $0.71 IN STOCK
Photo Part No Description Price (each) Stock
154011 RUBBER PIPE $72.42 To Order
Photo Part No Description Price (each) Stock
13432370 COLLAR FOR HOSE UNION $11.02 To Order
Photo Part No Description Price (each) Stock
205301 CLUTCH PUMP $750.28 To Order
Photo Part No Description Price (each) Stock
216078 PUMP FASTENER PLATE $30.33 To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
220310 CAP $16.68 To Order
Photo Part No Description Price (each) Stock
220309 GASKET $0.98 IN STOCK
Photo Part No Description Price (each) Stock
238856 CLUTCH CONTROL PIPE $737.13 To Order
250118 CLUTCH CONTROL PIPE $838.81 To Order
Photo Part No Description Price (each) Stock
190379 SHIM $15.76 To Order
Photo Part No Description Price (each) Stock
190378 GASKET $1.12 IN STOCK
Photo Part No Description Price (each) Stock
12578211 NUT $0.29 IN STOCK
Photo Part No Description Price (each) Stock
225035 PIPE FASTENER BRACKET $89.51 To Order
Photo Part No Description Price (each) Stock
14058519 FLANGED NUT M8 X 8 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
10440990 BRACKET WITH SHEATH $1.27 To Order
Photo Part No Description Price (each) Stock
14059211 NUT $0.06 IN STOCK
Photo Part No Description Price (each) Stock
233375 RUBBER SHIM $1.32 To Order
View All

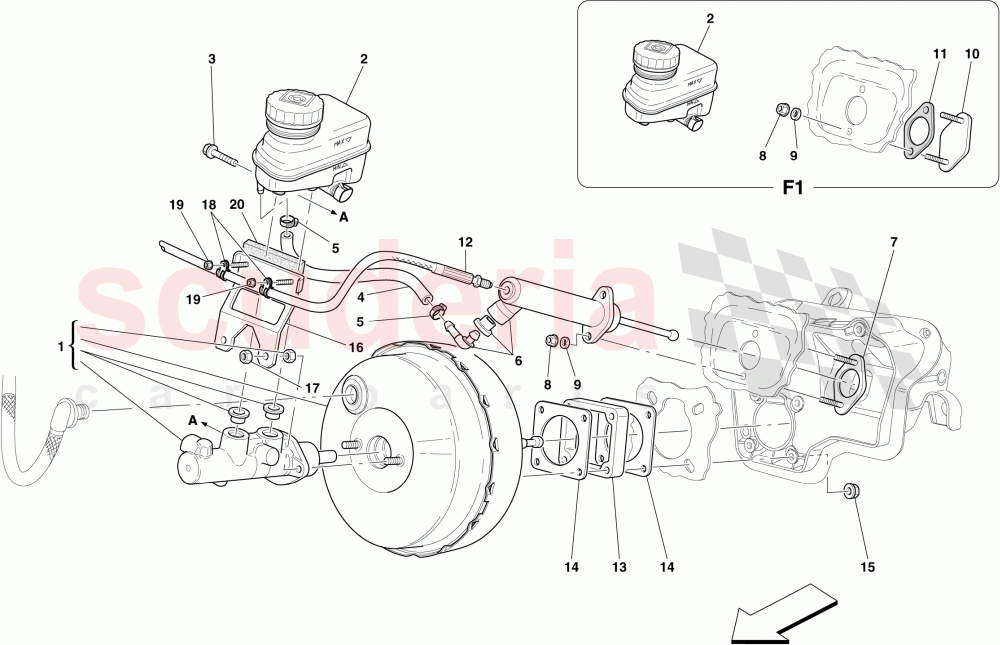

HYDRAULIC BRAKE AND CLUTCH CONTROL of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 209079
BRAKE SERVO WITH MASTER CYLINDER
Standard 		$1,603.41 1
1 218441
BRAKE SERVO WITH MASTER CYLINDER
Version with CCM brakes 		$1,364.48 1
2 219312
BRAKE FLUID RESERVOIR
Not for F1 gearbox 		$105.68 1
3 16284934
FLANGED SCREW
IN STOCK 		$0.71 1
4 154011
RUBBER PIPE
Not for F1 gearbox 		$72.42 1
5 13432370
COLLAR FOR HOSE UNION
Not for F1 gearbox 		$11.02 2
6 205301
CLUTCH PUMP
Not for F1 gearbox 		$750.28 1
7 216078
PUMP FASTENER PLATE
Not for F1 gearbox 		$30.33 1
8 14040711
NUT
IN STOCK 		$0.35 2
9 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 2
10 220310
CAP
Applicable for F1 gearbox 		$16.68 1
11 220309
GASKET
Applicable for F1 gearbox
IN STOCK 		$0.98 1
12 238856
CLUTCH CONTROL PIPE
Not for GD; Not for F1 gearbox 		$737.13 1
12 250118
CLUTCH CONTROL PIPE
Applicable for GD; Not for F1 gearbox 		$838.81 1
13 190379
SHIM 		$15.76 1
14 190378
GASKET
Q.ty 1, supplied with brake servo ref. 1
IN STOCK 		$1.12 2
15 12578211
NUT
IN STOCK 		$0.29 (76.8% off) 4
16 225035
PIPE FASTENER BRACKET
Not for GD; Not for F1 gearbox 		$89.51 1
17 14058519
FLANGED NUT M8 X 8
Not for GD; Not for F1 gearbox
IN STOCK 		$0.23 (75.8% off) 2
18 10440990
BRACKET WITH SHEATH
Not for F1 gearbox 		$1.27 2
19 14059211
NUT
Not for F1 gearbox
IN STOCK 		$0.06 2
20 233375
RUBBER SHIM
Not for F1 gearbox 		$1.32 1
