Front Suspension - Shock Absorber And Brake Disc

Ferrari 599 GTB Fiorano

Find Your Part

Ferrari 599 GTB Fiorano - FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
257058 Front Shock Absorber $2,312.15 To Order
Photo Part No Description Price (each) Stock
191203 Spring $673.41 To Order
221095 SPRING $606.79 To Order
Photo Part No Description Price (each) Stock
186489 UPPER SPACER $23.61 IN STOCK
Photo Part No Description Price (each) Stock

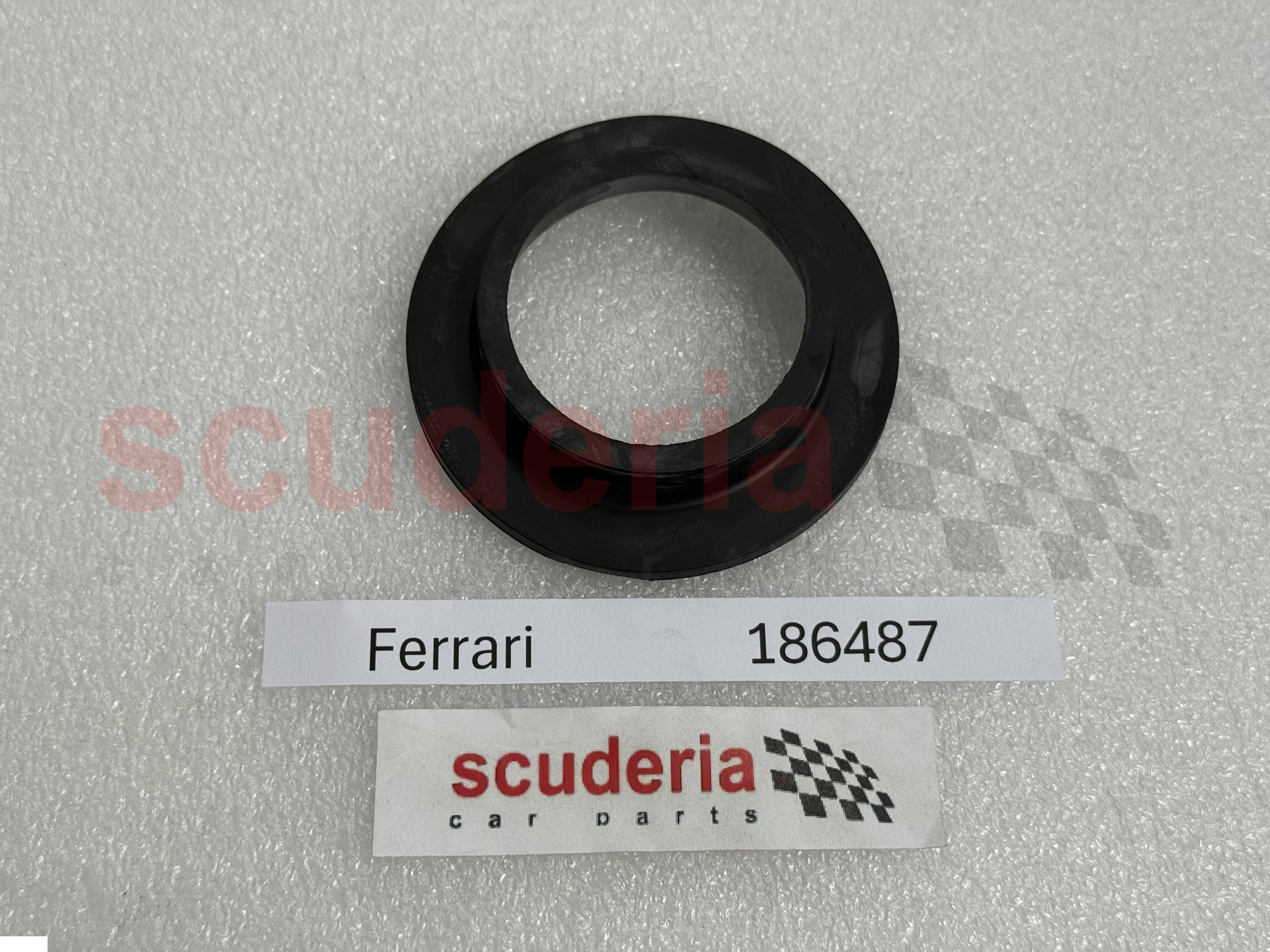

186487 LOWER SPACER $31.84 To Order
Photo Part No Description Price (each) Stock
219970 RH AIR DEFLECTOR $152.45 To Order
231310 RH AIR DEFLECTOR $101.64 To Order
219968 LH AIR DEFLECTOR $152.45 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
230083 SCREW $1.35 To Order
231619 SCREW $0.29 IN STOCK
897538 SCREW $1.53 To Order
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
12620477 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
279627 UPPER STOP CAP Enquire To Order
Photo Part No Description Price (each) Stock
220347 Shock Absorber Bushing $53.08 To Order
256977 SHOCK ABSORBER BUSHING $101.64 To Order
Photo Part No Description Price (each) Stock
220350 CAP $177.87 To Order
Photo Part No Description Price (each) Stock
220351 RING NUT $54.60 ARRIVING SOON
Photo Part No Description Price (each) Stock
190330 Lower Stop Cap $17.05 To Order
Photo Part No Description Price (each) Stock
204606 Bush for Front Upper Shock Absorber $236.32 To Order
Photo Part No Description Price (each) Stock
220377 WASHER $7.65 To Order
Photo Part No Description Price (each) Stock
220378 NUT $4.15 To Order
Photo Part No Description Price (each) Stock
13543634 STUD BOLT $1.10 IN STOCK
Photo Part No Description Price (each) Stock
104030 NUT $0.25 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER D.8.4 X 17 X 1.6 $0.11 IN STOCK
Photo Part No Description Price (each) Stock
216969 SCREW $38.97 To Order
Photo Part No Description Price (each) Stock
148020 NUT M12 X 1.25 $3.85 To Order
Photo Part No Description Price (each) Stock
12646921 WASHER $0.51 IN STOCK
Photo Part No Description Price (each) Stock
197232 WHEEL BEARING $703.74 IN STOCK
Photo Part No Description Price (each) Stock
190723 SCREW WITH WASHER $9.32 IN STOCK
Photo Part No Description Price (each) Stock

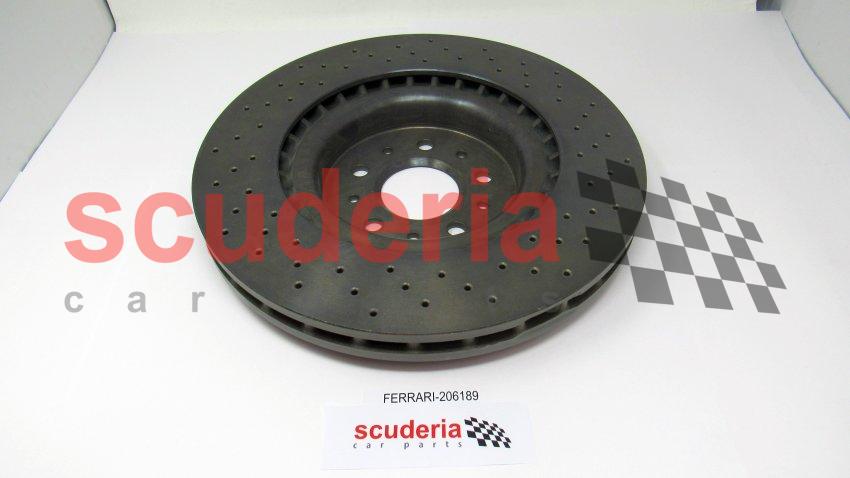

206189 Front Brake Disc $548.90 To Order
225853 FRONT BRAKE DISC $5,097.48 To Order
Photo Part No Description Price (each) Stock
14306924 SCREW $0.64 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
104370 SCREW $8.75 IN STOCK
Photo Part No Description Price (each) Stock
190702 SHIM $124.50 IN STOCK
Photo Part No Description Price (each) Stock
157630 SHOCK ABSORBER BUSH $110.27 ARRIVING SOON
Photo Part No Description Price (each) Stock
220382 NUT $41.51 To Order
Photo Part No Description Price (each) Stock
870322 UPPER CONNECTOR $72.40 To Order
Photo Part No Description Price (each) Stock
220383 BUSH $39.37 To Order
View All

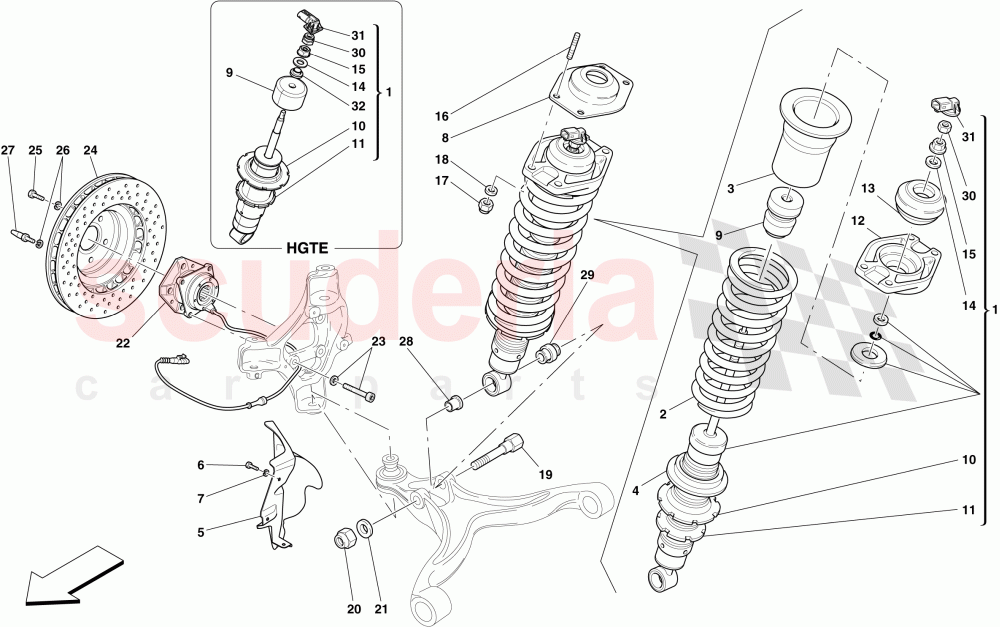

FRONT SUSPENSION - SHOCK ABSORBER AND BRAKE DISC of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 257058
Front Shock Absorber 		$2,312.15 (29% off) 2
2 191203
Spring
Standard 		$673.41 2
2 221095
SPRING
Applicable for HGTE version 		$606.79 2
3 186489
UPPER SPACER
IN STOCK 		$23.61 2
4 186487
LOWER SPACER 		$31.84 2
5 219970
RH AIR DEFLECTOR 		$152.45 1
5 231310
RH AIR DEFLECTOR 		$101.64 1
5 219968
LH AIR DEFLECTOR 		$152.45 1
5 231309
LH AIR DEFLECTOR 		$101.64 1
6 230083
SCREW 		$1.35 2
6 231619
SCREW
IN STOCK 		$0.29 4
6 897538
SCREW 		$1.53 4
7 12643724
WASHER
IN STOCK 		$0.06 (88% off) 2
7 12620477
WASHER
IN STOCK 		$0.06 4
8 279627
UPPER STOP CAP 		- 2 Enquire
9 220347
Shock Absorber Bushing
Standard 		$53.08 2
9 256977
SHOCK ABSORBER BUSHING
Applicable for HGTE version 		$101.64 2
10 220350
CAP 		$177.87 (9.5% off) 2
11 220351
RING NUT
ARRIVING SOON 		$54.60 2
12 190330
Lower Stop Cap 		$17.05 2
13 204606
Bush for Front Upper Shock Absorber 		$236.32 (23.8% off) 2
14 220377
WASHER 		$7.65 2
15 220378
NUT 		$4.15 (3.5% off) 2
16 13543634
STUD BOLT
IN STOCK 		$1.10 8
17 104030
NUT
IN STOCK 		$0.25 (75% off) 8
18 14496524
WASHER D.8.4 X 17 X 1.6
IN STOCK 		$0.11 (92.7% off) 8
19 216969
SCREW 		$38.97 2
20 148020
NUT M12 X 1.25 		$3.85 2
21 12646921
WASHER
IN STOCK 		$0.51 2
22 197232
WHEEL BEARING
IN STOCK 		$703.74 2
23 190723
SCREW WITH WASHER
IN STOCK 		$9.32 8
24 206189
Front Brake Disc
Standard 		$548.90 2
24 225853
FRONT BRAKE DISC
Version with CCM brakes 		$5,097.48 2
25 14306924
SCREW
IN STOCK 		$0.64 2
26 127496
WASHER 		$0.06 (80% off) 4
27 104370
SCREW
IN STOCK 		$8.75 2
28 190702
SHIM
IN STOCK 		$124.50 2
29 157630
SHOCK ABSORBER BUSH
ARRIVING SOON 		$110.27 (27.6% off) 2
30 220382
NUT 		$41.51 2
31 870322
UPPER CONNECTOR 		$72.40 2
32 220383
BUSH
Applicable for HGTE version 		$39.37 2
