Ferrari 599 GTB Fiorano - EXTERNAL GEARBOX CONTROLS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
156712 GEAR LEVER KNOB $181.95 IN STOCK
223131 KNOB $855.95 To Order
Photo Part No Description Price (each) Stock
108010 CHECKNUT $23.39 IN STOCK
Photo Part No Description Price (each) Stock
232624 GEAR LEVER $1,450.60 To Order
233397 GEAR LEVER $2,270.33 To Order
Photo Part No Description Price (each) Stock
146994 PIN $29.58 To Order
Photo Part No Description Price (each) Stock
242564 GEAR SELECTOR $2,372.00 To Order
242565 GEAR SELECTOR $3,080.34 To Order
Photo Part No Description Price (each) Stock
209152 SCREW $8.22 To Order
Photo Part No Description Price (each) Stock
232983 GASKET $76.01 To Order
233413 GASKET $742.09 To Order
Photo Part No Description Price (each) Stock
235980 BUSHING $210.33 To Order
Photo Part No Description Price (each) Stock
14303123 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
235660 TURRET -Not for F1 - -Not for GD- $4,580.57 To Order
236305 TURRET -Not for F1 - -Valid for GD- Enquire To Order
Photo Part No Description Price (each) Stock
147561 SPRING $103.39 To Order
Photo Part No Description Price (each) Stock
154745 BALL $258.81 To Order
Photo Part No Description Price (each) Stock
235982 ROD $326.87 To Order
236150 ROD $490.52 To Order
Photo Part No Description Price (each) Stock
231338 SPRING $66.10 To Order
231465 SPRING $106.79 To Order
Photo Part No Description Price (each) Stock
156101 SPRING RETAINER CAP $3.63 To Order
Photo Part No Description Price (each) Stock
103326 SEEGER RING $0.21 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.94 IN STOCK
Photo Part No Description Price (each) Stock
115980A SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
212959 GASKET $138.34 To Order
212981 GASKET $138.34 To Order
Photo Part No Description Price (each) Stock
127446 BALL SEAT FOR JOINT $26.89 To Order
Photo Part No Description Price (each) Stock
235671 ROCKER IN TOWER $507.40 To Order
233398 ROCKER IN TOWER $1,866.34 To Order
Photo Part No Description Price (each) Stock
156128 BELLOW $144.07 To Order
157962 BELLOW $155.75 To Order
Photo Part No Description Price (each) Stock
156129 FRAME $9.25 To Order
157961 FRAME $38.47 To Order
Photo Part No Description Price (each) Stock
10444621 SCREW $0.20 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
149907 BUSHING $30.19 To Order
183982 BALL BEARING BUSH $36.31 IN STOCK
Photo Part No Description Price (each) Stock
234829 FRONT GEARBOX CONTROL BAR $2,964.32 To Order
Photo Part No Description Price (each) Stock
231206 REAR GEARBOX CONTROL BAR $2,805.14 To Order
Photo Part No Description Price (each) Stock
155473 TERMINAL $252.31 To Order
Photo Part No Description Price (each) Stock
16043634 SCREW $0.21 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
246336 F1 GEARBOX CONTROL PANEL $1,354.45 To Order
246336 F1 GEARBOX CONTROL PANEL $1,354.45 To Order
246022 F1 GEARBOX CONTROL PANEL $3,669.00 To Order
...and 5 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
66535800 SCREW $5.04 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
159762 SHIM $4.34 To Order
Photo Part No Description Price (each) Stock
15212724 SCREW $1.33 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.30 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
163926 FASTENER BUSHING $200.54 IN STOCK
Photo Part No Description Price (each) Stock
234828 FASTENER FOR BAR $2,964.32 To Order
Photo Part No Description Price (each) Stock
14058519 FLANGED NUT M8 X 8 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
65200400 CENTRE CONSOLE TUNNEL COVER $46.36 To Order
Photo Part No Description Price (each) Stock
65200500 INSULATION $201.23 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.40 To Order
Photo Part No Description Price (each) Stock
210280 GASKET $34.52 To Order
Photo Part No Description Price (each) Stock
237846 GASKET $6.61 To Order
Photo Part No Description Price (each) Stock
235063 SHIM $10.04 To Order
235064 SHIM $12.61 To Order
235065 SHIM $18.01 To Order
...and 1 more part variants. See table on right for more details.
View All

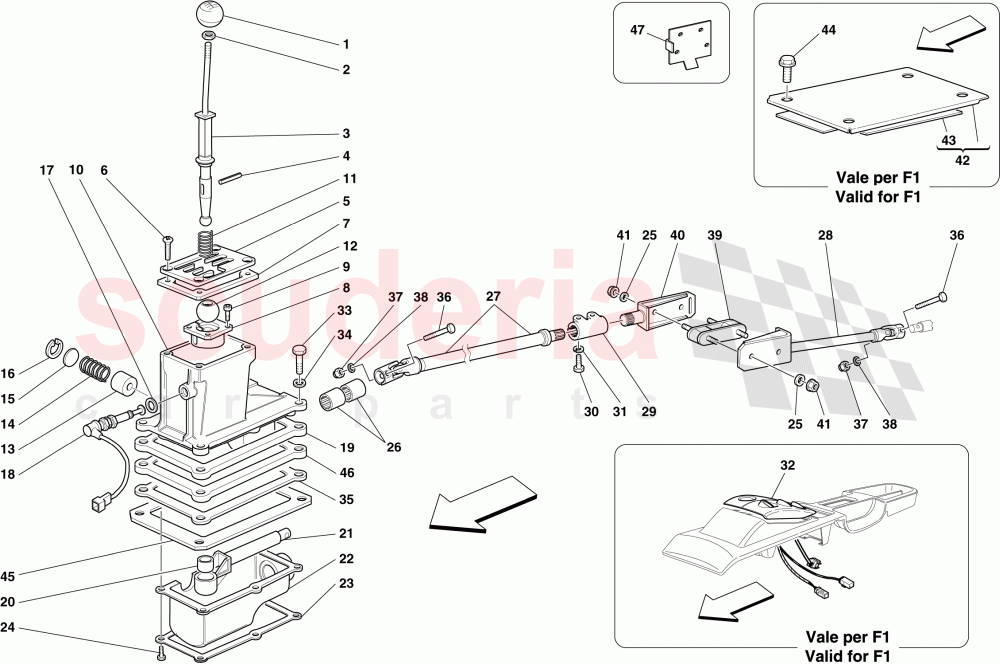

EXTERNAL GEARBOX CONTROLS of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 156712
GEAR LEVER KNOB
Standard; Not for F1 gearbox
IN STOCK 		$181.95 (5.6% off) 1
1 223131
KNOB
Carbon version; Not for F1 gearbox 		$855.95 (8.2% off) 1
2 108010
CHECKNUT
Not for F1 gearbox
IN STOCK 		$23.39 (20.2% off) 1
3 232624
GEAR LEVER
Not for GD; Not for F1 gearbox 		$1,450.60 1
3 233397
GEAR LEVER
Applicable for GD; Not for F1 gearbox 		$2,270.33 1
4 146994
PIN
Not for F1 gearbox 		$29.58 1
5 242564
GEAR SELECTOR
Standard; Applicable for GD; Not for F1 gearbox 		$2,372.00 1
5 242565
GEAR SELECTOR
For trim version with carbon knob; Applicable for GD; Not for F1 gearbox 		$3,080.34 1
6 209152
SCREW
Not for F1 gearbox 		$8.22 4
7 232983
GASKET
Not for GD; Not for F1 gearbox 		$76.01 1
7 233413
GASKET
Applicable for GD; Not for F1 gearbox 		$742.09 1
8 235980
BUSHING
Not for F1 gearbox 		$210.33 1
9 14303123
SCREW
Not for F1 gearbox
IN STOCK 		$0.06 4
10 235660
TURRET -Not for F1 - -Not for GD-
Not for GD; Not for F1 gearbox 		$4,580.57 1
10 236305
TURRET -Not for F1 - -Valid for GD-
Applicable for GD; Not for F1 gearbox 		- 1 Enquire
11 147561
SPRING
Not for F1 gearbox 		$103.39 1
12 154745
BALL
Not for F1 gearbox 		$258.81 1
13 235982
ROD
Not for GD; Not for F1 gearbox 		$326.87 1
13 236150
ROD
Applicable for GD; Not for F1 gearbox 		$490.52 1
14 231338
SPRING
Not for GD; Not for F1 gearbox 		$66.10 1
14 231465
SPRING
Applicable for GD; Not for F1 gearbox 		$106.79 1
15 156101
SPRING RETAINER CAP
Not for F1 gearbox 		$3.63 1
16 103326
SEEGER RING
Not for F1 gearbox 		$0.21 (73.8% off) 1
17 84653800
WASHER 10 X 18 X 2.5
Not for F1 gearbox
IN STOCK 		$4.94 1
18 115980A
SWITCH
Not for F1 gearbox 		- 1 Enquire
19 212959
GASKET
Not for GD; Not for F1 gearbox 		$138.34 1
19 212981
GASKET
Applicable for GD; Not for F1 gearbox 		$138.34 1
20 127446
BALL SEAT FOR JOINT
Not for F1 gearbox 		$26.89 (28.6% off) 1
21 235671
ROCKER IN TOWER
Not for GD; Not for F1 gearbox 		$507.40 1
21 233398
ROCKER IN TOWER
Applicable for GD; Not for F1 gearbox 		$1,866.34 1
22 156128
BELLOW
Not for GD; Not for F1 gearbox 		$144.07 1
22 157962
BELLOW
Applicable for GD; Not for F1 gearbox 		$155.75 1
23 156129
FRAME
Not for GD; Not for F1 gearbox 		$9.25 1
23 157961
FRAME
Applicable for GD; Not for F1 gearbox 		$38.47 1
24 10444621
SCREW
Not for F1 gearbox
IN STOCK 		$0.20 6
25 12601374
WASHER D.8.40-15 X 0.8
Not for F1 gearbox
IN STOCK 		$0.02 (92% off) 8
26 149907
BUSHING
Not for F1 gearbox 		$30.19 2
26 183982
BALL BEARING BUSH
18 X 24 X 20; Alternative solution; Not for F1 gearbox
IN STOCK 		$36.31 (2.6% off) 2
27 234829
FRONT GEARBOX CONTROL BAR
Not for F1 gearbox 		$2,964.32 1
28 231206
REAR GEARBOX CONTROL BAR
Not for F1 gearbox 		$2,805.14 1
29 155473
TERMINAL
Not for F1 gearbox 		$252.31 1
30 16043634
SCREW
Not for F1 gearbox
IN STOCK 		$0.21 2
31 127496
WASHER
Not for F1 gearbox 		$0.06 (80% off) 2
32 246336
F1 GEARBOX CONTROL PANEL
Not for USA, CDN, GD; Applicable for F1 gearbox 		$1,354.45 1
32 246336
F1 GEARBOX CONTROL PANEL
Applicable for USA LIGHT; Applicable for F1 gearbox; Applicable from engine No. 138822 		$1,354.45 1
32 246022
F1 GEARBOX CONTROL PANEL
Carbon; Applicable for HGTE version; Not for USA, CDN, GD; Applicable for F1 gearbox 		$3,669.00 1
32 246020
F1 GEARBOX CONTROL PANEL
Carbon; Applicable for HGTE version; Applicable for GD; Applicable for F1 gearbox 		$3,481.58 1
32 246024
F1 GEARBOX CONTROL PANEL
Carbon; Applicable for HGTE version; Applicable for USA, CDN; Applicable for F1 gearbox 		$2,659.28 (45.7% off) 1
32 285922
F1 GEARBOX CONTROL PANEL
HGTE 60 F1 version; Not for USA, CDN, GD; Applicable for F1 gearbox 		$3,775.91 1
32 285923
F1 GEARBOX CONTROL PANEL
HGTE 60 F1 version; Applicable for GD; Applicable for F1 gearbox 		$3,396.06 1
32 285924
F1 GEARBOX CONTROL PANEL
HGTE 60 F1 version; Applicable for USA, CDN; Applicable for F1 gearbox 		$3,775.91 1
33 66535800
SCREW
Not for F1 gearbox 		$5.04 4
34 12601374
WASHER D.8.40-15 X 0.8
Not for F1 gearbox
IN STOCK 		$0.02 (92% off) 4
35 159762
SHIM
Installed if necessary; Not for F1 gearbox 		$4.34 1
36 15212724
SCREW
Not for F1 gearbox
IN STOCK 		$1.33 2
37 14059290
FLANGED NUT M6
Not for F1 gearbox
IN STOCK 		$1.30 2
38 10519424
WASHER D.6.4 X 11.95 X 1.6
Not for F1 gearbox
IN STOCK 		$0.02 (92% off) 2
39 163926
FASTENER BUSHING
Not for F1 gearbox
IN STOCK 		$200.54 2
40 234828
FASTENER FOR BAR
Not for F1 gearbox 		$2,964.32 1
41 14058519
FLANGED NUT M8 X 8
Not for F1 gearbox
IN STOCK 		$0.23 (75.8% off) 8
42 65200400
CENTRE CONSOLE TUNNEL COVER
Applicable for F1 gearbox 		$46.36 1
43 65200500
INSULATION
Applicable for F1 gearbox 		$201.23 1
44 13839224
SCREW
Applicable for F1 gearbox 		$2.40 4
45 210280
GASKET
Applicable for GD; Not for F1 gearbox 		$34.52 1
46 237846
GASKET 		$6.61 1
47 235063
SHIM
1.2 mm 		$10.04 1
47 235064
SHIM
2 mm 		$12.61 1
47 235065
SHIM
3 mm 		$18.01 1
47 238627
SHIM
4 mm 		$18.01 1
