Gearbox Housing

Ferrari 599 GTB Fiorano

Find Your Part

Ferrari 599 GTB Fiorano - GEARBOX HOUSING

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
210493 3rd SECTION OF GEARBOX HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
13543524 STUD BOLT $4.12 To Order
13543724 STUD BOLT $1.52 IN STOCK
Photo Part No Description Price (each) Stock
13543624 STUD BOLT $0.43 To Order
Photo Part No Description Price (each) Stock
13543824 STUD BOLT $3.24 IN STOCK
Photo Part No Description Price (each) Stock
102704 ALIGNMENT DOWEL $2.69 IN STOCK
Photo Part No Description Price (each) Stock
199480 2nd SECTION OF GEARBOX HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
195201 COMPLETE GEAR BOX 1st ELEMENT $620.79 To Order
Photo Part No Description Price (each) Stock
172363 Gasket $11.08 IN STOCK
Photo Part No Description Price (each) Stock
307477 THREADED PLUG $3.30 IN STOCK
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $0.35 IN STOCK
Photo Part No Description Price (each) Stock
14455981 O-RING $13.90 IN STOCK
Photo Part No Description Price (each) Stock
185721 CAP $4.79 To Order
Photo Part No Description Price (each) Stock
13543424 STUD BOLT $1.69 To Order
Photo Part No Description Price (each) Stock
13543624 STUD BOLT $0.43 To Order
Photo Part No Description Price (each) Stock
102704 ALIGNMENT DOWEL $2.69 IN STOCK
Photo Part No Description Price (each) Stock
13546334 STUD BOLT $0.87 To Order
Photo Part No Description Price (each) Stock
157010 BUSHING $9.71 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
10441290 BRACKET WITH SHEATH $0.53 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
183962 OIL DRAIN PLUG MAGNETIC 22X1.5 $31.28 IN STOCK
Photo Part No Description Price (each) Stock
10263460 COPPER GASKET D.28-22.3 X 1.5 $0.35 IN STOCK
Photo Part No Description Price (each) Stock
157009 BUSHING $8.22 To Order
Photo Part No Description Price (each) Stock
14305731 SCREW $0.41 To Order
Photo Part No Description Price (each) Stock
238108 WASHER D6.1 X 9.9 X 1.6 $0.44 IN STOCK
Photo Part No Description Price (each) Stock
285494 SCREW $0.93 To Order
Photo Part No Description Price (each) Stock
11198579 WASHER $6.15 To Order
Photo Part No Description Price (each) Stock
14307834 SCREW $5.72 To Order
Photo Part No Description Price (each) Stock
14306724 SCREW $0.81 To Order
14306624 SCREW $0.27 IN STOCK
Photo Part No Description Price (each) Stock
14499421 WASHER $0.20 IN STOCK
Photo Part No Description Price (each) Stock
14159470 PIN $4.62 To Order
Photo Part No Description Price (each) Stock
10440990 BRACKET WITH SHEATH $1.26 To Order
Photo Part No Description Price (each) Stock
168729 ELECTROMAGNETIC SENSOR $229.93 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11194379 WASHER D6.4 - 12 X 1.4 $0.30 IN STOCK
Photo Part No Description Price (each) Stock
238409 BRACKET $227.06 To Order
238409 BRACKET $227.06 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
View All

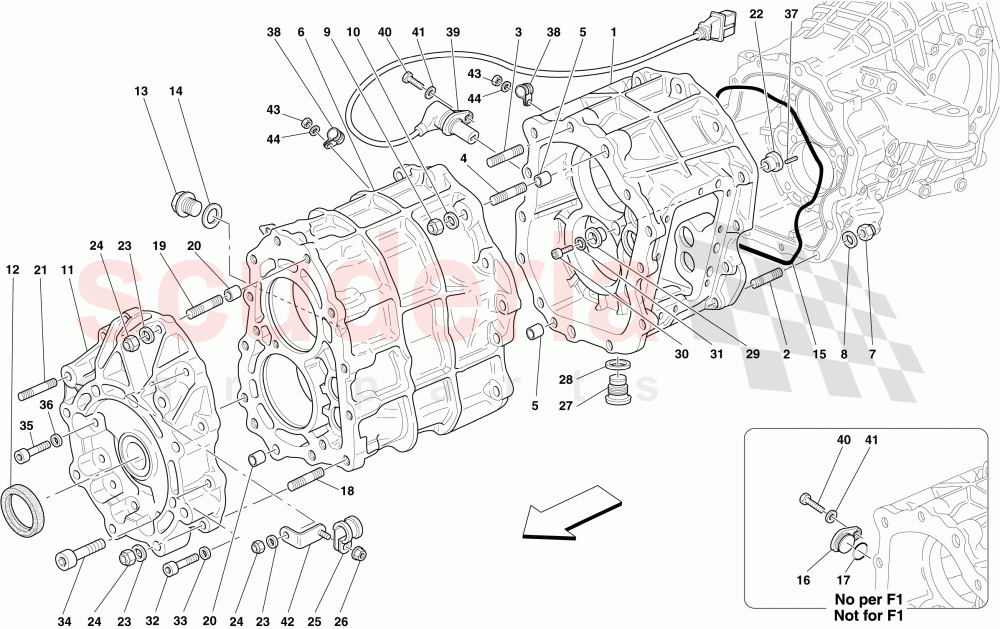

GEARBOX HOUSING of Ferrari Ferrari 599 GTB Fiorano Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 227408
GEARBOX HOUSING ASSEMBLY 		$16,333.48 1
1 210493
3rd SECTION OF GEARBOX HOUSING
Supplied with complete gearbox housing, 227408 		- 1 Enquire
2 13543524
STUD BOLT
M8 X 16; Shank length 25 		$4.12 (5.3% off) 3
2 13543724
STUD BOLT
M8 X 16; Shank length 35
IN STOCK 		$1.52 1
3 13543624
STUD BOLT
M8 X 16; Shank length 30 		$0.43 7
4 13543824
STUD BOLT
M8 X 16; Shank length 40
IN STOCK 		$3.24 5
5 102704
ALIGNMENT DOWEL
IN STOCK 		$2.69 2
6 199480
2nd SECTION OF GEARBOX HOUSING
Supplied with complete gearbox housing, 227408 		- 1 Enquire
7 14040711
NUT
IN STOCK 		$0.35 13
8 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 13
9 14040711
NUT
IN STOCK 		$0.35 13
10 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 13
11 195201
COMPLETE GEAR BOX 1st ELEMENT 		$620.79 1
12 172363
Gasket
IN STOCK 		$11.08 (54.3% off) 1
13 307477
THREADED PLUG
IN STOCK 		$3.30 1
14 10263460
COPPER GASKET D.28-22.3 X 1.5
IN STOCK 		$0.35 (65% off) 1
15 14455981
O-RING
IN STOCK 		$13.90 (23.5% off) 1
16 185721
CAP
Not for F1 gearbox 		$4.79 1
18 13543424
STUD BOLT 		$1.69 8
19 13543624
STUD BOLT
M8 X 16; Shank length 30 		$0.43 10
20 102704
ALIGNMENT DOWEL
IN STOCK 		$2.69 2
21 13546334
STUD BOLT 		$0.87 3
22 157010
BUSHING 		$9.71 1
23 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 6
24 14040711
NUT
IN STOCK 		$0.35 6
25 10441290
BRACKET WITH SHEATH
Applicable for F1 gearbox
IN STOCK 		$0.53 (68.5% off) 5
26 14059290
FLANGED NUT M6
Applicable for F1 gearbox
IN STOCK 		$1.31 5
27 183962
OIL DRAIN PLUG MAGNETIC 22X1.5
IN STOCK 		$31.28 1
28 10263460
COPPER GASKET D.28-22.3 X 1.5
IN STOCK 		$0.35 (65% off) 1
29 157009
BUSHING 		$8.22 1
30 14305731
SCREW 		$0.41 1
31 238108
WASHER D6.1 X 9.9 X 1.6
IN STOCK 		$0.44 (32.3% off) 1
32 285494
SCREW
M8 X 45 		$0.93 3
33 11198579
WASHER 		$6.15 3
34 14307834
SCREW
M10 X 45 		$5.72 3
35 14306724
SCREW
M8 X 40 		$0.81 1
35 14306624
SCREW
M8 X 35
IN STOCK 		$0.27 3
36 14499421
WASHER
IN STOCK 		$0.20 4
37 14159470
PIN 		$4.62 (16% off) 1
38 10440990
BRACKET WITH SHEATH
Applicable for F1 gearbox 		$1.26 2
39 168729
ELECTROMAGNETIC SENSOR
Applicable for F1 gearbox 		$229.93 (20.3% off) 1
40 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 1
41 11194379
WASHER D6.4 - 12 X 1.4
IN STOCK 		$0.30 (71.4% off) 1
42 238409
BRACKET
Applicable for F1 gearbox 		$227.06 3
42 238409
BRACKET
Not for F1 gearbox 		$227.06 1
43 14059290
FLANGED NUT M6
Applicable for F1 gearbox
IN STOCK 		$1.31 2
44 11197774
WASHER
Applicable for F1 gearbox
IN STOCK 		$0.06 (80% off) 2
