Pedals

Ferrari 575 Superamerica

Find Your Part

Ferrari 575 Superamerica - Pedals

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
178879 COMPLETE PEDAL SUPPORT $1,370.33 To Order
Photo Part No Description Price (each) Stock
13525770 THREADED INSERT $2.60 To Order
Photo Part No Description Price (each) Stock
13525470 THREADED INSERT $0.50 IN STOCK
Photo Part No Description Price (each) Stock
13525770 THREADED INSERT $2.60 To Order
Photo Part No Description Price (each) Stock
13516824 STUD BOLT $0.44 IN STOCK
Photo Part No Description Price (each) Stock
11500224 STUD BOLT $0.35 To Order
Photo Part No Description Price (each) Stock
334064 PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22- $26.47 To Order
Photo Part No Description Price (each) Stock
190942 SMALL PLATE $22.57 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
12646604 WASHER $0.21 IN STOCK
Photo Part No Description Price (each) Stock
184134 BRAKE PEDAL Enquire To Order
Photo Part No Description Price (each) Stock
103163 SELF-LUBRICATING BUSHING $1.84 To Order
Photo Part No Description Price (each) Stock
109407 BALL-JOINT $63.05 To Order
Photo Part No Description Price (each) Stock
163865 BRAKE PEDAL DRILLED PLATE $81.79 To Order
Photo Part No Description Price (each) Stock
182160 CLUTCH PEDAL $437.42 To Order
188889 Clutch Pedal RHD $417.14 To Order
Photo Part No Description Price (each) Stock
109407 BALL-JOINT $63.05 To Order
Photo Part No Description Price (each) Stock
103163 SELF-LUBRICATING BUSHING $1.84 To Order
Photo Part No Description Price (each) Stock
163871 CLUTCH PEDAL DRILLED PLATE $146.06 To Order
Photo Part No Description Price (each) Stock
129954 PEDALS SUPPORT PIN $361.40 To Order
Photo Part No Description Price (each) Stock
10902224 SCREW M6 X 16 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
106083 WASHER $0.53 To Order
Photo Part No Description Price (each) Stock
106083 WASHER $0.53 To Order
113833 WASHER $2.11 IN STOCK
113835 WASHER $8.15 To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
101305 SPRING $87.01 To Order
Photo Part No Description Price (each) Stock
164393 FORK FOR CLUTCH LEVER $33.92 To Order
Photo Part No Description Price (each) Stock
10248271 FORK FOR CLUTCH LEVER $22.28 To Order
Photo Part No Description Price (each) Stock
16043634 SCREW $0.21 IN STOCK
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
187014 PEDAL ADJUSTER SCREW $29.80 To Order
Photo Part No Description Price (each) Stock
16102314 NUT $0.06 To Order
Photo Part No Description Price (each) Stock
170706 GASKET $12.49 To Order
Photo Part No Description Price (each) Stock
14499421 WASHER $0.20 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
16043324 SCREW M8 X 18 $0.17 IN STOCK
Photo Part No Description Price (each) Stock
104030 NUT $0.24 IN STOCK
Photo Part No Description Price (each) Stock
62797600 Allen Bolt Countersunk M6 x 20 $0.96 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
13516824 STUD BOLT $0.44 IN STOCK
Photo Part No Description Price (each) Stock
13276011 SCREW $0.05 To Order
Photo Part No Description Price (each) Stock
133555 PUSHBUTTON SWITCH $34.04 To Order
Photo Part No Description Price (each) Stock
167299 BRAKE PEDAL DRILLED PLATE $908.14 To Order
Photo Part No Description Price (each) Stock
184761 BRAKE PEDAL $993.87 To Order
Photo Part No Description Price (each) Stock
14591687 FASTENER BUTTON $0.06 IN STOCK
Photo Part No Description Price (each) Stock
149694 PIPE FASTENER BRACKET $6.02 To Order
Photo Part No Description Price (each) Stock
16043224 SCREW $0.14 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
14499421 WASHER $0.20 IN STOCK
Photo Part No Description Price (each) Stock
10441790 BRACKET WITH SHEATH $0.64 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
View All

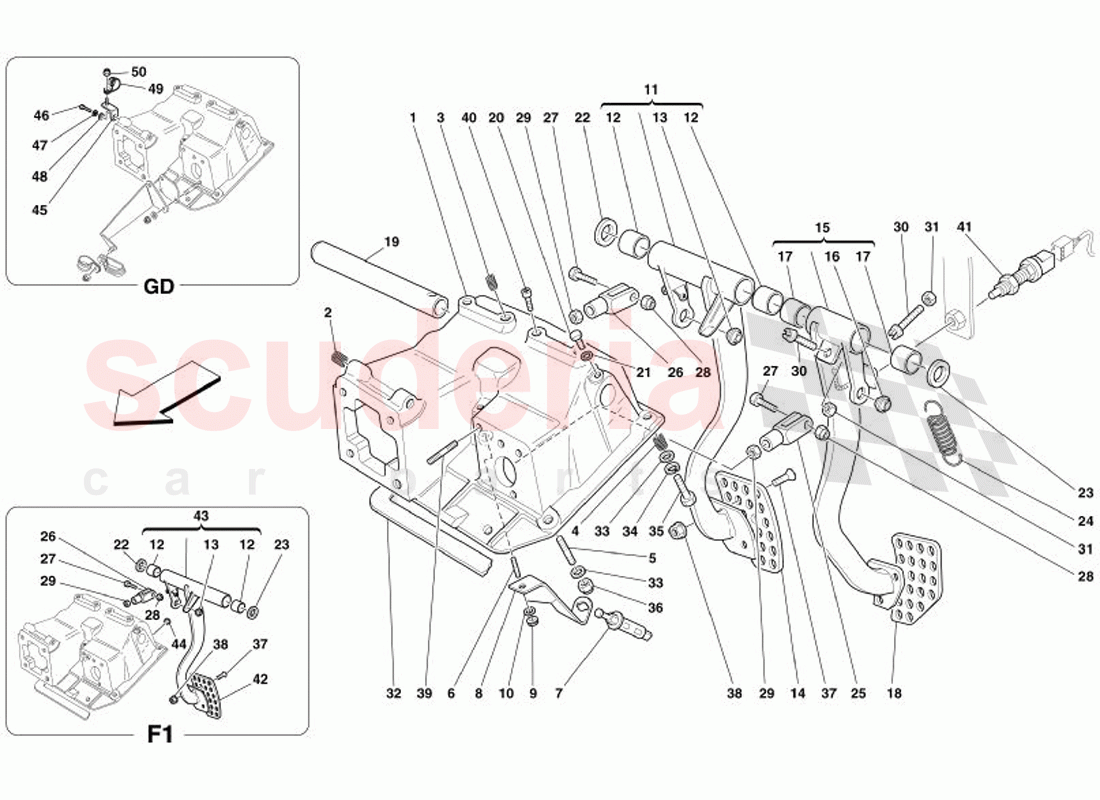

Pedals of Ferrari Ferrari 575 Superamerica Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
- 178879
COMPLETE PEDAL SUPPORT 		$1,370.33 1
1 178879
COMPLETE PEDAL SUPPORT
Not as spare parts With complete pedal support 178879 		$1,370.33 1
2 13525770
THREADED INSERT 		$2.60 (29.2% off) 2
3 13525470
THREADED INSERT
IN STOCK 		$0.50 (80% off) 2
4 13525770
THREADED INSERT 		$2.60 (29.2% off) 2
5 13516824
STUD BOLT
IN STOCK 		$0.44 (64.8% off) 2
6 11500224
STUD BOLT 		$0.35 1
7 334064
PUSH-BUTTON SWITCH -Valid for support 218606 Ref. 22- 		$26.47 1
8 190942
SMALL PLATE 		$22.57 1
9 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
10 12646604
WASHER
IN STOCK 		$0.21 (30% off) 1
11 184134
BRAKE PEDAL
Not for F1 		- 1 Enquire
12 103163
SELF-LUBRICATING BUSHING 		$1.84 (84.7% off) 2
13 109407
BALL-JOINT 		$63.05 1
14 163865
BRAKE PEDAL DRILLED PLATE
Not for F1 		$81.79 1
15 182160
CLUTCH PEDAL
Not for F1 Not for GD 		$437.42 1
15 188889
Clutch Pedal RHD
Not for F1 Valid for GD 		$417.14 1
16 109407
BALL-JOINT
Not for F1 		$63.05 1
17 103163
SELF-LUBRICATING BUSHING
Not for F1 		$1.84 (84.7% off) 2
18 163871
CLUTCH PEDAL DRILLED PLATE
Not for F1 		$146.06 1
19 129954
PEDALS SUPPORT PIN 		$361.40 1
20 10902224
SCREW M6 X 16
IN STOCK 		$0.06 (86.7% off) 1
21 11197774
WASHER
IN STOCK 		$0.06 (80% off) 1
22 106083
WASHER 		$0.53 1
23 106083
WASHER
THICKNESS mm. 1.0 Possible fitting 		$0.53 1
23 113833
WASHER
THICKNESS mm. 1.1 Possible fitting
IN STOCK 		$2.11 1
23 113835
WASHER
THICKNESS mm. 1.3 Possible fitting 		$8.15 1
23 113834
WASHER
THICKNESS mm. 1.2 Possible fitting 		$2.08 1
23 113836
WASHER
THICKNESS mm. 1.4 Possible fitting 		$4.05 1
24 101305
SPRING
Not for F1 		$87.01 1
25 164393
FORK FOR CLUTCH LEVER
Not for F1 		$33.92 1
26 10248271
FORK FOR CLUTCH LEVER 		$22.28 1
27 16043634
SCREW
For F1 Qty 1
IN STOCK 		$0.21 2
28 147985
NUT
For F1 Qty 1
IN STOCK 		$0.14 (72% off) 2
29 16102314
NUT
For F1 Qty 1 		$0.06 (95.3% off) 2
30 187014
PEDAL ADJUSTER SCREW
Not for F1 		$29.80 2
31 16102314
NUT
Not for F1 		$0.06 (95.3% off) 2
32 170706
GASKET 		$12.49 1
33 14499421
WASHER
IN STOCK 		$0.20 4
34 127496
WASHER 		$0.06 (80% off) 2
35 16043324
SCREW M8 X 18
IN STOCK 		$0.17 (83.8% off) 2
36 104030
NUT
IN STOCK 		$0.24 (76% off) 2
37 62797600
Allen Bolt Countersunk M6 x 20
IN STOCK 		$0.96 (33.8% off) 4
38 14059290
FLANGED NUT M6
IN STOCK 		$1.31 4
39 13516824
STUD BOLT
IN STOCK 		$0.44 (64.8% off) 2
40 13276011
SCREW 		$0.05 2
41 133555
PUSHBUTTON SWITCH 		$34.04 (21.5% off) 1
42 167299
BRAKE PEDAL DRILLED PLATE
Valid for F1 		$908.14 1
43 184761
BRAKE PEDAL
Valid for F1 		$993.87 1
44 14591687
FASTENER BUTTON
Valid for F1
IN STOCK 		$0.06 (87.8% off) 1
45 149694
PIPE FASTENER BRACKET
Valid for GD 		$6.02 1
46 16043224
SCREW
Valid for GD
IN STOCK 		$0.14 (72% off) 1
47 127496
WASHER
Valid for GD 		$0.06 (80% off) 1
48 14499421
WASHER
Valid for GD
IN STOCK 		$0.20 1
49 10441790
BRACKET WITH SHEATH
Valid for GD 		$0.64 (81.4% off) 1
50 14059290
FLANGED NUT M6
Valid for GD
IN STOCK 		$1.31 1
