Ferrari 575 Superamerica - Outside Gearbox Controls

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
156712 GEAR LEVER KNOB $183.20 IN STOCK
165483 KNOB $902.65 To Order
Photo Part No Description Price (each) Stock
108010 CHECKNUT $23.55 IN STOCK
Photo Part No Description Price (each) Stock
195325 GEAR LEVER $365.15 To Order
233397 GEAR LEVER $2,285.95 To Order
Photo Part No Description Price (each) Stock
146994 PIN $29.78 To Order
Photo Part No Description Price (each) Stock
242565 GEAR SELECTOR $3,101.54 To Order
177023 GEAR SELECTOR $2,019.68 To Order
242564 GEAR SELECTOR $2,388.32 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
156100 SCREW -Valid for GD- $2.63 To Order
209152 SCREW $8.28 To Order
Photo Part No Description Price (each) Stock
232983 GASKET $76.53 To Order
233413 GASKET $747.20 To Order
Photo Part No Description Price (each) Stock
235980 BUSHING $211.77 To Order
Photo Part No Description Price (each) Stock
14303123 SCREW $0.06 IN STOCK
Photo Part No Description Price (each) Stock
155435 TURRET -Not for GD- $1,218.98 To Order
157453 TURRET -Valid for GD- $1,387.58 To Order
Photo Part No Description Price (each) Stock
147561 SPRING $104.10 To Order
Photo Part No Description Price (each) Stock
154745 BALL $260.59 To Order
Photo Part No Description Price (each) Stock
154744 ROD $121.56 To Order
178692 ROD $7.62 To Order
Photo Part No Description Price (each) Stock
231465 SPRING $107.52 To Order
Photo Part No Description Price (each) Stock
156101 SPRING RETAINER CAP $3.65 To Order
Photo Part No Description Price (each) Stock
103326 SEEGER RING $0.21 To Order
Photo Part No Description Price (each) Stock
84653800 WASHER 10 X 18 X 2.5 $4.98 IN STOCK
Photo Part No Description Price (each) Stock
115980A SWITCH Enquire To Order
Photo Part No Description Price (each) Stock
212959 GASKET $139.29 To Order
212981 GASKET $139.29 To Order
Photo Part No Description Price (each) Stock
127446 BALL SEAT FOR JOINT $27.08 To Order
Photo Part No Description Price (each) Stock
155480 ROCKER IN TOWER $328.81 To Order
Photo Part No Description Price (each) Stock
156128 BELLOW $145.06 To Order
157962 BELLOW $156.82 To Order
Photo Part No Description Price (each) Stock
156129 FRAME $9.32 To Order
157961 FRAME $38.73 To Order
Photo Part No Description Price (each) Stock
10444621 SCREW $0.20 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
183982 BALL BEARING BUSH $36.56 IN STOCK
Photo Part No Description Price (each) Stock
169974 FRONT CONTROL BAR FOR GEAR BOX $670.08 To Order
Photo Part No Description Price (each) Stock
169979 REAR CONTROL BAR FOR GEAR BOX $389.08 To Order
Photo Part No Description Price (each) Stock
155473 TERMINAL $254.05 To Order
Photo Part No Description Price (each) Stock
16043634 SCREW $0.21 IN STOCK
Photo Part No Description Price (each) Stock
127496 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
160834 SHEATH $12.84 To Order
Photo Part No Description Price (each) Stock
66535800 SCREW $5.07 To Order
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
159762 SHIM $4.37 To Order
Photo Part No Description Price (each) Stock
15212724 SCREW $1.34 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
10519424 WASHER D.6.4 X 11.95 X 1.6 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
163926 FASTENER BUSHING $201.92 IN STOCK
Photo Part No Description Price (each) Stock
169976 FASTENER FOR BAR $316.24 To Order
Photo Part No Description Price (each) Stock
14058519 FLANGED NUT M8 X 8 $0.23 IN STOCK
Photo Part No Description Price (each) Stock
213341 F1 GEARBOX CONTROL PANEL $3,611.71 To Order
213342 F1 GEARBOX CONTROL PANEL $4,009.59 To Order
Photo Part No Description Price (each) Stock
68123900 SCREW $5.64 To Order
Photo Part No Description Price (each) Stock
65200400 CENTRE CONSOLE TUNNEL COVER $46.67 To Order
Photo Part No Description Price (each) Stock
65200500 INSULATION $202.61 To Order
Photo Part No Description Price (each) Stock
13839224 SCREW $2.41 To Order
Photo Part No Description Price (each) Stock
183350 BRACKET FORCABLES FIXING $22.77 To Order
Photo Part No Description Price (each) Stock
291225 P clip Bracket With Sheath $4.83 IN STOCK
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
12646604 WASHER $0.21 IN STOCK
View All

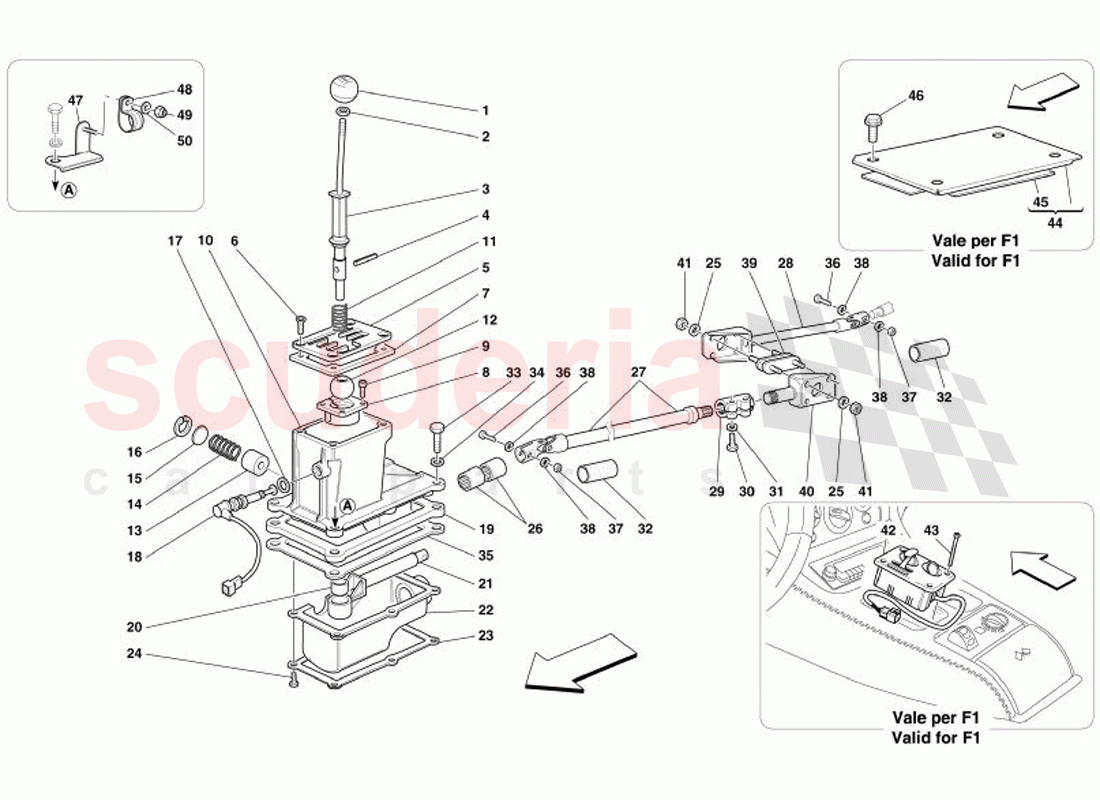

Outside Gearbox Controls of Ferrari Ferrari 575 Superamerica Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 156712
GEAR LEVER KNOB
Not for F1
IN STOCK 		$183.20 (4.9% off) 1
1 165483
KNOB
Carbon Optional Not for F1 		$902.65 1
2 108010
CHECKNUT
Not for F1
IN STOCK 		$23.55 (19.6% off) 1
3 195325
GEAR LEVER
Not for F1 Not for GD 		$365.15 1
3 233397
GEAR LEVER
Not for F1 Valid for GD 		$2,285.95 1
4 146994
PIN
Not for F1 		$29.78 1
5 242565
GEAR SELECTOR
Carbon Optional Not for F1 Valid for GD 		$3,101.54 1
5 177023
GEAR SELECTOR
Carbon Optional Not for F1 Not for GD 		$2,019.68 1
5 242564
GEAR SELECTOR
Not for F1 Valid for GD 		$2,388.32 1
5 167127
GEAR SELECTOR
Not for F1 Not for GD 		$1,879.70 1
6 156100
SCREW -Valid for GD-
Not for F1 Valid for GD 		$2.63 4
6 209152
SCREW
Not for F1 Not for GD 		$8.28 4
7 232983
GASKET
Not for F1 Not for GD 		$76.53 1
7 233413
GASKET
Not for F1 Valid for GD 		$747.20 1
8 235980
BUSHING
Not for F1 		$211.77 1
9 14303123
SCREW
Not for F1
IN STOCK 		$0.06 4
10 155435
TURRET -Not for GD-
Not for F1 Not for GD 		$1,218.98 1
10 157453
TURRET -Valid for GD-
Not for F1 Valid for GD 		$1,387.58 1
11 147561
SPRING
Not for F1 		$104.10 1
12 154745
BALL
Not for F1 		$260.59 1
13 154744
ROD
Not for F1 Valid for GD 		$121.56 1
13 178692
ROD
Not for F1 Not for GD 		$7.62 1
14 231465
SPRING
Not for F1 		$107.52 1
15 156101
SPRING RETAINER CAP
Not for F1 		$3.65 1
16 103326
SEEGER RING
Not for F1 		$0.21 (73.8% off) 1
17 84653800
WASHER 10 X 18 X 2.5
Not for F1
IN STOCK 		$4.98 1
18 115980A
SWITCH
Not for F1 		- 1 Enquire
19 212959
GASKET
Not for F1 Not for GD 		$139.29 1
19 212981
GASKET
Not for F1 Valid for GD 		$139.29 1
20 127446
BALL SEAT FOR JOINT
Not for F1 		$27.08 (28.1% off) 1
21 155480
ROCKER IN TOWER
Not for F1 		$328.81 1
22 156128
BELLOW
Not for F1 Not for GD 		$145.06 1
22 157962
BELLOW
Not for F1 Valid for GD 		$156.82 1
23 156129
FRAME
Not for F1 Not for GD 		$9.32 1
23 157961
FRAME
Not for F1 Valid for GD 		$38.73 1
24 10444621
SCREW
Not for F1
IN STOCK 		$0.20 6
25 12601374
WASHER D.8.40-15 X 0.8
Not for F1
IN STOCK 		$0.02 (92% off) 8
26 183982
BALL BEARING BUSH
Not for F1
IN STOCK 		$36.56 (1.9% off) 2
27 169974
FRONT CONTROL BAR FOR GEAR BOX
Not for F1 		$670.08 1
28 169979
REAR CONTROL BAR FOR GEAR BOX
Not for F1 		$389.08 1
29 155473
TERMINAL
Not for F1 		$254.05 1
30 16043634
SCREW
Not for F1
IN STOCK 		$0.21 2
31 127496
WASHER
Not for F1 		$0.06 (80% off) 2
32 160834
SHEATH
Not for F1 		$12.84 2
33 66535800
SCREW
Not for F1 		$5.07 4
34 12601374
WASHER D.8.40-15 X 0.8
Not for F1
IN STOCK 		$0.02 (92% off) 4
35 159762
SHIM
Possible fitting Not for F1 		$4.37 1
36 15212724
SCREW
Not for F1
IN STOCK 		$1.34 2
37 14059290
FLANGED NUT M6
Not for F1
IN STOCK 		$1.31 2
38 10519424
WASHER D.6.4 X 11.95 X 1.6
Not for F1
IN STOCK 		$0.02 (92% off) 4
39 163926
FASTENER BUSHING
Not for F1
IN STOCK 		$201.92 2
40 169976
FASTENER FOR BAR
Not for F1 		$316.24 1
41 14058519
FLANGED NUT M8 X 8
Not for F1
IN STOCK 		$0.23 (75.8% off) 8
42 213341
F1 GEARBOX CONTROL PANEL
Valid for F1 Not for GD 		$3,611.71 (39.5% off) 1
42 213342
F1 GEARBOX CONTROL PANEL
Valid for F1 Valid for GD 		$4,009.59 1
43 68123900
SCREW
Valid for F1 		$5.64 (8.9% off) 4
44 65200400
CENTRE CONSOLE TUNNEL COVER
Valid for F1 		$46.67 1
45 65200500
INSULATION
Valid for F1 		$202.61 1
46 13839224
SCREW
Valid for F1 		$2.41 4
47 183350
BRACKET FORCABLES FIXING 		$22.77 1
48 291225
P clip Bracket With Sheath
IN STOCK 		$4.83 1
49 14059290
FLANGED NUT M6
IN STOCK 		$1.31 1
50 12646604
WASHER
IN STOCK 		$0.21 (30% off) 1
