Ferrari 575 Superamerica - Brake and Clutch Hydraulic System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
154009 CLUTCH CONTROL TUBE $669.30 To Order
156119 CLUTCH CONTROL TUBE $286.46 To Order
Photo Part No Description Price (each) Stock
10441590 BRACKET WITH SHEATH $0.52 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
175211 Clutch master cylinder $295.95 IN STOCK
Photo Part No Description Price (each) Stock
13516824 STUD BOLT $0.44 IN STOCK
Photo Part No Description Price (each) Stock
14040711 NUT $0.35 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
183081 BRAKE BOOSTER WITH PUMP $2,590.41 To Order
Photo Part No Description Price (each) Stock
188572 BOOSTER Enquire To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
175189 SEAT RING $24.11 IN STOCK
Photo Part No Description Price (each) Stock
184497 CONNECTOR $41.03 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
134903 RUBBER PIPE $3.46 To Order
211377 RUBBER PIPE $9.18 To Order
Photo Part No Description Price (each) Stock
262111 SCREW CLAMP $1.39 To Order
Photo Part No Description Price (each) Stock
173882 FRONT RUBBER HOSE $12.63 To Order
134903 RUBBER PIPE $3.46 To Order
Photo Part No Description Price (each) Stock
173866 COMPLETE BRAKE OIL TANK $41.49 To Order
Photo Part No Description Price (each) Stock
177896 UNION $112.06 To Order
Photo Part No Description Price (each) Stock
175189 SEAT RING $24.11 IN STOCK
Photo Part No Description Price (each) Stock
173884 REAR RUBBER HOSE $5.06 IN STOCK
173974 PIPE FROM CLUTCH PUMP TO TANK $36.31 To Order
Photo Part No Description Price (each) Stock
110810 Pipe securing plate $0.99 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.24 IN STOCK
Photo Part No Description Price (each) Stock
12638524 WASHER D8.15-15 X 1.5 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
163651 FLANGE $73.64 To Order
Photo Part No Description Price (each) Stock
16043021 SCREW $0.15 To Order
13516824 STUD BOLT $0.44 IN STOCK
Photo Part No Description Price (each) Stock
144552 UNION $14.32 To Order
Photo Part No Description Price (each) Stock
151475 CABLE GROMMET $9.05 To Order
Photo Part No Description Price (each) Stock
188873 BRAKE OIL TANK SUPPORT $49.24 To Order
183258 BRAKE OIL TANK SUPPORT $13.71 To Order
Photo Part No Description Price (each) Stock
183477 UNION $19.59 To Order
Photo Part No Description Price (each) Stock
175212 PROTECTION BOOT $32.32 To Order
Photo Part No Description Price (each) Stock
13516824 STUD BOLT $0.44 IN STOCK
Photo Part No Description Price (each) Stock
188887 BRAKE BOOSTER PROTECTION $346.77 To Order
183082 BRAKE BOOSTER PROTECTION $301.53 To Order
Photo Part No Description Price (each) Stock
14059290 FLANGED NUT M6 $1.31 IN STOCK
Photo Part No Description Price (each) Stock
12643724 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
127494 WASHER $0.08 IN STOCK
Photo Part No Description Price (each) Stock
171782 BRAKE PUMP $732.45 To Order
View All

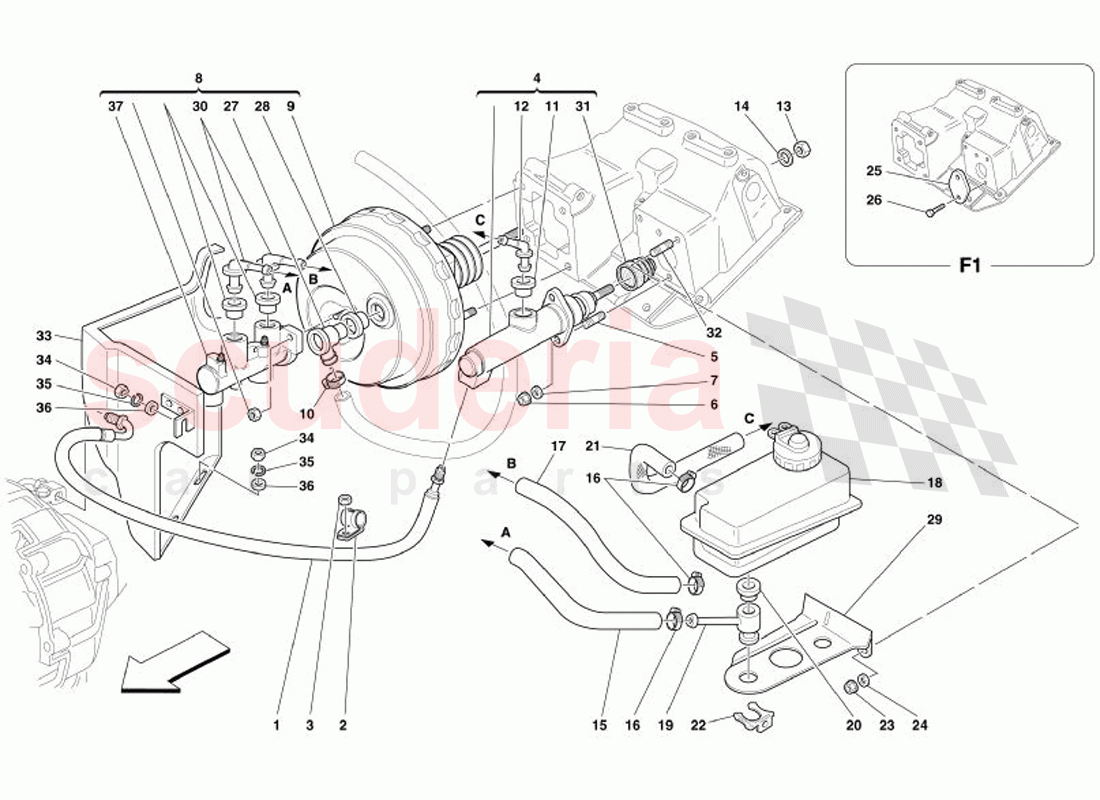

Brake and Clutch Hydraulic System of Ferrari Ferrari 575 Superamerica Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 154009
CLUTCH CONTROL TUBE
Not for F1 Not for GD 		$669.30 (35.3% off) 1
1 156119
CLUTCH CONTROL TUBE
Not for F1 Valid for GD 		$286.46 1
2 10441590
BRACKET WITH SHEATH
Not for F1 		$0.52 2
3 14059290
FLANGED NUT M6
Not for F1
IN STOCK 		$1.31 2
4 175211
Clutch master cylinder
Not for F1
IN STOCK 		$295.95 (18.1% off) 1
5 13516824
STUD BOLT
Not for F1 For GD valid for F1 too
IN STOCK 		$0.44 (64.8% off) 2
6 14040711
NUT
Not for F1 For GD valid for F1 too
IN STOCK 		$0.35 2
7 12601374
WASHER D.8.40-15 X 0.8
Not for F1 For GD valid for F1 too
IN STOCK 		$0.02 (92% off) 2
8 183081
BRAKE BOOSTER WITH PUMP 		$2,590.41 1
9 188572
BOOSTER 		- 1 Enquire
10 262111
SCREW CLAMP 		$1.39 1
11 175189
SEAT RING
Not for F1
IN STOCK 		$24.11 (17.5% off) 1
12 184497
CONNECTOR
Not for F1 		$41.03 (54.6% off) 1
13 147985
NUT
IN STOCK 		$0.14 (72% off) 4
14 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 4
15 134903
RUBBER PIPE
Valid for GD 		$3.46 1
15 211377
RUBBER PIPE
Not for GD 		$9.18 (27.9% off) 1
16 262111
SCREW CLAMP
For F1 qty 4 		$1.39 6
17 173882
FRONT RUBBER HOSE
Not for GD 		$12.63 1
17 134903
RUBBER PIPE
Valid for GD 		$3.46 1
18 173866
COMPLETE BRAKE OIL TANK 		$41.49 (24.6% off) 1
19 177896
UNION 		$112.06 2
20 175189
SEAT RING
IN STOCK 		$24.11 (17.5% off) 2
21 173884
REAR RUBBER HOSE
Not for F1 Valid for GD
IN STOCK 		$5.06 (70.2% off) 1
21 173974
PIPE FROM CLUTCH PUMP TO TANK
Not for F1 Not for GD 		$36.31 1
22 110810
Pipe securing plate 		$0.99 (43.4% off) 2
23 104030
NUT
IN STOCK 		$0.24 (76% off) 2
24 12638524
WASHER D8.15-15 X 1.5
IN STOCK 		$0.06 (76% off) 2
25 163651
FLANGE
Valid for F1 		$73.64 1
26 16043021
SCREW
Valid for F1 Not for GD 		$0.15 2
26 13516824
STUD BOLT
Valid for F1 Valid for GD
IN STOCK 		$0.44 (64.8% off) 2
27 144552
UNION 		$14.32 1
28 151475
CABLE GROMMET 		$9.05 1
29 188873
BRAKE OIL TANK SUPPORT
Valid for GD 		$49.24 1
29 183258
BRAKE OIL TANK SUPPORT
Not for GD 		$13.71 1
30 183477
UNION 		$19.59 2
31 175212
PROTECTION BOOT
Not for F1 		$32.32 1
32 13516824
STUD BOLT
IN STOCK 		$0.44 (64.8% off) 2
33 188887
BRAKE BOOSTER PROTECTION
Valid for GD 		$346.77 1
33 183082
BRAKE BOOSTER PROTECTION
Not for GD 		$301.53 1
34 14059290
FLANGED NUT M6
IN STOCK 		$1.31 3
35 12643724
WASHER
IN STOCK 		$0.06 (88% off) 3
36 127494
WASHER
(minimum order quantity = 20)
IN STOCK 		$0.08 (88.2% off) 3
37 171782
BRAKE PUMP 		$732.45 1
