Timing - Controls of Ferrari Ferrari 575 Superamerica

View All

Ferrari 575 Superamerica - Timing - Controls

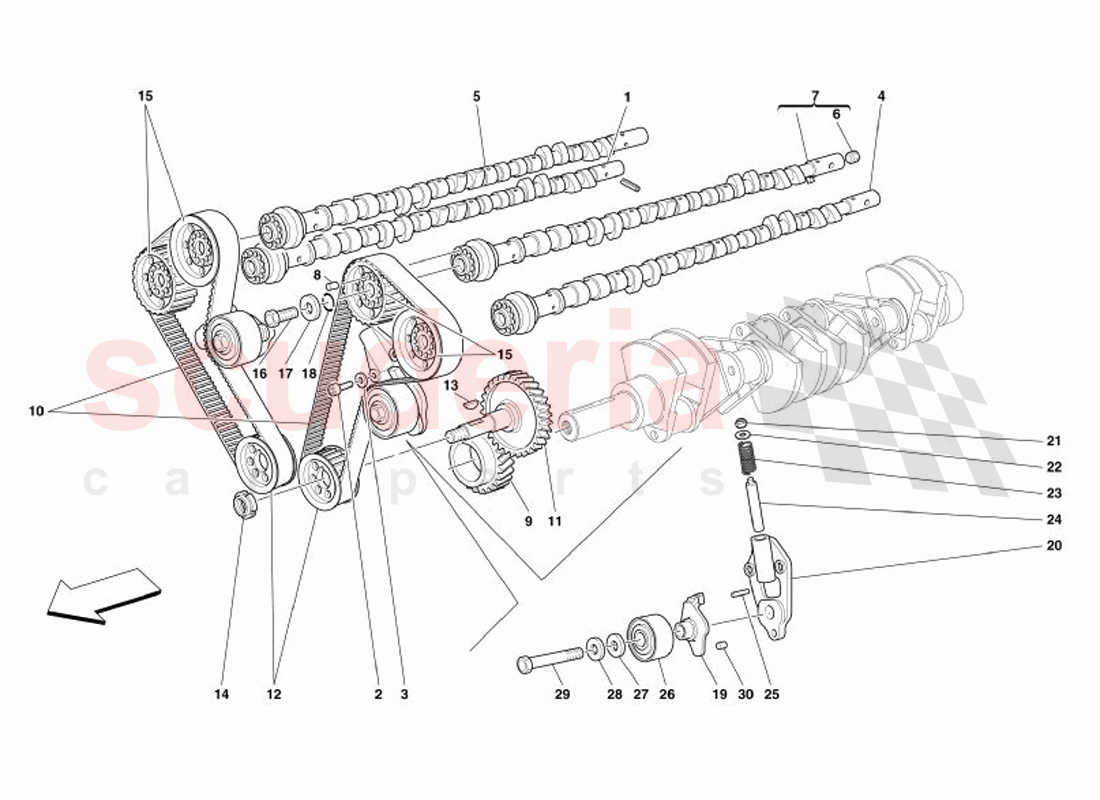

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	213462	COMPL. RH EXHAUST CAMSHAFT	$879.52	To Order

Photo	Part No	Description	Price (each)	Stock
	14306424	SCREW	$0.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11193874	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	213464	COMPL. LH EXHAUST CAMSHAFT	$2,127.12	To Order

Photo	Part No	Description	Price (each)	Stock
	213461	COMPL. RH INTAKE CAMSHAFT	$893.06	To Order

Photo	Part No	Description	Price (each)	Stock
	10269550	THREADED PLUG	$2.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	213463	COMPL. LH INTAKE CAMSHAFT	$754.58	To Order

Photo	Part No	Description	Price (each)	Stock
	114803	DOWEL	$2.59	To Order

Photo	Part No	Description	Price (each)	Stock
	70000876	PINION KIT GEAR	$3,200.12	To Order

Photo	Part No	Description	Price (each)	Stock
	187744	Timing Belt	$135.91	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	70000876	PINION KIT GEAR	$3,200.12	To Order

Photo	Part No	Description	Price (each)	Stock
	149928	TIMING GEAR	$256.70	To Order

Photo	Part No	Description	Price (each)	Stock
	10206320	DISC TAB	$1.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	104919	RING LOCK NUT	$4.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	159382	DRIVEN GEAR	$177.06	To Order

Photo	Part No	Description	Price (each)	Stock
	146540	SCREW	$4.61	To Order

Photo	Part No	Description	Price (each)	Stock
	114802	WASHER	$3.97	To Order

Photo	Part No	Description	Price (each)	Stock
	114808	O-Ring	$4.09	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	171060	PLATE	$89.08	To Order

Photo	Part No	Description	Price (each)	Stock
	149346	BELT TENSIONER BODY	$417.38	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	121558	WASHER	$1.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	121249	SPRING FOR BELT TENSIONER	$14.93	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	121047	PIN	$9.85	To Order

Photo	Part No	Description	Price (each)	Stock
	13933570	PIN	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	171057	Cam Belt Tensioner Pulley	$271.83	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	111460	SHIM	$15.16	To Order

Photo	Part No	Description	Price (each)	Stock
	102824	WASHER	$2.39	To Order

Photo	Part No	Description	Price (each)	Stock
	149461	SCREW	$10.65	To Order

Photo	Part No	Description	Price (each)	Stock
	125717	CENTRING DOWEL	$2.94	IN STOCK

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	213462	COMPL. RH EXHAUST CAMSHAFT	213462 COMPL. RH EXHAUST CAMSHAFT	$879.52	1
2	14306424	SCREW IN STOCK	14306424 SCREW IN STOCK	$0.23 MSRP: ~~0.41~~ (43.9% off)	4
3	11193874	WASHER IN STOCK	11193874 WASHER IN STOCK	$0.06	4
4	213464	COMPL. LH EXHAUST CAMSHAFT	213464 COMPL. LH EXHAUST CAMSHAFT	$2,127.12	1
5	213461	COMPL. RH INTAKE CAMSHAFT	213461 COMPL. RH INTAKE CAMSHAFT	$893.06	1
6	10269550	THREADED PLUG IN STOCK	10269550 THREADED PLUG IN STOCK	$2.70	3
7	213463	COMPL. LH INTAKE CAMSHAFT	213463 COMPL. LH INTAKE CAMSHAFT	$754.58	1
8	114803	DOWEL	114803 DOWEL	$2.59 MSRP: ~~16.80~~ (84.6% off)	4
9	70000876	PINION KIT GEAR	70000876 PINION KIT GEAR	$3,200.12	1
10	187744	Timing Belt IN STOCK	187744 Timing Belt IN STOCK	$135.91 MSRP: ~~157.84~~ (13.9% off)	2
11	70000876	PINION KIT GEAR	70000876 PINION KIT GEAR	$3,200.12	2
12	149928	TIMING GEAR	149928 TIMING GEAR	$256.70 MSRP: ~~345.00~~ (25.6% off)	2
13	10206320	DISC TAB IN STOCK	10206320 DISC TAB IN STOCK	$1.43 MSRP: ~~1.50~~ (4.7% off)	2
14	104919	RING LOCK NUT IN STOCK	104919 RING LOCK NUT IN STOCK	$4.88	2
15	159382	DRIVEN GEAR	159382 DRIVEN GEAR	$177.06	4
16	146540	SCREW	146540 SCREW	$4.61 MSRP: ~~11.50~~ (59.9% off)	4
17	114802	WASHER	114802 WASHER	$3.97 MSRP: ~~8.76~~ (54.7% off)	4
18	114808	O-Ring IN STOCK	114808 O-Ring (minimum order quantity = 10) IN STOCK	$4.09 MSRP: ~~4.75~~ (13.9% off)	4
19	171060	PLATE	171060 PLATE	$89.08	2
20	149346	BELT TENSIONER BODY IN STOCK	149346 BELT TENSIONER BODY IN STOCK	$417.38	2
21	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.31	2
22	121558	WASHER IN STOCK	121558 WASHER IN STOCK	$1.69	2
23	121249	SPRING FOR BELT TENSIONER IN STOCK	121249 SPRING FOR BELT TENSIONER IN STOCK	$14.93 MSRP: ~~31.20~~ (52.1% off)	2
24	121047	PIN	121047 PIN	$9.85 MSRP: ~~21.10~~ (53.3% off)	2
25	13933570	PIN IN STOCK	13933570 PIN IN STOCK	$0.20 MSRP: ~~0.25~~ (20% off)	2
26	171057	Cam Belt Tensioner Pulley IN STOCK	171057 Cam Belt Tensioner Pulley IN STOCK	$271.83	2
27	111460	SHIM	111460 SHIM	$15.16 MSRP: ~~17.85~~ (15.1% off)	2
28	102824	WASHER	102824 WASHER	$2.39 MSRP: ~~3.78~~ (36.8% off)	2
29	149461	SCREW	149461 SCREW	$10.65	2
30	125717	CENTRING DOWEL IN STOCK	125717 CENTRING DOWEL IN STOCK	$2.94	2

Timing - Controls

Ferrari 575 Superamerica

Ferrari 575 Superamerica - Timing - Controls
