Differential Carrier and Clutch Cooling Radiator of Ferrari Ferrari 575 Superamerica

View All

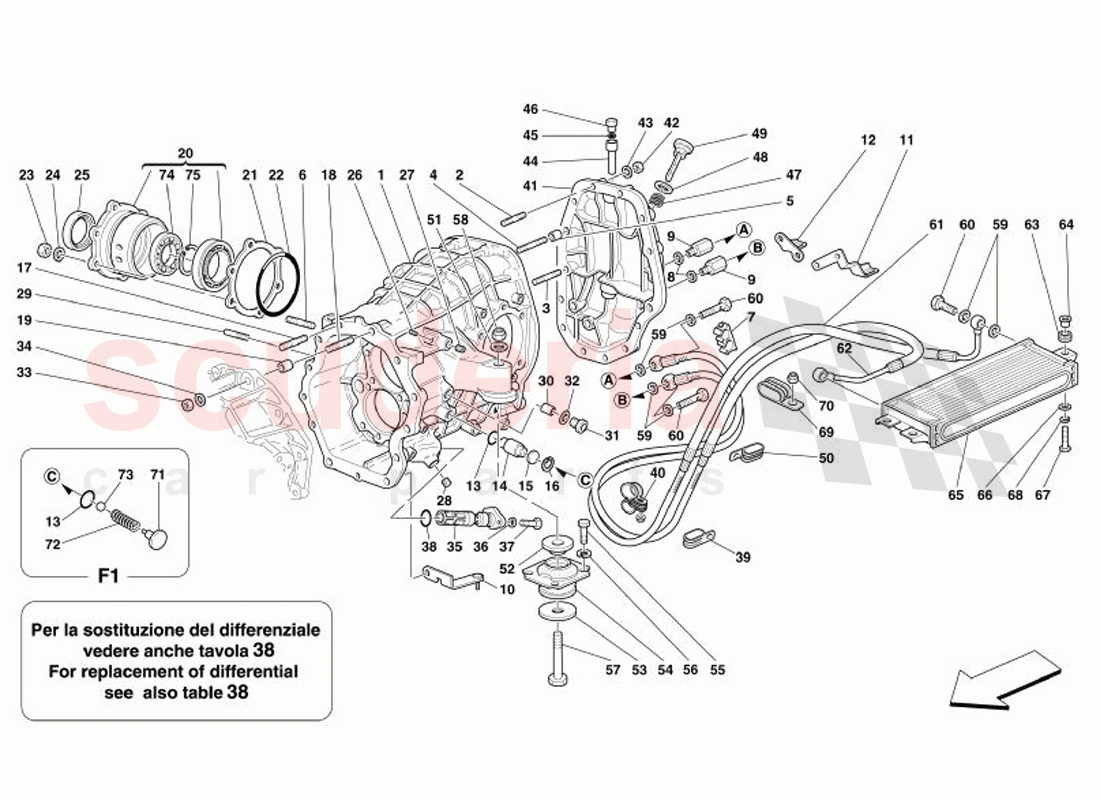

Ferrari 575 Superamerica - Differential Carrier and Clutch Cooling Radiator

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	210927	GEAR BOX 4th ELEMENT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD BOLT	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	13543724	STUD BOLT	$1.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13543824	STUD BOLT	$3.26	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	$2.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13546224	STUD BOLT	$13.52	To Order

Photo	Part No	Description	Price (each)	Stock
	140728	CLIP	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	10259960	Copper Washer 18 - 24 x 1.5	$0.31	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	198126	UNION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	186254	BRACKET	$26.61	To Order

Photo	Part No	Description	Price (each)	Stock
	186314	L.H. BRACKET	$27.23	To Order

Photo	Part No	Description	Price (each)	Stock
	169465	R.H. BRACKET	$18.15	To Order

Photo	Part No	Description	Price (each)	Stock
	14453381	O-RING	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	153719	ROD	$16.68	To Order

Photo	Part No	Description	Price (each)	Stock
	154698	PAD	$5.58	To Order

Photo	Part No	Description	Price (each)	Stock
	11057476	SEEGER RING	$0.08	To Order

Photo	Part No	Description	Price (each)	Stock
	13543524	STUD BOLT	$4.14	To Order

Photo	Part No	Description	Price (each)	Stock
	13543624	STUD BOLT	$0.43	To Order

Photo	Part No	Description	Price (each)	Stock
	102704	ALIGNMENT DOWEL	$2.71	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	189100	COMPLETE LH DIFFERENTIAL COVER	$718.91	To Order
	189098	COMPLETE RH DIFFERENTIAL COVER	$718.91	To Order

Photo	Part No	Description	Price (each)	Stock
	150107	DIFFERENTIAL COVER SHIM	$149.19	To Order
	150105	DIFFERENTIAL COVER SHIM	$101.72	To Order
	150106	DIFFERENTIAL COVER SHIM	$91.23	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	14461381	O-RING	$12.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	133988	HEX NUT M10 X 1.25 X 8	$0.20	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601474	WASHER	$0.03	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	181617	LH Rotating Oil Sealing Ring	$47.16	IN STOCK
	181618	RH GASKET	$52.39	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	65928500	THREADED PLUG	$21.13	To Order

Photo	Part No	Description	Price (each)	Stock
	14326150	CAP	$0.50	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	14326050	CAP	$1.64	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	16183021	SCREW	$0.75	To Order

Photo	Part No	Description	Price (each)	Stock
	115376	BUSHING	$19.19	To Order

Photo	Part No	Description	Price (each)	Stock
	150731	CAP	$3.47	To Order

Photo	Part No	Description	Price (each)	Stock
	10282460	GASKET	$0.84	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	251638	GEARBOX OIL FILTER	$664.65	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	11199277	WASHER	$0.11	To Order

Photo	Part No	Description	Price (each)	Stock
	10977624	SCREW	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	182119	GEARBOX OIL FILTER O-RING	$2.28	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	139512	BRACKET WITH SHEATH	$2.19	To Order

Photo	Part No	Description	Price (each)	Stock
	10441501	FIXING BRACKET	$1.90	To Order

Photo	Part No	Description	Price (each)	Stock
	222474	COMPL. REAR GEARBOX HOUSING COVER	$358.86	To Order

Photo	Part No	Description	Price (each)	Stock
	14040711	NUT	$0.35	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601374	WASHER D.8.40-15 X 0.8	$0.02	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	153500	EXTENSION FOR OIL BREATHER	$11.44	To Order

Photo	Part No	Description	Price (each)	Stock
	13415400	OIL SEAL DISC FOR BREATHER	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	13414691	OIL BREATHER	$10.99	To Order

Photo	Part No	Description	Price (each)	Stock
	223577	THREADED INSERT M22 X 1.5 X 9MM	$5.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261860	GASKET	$0.43	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	199407	PLUG	$40.86	To Order

Photo	Part No	Description	Price (each)	Stock
	61712500	BRACKET WITH SHEATH	$1.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	12601774A	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	172935	UPPER SPACER	$8.36	To Order

Photo	Part No	Description	Price (each)	Stock
	132269	LOWER SPACER	$16.38	To Order

Photo	Part No	Description	Price (each)	Stock
	169492	WICK BODY	$105.95	To Order

Photo	Part No	Description	Price (each)	Stock
	15970634	SCREW	$0.38	To Order

Photo	Part No	Description	Price (each)	Stock
	127497	SPRING WASHER M10	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	156458	SCREW	$11.84	To Order

Photo	Part No	Description	Price (each)	Stock
	176573	SELF-LOCKING HEX NUT M16 X 1.5	$1.74	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10261560	GASKET	$0.67	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10181911	PIPE UNION	$6.18	To Order

Photo	Part No	Description	Price (each)	Stock
	186088	OIL DELIVERY TUBE TO RADIATOR	$643.12	To Order

Photo	Part No	Description	Price (each)	Stock
	201351	OIL RETURN TUBE FROM RADIATOR	$674.79	To Order

Photo	Part No	Description	Price (each)	Stock
	812273	CABLE GROMMET	$1.53	To Order

Photo	Part No	Description	Price (each)	Stock
	149707	SPACER	$1.10	To Order

Photo	Part No	Description	Price (each)	Stock
	186087	OIL RADIATOR	$923.41	To Order

Photo	Part No	Description	Price (each)	Stock
	12643724	WASHER	$0.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10902524	SCREW M10 X 1.25 X 45	$0.14	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	127494	WASHER	$0.08	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	138478	BRACKET WITH SHEATH	$4.65	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	193578	BUSHING	$27.32	To Order

Photo	Part No	Description	Price (each)	Stock
	100750	SPRING	$1.76	To Order

Photo	Part No	Description	Price (each)	Stock
	101612	BALL	$1.22	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	184995	BEARING	$152.13	To Order

Photo	Part No	Description	Price (each)	Stock
	185723	SEEGER RING	$4.10	IN STOCK

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
-	210926	COMPLETE GEARBOX ASSEMBLY	210926 COMPLETE GEARBOX ASSEMBLY	$3,463.18	1
1	210927	GEAR BOX 4th ELEMENT	210927 GEAR BOX 4th ELEMENT Not as spare part With complete gearbox	-	1	Enquire
2	13543624	STUD BOLT	13543624 STUD BOLT	$0.43	10
3	13543724	STUD BOLT IN STOCK	13543724 STUD BOLT IN STOCK	$1.53	2
4	13543824	STUD BOLT IN STOCK	13543824 STUD BOLT IN STOCK	$3.26	2
5	102704	ALIGNMENT DOWEL IN STOCK	102704 ALIGNMENT DOWEL IN STOCK	$2.71	2
6	13546224	STUD BOLT	13546224 STUD BOLT	$13.52 MSRP: ~~13.81~~ (2.1% off)	12
7	140728	CLIP	140728 CLIP	$0.54	2
8	10259960	Copper Washer 18 - 24 x 1.5 IN STOCK	10259960 Copper Washer 18 - 24 x 1.5 IN STOCK	$0.31 MSRP: ~~1.25~~ (75.2% off)	2
9	198126	UNION	198126 UNION	-	2	Enquire
10	186254	BRACKET	186254 BRACKET Valid for F1	$26.61	1
11	186314	L.H. BRACKET	186314 L.H. BRACKET	$27.23	1
12	169465	R.H. BRACKET	169465 R.H. BRACKET	$18.15	1
13	14453381	O-RING	14453381 O-RING	$1.18 MSRP: ~~2.33~~ (49.4% off)	1
14	153719	ROD	153719 ROD	$16.68	1
15	154698	PAD	154698 PAD	$5.58	1
16	11057476	SEEGER RING	11057476 SEEGER RING	$0.08	1
17	13543524	STUD BOLT	13543524 STUD BOLT	$4.14 MSRP: ~~4.35~~ (4.8% off)	7
18	13543624	STUD BOLT	13543624 STUD BOLT	$0.43	2
19	102704	ALIGNMENT DOWEL IN STOCK	102704 ALIGNMENT DOWEL IN STOCK	$2.71	2
20	189100	COMPLETE LH DIFFERENTIAL COVER	189100 COMPLETE LH DIFFERENTIAL COVER	$718.91	1
20	189098	COMPLETE RH DIFFERENTIAL COVER	189098 COMPLETE RH DIFFERENTIAL COVER	$718.91	1
21	150107	DIFFERENTIAL COVER SHIM	150107 DIFFERENTIAL COVER SHIM THINCKNESS mm. 1.55	$149.19	2
21	150105	DIFFERENTIAL COVER SHIM	150105 DIFFERENTIAL COVER SHIM THINCKNESS mm. 1.9	$101.72	2
21	150106	DIFFERENTIAL COVER SHIM	150106 DIFFERENTIAL COVER SHIM THINCKNESS mm. 1.45	$91.23	2
21	150104	DIFFERENTIAL COVER SHIM	150104 DIFFERENTIAL COVER SHIM THINCKNESS mm. 1.8	$105.78	2
21	150103	DIFFERENTIAL COVER SHIM	150103 DIFFERENTIAL COVER SHIM THINCKNESS mm. 1.7	$202.85	2
21	150102	DIFFERENTIAL COVER SHIM	150102 DIFFERENTIAL COVER SHIM THINCKNESS mm. 1.6	$93.84	2
21	150101	DIFFERENTIAL COVER SHIM	150101 DIFFERENTIAL COVER SHIM THINCKNESS mm. 1.5	$93.84	2
21	150100	DIFFERENTIAL COVER SHIM	150100 DIFFERENTIAL COVER SHIM THINCKNESS mm. 1.4	$93.84	2
21	150099	DIFFERENTIAL COVER SHIM	150099 DIFFERENTIAL COVER SHIM THINCKNESS mm. 1,3	$105.78	2
21	150108	DIFFERENTIAL COVER SHIM	150108 DIFFERENTIAL COVER SHIM THINCKNESS mm. 1.65	$93.84	2
22	14461381	O-RING IN STOCK	14461381 O-RING IN STOCK	$12.23	2
23	133988	HEX NUT M10 X 1.25 X 8 IN STOCK	133988 HEX NUT M10 X 1.25 X 8 IN STOCK	$0.20 MSRP: ~~0.35~~ (42.9% off)	12
24	12601474	WASHER IN STOCK	12601474 WASHER IN STOCK	$0.03	12
25	181617	LH Rotating Oil Sealing Ring IN STOCK	181617 LH Rotating Oil Sealing Ring IN STOCK	$47.16 MSRP: ~~75.72~~ (37.7% off)	1
25	181618	RH GASKET IN STOCK	181618 RH GASKET IN STOCK	$52.39 MSRP: ~~71.59~~ (26.8% off)	1
26	65928500	THREADED PLUG	65928500 THREADED PLUG	$21.13 MSRP: ~~22.86~~ (7.6% off)	2
27	14326150	CAP IN STOCK	14326150 CAP IN STOCK	$0.50 MSRP: ~~1.50~~ (66.7% off)	1
28	14326050	CAP IN STOCK	14326050 CAP IN STOCK	$1.64 MSRP: ~~2.48~~ (33.9% off)	1
29	16183021	SCREW	16183021 SCREW	$0.75	1
30	115376	BUSHING	115376 BUSHING	$19.19 MSRP: ~~55.77~~ (65.6% off)	3
31	150731	CAP	150731 CAP	$3.47 MSRP: ~~3.59~~ (3.3% off)	1
32	10282460	GASKET	10282460 GASKET	$0.84	1
33	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.35	13
34	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	13
35	251638	GEARBOX OIL FILTER IN STOCK	251638 GEARBOX OIL FILTER IN STOCK	$664.65 MSRP: ~~995.19~~ (33.2% off)	1
36	11199277	WASHER	11199277 WASHER	$0.11	2
37	10977624	SCREW IN STOCK	10977624 SCREW IN STOCK	$0.06	2
38	182119	GEARBOX OIL FILTER O-RING IN STOCK	182119 GEARBOX OIL FILTER O-RING IN STOCK	$2.28 MSRP: ~~3.25~~ (29.8% off)	1
39	139512	BRACKET WITH SHEATH	139512 BRACKET WITH SHEATH	$2.19	1
40	10441501	FIXING BRACKET	10441501 FIXING BRACKET	$1.90	2
41	222474	COMPL. REAR GEARBOX HOUSING COVER	222474 COMPL. REAR GEARBOX HOUSING COVER	$358.86	1
42	14040711	NUT IN STOCK	14040711 NUT IN STOCK	$0.35	14
43	12601374	WASHER D.8.40-15 X 0.8 IN STOCK	12601374 WASHER D.8.40-15 X 0.8 IN STOCK	$0.02 MSRP: ~~0.25~~ (92% off)	14
44	153500	EXTENSION FOR OIL BREATHER	153500 EXTENSION FOR OIL BREATHER	$11.44	1
45	13415400	OIL SEAL DISC FOR BREATHER	13415400 OIL SEAL DISC FOR BREATHER	$0.58	1
46	13414691	OIL BREATHER	13414691 OIL BREATHER	$10.99	1
47	223577	THREADED INSERT M22 X 1.5 X 9MM IN STOCK	223577 THREADED INSERT M22 X 1.5 X 9MM IN STOCK	$5.15	1
48	10261860	GASKET IN STOCK	10261860 GASKET IN STOCK	$0.43 MSRP: ~~1.00~~ (57% off)	1
49	199407	PLUG	199407 PLUG	$40.86 MSRP: ~~56.57~~ (27.8% off)	1
50	61712500	BRACKET WITH SHEATH IN STOCK	61712500 BRACKET WITH SHEATH IN STOCK	$1.53	1
51	12601774A	WASHER	12601774A WASHER	-	2	Enquire
52	172935	UPPER SPACER	172935 UPPER SPACER	$8.36	2
53	132269	LOWER SPACER	132269 LOWER SPACER	$16.38	2
54	169492	WICK BODY	169492 WICK BODY	$105.95 MSRP: ~~153.34~~ (30.9% off)	2
55	15970634	SCREW	15970634 SCREW	$0.38 MSRP: ~~3.25~~ (88.3% off)	8
56	127497	SPRING WASHER M10 IN STOCK	127497 SPRING WASHER M10 IN STOCK	$0.06 MSRP: ~~0.75~~ (92% off)	8
57	156458	SCREW	156458 SCREW	$11.84	2
58	176573	SELF-LOCKING HEX NUT M16 X 1.5 IN STOCK	176573 SELF-LOCKING HEX NUT M16 X 1.5 IN STOCK	$1.74 MSRP: ~~2.25~~ (22.7% off)	2
59	10261560	GASKET IN STOCK	10261560 GASKET IN STOCK	$0.67 MSRP: ~~1.00~~ (33% off)	8
60	10181911	PIPE UNION	10181911 PIPE UNION	$6.18	4
61	186088	OIL DELIVERY TUBE TO RADIATOR	186088 OIL DELIVERY TUBE TO RADIATOR	$643.12	1
62	201351	OIL RETURN TUBE FROM RADIATOR	201351 OIL RETURN TUBE FROM RADIATOR	$674.79	1
63	812273	CABLE GROMMET	812273 CABLE GROMMET	$1.53	3
64	149707	SPACER	149707 SPACER	$1.10 MSRP: ~~1.75~~ (37.1% off)	3
65	186087	OIL RADIATOR	186087 OIL RADIATOR	$923.41	1
66	12643724	WASHER IN STOCK	12643724 WASHER IN STOCK	$0.06 MSRP: ~~0.50~~ (88% off)	3
67	10902524	SCREW M10 X 1.25 X 45 IN STOCK	10902524 SCREW M10 X 1.25 X 45 IN STOCK	$0.14	3
68	127494	WASHER IN STOCK	127494 WASHER (minimum order quantity = 20) IN STOCK	$0.08 MSRP: ~~0.68~~ (88.2% off)	3
69	138478	BRACKET WITH SHEATH	138478 BRACKET WITH SHEATH	$4.65	1
70	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	1
71	193578	BUSHING	193578 BUSHING Valid for F1	$27.32	1
72	100750	SPRING	100750 SPRING Valid for F1	$1.76	1
73	101612	BALL IN STOCK	101612 BALL Valid for F1 IN STOCK	$1.22 MSRP: ~~1.65~~ (26.1% off)	1
74	184995	BEARING	184995 BEARING	$152.13	2
75	185723	SEEGER RING IN STOCK	185723 SEEGER RING IN STOCK	$4.10 MSRP: ~~6.80~~ (39.7% off)	2
