Lay Shaft Gears

Ferrari 430 Challenge (2006)

Find Your Part

Ferrari 430 Challenge (2006) - Lay Shaft Gears

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
220949 COMPETE BEVEL SET $5,444.95 To Order
Photo Part No Description Price (each) Stock
16287730 SCREW $4.38 To Order
Photo Part No Description Price (each) Stock
185022 ROLLER BEARING $304.70 IN STOCK
Photo Part No Description Price (each) Stock
185027 RING ADJUSTER $52.96 To Order
185045 RING ADJUSTER $34.93 To Order
185028 RING ADJUSTER $52.96 To Order
Photo Part No Description Price (each) Stock
185042 RING ADJUSTER $10.91 To Order
185044 RING ADJUSTER $27.96 To Order
185043 RING ADJUSTER $16.09 To Order
Photo Part No Description Price (each) Stock
185020 BEARING MOUNTING $561.46 To Order
Photo Part No Description Price (each) Stock
185021 Roller Bearing $162.68 To Order
Photo Part No Description Price (each) Stock
196667 GEARBOX RING NUT M45 X 1.5 $65.22 IN STOCK
Photo Part No Description Price (each) Stock
185018 3rd AND 4th SPEED GEAR CONTROL $1,494.37 To Order
Photo Part No Description Price (each) Stock
188461 5th AND 6th DRIVEN GEAR $487.10 To Order
Photo Part No Description Price (each) Stock
188497 SHIM $77.48 To Order
Photo Part No Description Price (each) Stock
184014 ROLLER BEARING CAGE $18.90 IN STOCK
Photo Part No Description Price (each) Stock
183946 2nd SPEED GEAR $1,359.76 To Order
Photo Part No Description Price (each) Stock
185037 SNAP RING $62.54 To Order
185036 SNAP RING $38.31 To Order
183976 SNAP RING $11.86 To Order
Photo Part No Description Price (each) Stock
183971 BUSHING $74.57 To Order
Photo Part No Description Price (each) Stock
184016 ROLLER BEARING CAGE $26.00 IN STOCK
Photo Part No Description Price (each) Stock
183945 1st SPEED GEAR $839.44 To Order
Photo Part No Description Price (each) Stock
183972 CENTRE BEARING $75.42 IN STOCK
Photo Part No Description Price (each) Stock
184020 Roller Bearing $147.09 IN STOCK
Photo Part No Description Price (each) Stock
184042 SNAP RING $11.86 To Order
Photo Part No Description Price (each) Stock
199752 REVERSE GEAR $720.66 To Order
Photo Part No Description Price (each) Stock
184018 ROLLER BEARING CAGE $28.36 IN STOCK
Photo Part No Description Price (each) Stock
326260 REVERSE SPEED SYNCHRONISER Enquire To Order
Photo Part No Description Price (each) Stock
184041 SNAP RING $4.84 To Order
Photo Part No Description Price (each) Stock
14302424 SCREW $0.43 IN STOCK
Photo Part No Description Price (each) Stock
10571379 WASHER $0.06 To Order
Photo Part No Description Price (each) Stock
216271 GEARBOX OIL PUMP $1,305.04 To Order
Photo Part No Description Price (each) Stock
185164 1ST AND 2ND SPEED SYNCHRONISER $1,892.78 To Order
Photo Part No Description Price (each) Stock
185050 PUMP DRIVE SHAFT $57.65 To Order
Photo Part No Description Price (each) Stock

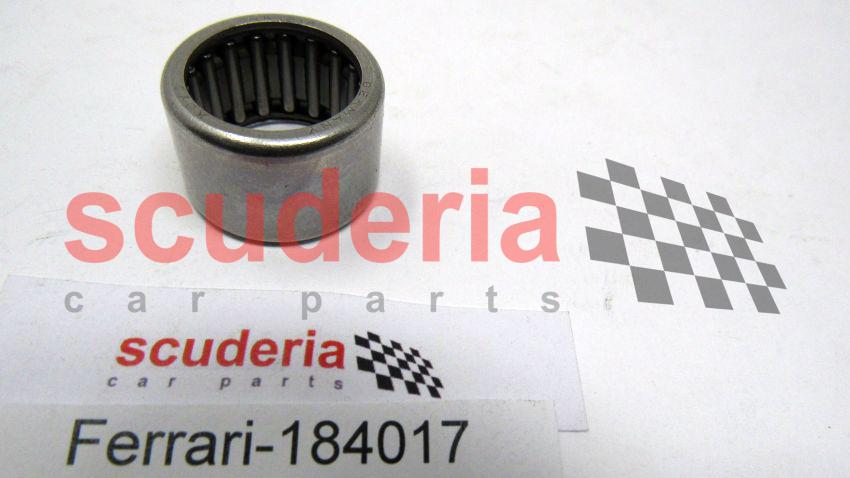

184017 DRAWN CUP NEEDLE BEARING $9.41 To Order
Photo Part No Description Price (each) Stock
183975 RING $23.73 To Order
Photo Part No Description Price (each) Stock
199737 REVERSE IDLER GEAR $2,414.94 To Order
Photo Part No Description Price (each) Stock
200924 SHIM $14.03 To Order
Photo Part No Description Price (each) Stock
183976 SNAP RING $11.86 To Order
Photo Part No Description Price (each) Stock
203800 RING $27.39 To Order
203801 RING $70.69 To Order
Photo Part No Description Price (each) Stock
188320 SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT $12.85 IN STOCK
Photo Part No Description Price (each) Stock
193440 SYNCHROREVERSE/BLOCKS REPLACEMENT KIT $4.61 To Order
View All

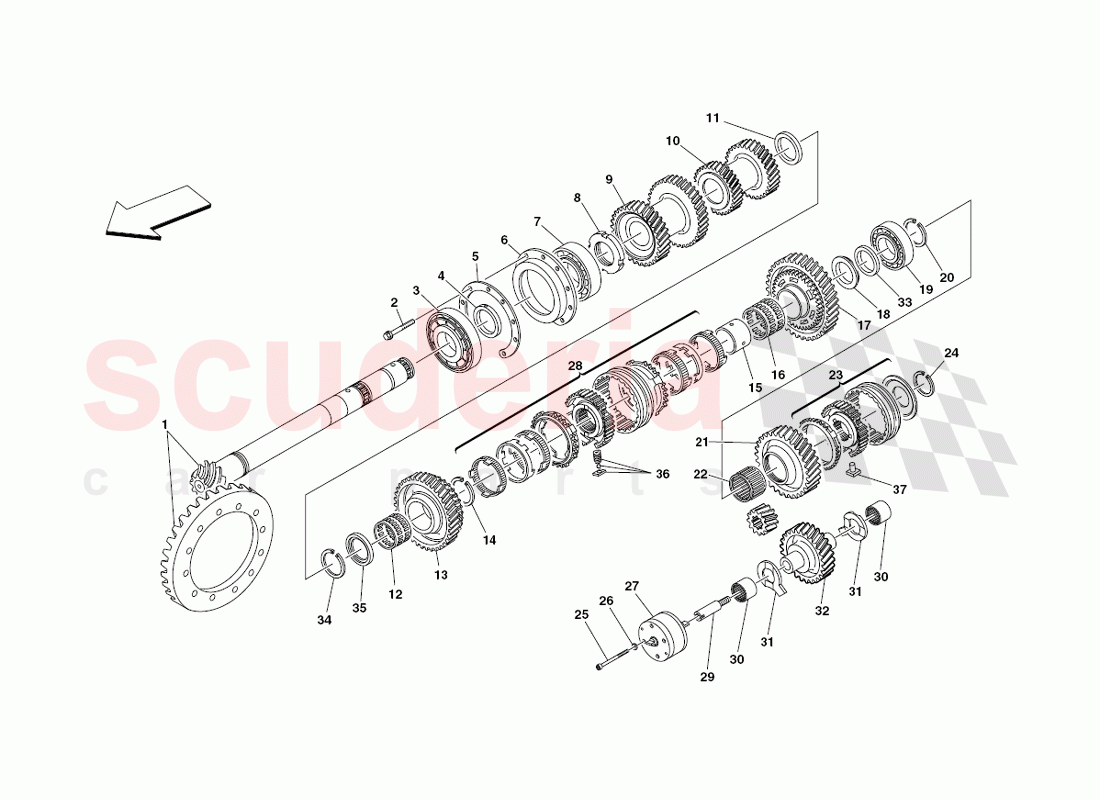

Lay Shaft Gears of Ferrari Ferrari 430 Challenge (2006) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 220949
COMPETE BEVEL SET 		$5,444.95 1
2 16287730
SCREW 		$4.38 7
3 185022
ROLLER BEARING
IN STOCK 		$304.70 (1.8% off) 1
4 185027
RING ADJUSTER
Thickness mm. 6,4-Possible fitting- 		$52.96 1
4 185045
RING ADJUSTER
Thickness mm. 7,10- 		$34.93 1
4 185028
RING ADJUSTER
Thickness mm. 6,0-Possible fitting- 		$52.96 1
5 185042
RING ADJUSTER
Thickness mm. 2,8- 		$10.91 1
5 185044
RING ADJUSTER
Thickness mm. 2,2-Possible fitting- 		$27.96 1
5 185043
RING ADJUSTER
Thickness mm. 2,5- 		$16.09 1
6 185020
BEARING MOUNTING 		$561.46 1
7 185021
Roller Bearing 		$162.68 1
8 196667
GEARBOX RING NUT M45 X 1.5
IN STOCK 		$65.22 1
9 185018
3rd AND 4th SPEED GEAR CONTROL 		$1,494.37 1
10 188461
5th AND 6th DRIVEN GEAR 		$487.10 1
11 188497
SHIM 		$77.48 1
12 184014
ROLLER BEARING CAGE
IN STOCK 		$18.90 1
13 183946
2nd SPEED GEAR 		$1,359.76 1
14 185037
SNAP RING
Thickness mm. 1,60-Possible fi tting- 		$62.54 1
14 185036
SNAP RING
Thickness mm. 1,85-Possible fi tting- 		$38.31 1
14 183976
SNAP RING
Thickness mm. 2,10- 		$11.86 1
15 183971
BUSHING 		$74.57 1
16 184016
ROLLER BEARING CAGE
IN STOCK 		$26.00 (21.2% off) 1
17 183945
1st SPEED GEAR 		$839.44 1
18 183972
CENTRE BEARING
Spessore mm. 5,10-Thickness mm. 5,10-
IN STOCK 		$75.42 1
19 184020
Roller Bearing
IN STOCK 		$147.09 (47.6% off) 1
20 184042
SNAP RING 		$11.86 (21.8% off) 1
21 199752
REVERSE GEAR 		$720.66 1
22 184018
ROLLER BEARING CAGE
IN STOCK 		$28.36 (23.4% off) 1
23 326260
REVERSE SPEED SYNCHRONISER 		- 1 Enquire
24 184041
SNAP RING 		$4.84 (60.3% off) 1
25 14302424
SCREW
IN STOCK 		$0.43 4
26 10571379
WASHER 		$0.06 4
27 216271
GEARBOX OIL PUMP 		$1,305.04 1
28 185164
1ST AND 2ND SPEED SYNCHRONISER 		$1,892.78 1
29 185050
PUMP DRIVE SHAFT 		$57.65 1
30 184017
DRAWN CUP NEEDLE BEARING 		$9.41 (68.6% off) 2
31 183975
RING 		$23.73 2
32 199737
REVERSE IDLER GEAR 		$2,414.94 1
33 200924
SHIM 		$14.03 1
34 183976
SNAP RING 		$11.86 1
35 203800
RING 		$27.39 1
35 203801
RING
In alternativa-As an alternative- 		$70.69 1
36 188320
SYNCHRO BLOCK/BALL/SPRING REPLACEMENT KIT
IN STOCK 		$12.85 1
37 193440
SYNCHROREVERSE/BLOCKS REPLACEMENT KIT 		$4.61 (38.5% off) 1
