Name: Cooling System
Rating: 5.0 (1 reviews)

View All

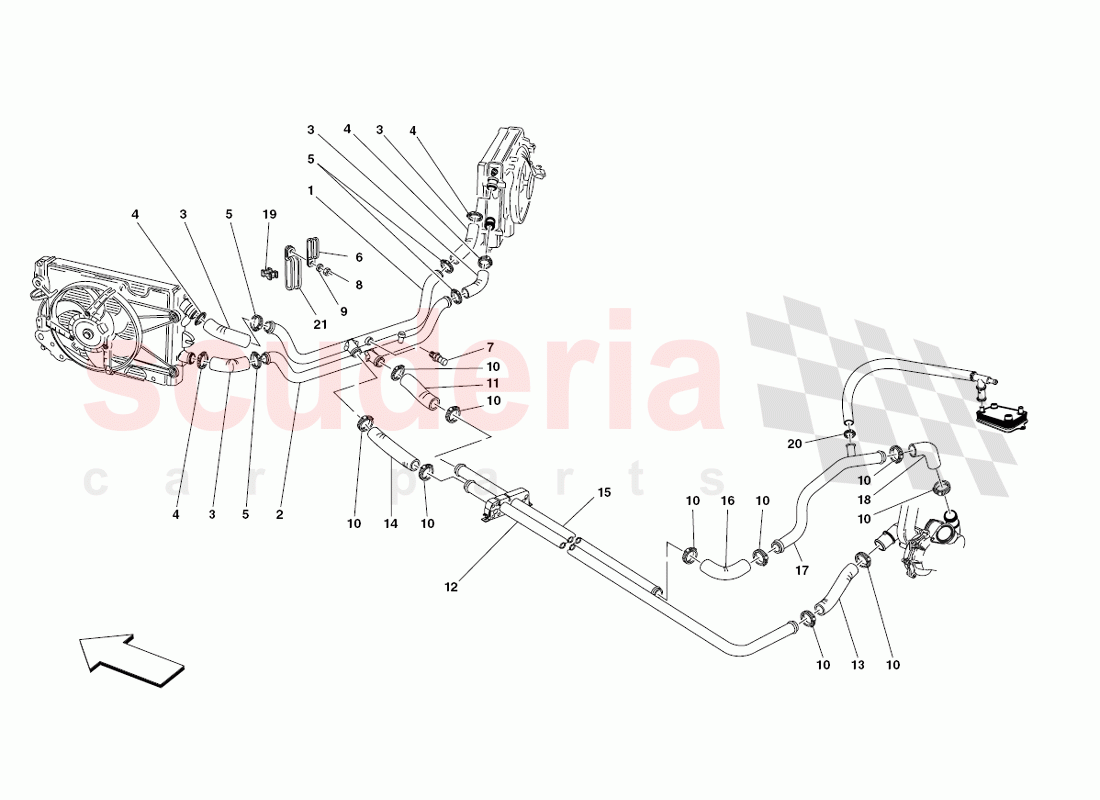

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	217917	WATER DELIVERY PIPE	$202.85	To Order

Photo	Part No	Description	Price (each)	Stock
	223591	RETURN WATER PIPE	$28.95	To Order

Photo	Part No	Description	Price (each)	Stock
	220948	RUBBER PIPE	$45.37	To Order

Photo	Part No	Description	Price (each)	Stock
	13001690	SCREW COLLAR	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	13000590	SCREW COLLAR	$0.69	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	61712500	BRACKET WITH SHEATH	$1.53	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	176322	THERMAL CONTACT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14059290	FLANGED NUT M6	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	10730114	WASHER	$0.29	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	13001690	SCREW COLLAR	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	202547	RUBBER DELIVERY PIPE	$152.13	To Order

Photo	Part No	Description	Price (each)	Stock
	206621	UNDERBODY ALUMINIUM DELIVERY PIPE	$68.11	To Order

Photo	Part No	Description	Price (each)	Stock
	208338	RUBBER HOSE	$99.90	To Order

Photo	Part No	Description	Price (each)	Stock
	202548	RUBBER RETURN PIPE	$202.85	To Order

Photo	Part No	Description	Price (each)	Stock
	206728	UNDERBODY ALUMINIUM RETURN PIPE	$68.11	To Order

Photo	Part No	Description	Price (each)	Stock
	193463	WATER HOSE	$183.42	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	241611	ALUMINIUM PIPE	$77.91	To Order

Photo	Part No	Description	Price (each)	Stock
	206717	Rubber Pipe	$75.68	To Order

Photo	Part No	Description	Price (each)	Stock
	183641	SHIM	$4.48	IN STOCK

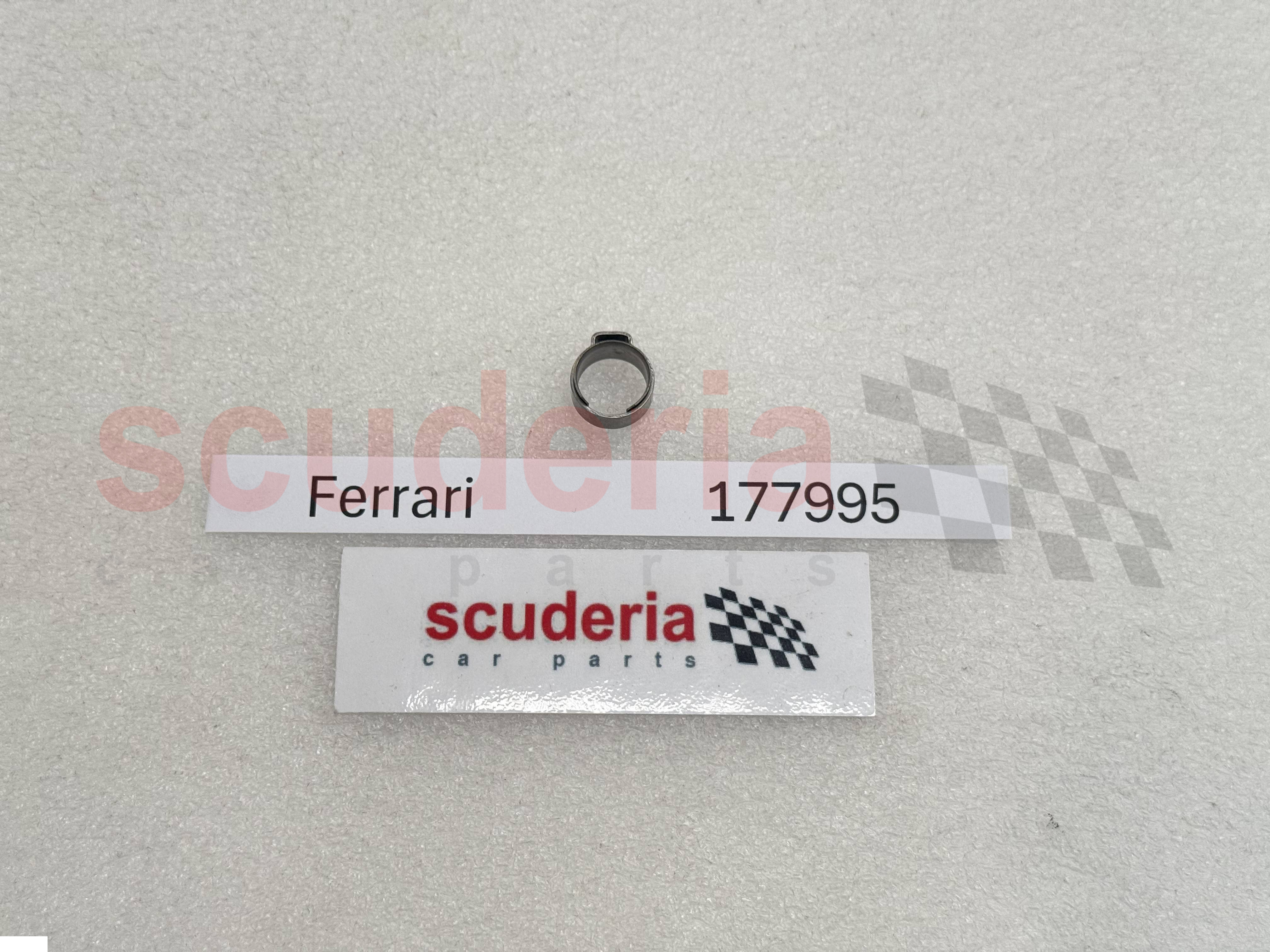

Photo	Part No	Description	Price (each)	Stock
	177995	CLAMP	$1.06	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	183642	BRACKET WITH SHEATH	$20.29	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	217917	WATER DELIVERY PIPE	217917 WATER DELIVERY PIPE	$202.85	1
2	223591	RETURN WATER PIPE	223591 RETURN WATER PIPE	$28.95	1
3	220948	RUBBER PIPE	220948 RUBBER PIPE	$45.37	4
4	13001690	SCREW COLLAR	13001690 SCREW COLLAR	$1.18	4
5	13000590	SCREW COLLAR IN STOCK	13000590 SCREW COLLAR IN STOCK	$0.69	4
6	61712500	BRACKET WITH SHEATH IN STOCK	61712500 BRACKET WITH SHEATH IN STOCK	$1.53	2
7	176322	THERMAL CONTACT	176322 THERMAL CONTACT	-	1	Enquire
8	14059290	FLANGED NUT M6 IN STOCK	14059290 FLANGED NUT M6 IN STOCK	$1.32	2
9	10730114	WASHER IN STOCK	10730114 WASHER IN STOCK	$0.29	2
10	13001690	SCREW COLLAR	13001690 SCREW COLLAR	$1.18	10
11	202547	RUBBER DELIVERY PIPE	202547 RUBBER DELIVERY PIPE	$152.13	1
12	206621	UNDERBODY ALUMINIUM DELIVERY PIPE	206621 UNDERBODY ALUMINIUM DELIVERY PIPE	$68.11	1
13	208338	RUBBER HOSE	208338 RUBBER HOSE	$99.90 MSRP: ~~133.52~~ (25.2% off)	1
14	202548	RUBBER RETURN PIPE	202548 RUBBER RETURN PIPE	$202.85	1
15	206728	UNDERBODY ALUMINIUM RETURN PIPE	206728 UNDERBODY ALUMINIUM RETURN PIPE	$68.11	1
16	193463	WATER HOSE IN STOCK	193463 WATER HOSE IN STOCK	$183.42	1
17	241611	ALUMINIUM PIPE	241611 ALUMINIUM PIPE	$77.91	1
18	206717	Rubber Pipe	206717 Rubber Pipe	$75.68 MSRP: ~~100.83~~ (24.9% off)	1
19	183641	SHIM IN STOCK	183641 SHIM IN STOCK	$4.48	2
20	177995	CLAMP IN STOCK	177995 CLAMP IN STOCK	$1.06 MSRP: ~~2.15~~ (50.7% off)	1
21	183642	BRACKET WITH SHEATH	183642 BRACKET WITH SHEATH	$20.29	2

Cooling System

Ferrari 430 Challenge (2006)
