Lubrication System - Tank - Heater Exchange

Ferrari 430 Challenge (2006)

Find Your Part

Ferrari 430 Challenge (2006) - Lubrication System - Tank - heater exchange

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
197150 HEAT EXCHANGER $5,677.14 To Order
Photo Part No Description Price (each) Stock
247146 GASKET $3.77 IN STOCK
Photo Part No Description Price (each) Stock
210388 CONNECTORS MOUNTING BRACKET $70.55 IN STOCK
Photo Part No Description Price (each) Stock
149707 SPACER $1.09 To Order
Photo Part No Description Price (each) Stock
177576 CABLE GROMMET $2.19 IN STOCK
Photo Part No Description Price (each) Stock
1430562 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
1430552 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
1430542 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
1119777 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
322664 GASKET HEAT EXCHANGER $50.77 ARRIVING SOON
Photo Part No Description Price (each) Stock
223408 BRACKET $264.57 To Order
Photo Part No Description Price (each) Stock
231619 SCREW $0.29 IN STOCK
Photo Part No Description Price (each) Stock
11197774 WASHER $0.06 IN STOCK
Photo Part No Description Price (each) Stock
192327 CONNECTOR $4.80 To Order
Photo Part No Description Price (each) Stock
127497 SPRING WASHER M10 $0.06 IN STOCK
Photo Part No Description Price (each) Stock
211844 VENT PIPE $22.55 To Order
Photo Part No Description Price (each) Stock
195351 OIL PIPE FROM ENGINE TO SEPARATOR $421.18 To Order
Photo Part No Description Price (each) Stock
216061 WATER-OIL SEPARATOR $1,308.71 To Order
Photo Part No Description Price (each) Stock
254573 TANK CAP $207.47 To Order
Photo Part No Description Price (each) Stock
211634 GASKET $56.68 IN STOCK
Photo Part No Description Price (each) Stock
176388 O-RING $2.19 IN STOCK
Photo Part No Description Price (each) Stock
13517124 STUD BOLT $16.81 To Order
Photo Part No Description Price (each) Stock
147985 NUT $0.14 IN STOCK
Photo Part No Description Price (each) Stock
12601374 WASHER D.8.40-15 X 0.8 $0.02 IN STOCK
Photo Part No Description Price (each) Stock
211813 RH BREATHER PIPE $238.06 To Order
Photo Part No Description Price (each) Stock
211814 LH BREATHER PIPE $233.98 IN STOCK
Photo Part No Description Price (each) Stock
177996 CLAMP $1.17 To Order
Photo Part No Description Price (each) Stock
262111 JUBILEE CLAMP $1.38 To Order
Photo Part No Description Price (each) Stock
216063 RH VAPOUR INTAKE PIPE $48.12 To Order
Photo Part No Description Price (each) Stock
216064 LH VAPOUR INTAKE PIPE $48.12 To Order
Photo Part No Description Price (each) Stock
195330 RUBBER PIPE $4.19 To Order
Photo Part No Description Price (each) Stock
258855 3-WAY CONNECTOR $39.93 IN STOCK
Photo Part No Description Price (each) Stock
159539 RUBBER PIPE $4.50 To Order
Photo Part No Description Price (each) Stock
10440990 BRACKET WITH SHEATH $1.26 To Order
View All

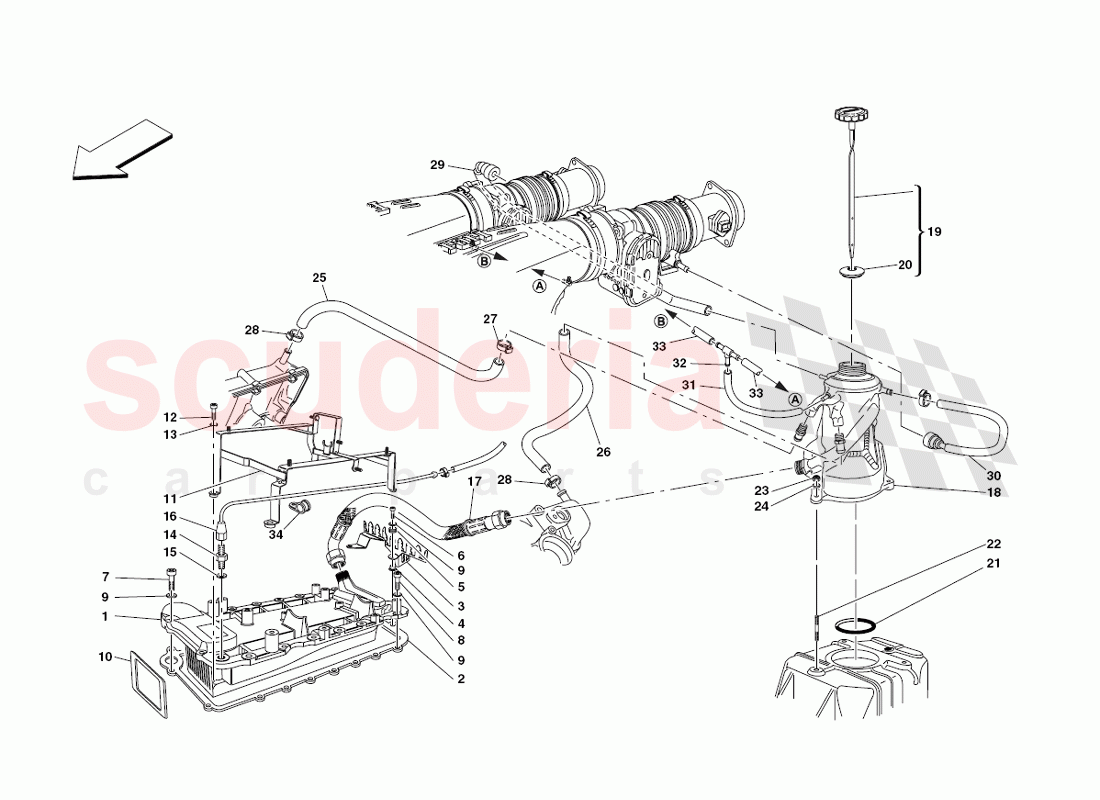

Lubrication System - Tank - heater exchange of Ferrari Ferrari 430 Challenge (2006) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 197150
HEAT EXCHANGER 		$5,677.14 1
2 247146
GASKET
IN STOCK 		$3.77 1
3 210388
CONNECTORS MOUNTING BRACKET
IN STOCK 		$70.55 1
4 149707
SPACER 		$1.09 (37.7% off) 2
5 177576
CABLE GROMMET
IN STOCK 		$2.19 2
6 1430562
SCREW 		- 4 Enquire
7 1430552
SCREW 		- 4 Enquire
8 1430542
SCREW 		- 4 Enquire
9 1119777
WASHER 		- 4 Enquire
10 322664
GASKET HEAT EXCHANGER
ARRIVING SOON 		$50.77 1
11 223408
BRACKET 		$264.57 1
12 231619
SCREW
IN STOCK 		$0.29 4
13 11197774
WASHER
IN STOCK 		$0.06 (80% off) 4
14 192327
CONNECTOR 		$4.80 1
15 127497
SPRING WASHER M10
IN STOCK 		$0.06 (92% off) 1
16 211844
VENT PIPE 		$22.55 1
17 195351
OIL PIPE FROM ENGINE TO SEPARATOR 		$421.18 (23.1% off) 1
18 216061
WATER-OIL SEPARATOR 		$1,308.71 1
19 254573
TANK CAP 		$207.47 (46.6% off) 1
20 211634
GASKET
IN STOCK 		$56.68 1
21 176388
O-RING
IN STOCK 		$2.19 (44.6% off) 1
22 13517124
STUD BOLT 		$16.81 3
23 147985
NUT
IN STOCK 		$0.14 (72% off) 3
24 12601374
WASHER D.8.40-15 X 0.8
IN STOCK 		$0.02 (92% off) 3
25 211813
RH BREATHER PIPE 		$238.06 1
26 211814
LH BREATHER PIPE
IN STOCK 		$233.98 1
27 177996
CLAMP 		$1.17 2
28 262111
JUBILEE CLAMP 		$1.38 2
29 216063
RH VAPOUR INTAKE PIPE 		$48.12 1
30 216064
LH VAPOUR INTAKE PIPE 		$48.12 1
31 195330
RUBBER PIPE 		$4.19 1
32 258855
3-WAY CONNECTOR
IN STOCK 		$39.93 1
33 159539
RUBBER PIPE 		$4.50 2
34 10440990
BRACKET WITH SHEATH 		$1.26 1
