Rear Suspension - Wishbones

Ferrari 430 Challenge (2006)

Find Your Part

Ferrari 430 Challenge (2006) - Rear Suspension - Wishbones

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
200946 Rear Upper Suspension Lever $666.06 To Order
Photo Part No Description Price (each) Stock
179555 COMPENSATOR RING BUSHING $5.29 IN STOCK
Photo Part No Description Price (each) Stock
171848 Rubber Boot and Clip $125.77 ARRIVING SOON
Photo Part No Description Price (each) Stock
220693 SPACER $3.38 To Order
Photo Part No Description Price (each) Stock
104030 NUT $0.24 IN STOCK
Photo Part No Description Price (each) Stock
14496524 WASHER D.8.4 X 17 X 1.6 $0.11 IN STOCK
Photo Part No Description Price (each) Stock
182518 THICKNESS $1.35 IN STOCK
Photo Part No Description Price (each) Stock
220691 THREADED BAR $38.04 IN STOCK
Photo Part No Description Price (each) Stock
179556 BOLT FOR TRACK ROD JOINT $48.92 IN STOCK
Photo Part No Description Price (each) Stock
100224 RH FRONT STEERING KNUCKLE Enquire To Order
220564 LH FRONT STEERING KNUCKLE $748.08 To Order
Photo Part No Description Price (each) Stock
200942 LH LOWER ARM $666.06 To Order
200941 RH Rear Lower Suspension Lever $666.06 To Order
Photo Part No Description Price (each) Stock
179555 COMPENSATOR RING BUSHING $5.29 IN STOCK
Photo Part No Description Price (each) Stock
171847 Rubber Boot And Clip $119.21 IN STOCK
Photo Part No Description Price (each) Stock
179554 COMPENSATOR RING $5.58 IN STOCK
Photo Part No Description Price (each) Stock
329184 FLANBLOC $152.13 To Order
Photo Part No Description Price (each) Stock
181499 PLATE $95.35 To Order
Photo Part No Description Price (each) Stock
12574521 Nyloc Nut $0.81 IN STOCK
Photo Part No Description Price (each) Stock
126648 WASHER D.10.5-21 X 2 $1.67 IN STOCK
Photo Part No Description Price (each) Stock
181598 SCREW $71.00 IN STOCK
Photo Part No Description Price (each) Stock
194791 Complete - Tie Rod $3,437.41 To Order
Photo Part No Description Price (each) Stock
86768100 SCREW $0.44 To Order
Photo Part No Description Price (each) Stock
1119474 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
179556 BOLT FOR TRACK ROD JOINT $48.92 IN STOCK
Photo Part No Description Price (each) Stock
13582271 INSERT $6.93 IN STOCK
Photo Part No Description Price (each) Stock
204248 NUT $33.81 To Order
Photo Part No Description Price (each) Stock
194794 ROD END FOR TIE-ROD $423.85 IN STOCK
Photo Part No Description Price (each) Stock
203633 Upper Ball Joint $231.11 To Order
Photo Part No Description Price (each) Stock
203632 Lower Ball Joint $297.13 IN STOCK
Photo Part No Description Price (each) Stock
184241 HYSOL EA9360 ADHESIVE BALL JOINT GLUE $126.59 To Order
220607 THICKNESS $5.31 To Order
220608 THICKNESS $6.71 To Order
...and 3 more part variants. See table on right for more details.
View All

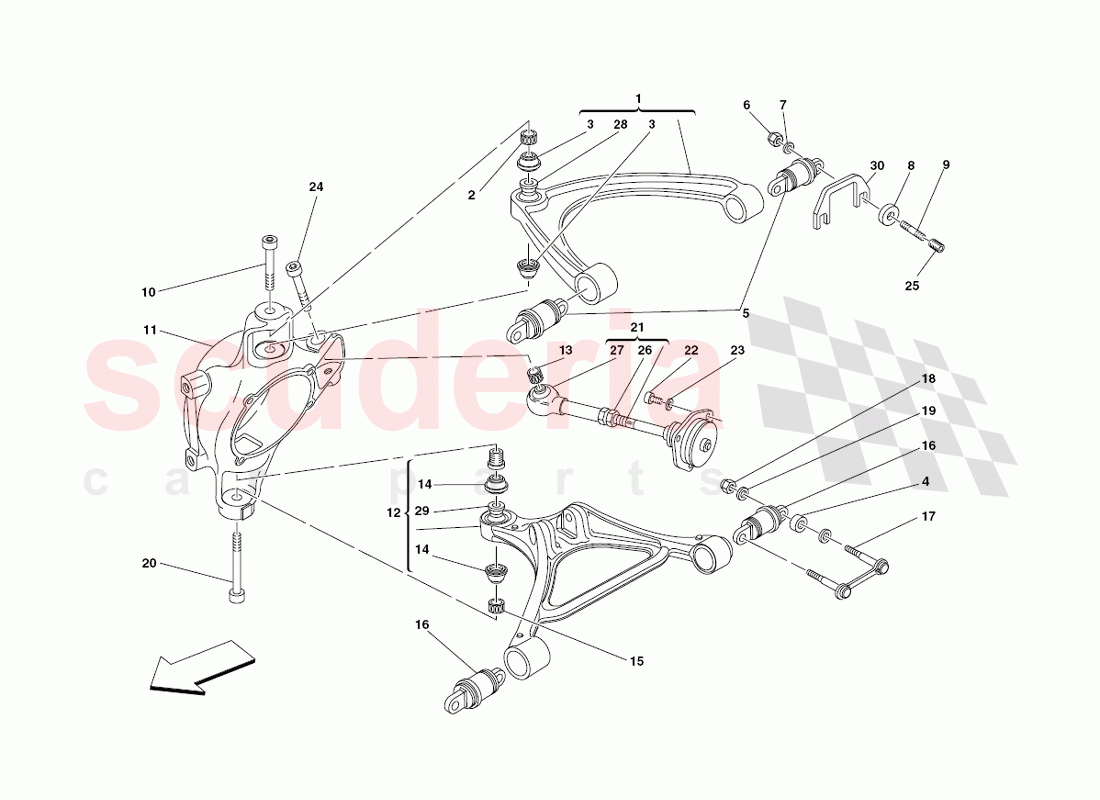

Rear Suspension - Wishbones of Ferrari Ferrari 430 Challenge (2006) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 200946
Rear Upper Suspension Lever 		$666.06 2
2 179555
COMPENSATOR RING BUSHING
IN STOCK 		$5.29 (17% off) 2
3 171848
Rubber Boot and Clip
ARRIVING SOON 		$125.77 (27.7% off) 4
4 220693
SPACER 		$3.38 8
5 256105
FLANBLOC 		$418.41 4
6 104030
NUT
IN STOCK 		$0.24 (76% off) 8
7 14496524
WASHER D.8.4 X 17 X 1.6
IN STOCK 		$0.11 (92.7% off) 8
8 182518
THICKNESS
IN STOCK 		$1.35 8
9 220691
THREADED BAR
IN STOCK 		$38.04 8
10 179556
BOLT FOR TRACK ROD JOINT
IN STOCK 		$48.92 2
11 100224
RH FRONT STEERING KNUCKLE 		- 1 Enquire
11 220564
LH FRONT STEERING KNUCKLE 		$748.08 1

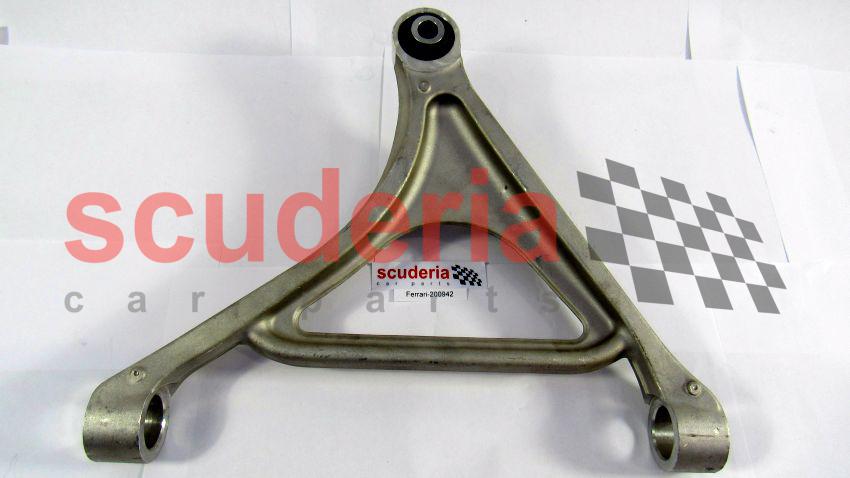

12 200942
LH LOWER ARM 		$666.06 (43.5% off) 1

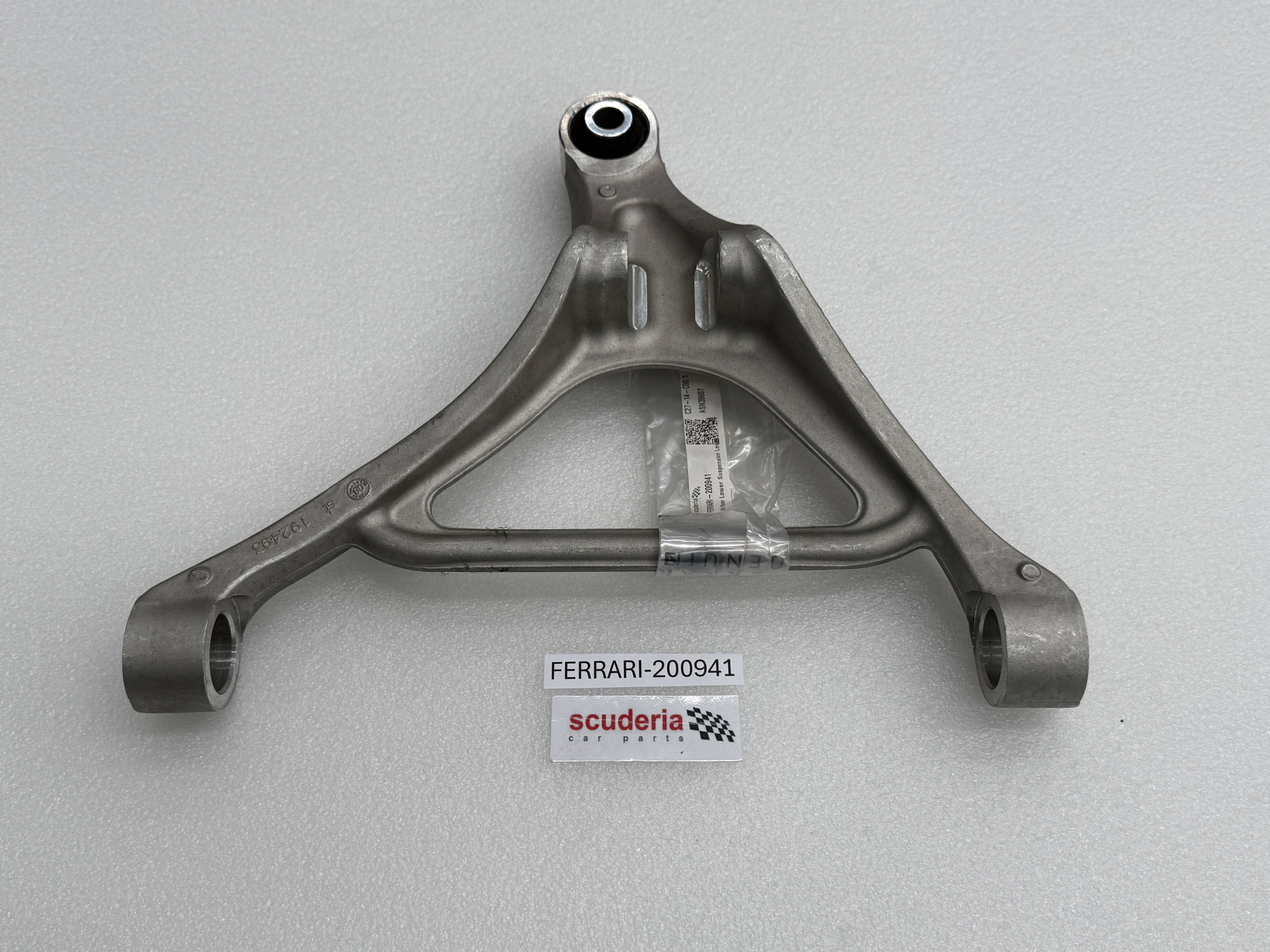

12 200941
RH Rear Lower Suspension Lever 		$666.06 (32.4% off) 1
13 179555
COMPENSATOR RING BUSHING
IN STOCK 		$5.29 (17% off) 2
14 171847
Rubber Boot And Clip
IN STOCK 		$119.21 (31.5% off) 4
15 179554
COMPENSATOR RING
IN STOCK 		$5.58 (16.5% off) 2
16 329184
FLANBLOC 		$152.13 4
17 181499
PLATE 		$95.35 4
18 12574521
Nyloc Nut
IN STOCK 		$0.81 (59.5% off) 8
19 126648
WASHER D.10.5-21 X 2
IN STOCK 		$1.67 (4.6% off) 8
20 181598
SCREW
IN STOCK 		$71.00 2
21 194791
Complete - Tie Rod 		$3,437.41 2
22 86768100
SCREW 		$0.44 6
23 1119474
WASHER 		- 6 Enquire
24 179556
BOLT FOR TRACK ROD JOINT
IN STOCK 		$48.92 2
25 13582271
INSERT
IN STOCK 		$6.93 (31.7% off) 8
26 204248
NUT 		$33.81 2
27 194794
ROD END FOR TIE-ROD
IN STOCK 		$423.85 (22.4% off) 2
28 203633
Upper Ball Joint 		$231.11 (1.4% off) 2
29 203632
Lower Ball Joint
IN STOCK 		$297.13 2
30 184241
HYSOL EA9360 ADHESIVE BALL JOINT GLUE
(50ml) 		$126.59 1
30 220607
THICKNESS
mm. 2-Possible fitting- 		$5.31 4
30 220608
THICKNESS
mm. 3-Possible fitting- 		$6.71 4
30 220609
THICKNESS
mm. 4-Possible fitting- 		$6.71 4
30 220606
THICKNESS
mm. 1-Possible fitting- 		$5.06 4
30 222484
THICKNESS 		$3.79 4
